Description
- Item Type: Speaker Active Components
- Model Number: DL3
- Package: Yes
- Material: Plastic
ITEM DESCRIPTION
SOH-DL3CH SOH-DL3C DL3CH DL3E DL3D Laser Len SOH-DL3E DL3EG SOH-DL3EG SOH-DL3G SOH-DL3GS DL3C DL3FS Laser Assy
MODEL NO . :
24PIN
DL3FS
DL3CH
DL3C
if your DL3 Laser Len is 24PIN and above model no ., you can choose DL3CH
23PIN
DL3E
DL3D
DL3G
DL3EG
If your laser len is 23PIN ,you can choose DL3D OR DL3E
ITEM PHOTOS

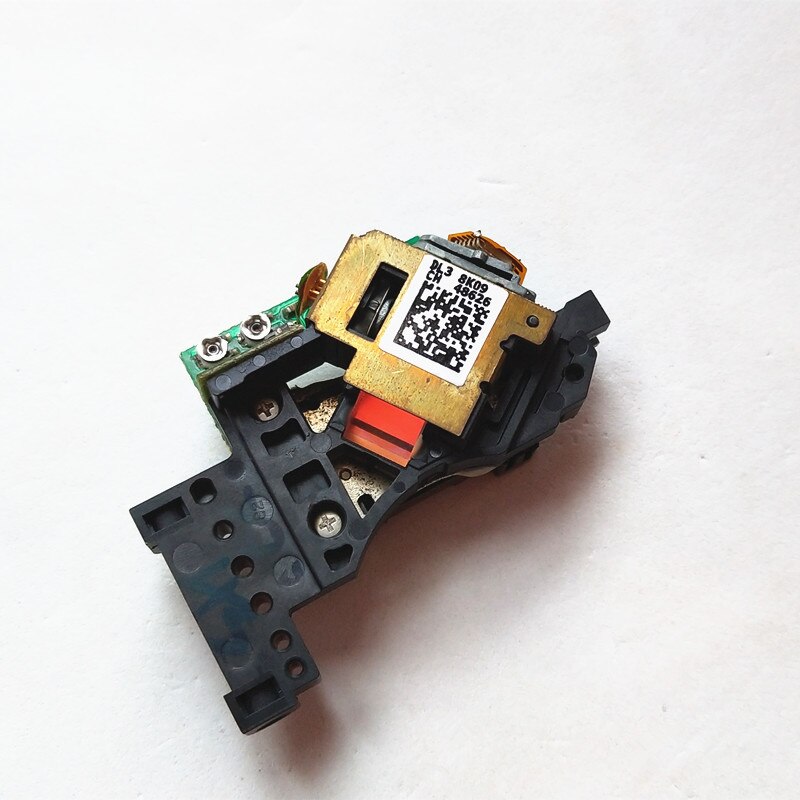

24PIN DL3CH

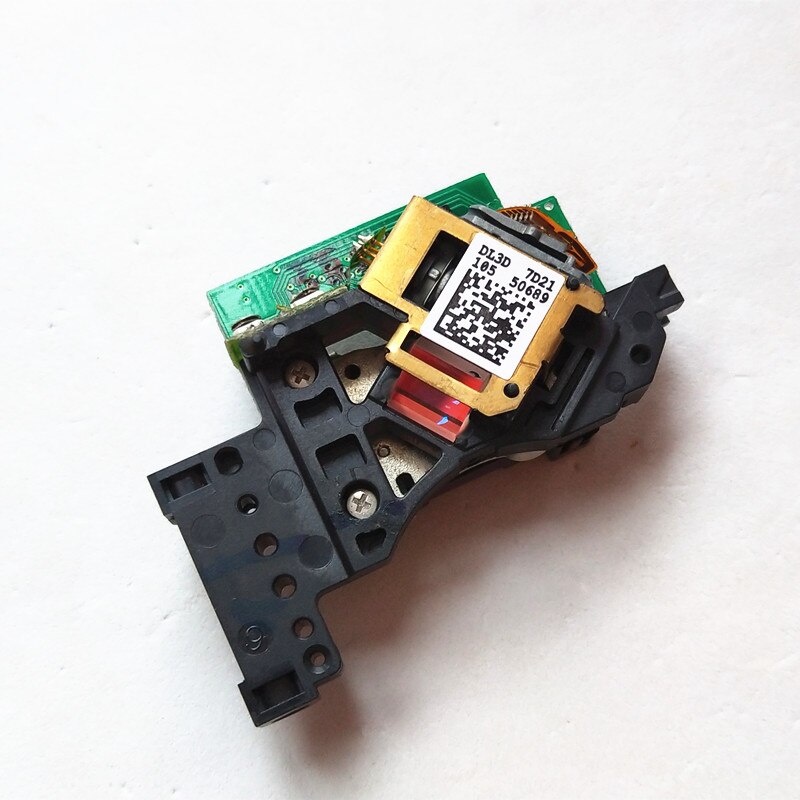

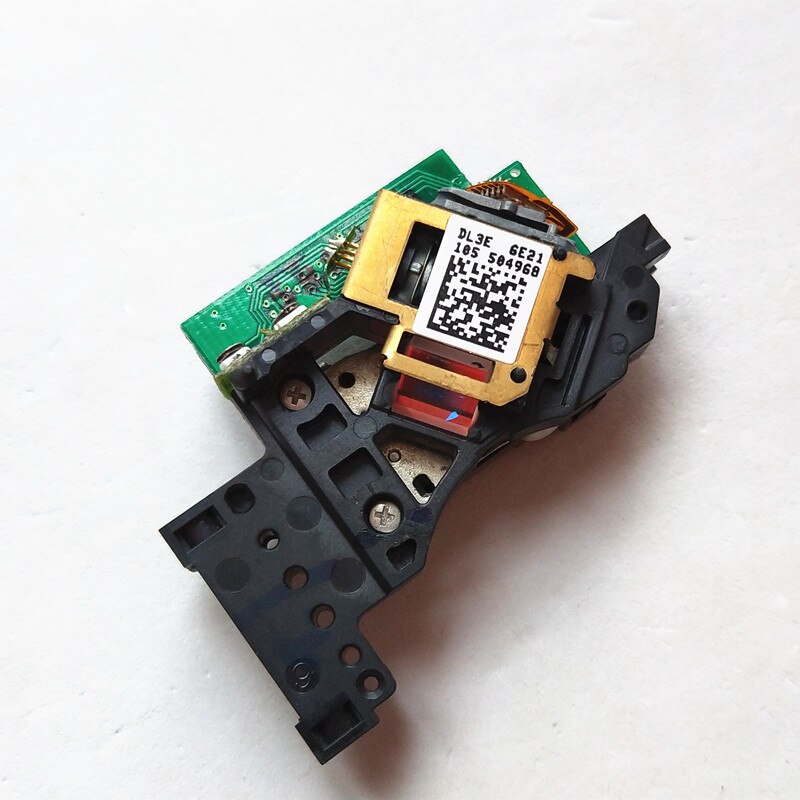

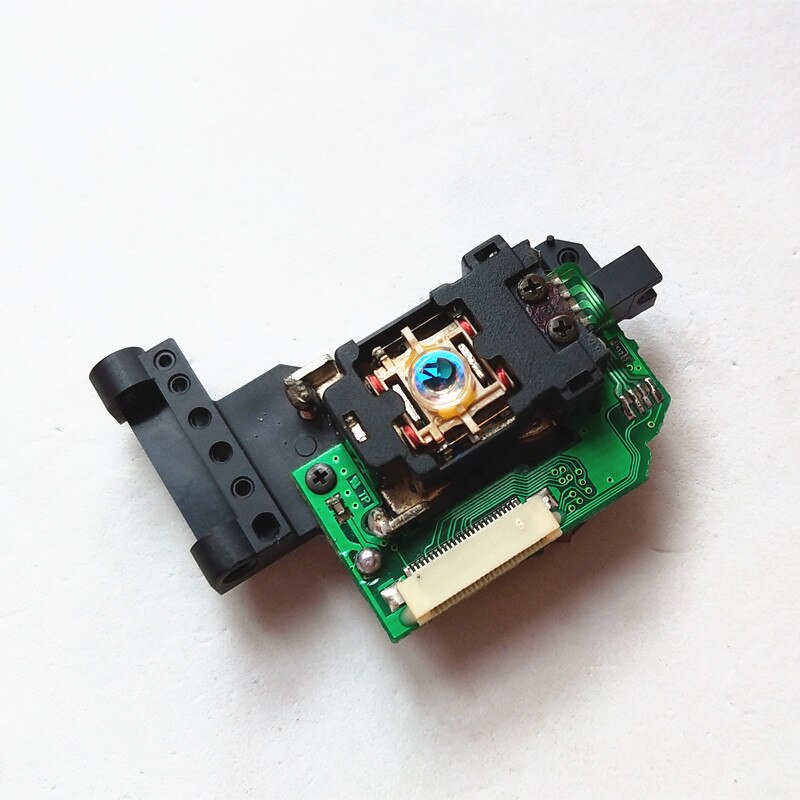

23PIN DL3D DL3E
HOW TO USE
* The components replaced must be completely the same models as the origanl &Professional operation only .
*The laser head have anti-static point to prevent static burn laser tube as a security measure. It’s better to wear an antistatic wrist strap or wash your hands
before welding and installation.
When using a high-grade anti-static soldering iron,you can remove the anti-static point directly,
ordinary iron requires special attention, heat iron to reached soldering temperature,then remember to turn off the iron’s power,
prevent static of iron burn laser tube, if you need,we can do it before ship.
*Recommedation tool: soldering iron
