Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Warranty: 1 year
- Customized support: OEM, ODM
- Place of Origin: Tianjin, China
- Brand Name: Nohawk
- Model Number: IND-F
- Size: 37x17x46.47mm
- Laser Type: LD (Laser Diode)
- Laser Wavelength: 650nm
- Ranging Principle: ITOF (Phase Shift)
- Ranging Scope: 0.05-80m/100m/120m
- Measuring Frequency: 5-10Hz/20Hz Software settable
- Ranging Resolution: 1mm or 0.1mm Software settable
- Ranging Accuracy: ± 2mm (≤10m); ± 2mm ± 0.05x (D-10m) (>10m D=Distance)
- Input Voltage: 3.4V (±0.1V)
- Communication Interface: UART
- UART Baud: 9600 bps
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px;border-collapse:collapse}#detail_decorate_root .magic-2{min-height:18px;padding:5px 10px;width:259px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-3{min-height:18px;padding:5px 10px;width:442px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-4{min-height:18px;padding:5px 10px;width:258.987px;box-sizing:content-box}#detail_decorate_root .magic-5{min-height:18px;padding:5px 10px;width:441.984px;box-sizing:content-box}#detail_decorate_root .magic-6{vertical-align:top}#detail_decorate_root .magic-7{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-8{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-9{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-10{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-11{margin-bottom:0}#detail_decorate_root .magic-12{position:relative;width:100%}#detail_decorate_root .magic-13{margin-bottom:10px;overflow:hidden}
1. Who are we? We are based in Tianjin, China, start from 2016, sell to North America(60.00%), Southeast Asia(10.00%),Mid East(10.00%), Eastern Asia(10.00%), Western Europe(10.00%). There are total about 51-100 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3. What can you buy from us? Laser Rangefinder/ Thermal imager/ Night vision/ Telescope/Laser distance measuring module 4. Why should you buy from us not from other suppliers? Our company has many years of research and development design ability, integrated distance measurement, angle measurement, altimetry function, and developed the Bluetooth communication function of rangefinder and mobile phone breakthrough. 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU, Express Delivery,DAF,DES； Accepted Payment Currency: USD,EUR,CNY; Accepted Payment Type: T/T,L/C,D/P D/A; Language Spoken: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.

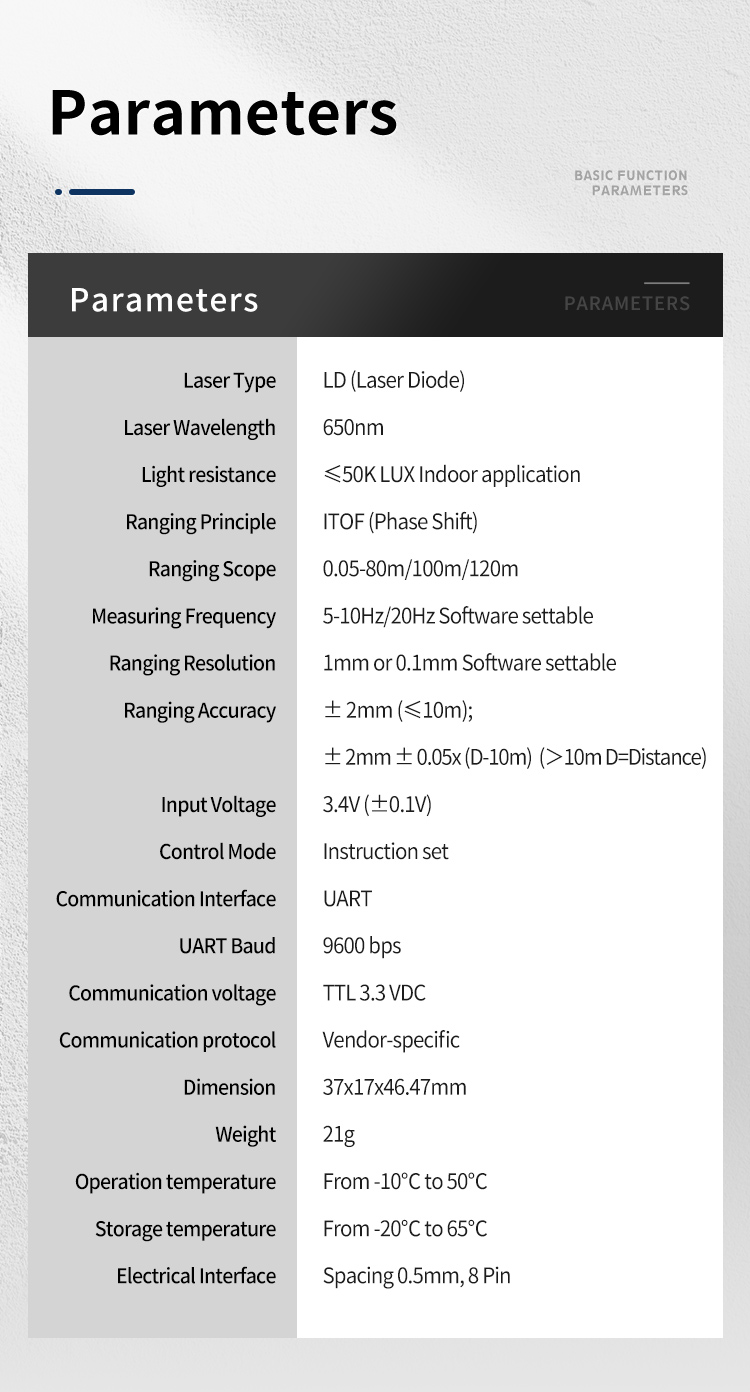

Specification
|
Laser Type
|
LD (Laser Diode)
|
|
Laser Wavelength
|
650nm
|
|
Ranging Principle
|
ITOF (Phase Shift)
|
|
Ranging Scope
|
0.05-80m/100m/120m
|
|
Measuring Frequency
|
5-10Hz/20Hz Software settable
|
|
Ranging Resolution
|
1mm or 0.1mm Software settable
|
|
Ranging Accuracy
|
± 2mm (≤10m); ± 2mm ± 0.05x (D-10m) (>10m D=Distance)
|
|
Input Voltage
|
3.4V (±0.1V)
|
|
Communication Interface
|
UART
|
|
UART Baud
|
9600 bps
|
|
Communication voltage
|
TTL 3.3 VDC
|
|
Communication protocol
|
Vendor-specific
|
|

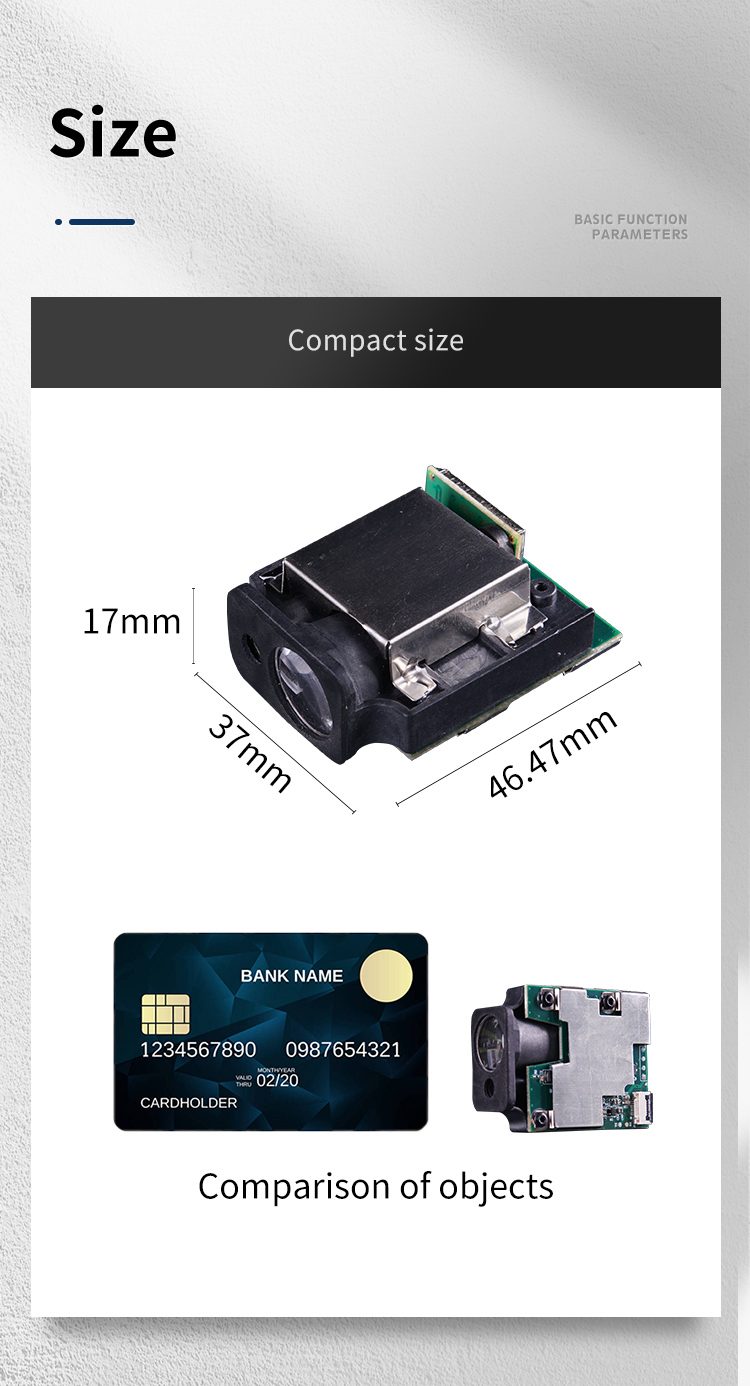

Dimension
|
37x17x46.47mm
|
|
Weight
|
21g
|
|
Operation temperature
|
From -10℃ to 50℃
|

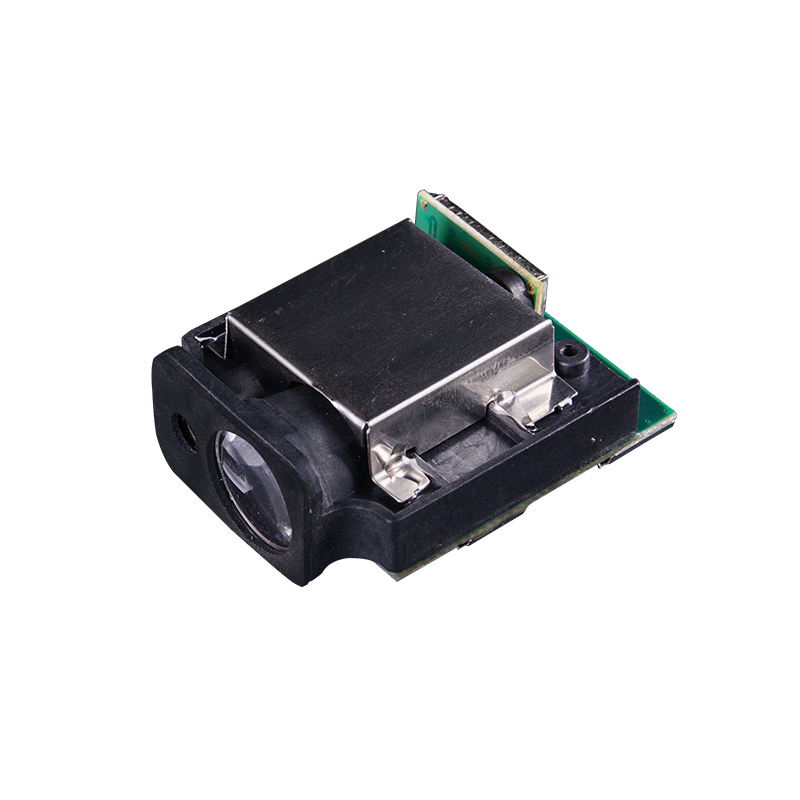

Product Description

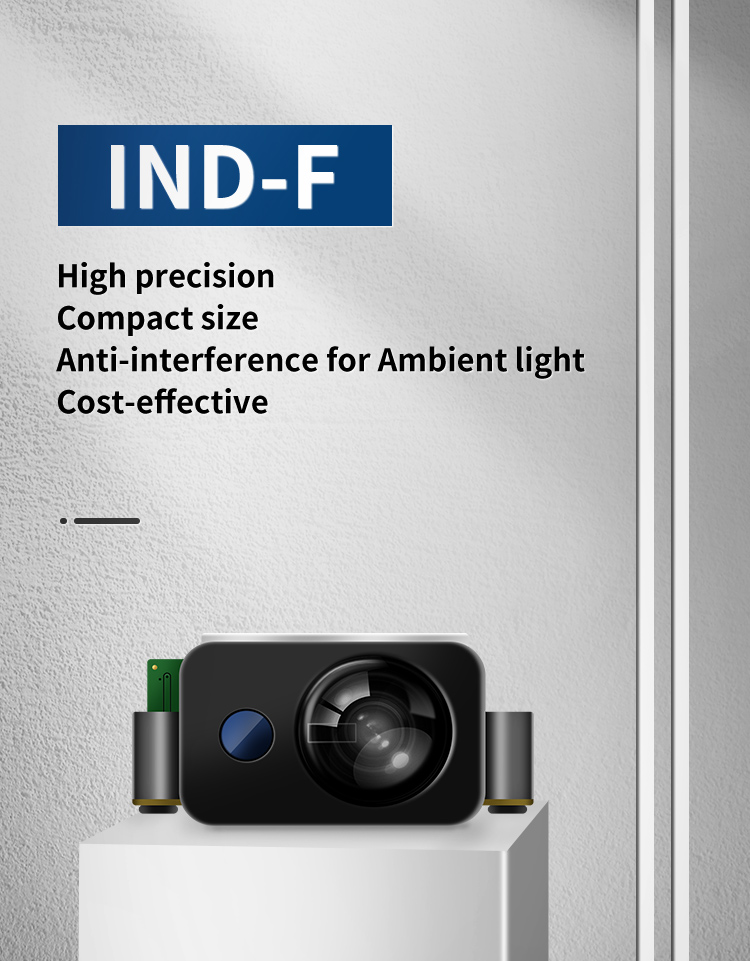

1. Features： High precision Stable performance Compact size Flexible installation Easy integration 2. Application： Construction engineering safety monitoring, Industrial automation equipment, Machine tool equipment, Power & Electronic Equipments , Marine machinery, Mining equipment, Rail Transit, Industrial buildings, etc. 3. Customized items: a. Ranging Scope b. Communication Interface c. Structure design
