Description
- Brand Name: ACCTEK
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: AK30C
- CNC or Not: CNC
- Is Smart Device: No
- work size: 100*100mm/200*200mm/300*300mm
- Cooling Mode: Air Cooling
- Marketing Type: New Product 2021
- Laser generator: Synrad/ Beijing Davi/ CRD
- laser power: 30W/60W/100W
- Operation system: Windows XP and win7,win8,win10
- MOQ: 1 set
- Software: EZCAD
- Computer system: Win 7/8/10
- suit materials: all the metal and some nonmetals
- Marking head: SINO-GALVO Scanner head
- Wavelength: 10.64um
- other work size: 600*900mm, 1300*900mm, 1300*2500mm etc…customized work size

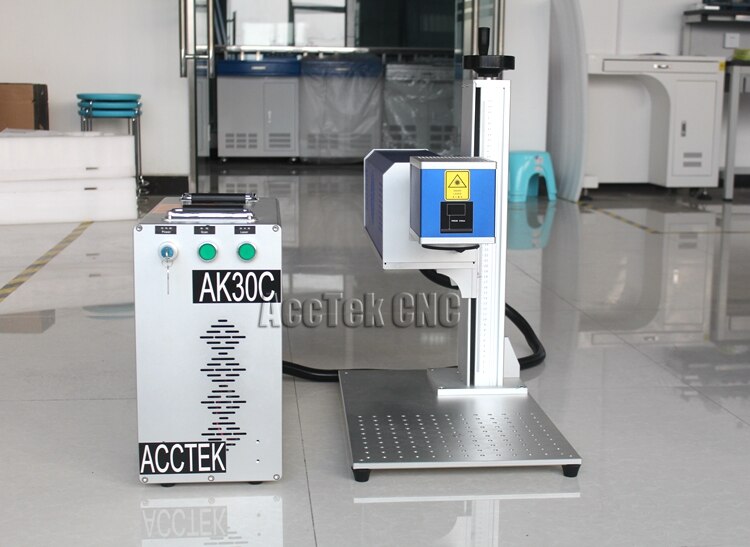

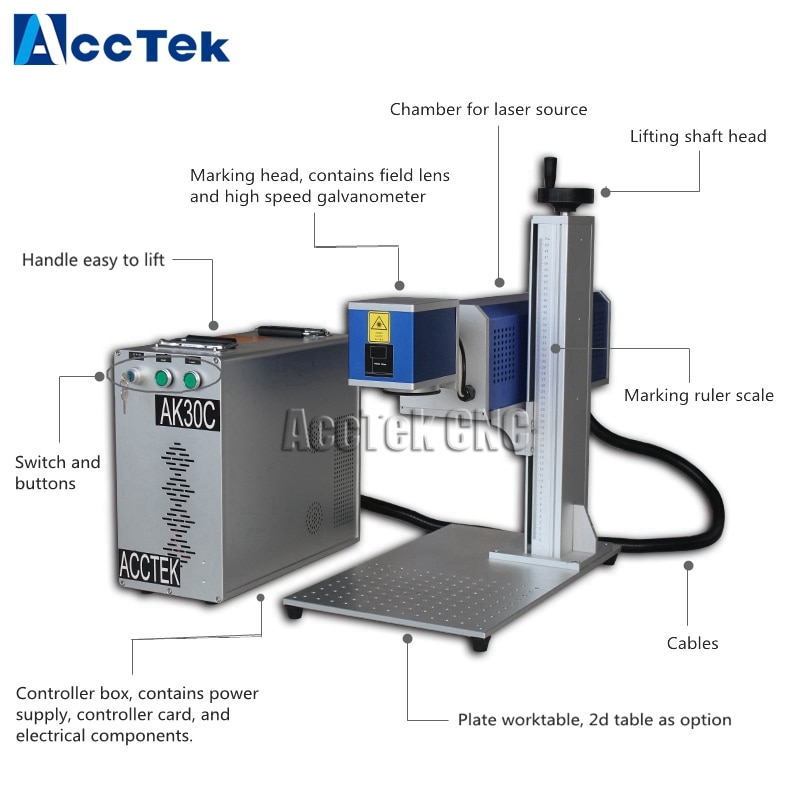

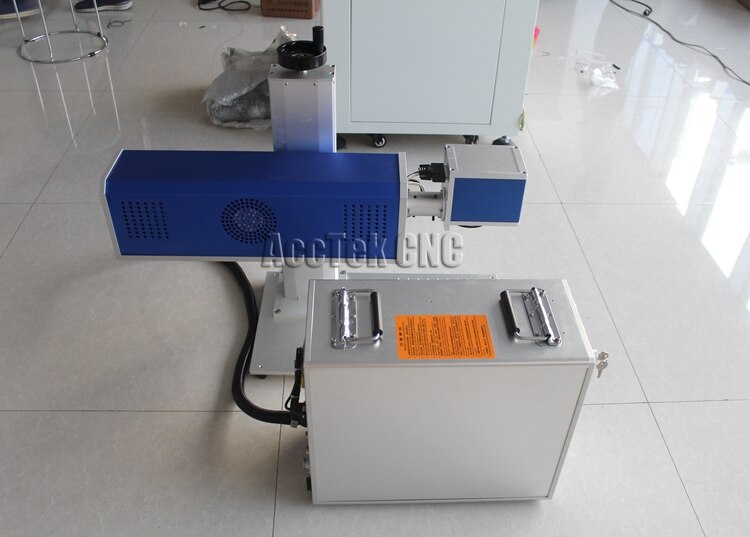

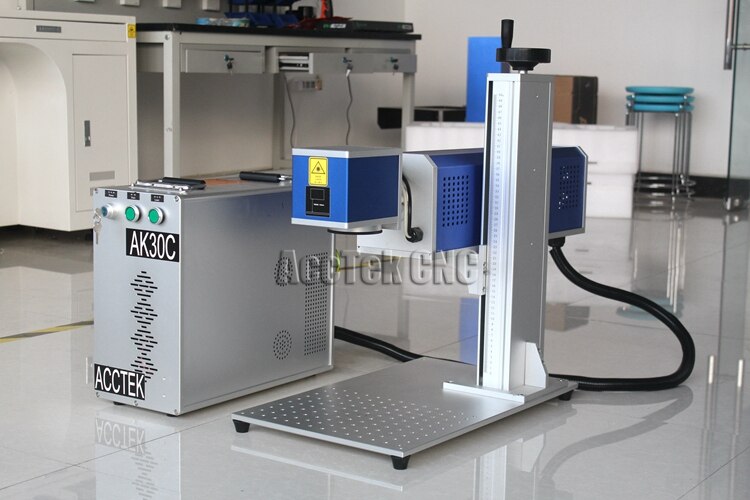

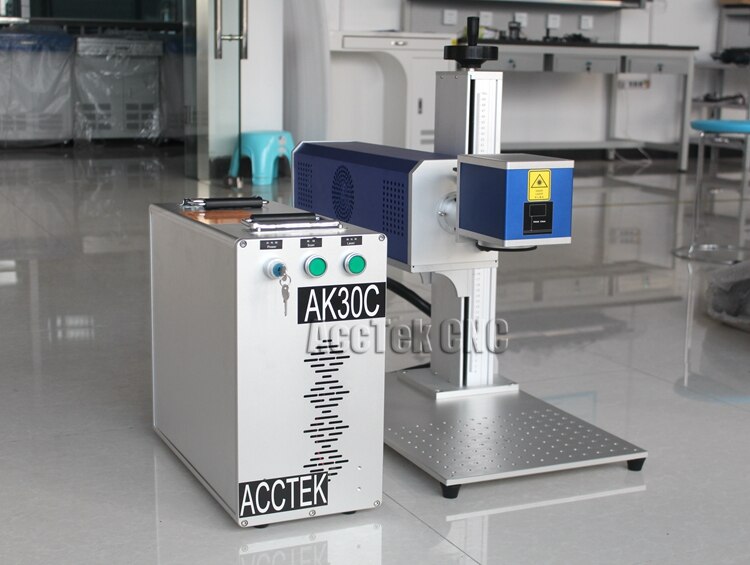

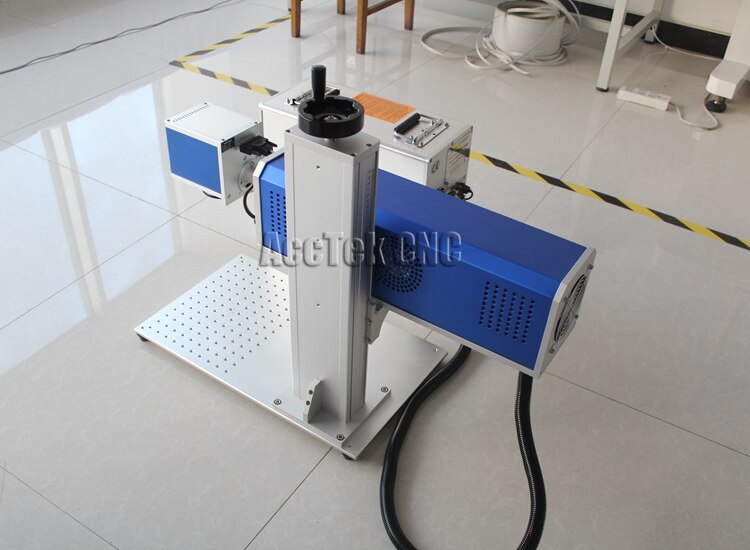

Small Co2 RF 10W 30W 50W 100W Laser Marking Machines With Conveyor Belt Portable Design Laser Marker Co2
Advantages of Portable Design Laser Marker Co2
1. High cut/engrave speed
This series machine adopts advanced Galvo scanning system. The cutting/engraving speed can reach 7000mm/s. Fulfill the request of factory mass production.
2. Precise process
With US RF metal laser tube, this machine has finest laser beam, to cut and engrave very precisely. Especially when you cut paper card, the cutting edge is very smooth and thin.
(Chinese Beijing Davi, CRD metal laser tube for optional, more affordable option)
3. Forever lasting marking
Laser is non contact process, there is no distortion. As laser marking is to gasify the surface of material, the marking will laser forever.
4. Flexible process
You just need to change design in software, then all different size/shape pattern can be realized. It is very convenient for sampling or changing products. No need cost for template.
5. Easy operation
Adopting integrated structure with Auto focusing technology and humanized operation design. Making the laser marking as easy as printing.
# Rotary attachment for engraving cylinder.
# CCD camera for scanning. (cyclops)
Parameters of Portable Design Laser Marker Co2
|
1 |
Model |
AK10C/ AK30C/AK60C/AK100C ,co2 laser marking machine |
|
2 |
Laser Power |
10W/ 30W /60W RF metal Tube |
|
3 |
Working Area |
100*100mm/ 200*200mm /300*300mm |
|
4 |
Laser Wavelength |
10.64μm |
|
5 |
Response Time |
0.5ms |
|
6 |
Frequency of Pulse |
20KHz |
|
7 |
Max Marking Depth |
0-3mm |
|
8 |
Marking Speed |
0-7000mm/s |
|
9 |
Minimum Line Width |
0.1mm |
|
10 |
Minimum Character |
0.1*0.1mm |
|
11 |
Repeatability Accuracy |
±0.002mm |
|
12 |
Resolution Ratio |
0.1mm |
|
13 |
Graphic Format Supported |
bmp,jpg,gif,png,,ai,dxf,dst,plt,etc. |
|
14 |
Unit Power |
≤2KW |
|
15 |
Power |
220V/110V, 50/60Hz |
|
16 |
Cooling Method |
Air cooling |
Applications:
It is mainly used for nonmetal, it can suitable for coconut,plastic, wood, paper, mdf, pvc, glass,
Craft gifts, leather garments, advertisingsigns,model making,food packaging, electronic components,
pharmaceutical packaging,medicine packaging, printing plate, shell plate etc.
With Keyboard Laser marker,Glass laser marker,Arts laser marker, bath ware laser marker,
building ceramics, beverage packaging, textile cutting, rubber products, shell plate, electronic
components, leather and other industries.

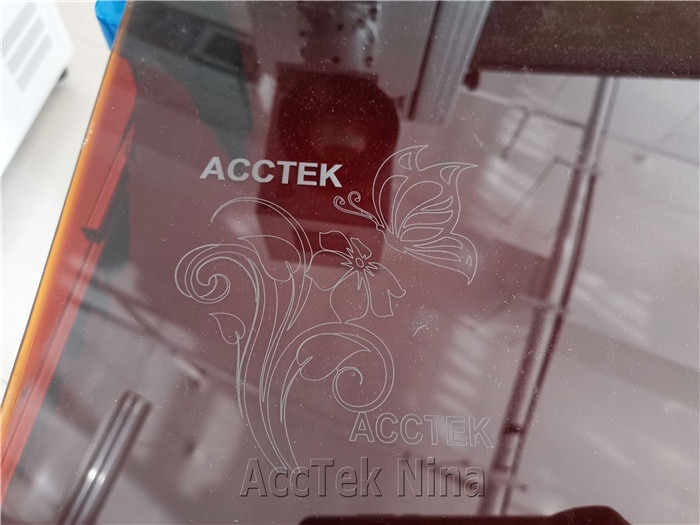

Samples:
