Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Model Number: 69476
- Type: USRP Development Board
- Place of Origin: Guangdong, China
- Brand Name: TZT
- Product Name: USRP Development Board
- Weight: 0.22kg
- Color: Green
- Size: 9 x 6 x 1.5cm/3.5 x 2.4 x 0.6″
- DC voltage input: 5V
- Warranty: 1year

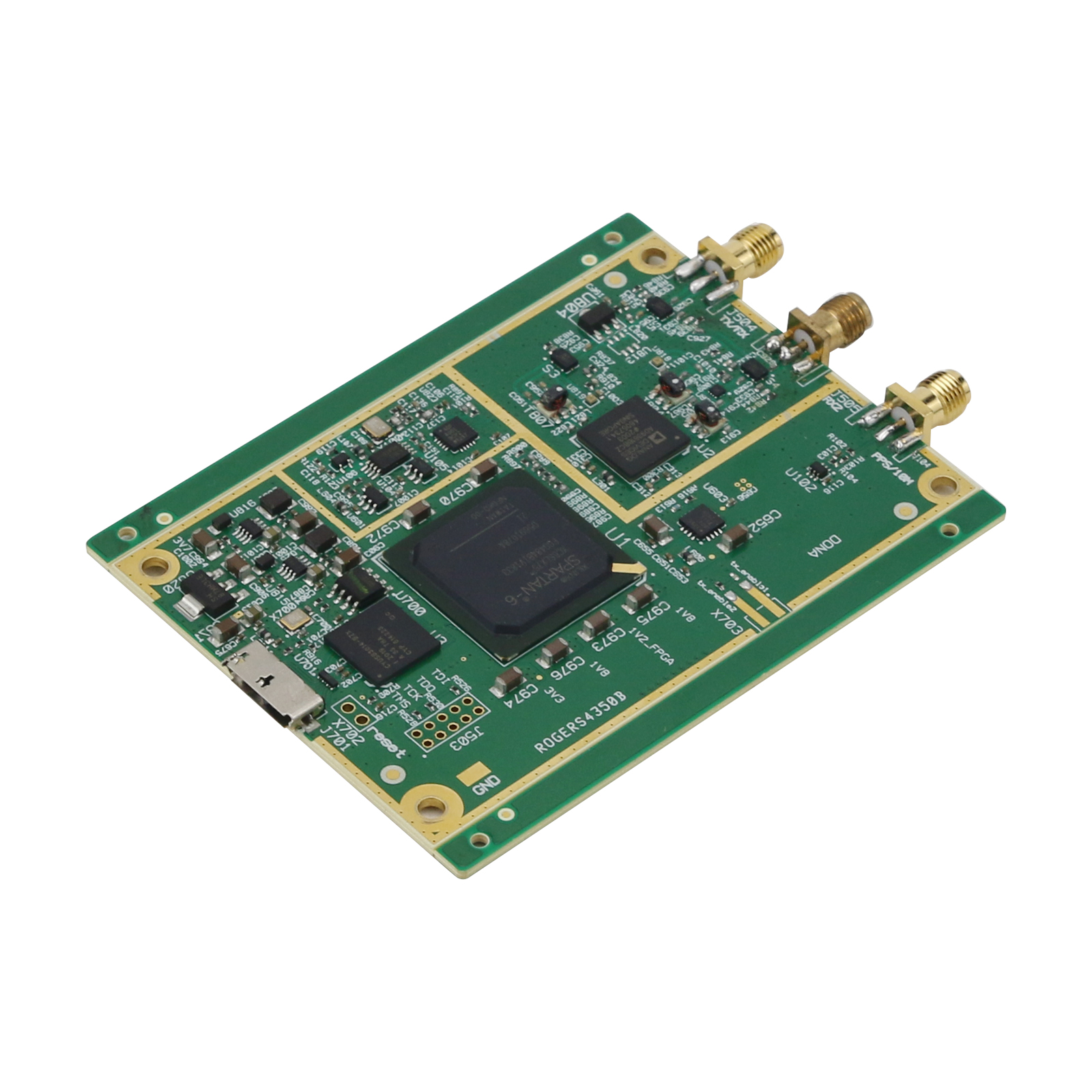

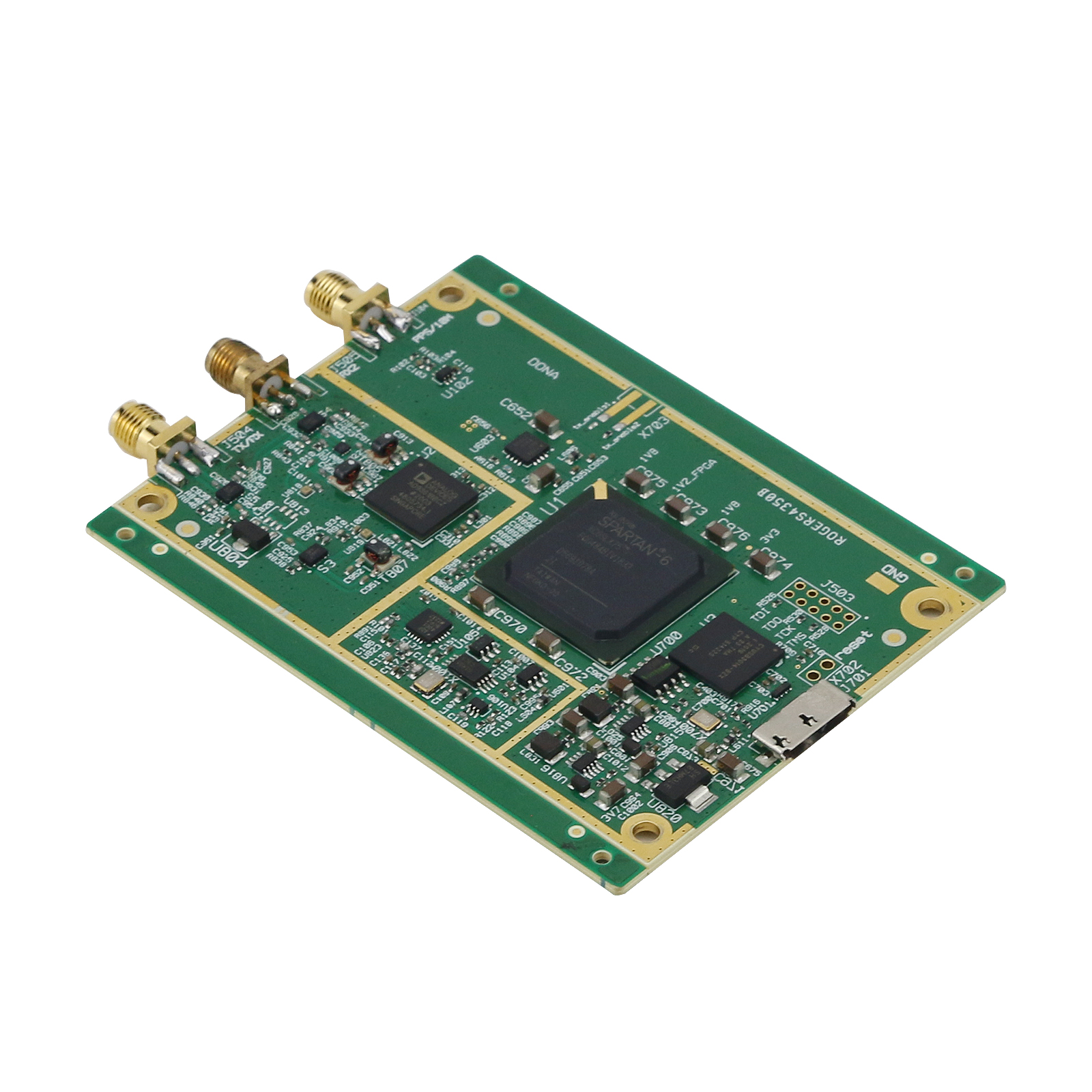

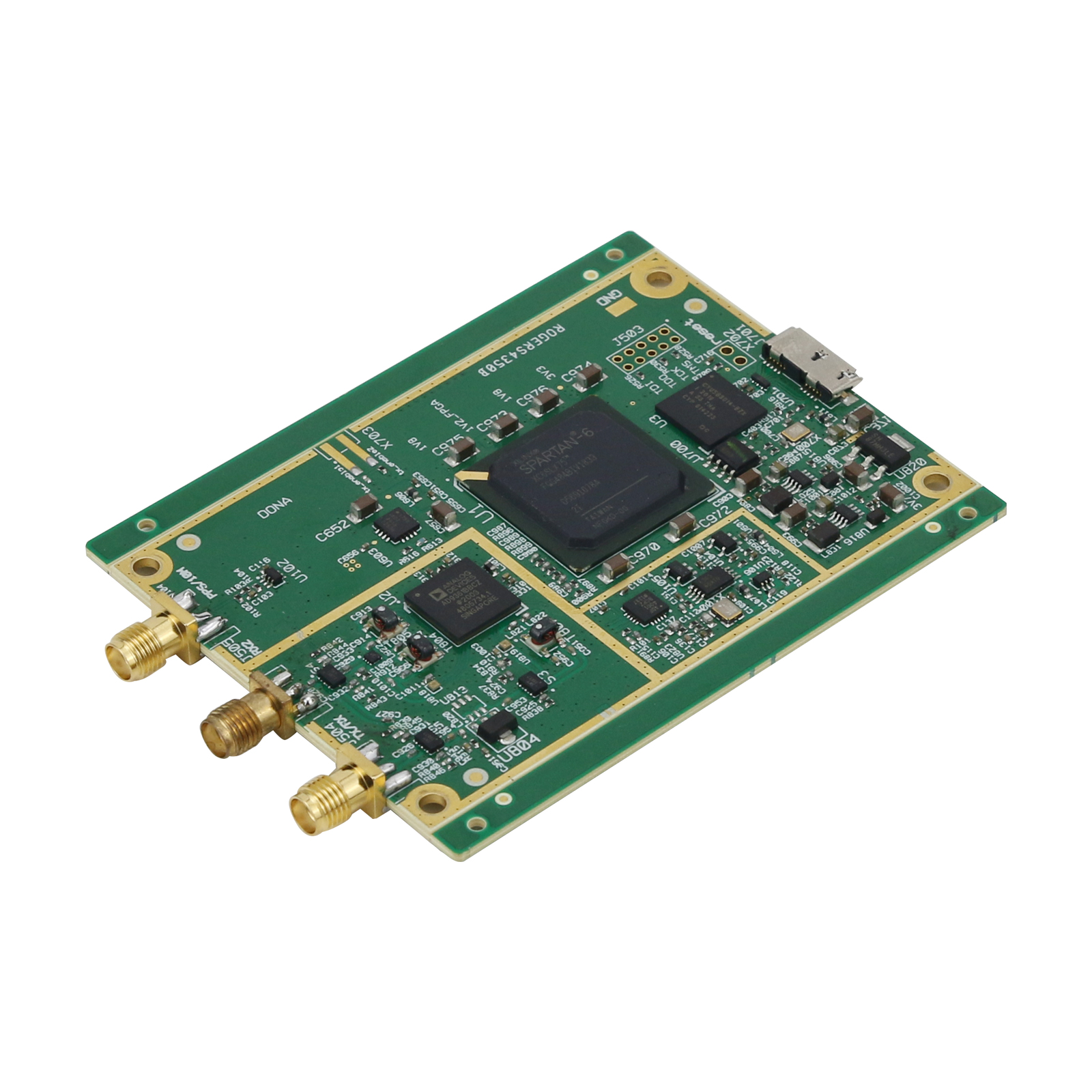

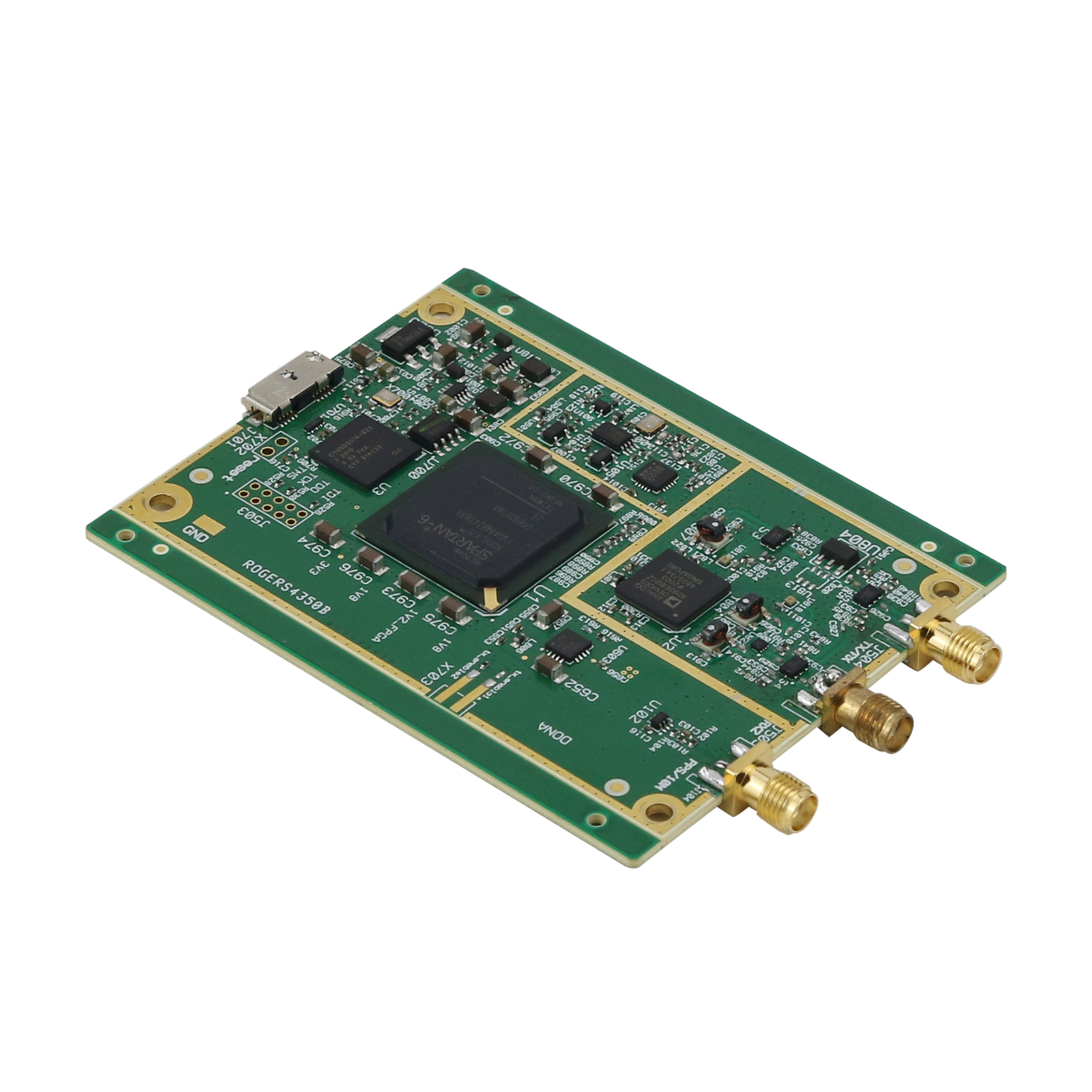

Small B200 SDR Board USRP Development Board Support UHD Alternative For Ettus Imported B200/B210Mini

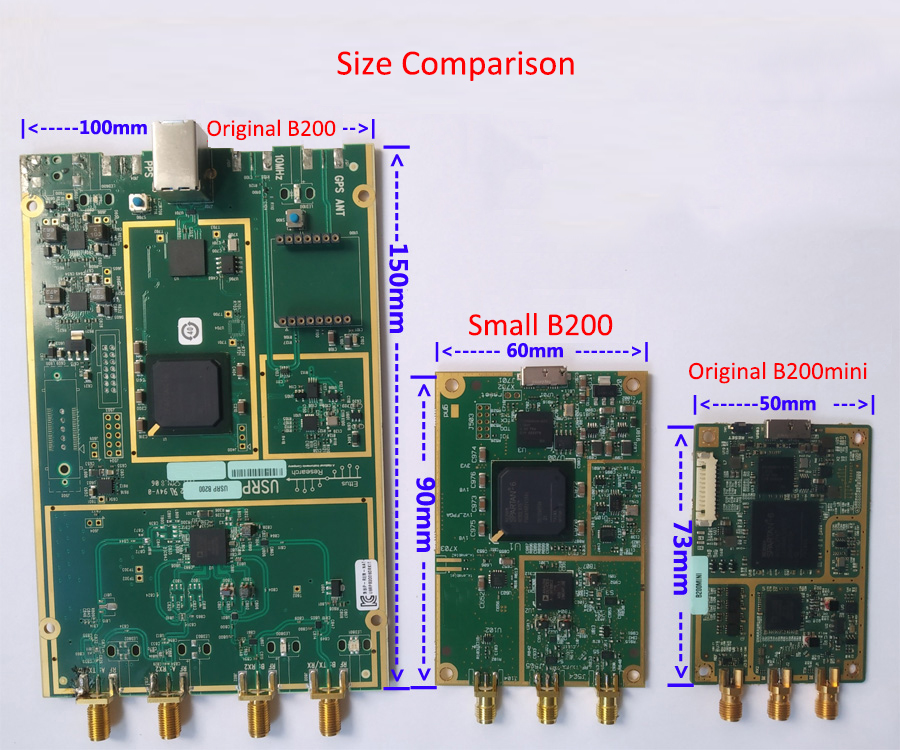

Comparison:
– Small B200 is more reasonable and compact than B200 structure layout.
– Small B200 is better than B200mini in RF electromagnetic compatibility.
– Stability of Small B200 is better after long time testing.
Description:

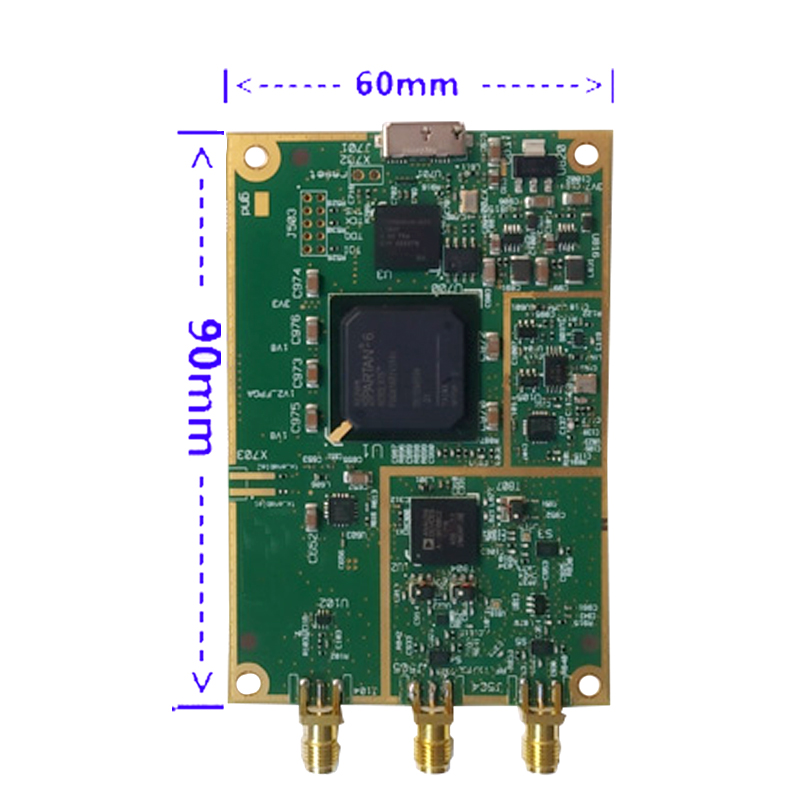

This Small B200 boasts the performance index consistent with the imported version, and its stability is better. Small size 90 x 60mm/3.5 x 2.4″.
Features:
– Its performance indicators are consistent with the imported version, and its stability is better
– Using industrial-grade chips, supporting temperature range -40 to 85℃
– Highly integrated, radio frequency ranges from 70MHz-6GHz
– Support maximum real-time bandwidth 56MHz, 61.44MS/s reference sampling rate
– Support high-speed USB 3.0 connection, for Windows and Linux

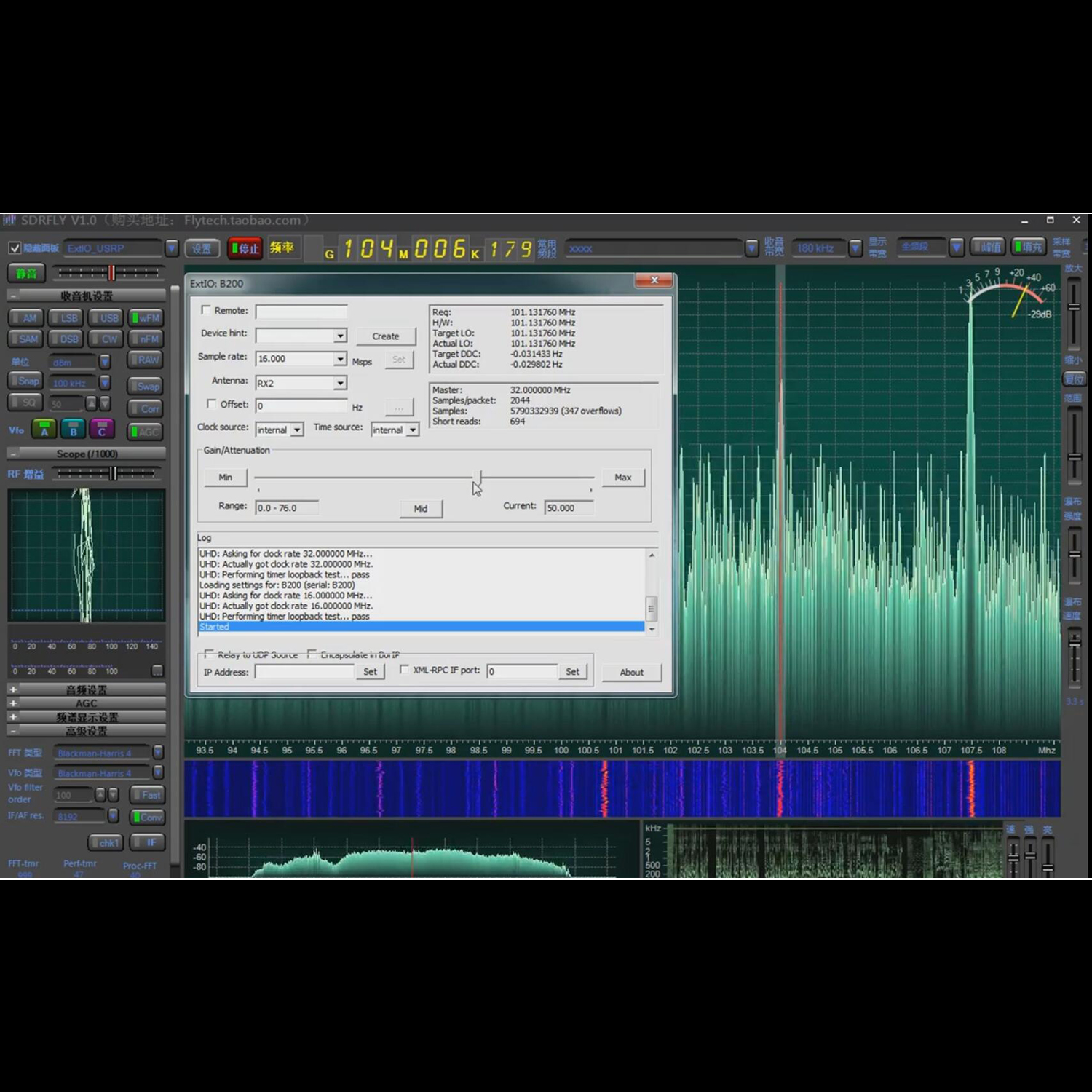

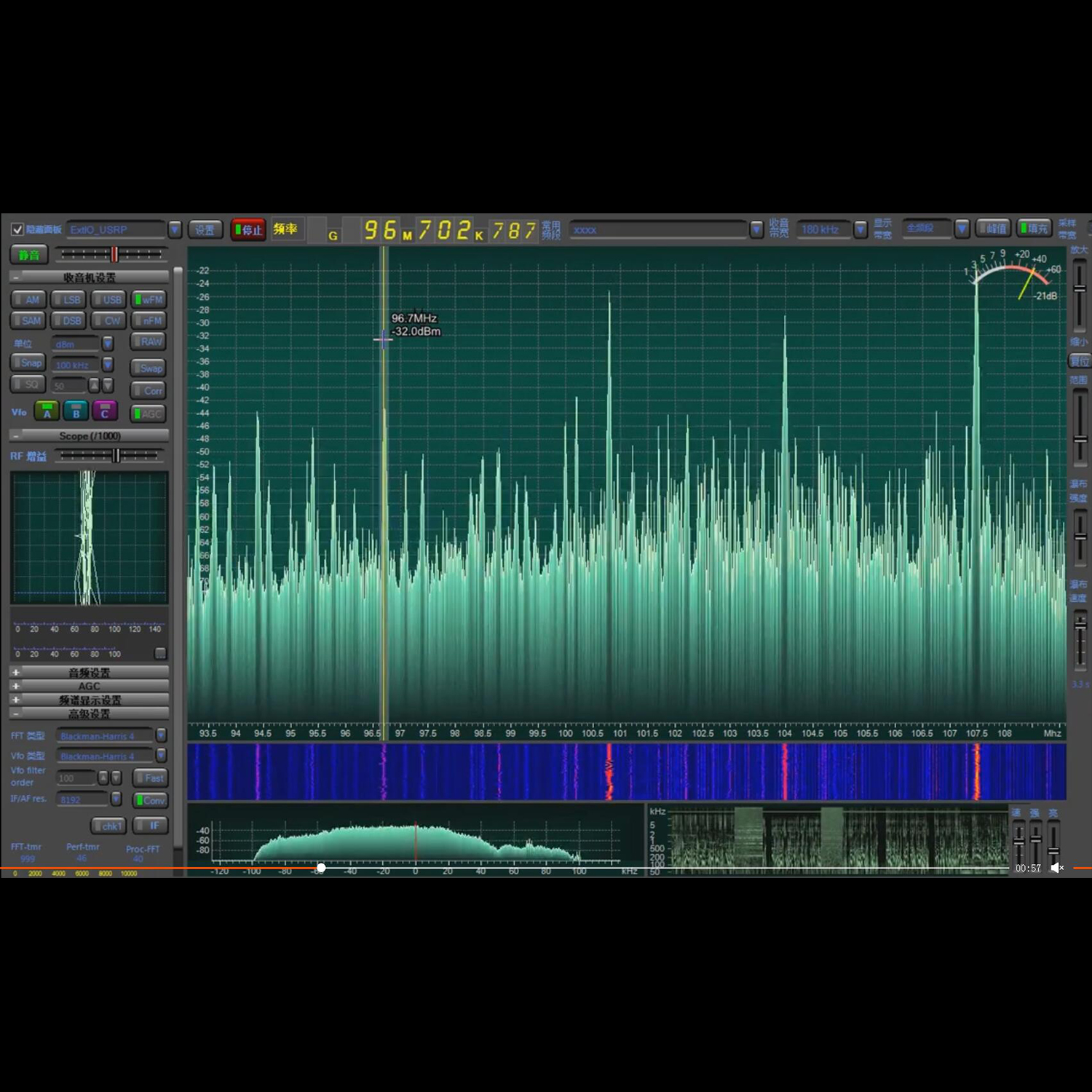

– Open source UHD supports multiple frameworks and open source programs
– User-programmable XC6SLX75 FPGA for Spartan 6
– Adopt 12-bit AD9361 RFIC chip
Parameters:
Input/Output:
– DC voltage input: 5V
Conversion Module Parameters:
– ADC sampling rate (maximum): 61.44MS/s
– ADC resolution: 12bits
– ADC SFDR: 78dBc
– DAC sampling rate: 61.44MS/s
– ADC resolution: 12bits
– Maximum rate with host (16b): 61.44MS/s
– Local oscillator accuracy: ±2.0ppm
– Unlocked TCXO accuracy: ±7.5 ppm
Single-Channel RF Performance Parameters:
– Single sideband signal/image rejection: -35/50dBc
– 3.5GHz: 1.0degRMS
– 6GHz: 1.5degRMS
– Output power: >10dBm
– Input third-order intercept point: -20dBm
– Noise figure: <8dB
Physical Attributes:
– Size: 9 x 6 x 1.5cm/3.5 x 2.4 x 0.6″
– Product weight: 150g

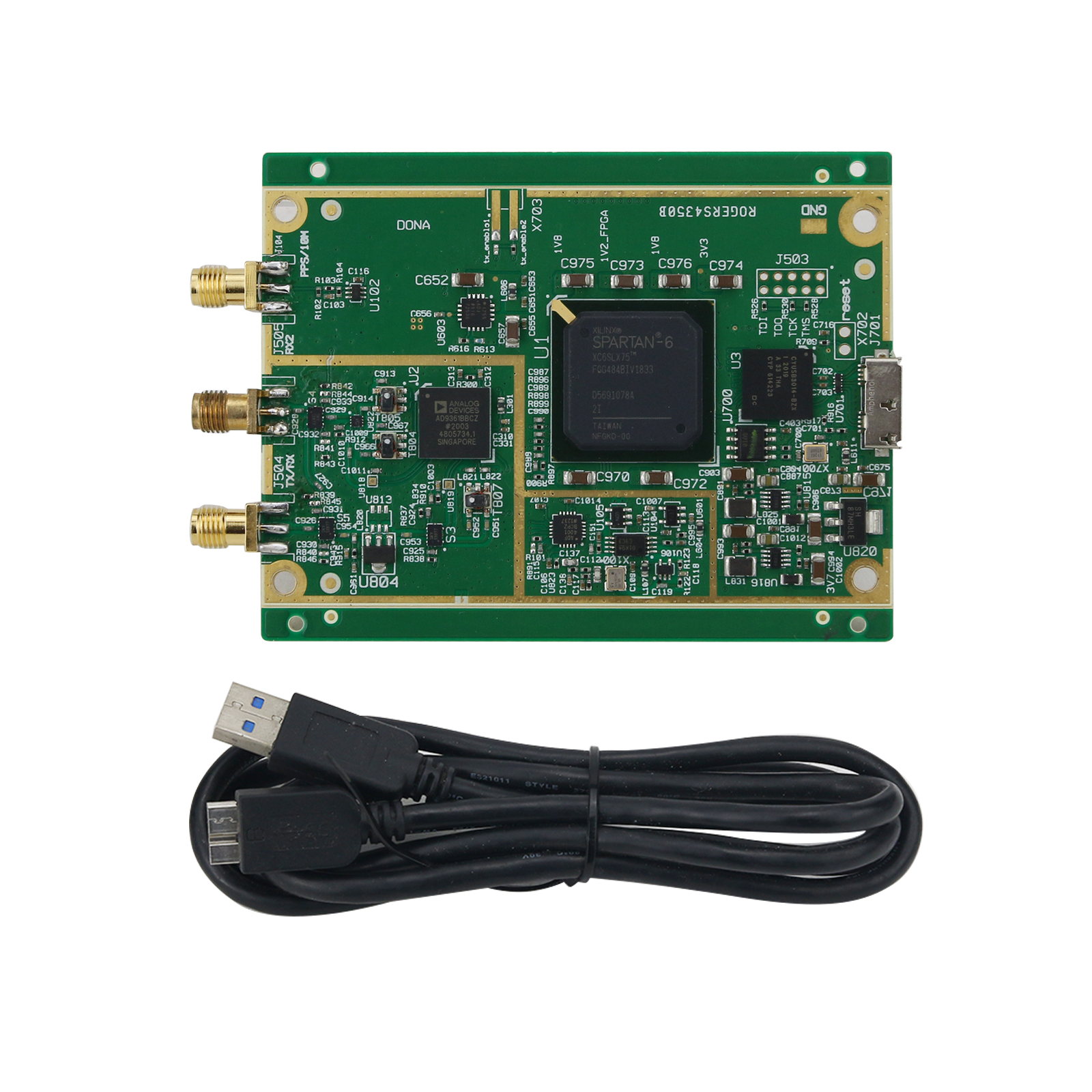

Package Included:
– 1 x SDR RF Development Board
Note:
– Other boards pictured are not included, for demonstration purposes only. Thank you for your understanding!
