Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Place of Origin: China
- Brand Name: Dongrun
- Model Number: MLSS-99
- Product name: Sludge Concentration Meter
- Measurement range: 0-50g/l
- Precision: <5%
- Response time: 1s(adjustable)
- Cable length: 10m-100m
- Temperature range: 0℃-40℃
- Probe size: 60mm,L 192mm
- Simulation data output: 4-20MA,max 750Ω
- Digital data output: MODBUS/RS485 /RS232
- Dimensions: 210mm*185mm*105mm(h*w*l)

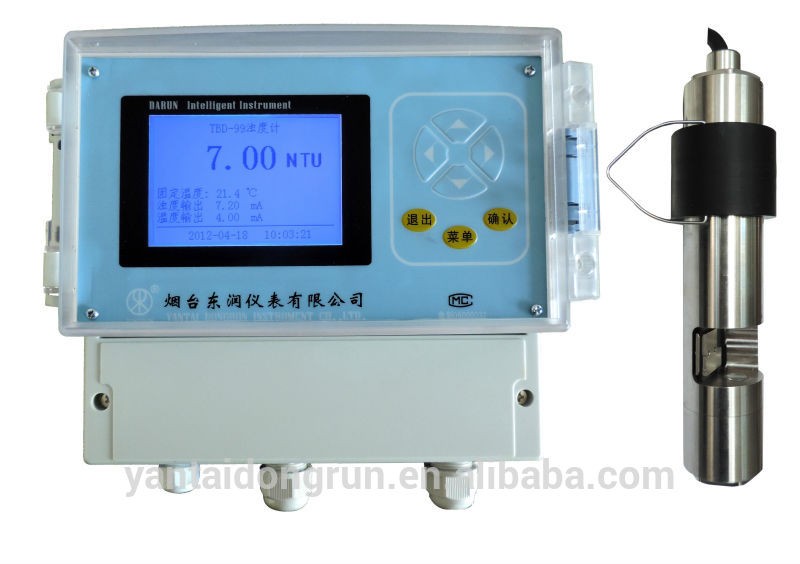

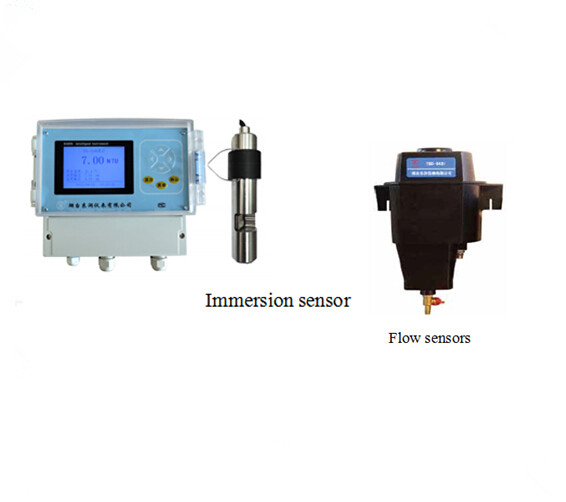

Sludge concentration mlss meter analyzer Waste water process Turbidity/Sludge concentration Meter Analyzer
SUPER SEPTEMBER DISCOUNTING-DEEP DISCOUNTING!!!
Sludge Concentration Meter: IMPORTED FROM JAPAN, THE COMPLAINT RATE IS ZERO !
1.Adjust single beam light source, 90 degree and 140 degree scattered light detection,measurement range very wide,you can detect the turbidity and suspended solids concentration
2.Automatic cleaning the blade, you can realize the probe cleaning without manualing work.
3.It can compensate the water color, measuring numerical will no effect by water quality color
4.Measuring method suitable for large range automatic conversion
5.Digital sensors, signal processing integrated in the sensor, greatly improves the measurement reliability and stability
6.Optical band pass filter and modulate excitation light effectively avoid the influencing from environment
7.Large screen English menu display, can display the history trend curve
8.The optional MODBUS RTU or RS485 and 4-20mA analog signal output

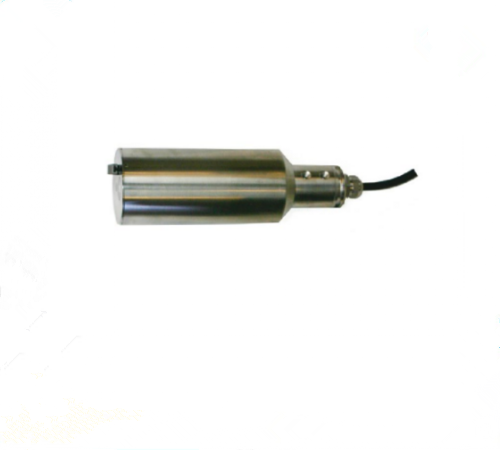

Sludge Concentration Meter : Probe parameters
|
Turbidity |
Suspended solid concentration |
|
|
range |
0.01-4000FNU/NTU |
0-50g/l |
|
Precision |
< 1% of measure value or ±0.01FNU/NTU |
<5% |
|
Reproducibility |
<1% |
<4% |
|
Response time |
1s(adjustable) |
|
|
Current Speed |
MAX 3M/S |
|
|
temperature |
0℃-40℃ |
|
|
pressure |
4bar |
|
|
probe size |
Φ60mm,L 192mm |
|
|
probe weight |
1.5KG |
|
|
cable length |
10m-100m |
|

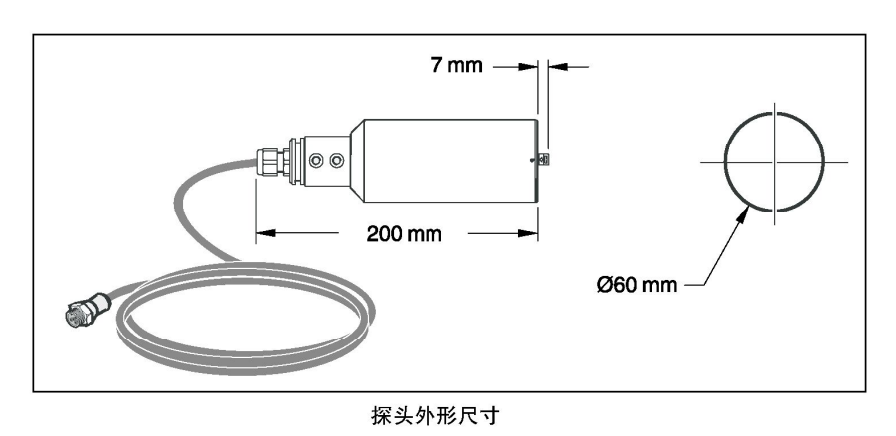

Probe dimension
Sludge Concentration Meter: Transmitter parameters
|
Simulation data output |
4-20MA,max 750Ω |
|
Digital data output |
MODBUS/RS485 MODBUS/RS232 |
|
Output relay: |
two alarm system |
|
Reading frequency |
0.5s |
|
power |
90-265 VAC,50/60Hz OR 24VDC |
|
Protection grade |
IP65 |
|
install way |
wall hanging |
|
size |
210mm*185mm*105mm(h*w*l) |

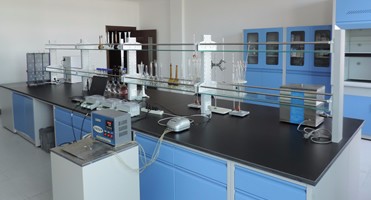

Dongrun Instrument Science and Technology Co., Ltd. was founded in 1998, specializes in manufacturing online water quality analysis equipment, material level meters, pressure gauges, special temperature gauges and laboratory analysis equipment.
