Description

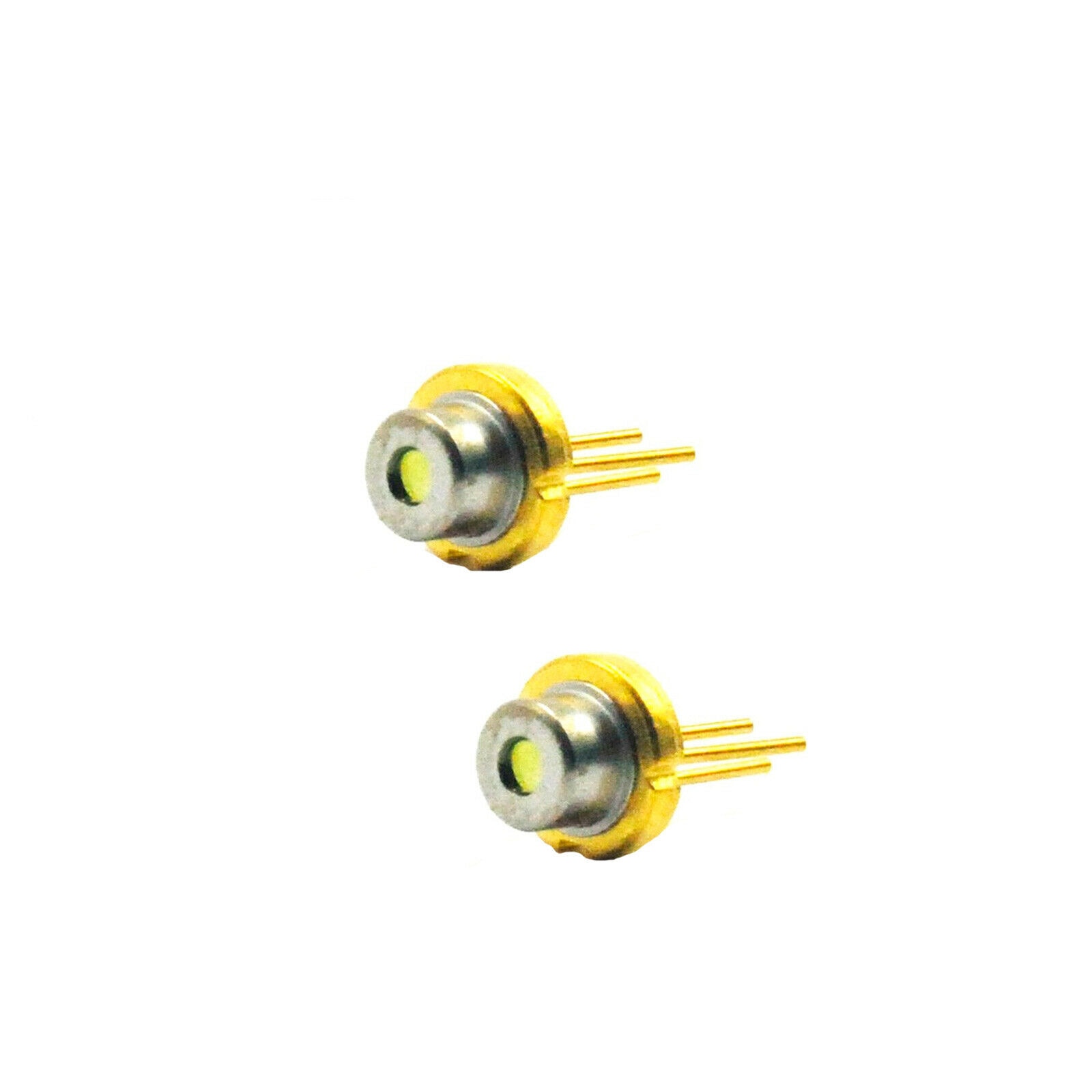

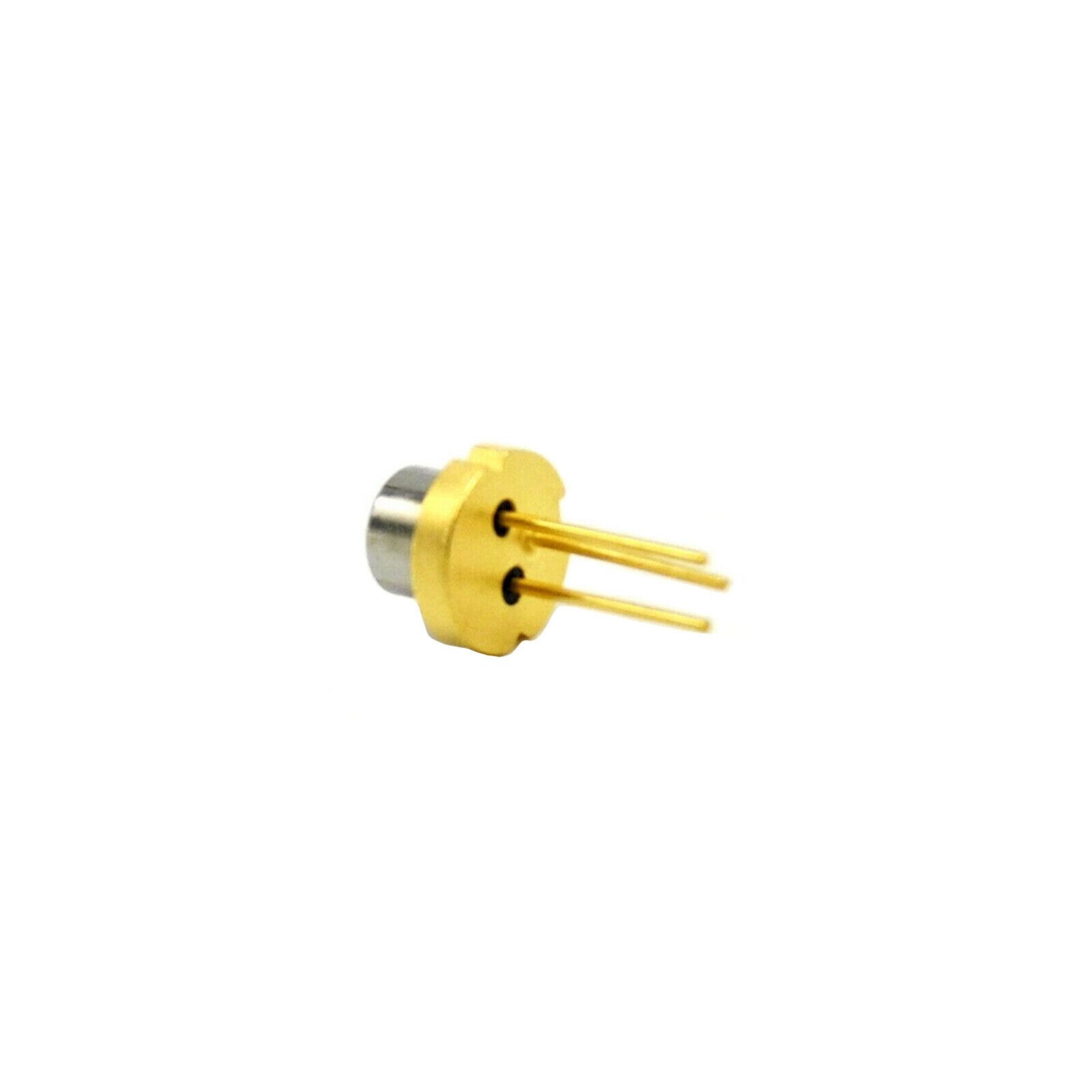

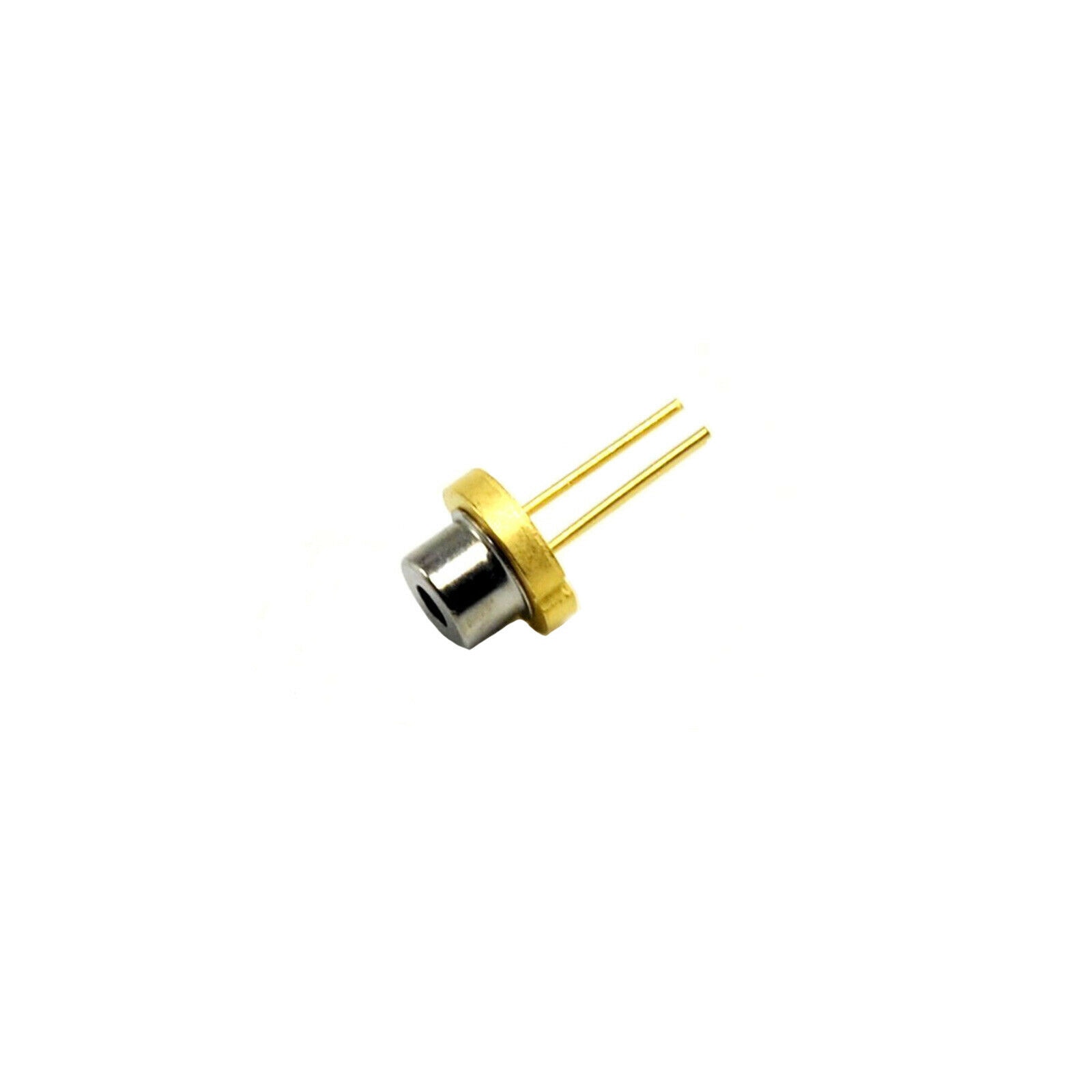

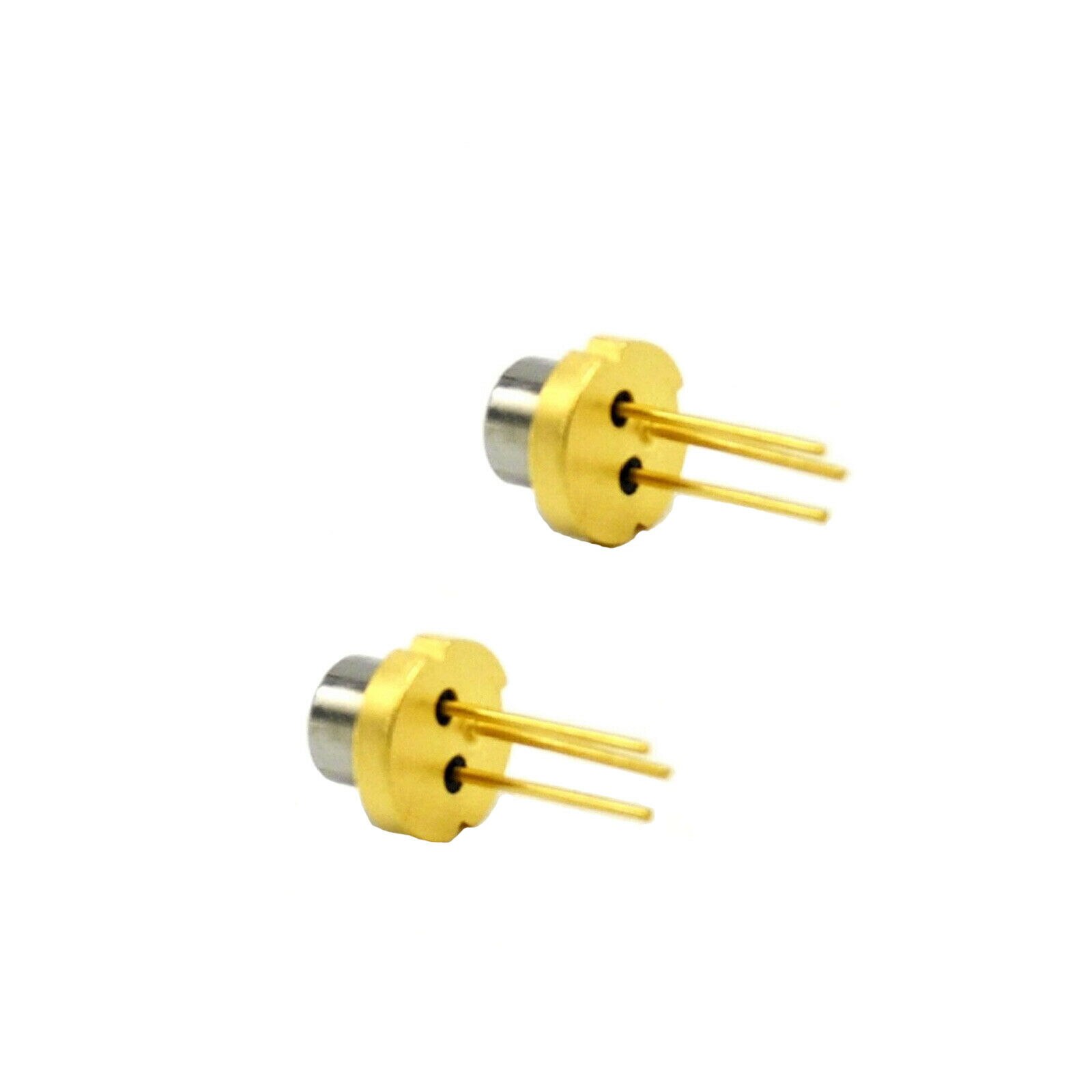

SLD3237VF 405nm 200mW CW 400mW Violet/Blue 5.6mm Semiconductor Laser Diode
- Brand Name: Q-LINE
- Origin: JP(Origin)
- Model Number: 2pcs SLD3237VF Laser Diode
- Item Type: Laser Flashlight
400mW 高出力半導体レーザーダイオード
『SLD3237VF』 (φ5.6mmパッケージ)
『SLD3237VFR』(φ3.8mmパッケージ)
Parameter
Note: If you need the data, please contact us!
Features:
Model:SLD3237VFR
Output power: CW 200mW
Pulse power: 400mW
Operating Current: Max 260mA
Operating voltage: <5.5V
Package: 5.6mm TO-18
Operating temperature: 10℃~ 70℃
Storage temperature : – 40℃~ 85℃
Working life: more than 10,000 hourss
Mode: Single-mode laser diode
Details:
Application: Laser beauty, Laser medical treatment, laser modules, stage Laser Lighting, laser pointer, laser flashlight, laser projector, laser positioning, laser sight, and a variety of laser devices and products.
Package
2pcs 405nm Violet-Blue 200mW CW 400mW Pulse 5.6mm Laser Diode SLD3237VF
