Slamtec RPLIDAR S1M1 360 degree Scanning Radius LIDAR TTL UART Sensor Scanner Works well both in indoor and outdoor environment

$533.50

500 in stock

SKU: 1005004796376023 Category:

Description

  • Brand Name: smartfly
  • Origin: Mainland China
  • Compatibility: All Compatible
  • State of Assembly: Ready-to-Go
  • Certification: CE,FCC
  • Model Number: S1M1

For downloading the Tools, Driver and Firmware use the following link:

https://youyeetoo.com/blog/prlidar-lidar-s1m1-ld0009-109

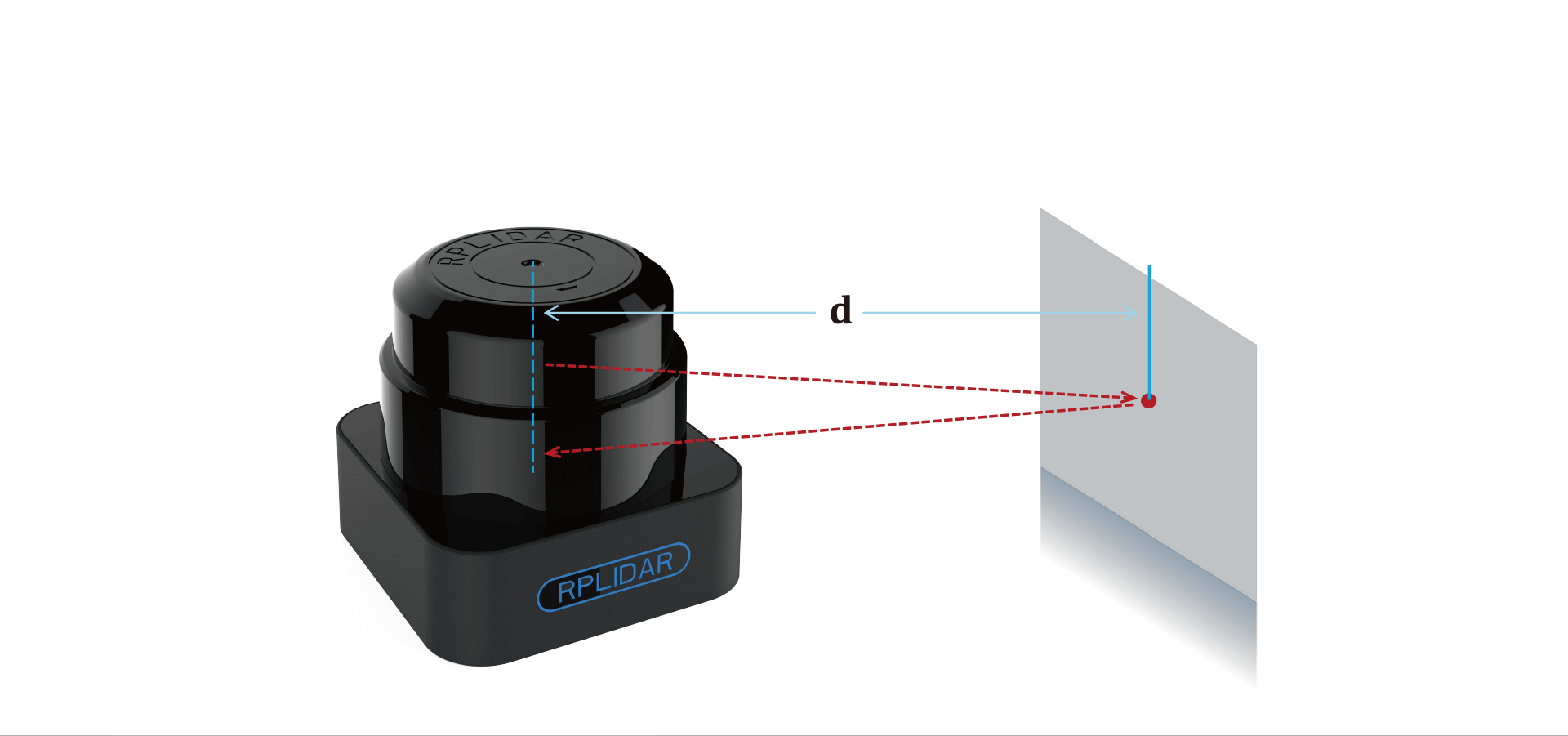

TOF Ranging Method

RPLIDAR S1 adopts TOF(Time of Flight) ranging technology, which guarantees the

ranging resolution not changing with distance. Even within a longer distance, the

ranging resolution is still stable and accurate.

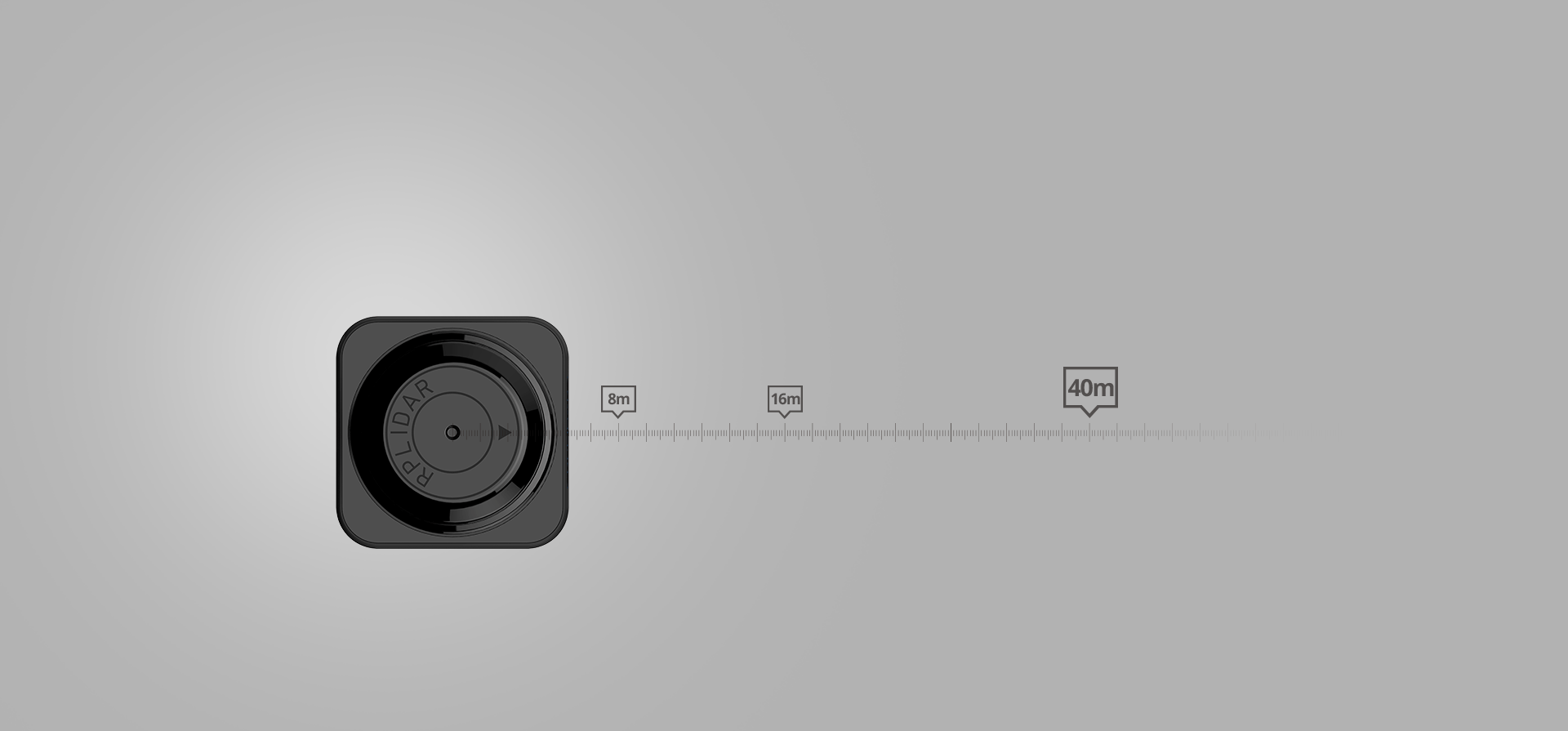

40 Meters Range Radius

The ranging radius of RPLIDAR S1 is up to 40 meters, which meets more

application requirements in larger scenarios.

Resistance to Strong Daylight, Outdoor Available

Effectively avoiding the strong daylight interference, RPLIDAR S1 has a stable ranging and

high-resolution mapping performance in outdoor environment.

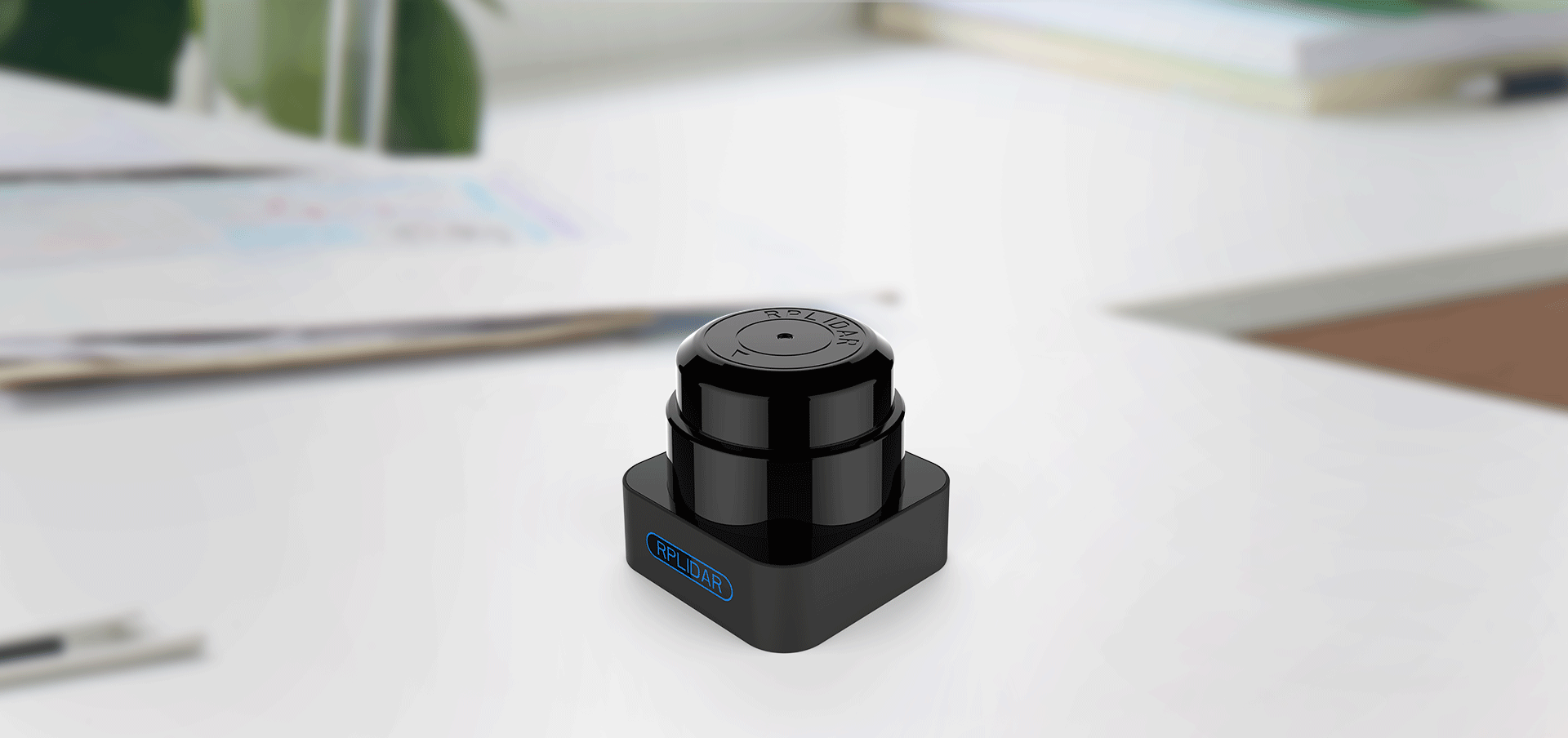

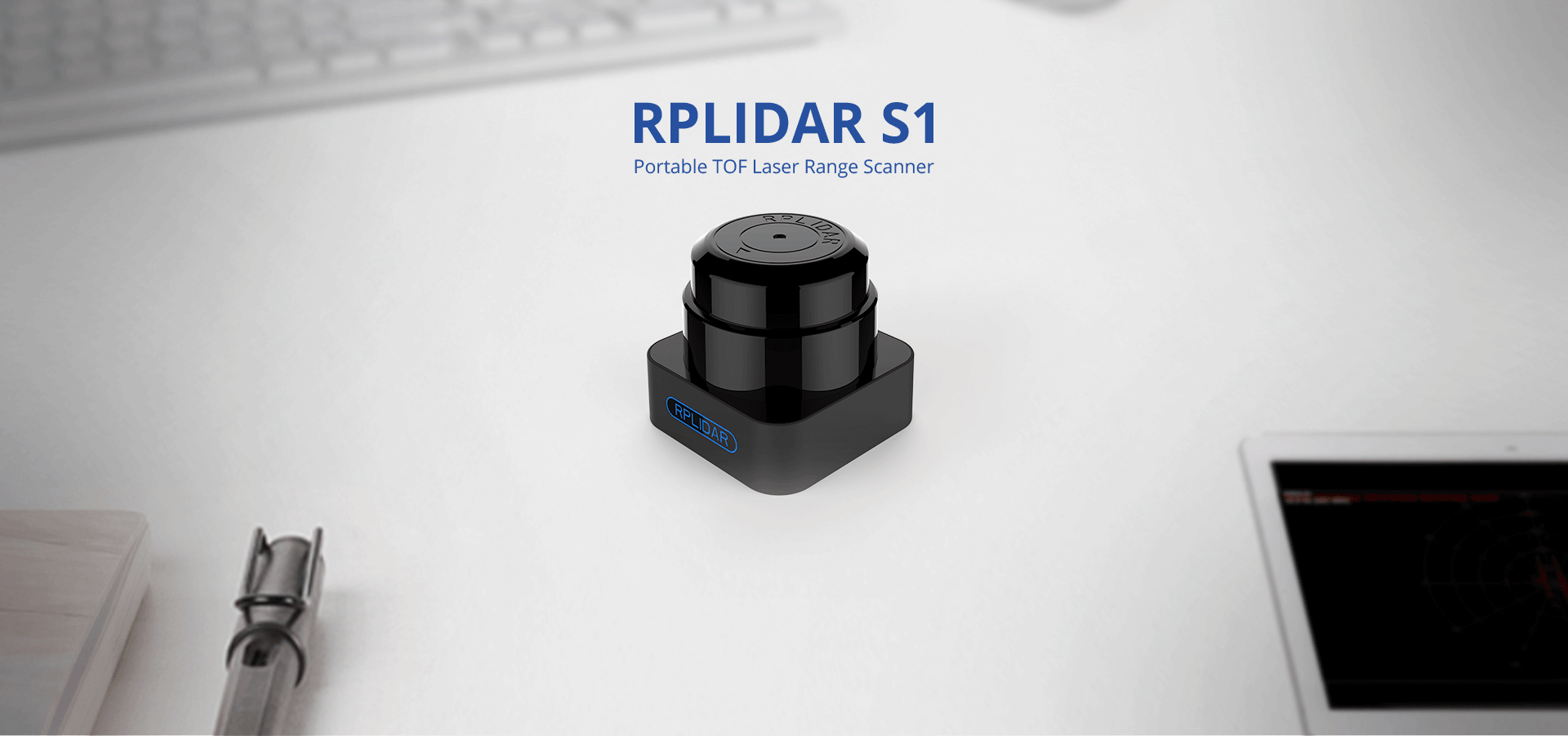

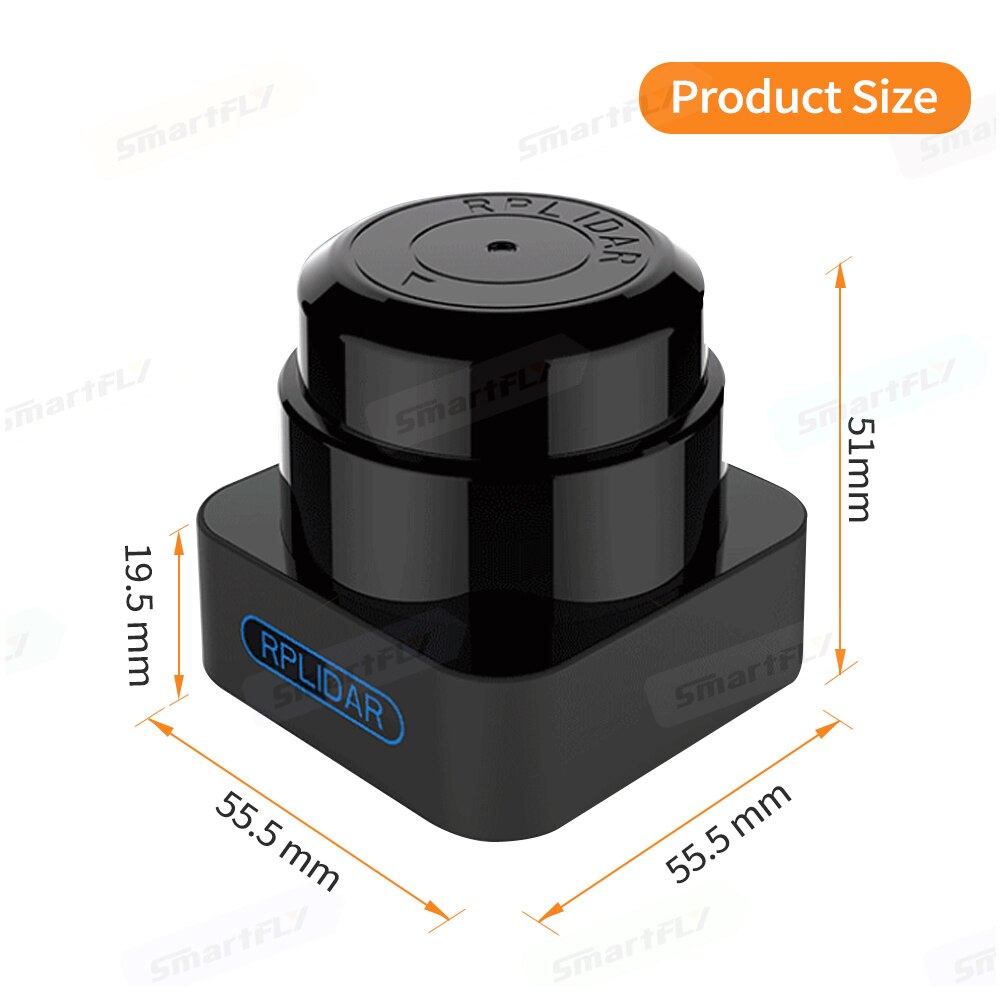

Small Size, Easy Use

The first pocket TOF laser range scanner of SLAMTEC.

Ultra-thin design, compact and portable for various application requirements.

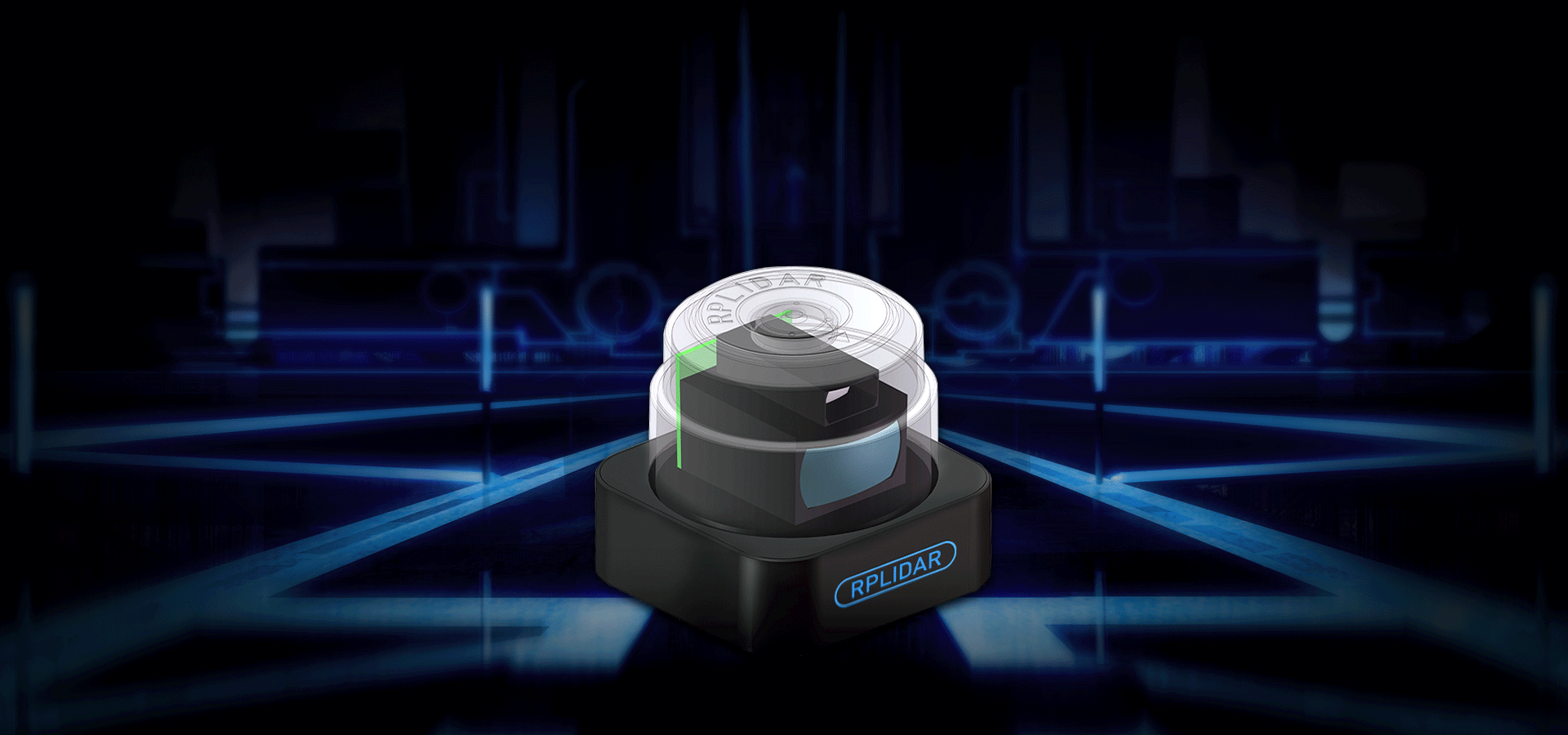

Independent Enclosed Cover

RPLIDAR S1 adopts an enclosed cover to protect its interior mechanism from external interference,

which provides a stable working environment and meets the industrial application.

Compatible with SLAMTEC Ecosystem

Compatible with existing hardware and software interfaces of all SLAMTEC products.

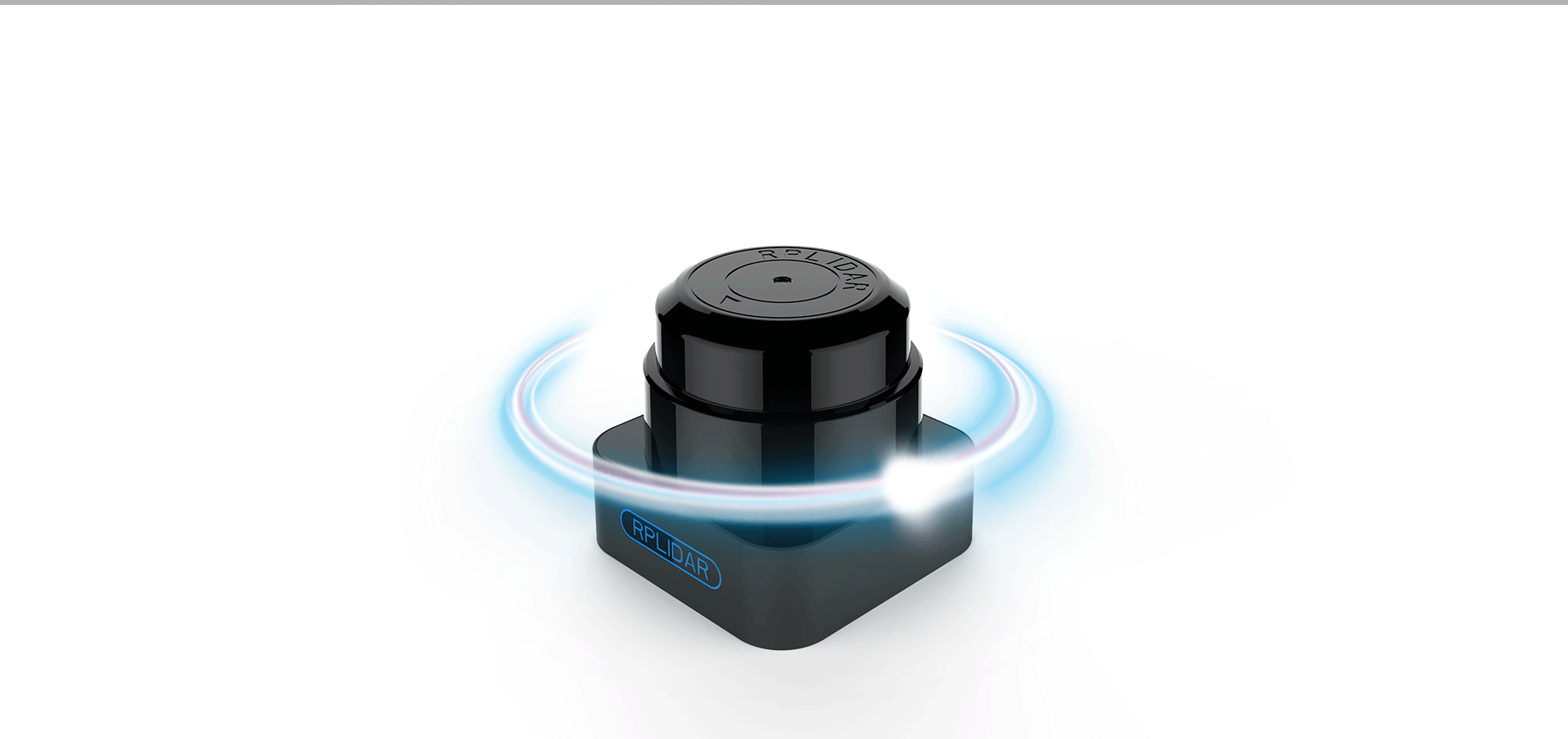

360° Omnidirectional Scan

The ranging core of RPLIDAR S1 runs clockwise to perform a 360 degree

omnidirectional laser range scanning for its surrounding environment.

Stable Service Life

SLAMTEC has integrated the wireless power, optical communication, non-contact energy and signal transmission technology, to completely solve the electrical connection failure and short lifespan problem caused by the physical contact wearing out, so as to prolong the service life of RPLIDAR S1.

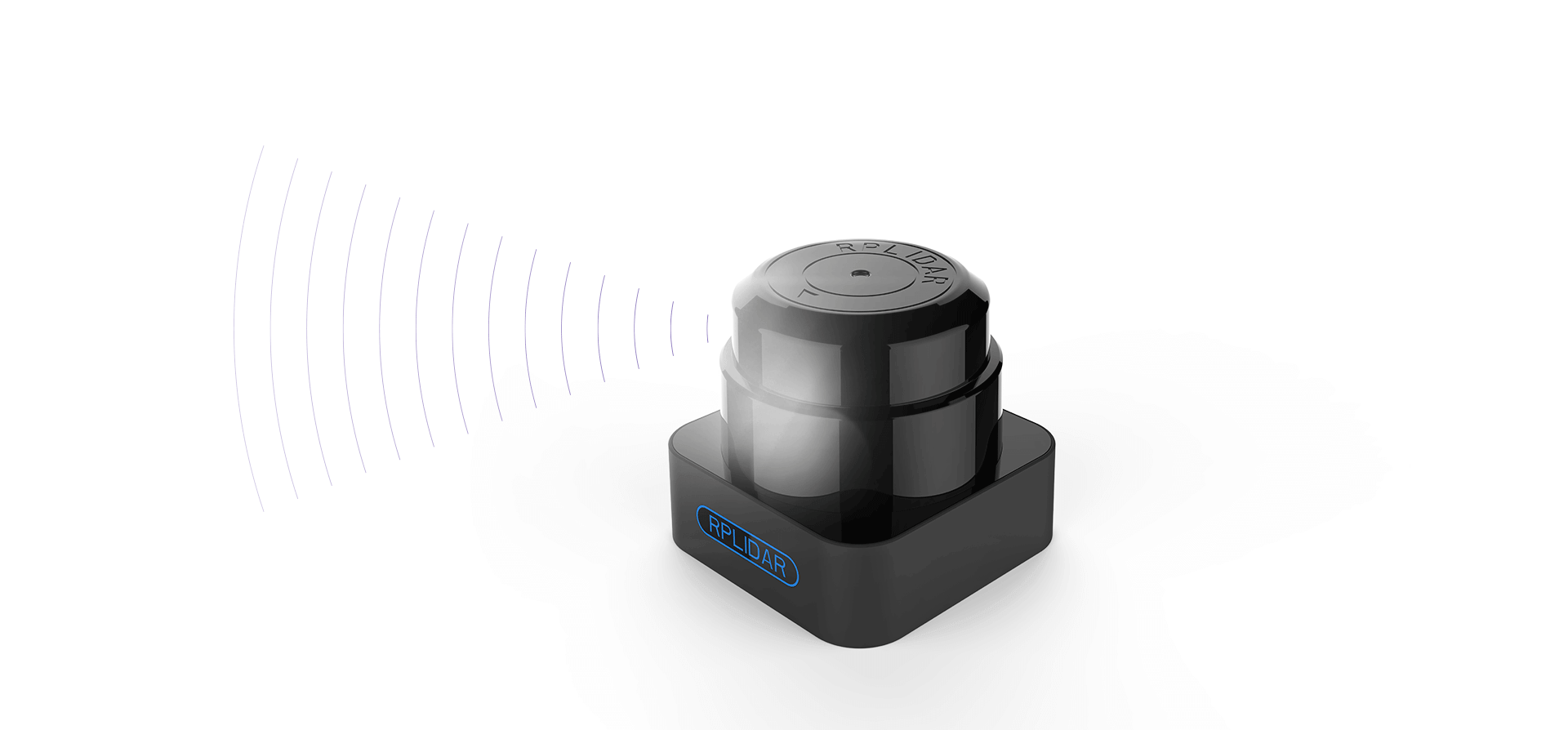

Laser Safety Standard

The RPLIDAR S1 adopts the low power infrared laser light as its light source, and drives it by modulated pulse. It reaches Class 1 Laser Safety Standard which can ensure its safety to human eyes.

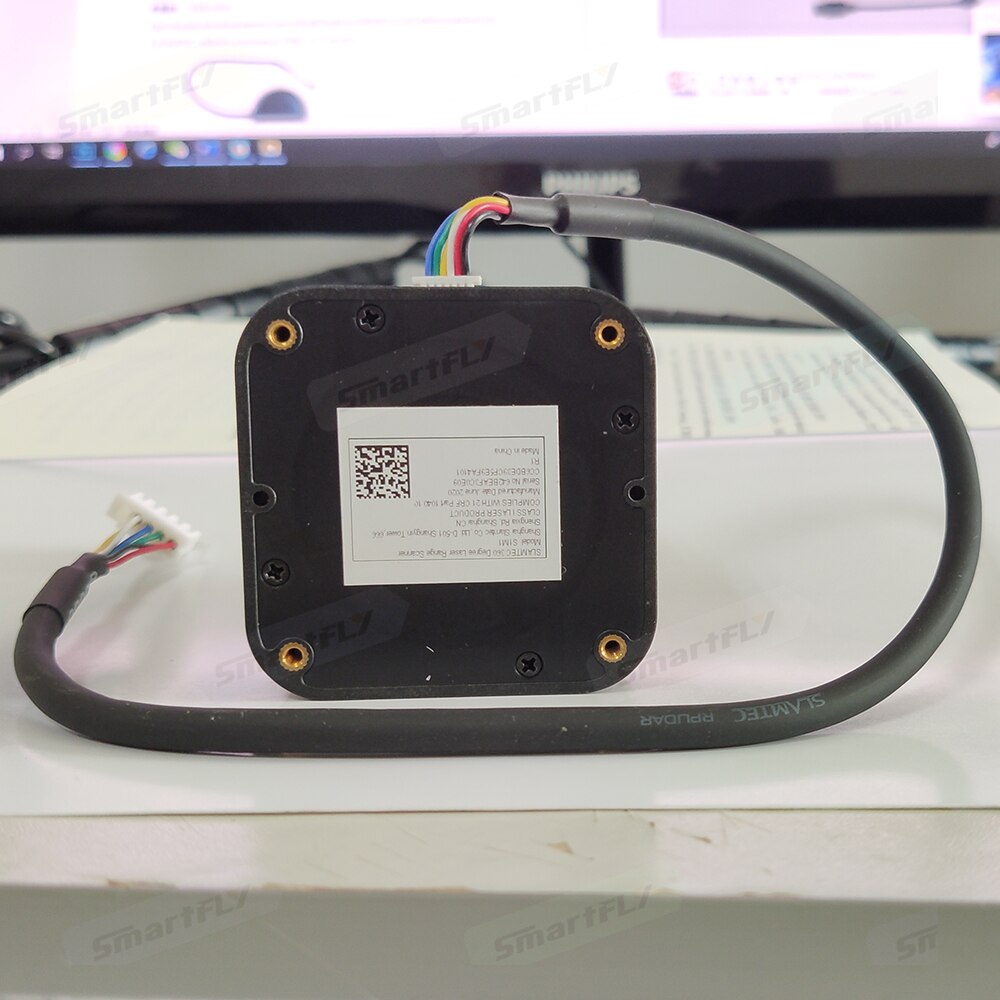

Real Shot

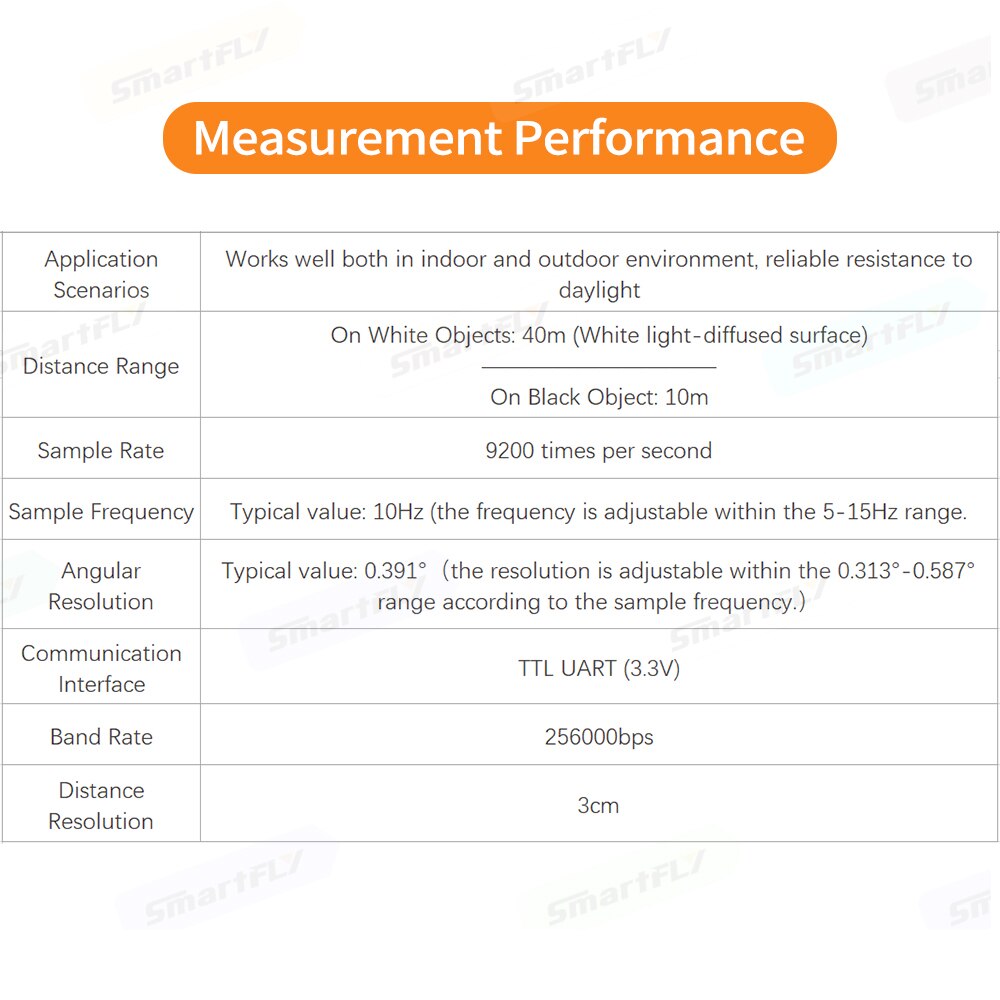

Measurement Performance

Application

Scenarios

Works well both in indoor and outdoor environment, reliable resistance to daylight

Distance

Range

On White Objects: 40m (White light-diffused surface)
__________________

On Black Object: 10m

Blind Range

0.1m

Sample Rate

9200 times per second

Sample

Frequency

Typical value: 10Hz (the frequency is adjustable within the 5-15Hz range.

Angular

Resolution

Typical value: 0.391°(the resolution is adjustable within the 0.313°-0.587° range according to the sample frequency.)

Communication

Interface

TTL UART (3.3V)

Band Rate

256000bps

Distance

Resolution

3cm

Accuracy

±5cm

[Tech-support]

Wiki: https://youyeetoo.com/blog/

Forum: forum.youyeetoo.com

ExpertSupport: support@smartfire.cn
