Description
Raycus 10w 20w 30w 50w
Pulsed Fiber Laser Source/Laser Generator
We have different brand laser source and laser generation both YAG fiber and CO2 10600nm for your different choice, pls feel free to contact with us! We are manufacturer!

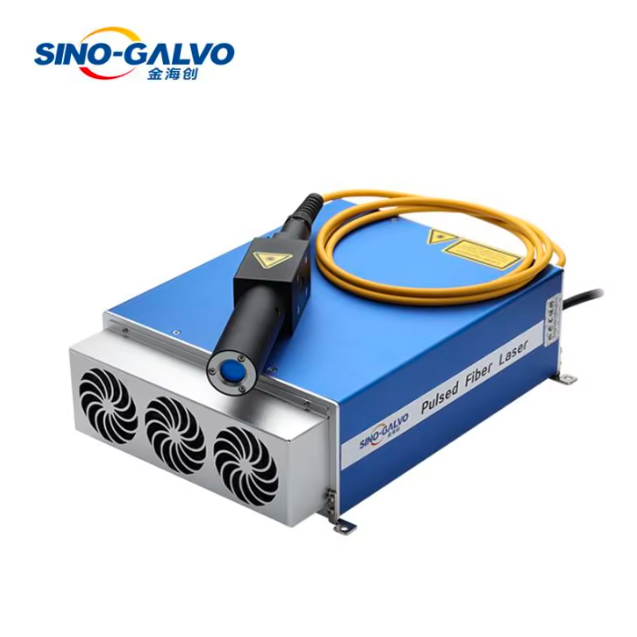

SGPL-20Q pulsed fiber laser is one of the top-class products of Sino-Galvo (Jiangsu) Technology. It helps make a leap forward when it comes to high speed and resolution laser marking assemble systems. They include:
1. SGPL-20Q, featuring low power consumption and durable design, is suitable for lab and market application. Compact and easy to use, it can directly be assembled into users’ equipment.
2. SGPL-20Q generates approximate 1060nm wavelength laser with periodic pulse sequences up to max power of 10kw. Laser operation configuration adjustment is accessed through 25Pin control interface. It is available for portable laser with specific control of users’. This laser requires an external DC power supply.
3. SGPL-20 is an ideal high-power laser source for laser marking. It can be directly applied in marking on multiple kinds of material such as plastic and metal.
Specification:
PARAMETER |
UNIT |
SGPL-20Q |
Average output power |
W |
>20 |
Center wavelength |
nm |
1064 |
Pulse width |
ns |
80-120 |
Frequency range |
KHZ |
25-65 |
Power stability |
% |
5 |
Single pulse energy |
mJ |
0.8 |
Beam quality |
m2 |
1.5 |
Output fiber cable diameter |
mm |
6 |
Output cable length |
m |
2 |
Beam diameter |
mm |
6-8 |
Power supply |
V |
24 |
Working temperature range |
℃ |
0-40 |
Cooling mode |
air cooling |
|

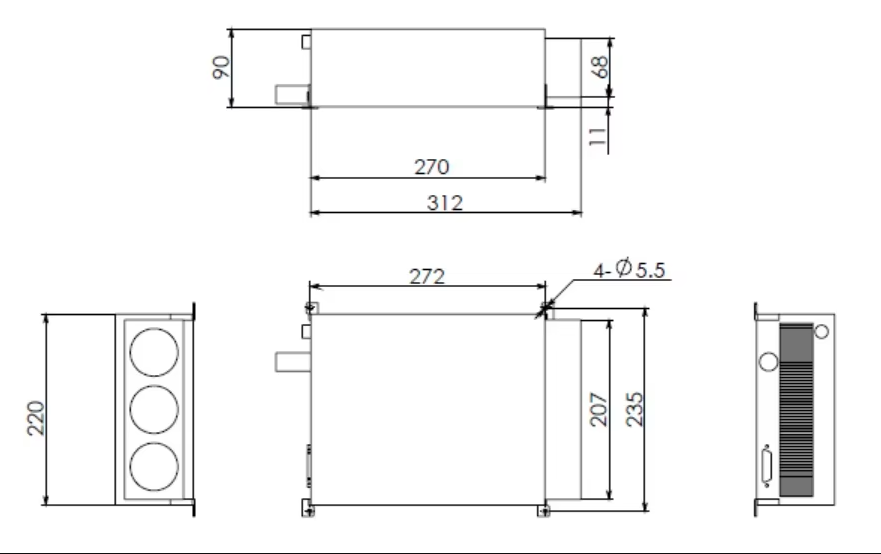

Dimensions |
mm |
312*220*90 |
Weight |
Kg |
7.2 |
