We can offer all the following products:

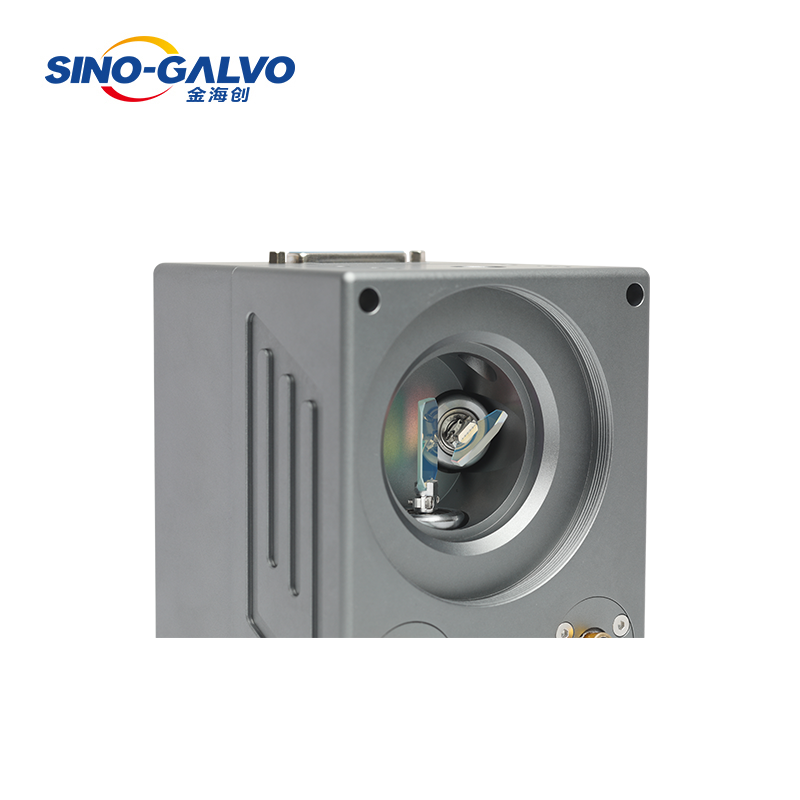

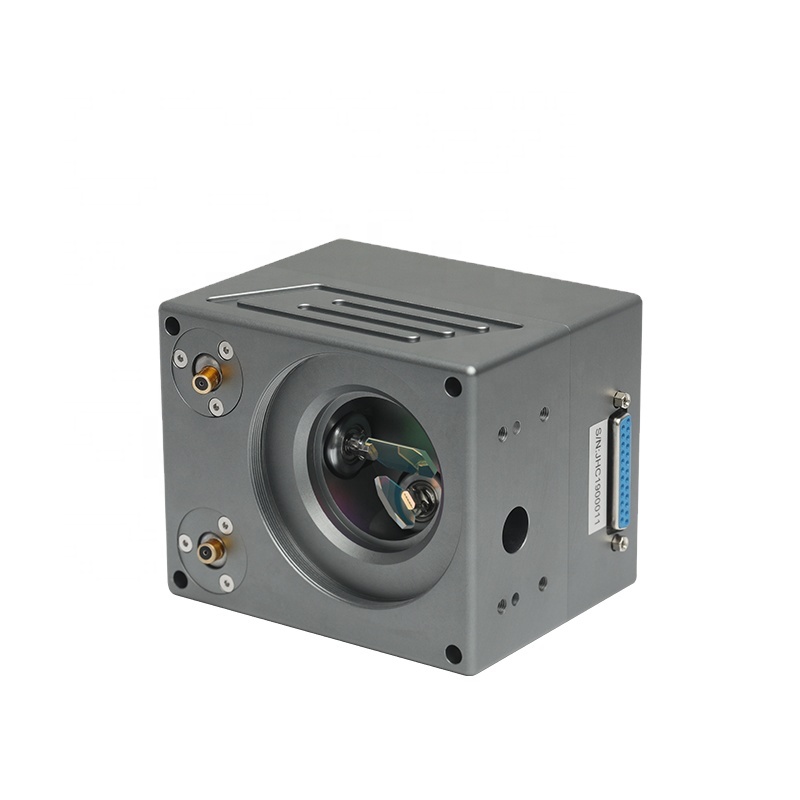

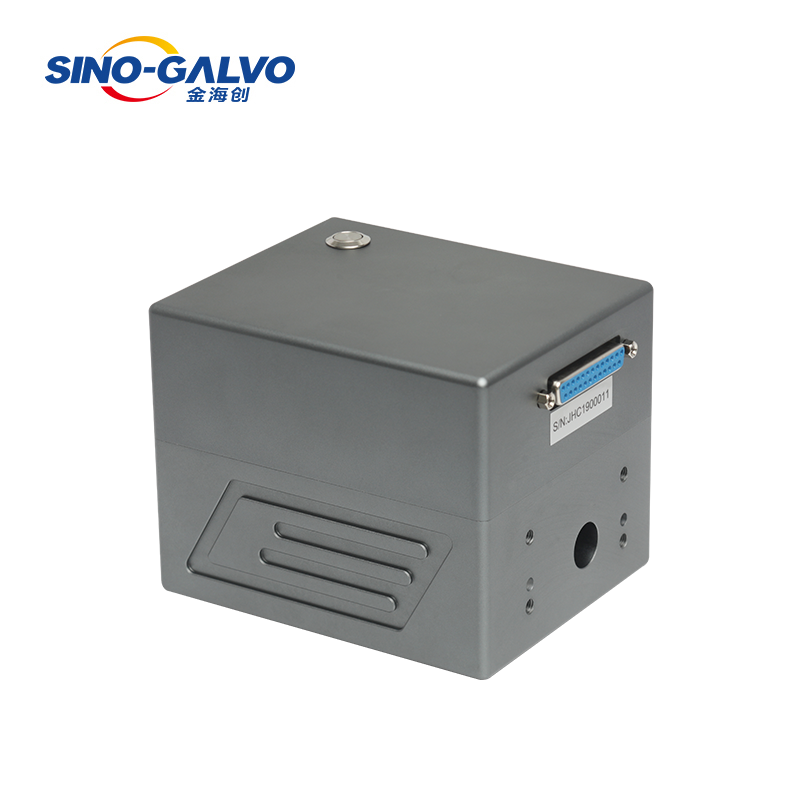

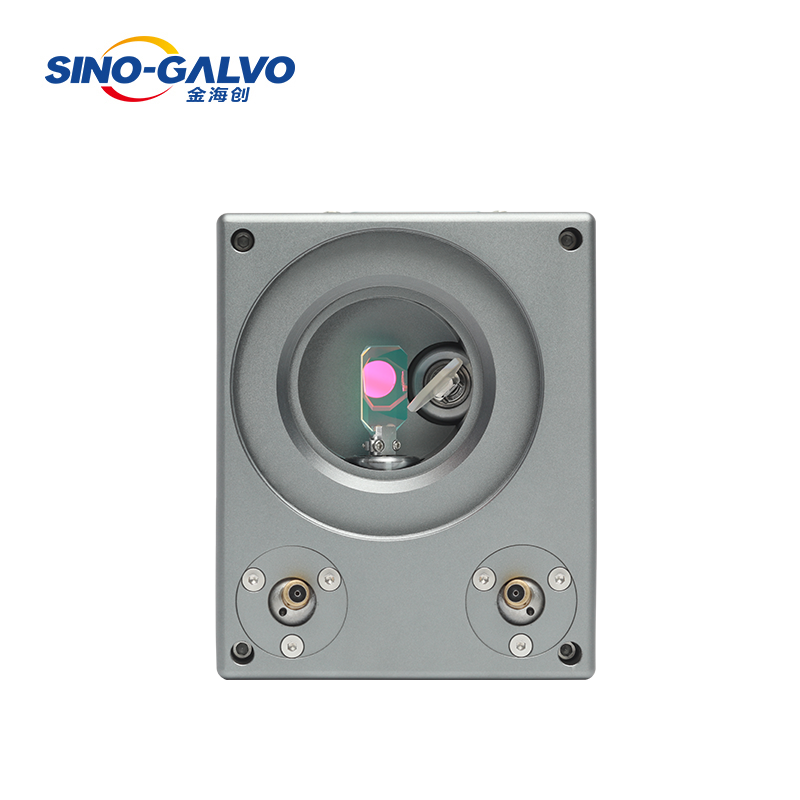

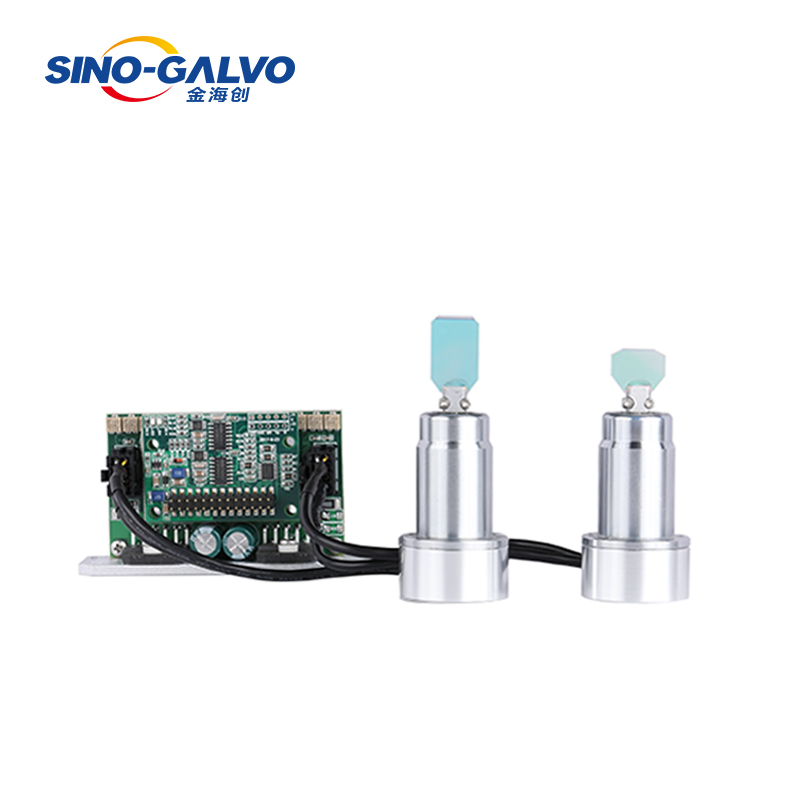

SINO-GALVO is the original manufacturer for SINO-GALVO brand galvo scanner head, for exporting, we provide 1.5 year warranty and latest date galvo head with best performance!
|
Motor Specification |
||
|
Working Temperature |
0-45℃ |
|
|
Linearity |
99.9% |
|
|
Setting Time |
≤0.5ms |
|
|
Scale Drift |
<40PPM/℃ |
|
|
Zero Drift |
<15μRad./℃ |
|
|
Long-term Drift Over 8 Hours |
<0.5mRad |
|
|
RMS Current |
2.0A |
|
|
Peak Current |
15A(Max) |
|
|
Maximum Scan Angle |
±15° |
|
|
Storage Temperature |
-10 to +60℃ |
|
|
Resolution |
12μrad |
|
|
Repeatability |
8μrad |
|
|
Input Aperture |
10.0mm |
|
|
Beam Displacement |
13.5mm |
|
|
Motor Weight |
120g |
|
|
Frequency |
≤700Hz |
|
|
Wavelength Options |
355,532,840,1064,1550,10600, |
|
fiber laser head fiber galvo scanner laser head fiber laser galvanometer scanning head
