Description
- Brand Name: NoEnName_Null
- Certification: CE
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Model Number: SDS1102A
- Display Size: 7 Inches & Above

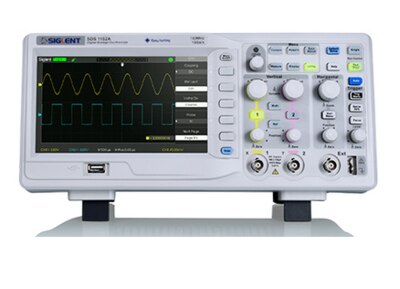

SIGLENT SDS1102A Digital Oscilloscope 100MHz 2Ch 1GS/s USB 7″ TFT LCD
SDS1000A series is a universal dual channel digital oscilloscope products, with 50MHz, 70MHz, 100MHz and 150MHz bandwidth models;
Up to 2Mpts of storage depth, in the capture of long signal at the same time, to ensure the fine waveform resolution; equipped with 7 inch color TFT-LC (800*480)
LCD screen, help you better insight into the details of signal sampling rate; 1GSa/s allows you to easily inspect the instantaneous signal; simple interface to ensure the usability of the oscilloscope; 32 parameter automatic measurement and the usual arithmetic functions, greatly enhance the work efficiency, easy to deal with the complex requirement of measuring signal.
Characteristics and advantages
Analog channel bandwidth: 50MHz, 70MHz, 100MHz, 150MHz
Real time sampling rate up to 50GSa/s, equivalent sampling rate of 1GSa/s
Max storage depth 2Mpts
5 trigger types: edge, pulse width, video, slope, alternation
5 kinds of mathematical operations: +, -, *, /, FFT
Unique digital filtering and Waveform Recorder
Waveform recording and Pass/Fail detection
Standard configuration interface: Host USB: support U disk storage and firmware upgrade; Device USB: support PC remote control and
PictBridge printing; RS232, LAN and Pass/Fail; optional USB-GPIB
User friendly design
Independent channel control, simple and intuitive operation
Embedded online help system and screen saver function
Humanized design of the arc knob with the press to zero function
Wave brightness, grid brightness adjustable function
Pop-up menu display mode, the user is more flexible, natural
* a rich key operation: a key storage, a key to restore the factory settings, a key print and a single key capture
Support U disk and local memory file storage
2 sets of reference waveforms, 20 sets of settings, 10 sets of waveform internal storage
Hardware frequency counter display
Product name SDS1000A series oscilloscope |
||
50MHz SDS1052A 2 channel 500MSa/s (Max.) 32Kpts 7 inch (800*480) color display |
||
70MHz SDS1072A 2 channel 1GSa/s (Max.) 2Mpts 7 inch (800*480) color display |
||
100MHz SDS1102A 2 channel 1GSa/s (Max.) 2Mpts 7 inch (800*480) color display |
||
150MHz SDS1152A 2 channel 1GSa/s (Max.) 2Mpts 7 inch (800*480) color display |
