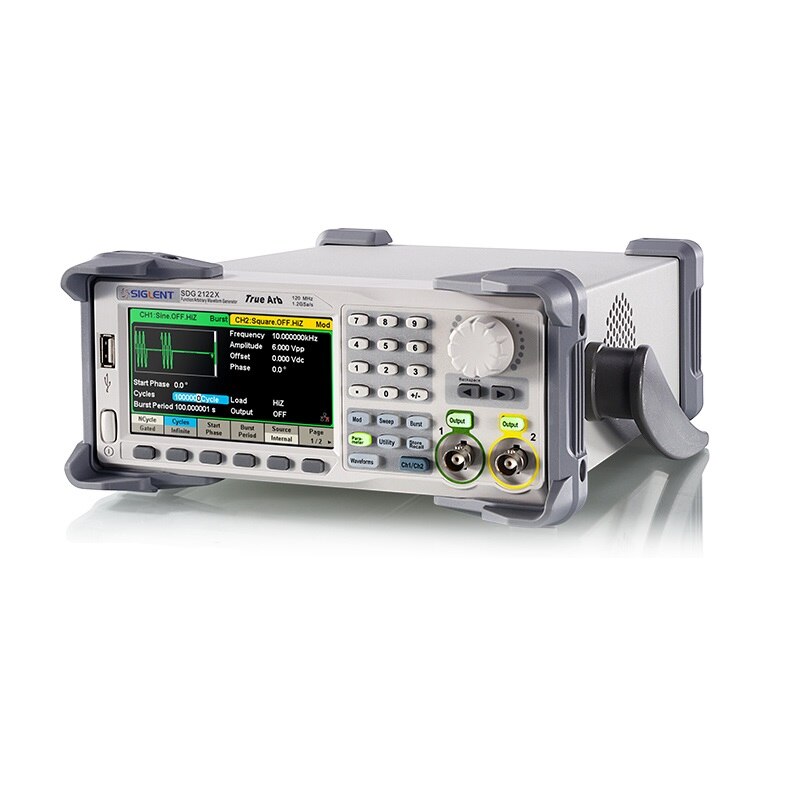

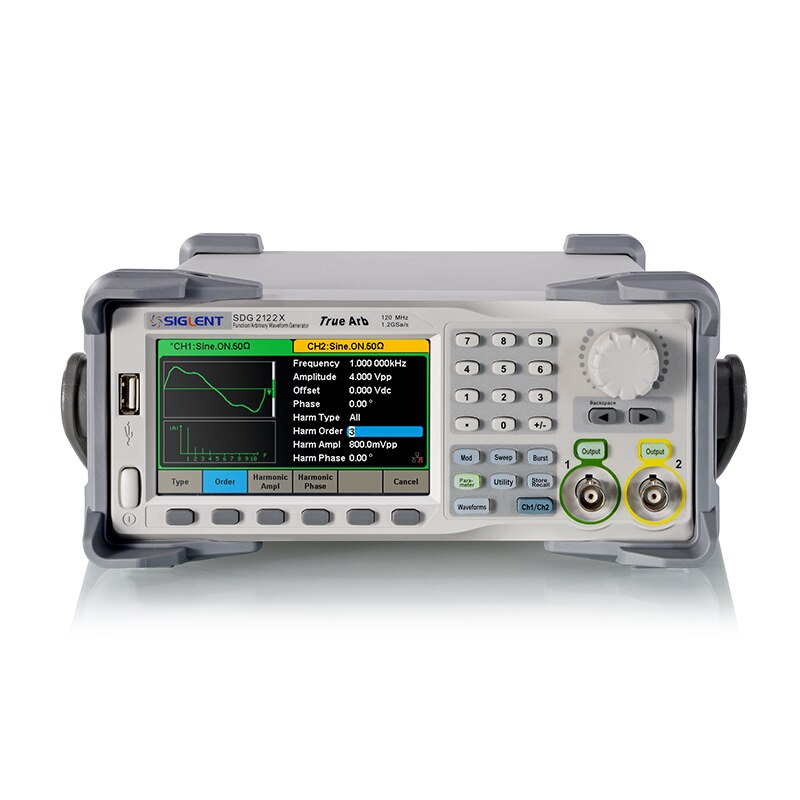

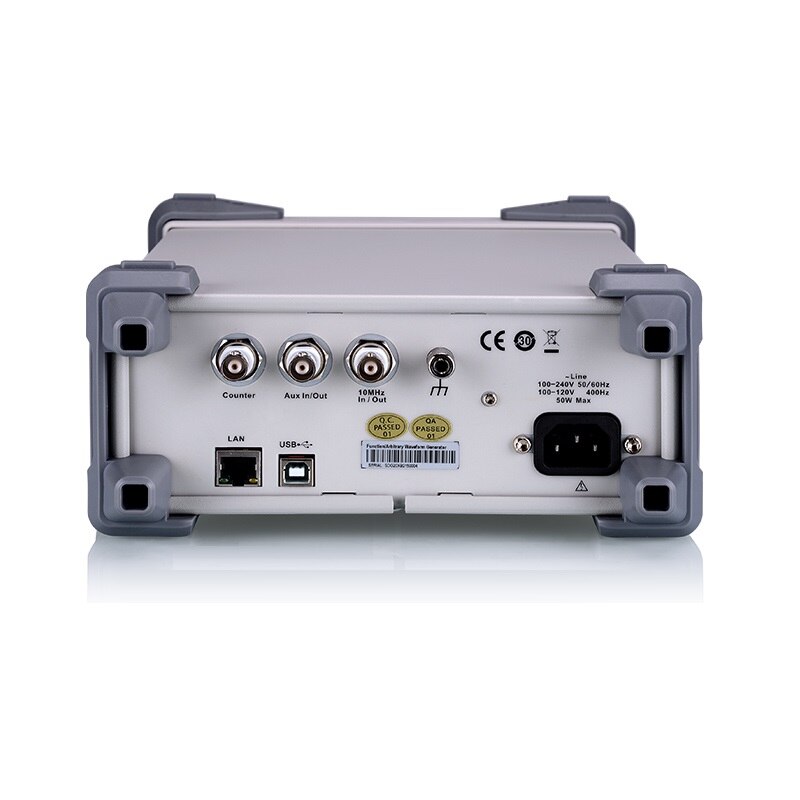

Siglent SDG2122X 120MHz Arbitrary Waveform Generator

$2,063.60

SKU: 3256803233543974 Category:

Description

  • Brand Name: NoEnName_Null
  • Certification: None
  • DIY Supplies: ELECTRICAL
  • Origin: Mainland China
  • Dimensions: 260.3*107.2*295.7mm
  • Accuracy Class: 0.075%
  • Model Number: SDG2122X

Siglent SDG2122X 120MHz Arbitrary Waveform Generator

Features:

SDG2000X is a series of dual-channel function/arbitrary waveform generators with specifications of up to 120MHz maximum bandwidth, 1.2GSa/s sampling rate and 16-bit vertical resolution.
The proprietary TrueArb & EasyPulse techniques help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With advantages above, SDG2000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

Specification:


  • 4.3” touch screen display for easier operation

  • Dual-channel, 120MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range

  • High-performance sampling system with 1.2GSa/s sampling rate and 16-bit vertical resolution.
    Innovative TrueArb technology, supports any 8pts~8Mpts Arb waveform with a sampling rate in range of 1μSa/s~75MSa/s

  • Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms

  • Modulation types: AM,DSB-AM,FM,PM,FSK,ASK and PWM

  • Standard interfaces: USB Host, USB Device(USBTMC), LAN(VXI-11)
    Optional interface: GPIB

Model

SDG2042X

SDG2082X

SDG2122X

Sine

1μHz~40MHz

1μHz~80MHz

1μHz~120MHz

Square

1μHz ~ 25MHz

Pulse

1μHz ~ 25MHz

Noise

120MHz(-3dB)

Ramp

1μHz~1MHz

Arbitrary

1μHz~20MHz

Waveform

Sine, Square, Ramp, Pulse, Noise, Arbitrary

Total harmonic distortion(Sine)

0.075%

Non-harmonic spurious

-70 dBc 50 MHz; -65 dBc >50 MHz

Waveform length

8Mpts

Sampling rate

1.2 GSa/s (4X Interpolation)

Vertical resolution

16 bit

Num. of channels

2

Amplitude

2mVpp~20 Vpp(20MHz, HiZ load);
2 mVpp~10 Vpp(>20MHz, HiZ load)

Vertical accuracy(10kHz sine)

±(1%+1mVpp)

Modulation

AM,FM,PM,FSK,ASK,PWM,DSB-AM

DC Offset

Support

Burst

Support

Sweep time

1ms~500s

Frequency Counter

100m~200MHz (DC coupling) ; 10~200MHz (AC coupling)

Reference Clock Input/Output

Support

Trigger Input/Output

Support

Sync Output

10MHz

Modulation Input

Single Channel:100mHz~200MHz

Interface

Standard: USB Host, USB Device, LAN
Optional: GPIB (USB-GPIB adaptor)

Display

4.3” touch screen display, 480 * 272

Dimensions(W*H*D)

260.3mm*107.2mm*295.7mm

Net weight

3.43 kg

Gross weight

4.42 kg
