Shipment from China and Russia warehouse TFmini-S Lidar Range Finder Sensor Module 0.1-12m Ranging for Pixhawk Drone UART &IIC

$48.29

SKU: 32908151070 Category:

Description

  • Brand Name: BENEWAKE
  • Origin: Mainland China
  • Compatibility: All Compatible
  • Model Number: TFmini-S
  • State of Assembly: Ready-to-Go
  • Certification: CE,RoHS
  • Camera Equipped: Yes

Kind reminder:

For customers in Russia, it is better to choose the warehouse in Russia for delivery, so that you can receive the goods within 3 days at the soonest.

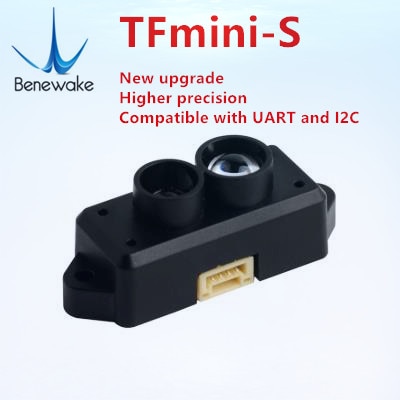

TFmini-S LiDAR Module

1. Product Description
TFmini-S is a single-point ranging LiDAR based on TFmini upgrade. The blind zone is shortened to 10cm, the outdoor performance and accuracy of different reflectivity are improved, it can achieve stable, accuracy, sensitive and high frequency range detection.
the module is characterized by the following points:

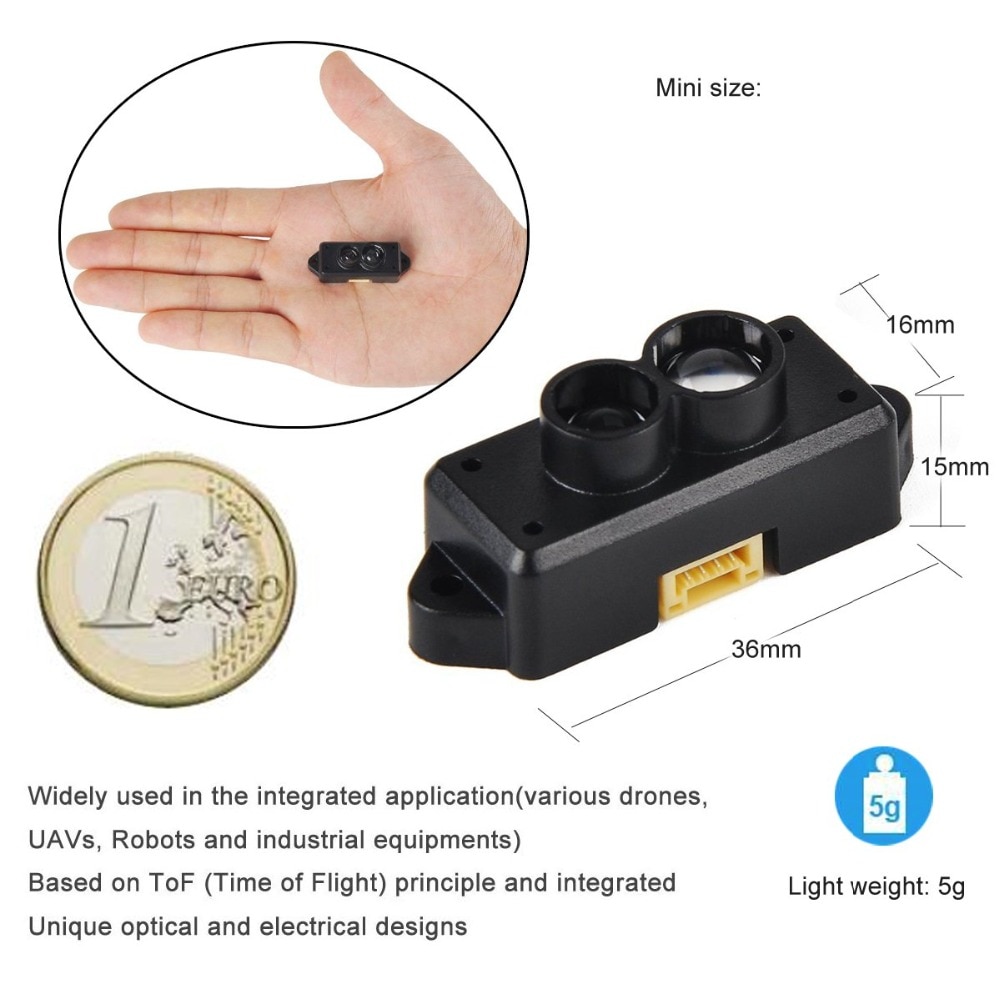

⚫ Small size
⚫ Light weight
⚫ Low power consumption
⚫ High frame rate(up to 1000Hz)

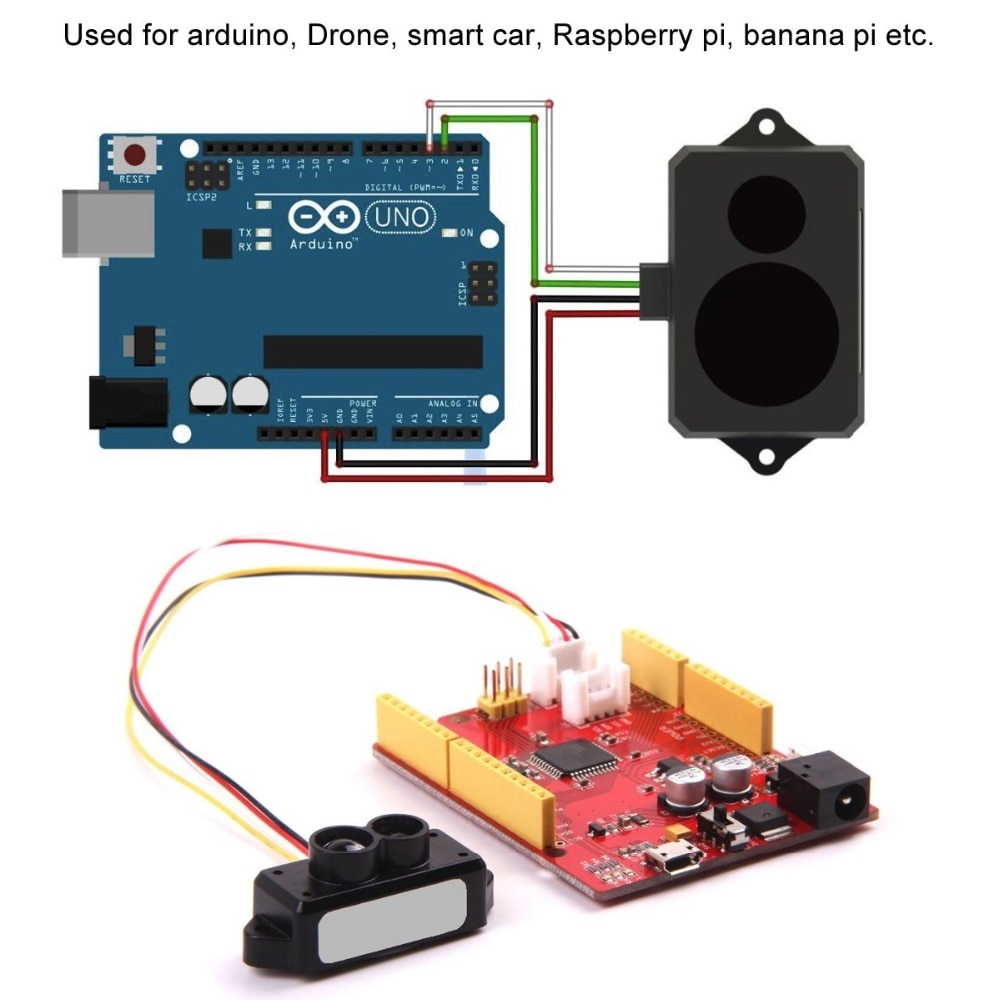

Main application scenario:
⚫ Pedestrian detection
⚫ Vehicle detection
⚫ Intelligent barrier gate
⚫ Altimeter

TFmini VS TFmini-S

TFmini-S is a single-point ranging Lidar based on TFmini upgrade. The blind zone of it is reduced from 30cm to 10cm, the outdoor ranging performance is further improved, the distance range is not disturbed by ambient light, which can be consistent with the indoor range, and the accuracy is further optimized. The error performance at 10% reflectivity approaches the background of 90% reflectivity, and the interface supports UART and I2C switching at any time.

Parameter

TFmini

TFmini-S

Product

performance

Operating range

0.3~12m@90% reflectivity

0.1m~12m@90% reflectivity

Accuracy

±6cm@(0.3-6m)①

±1%@(6m-12m)

±6cm@(0.1-6m)①

±1%@(6m-12m)

Distance resolution

1cm

1cm

Frame rate

100Hz

100Hz

Ambient light immunity

70Klux

70Klux

Operation temperature

0℃~60℃

0℃~60℃

Enclosure rating

/

/

Optical

parameters

Light source

LED

VCSEL

Central wavelength

850nm

850nm

Photobiological safety

Exemption Level(EN62471)

Class1(IEC60825)

FOV

2.3°②

2°②

Electrical

parameters

Supply voltage

5V±0.1V

5V±0.1V

Average current

≤140mA

≤140mA

Power consumption

≤0.7W

≤0.7W

Peak current

800mA

800mA

Communication level

LVTTL(3.3V)

LVTTL(3.3V)

Communication interface

UART

UART / I2C

Others

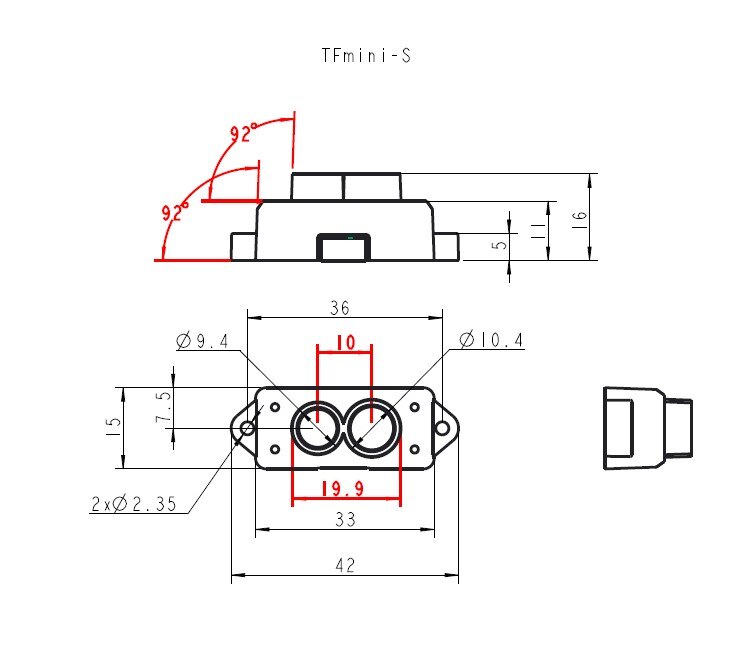

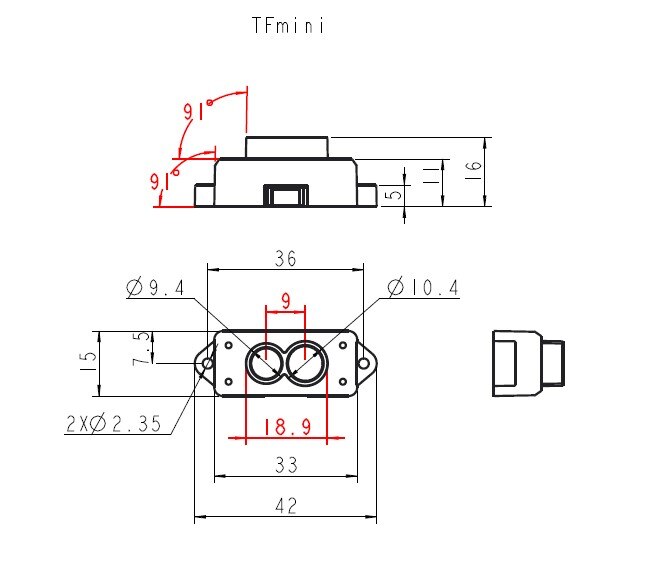

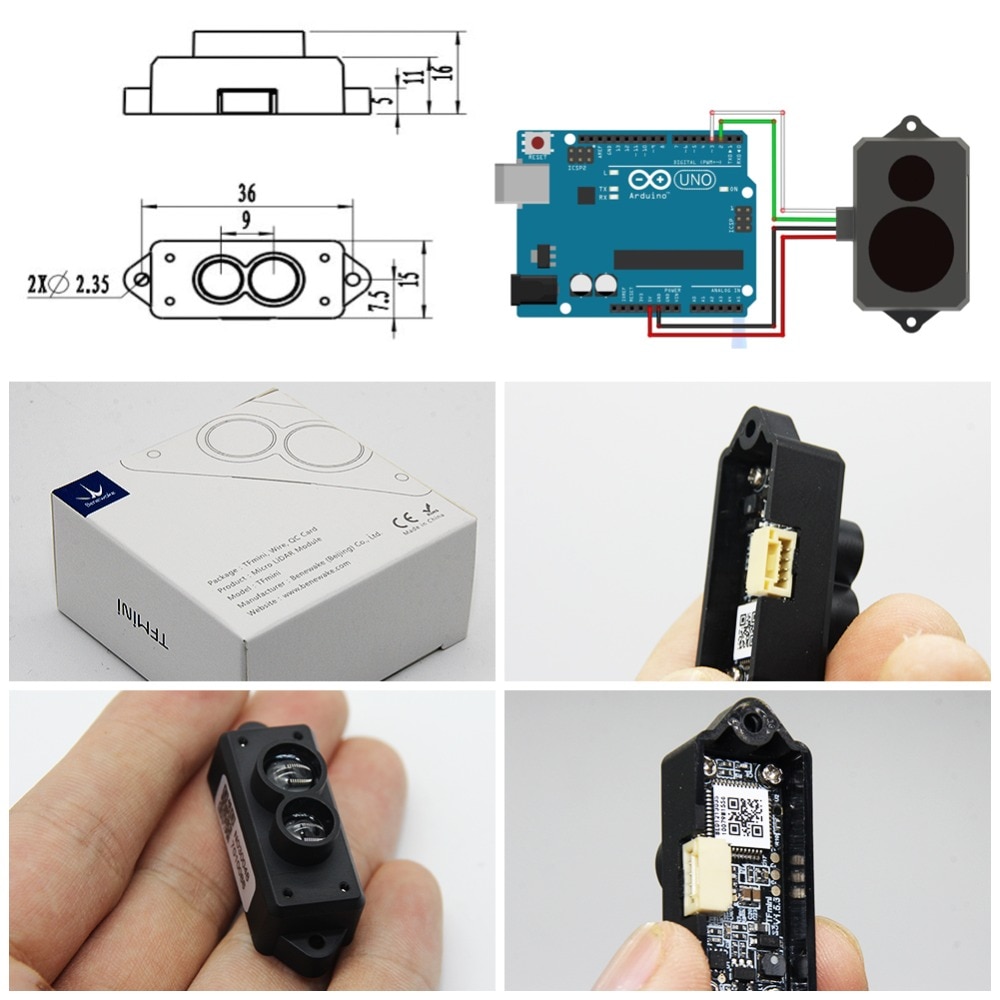

Dimension

42mm*15mm*16mm(L*W*H)

42mm*15mm*16mm(L*W*H)

Housing

ABS+PC

ABS+PC

Storage temperature

-20℃~75℃

-20℃~75℃

Weight

5g±0.3g

5g±0.3g

Cable length

10cm

10cm

  • 1.Range based on the indoor test with the standard white board (90% reflectivity) at 25℃as the detection object;

  • 2.The angle is the theoretical value, but the actual angle has some deviation.

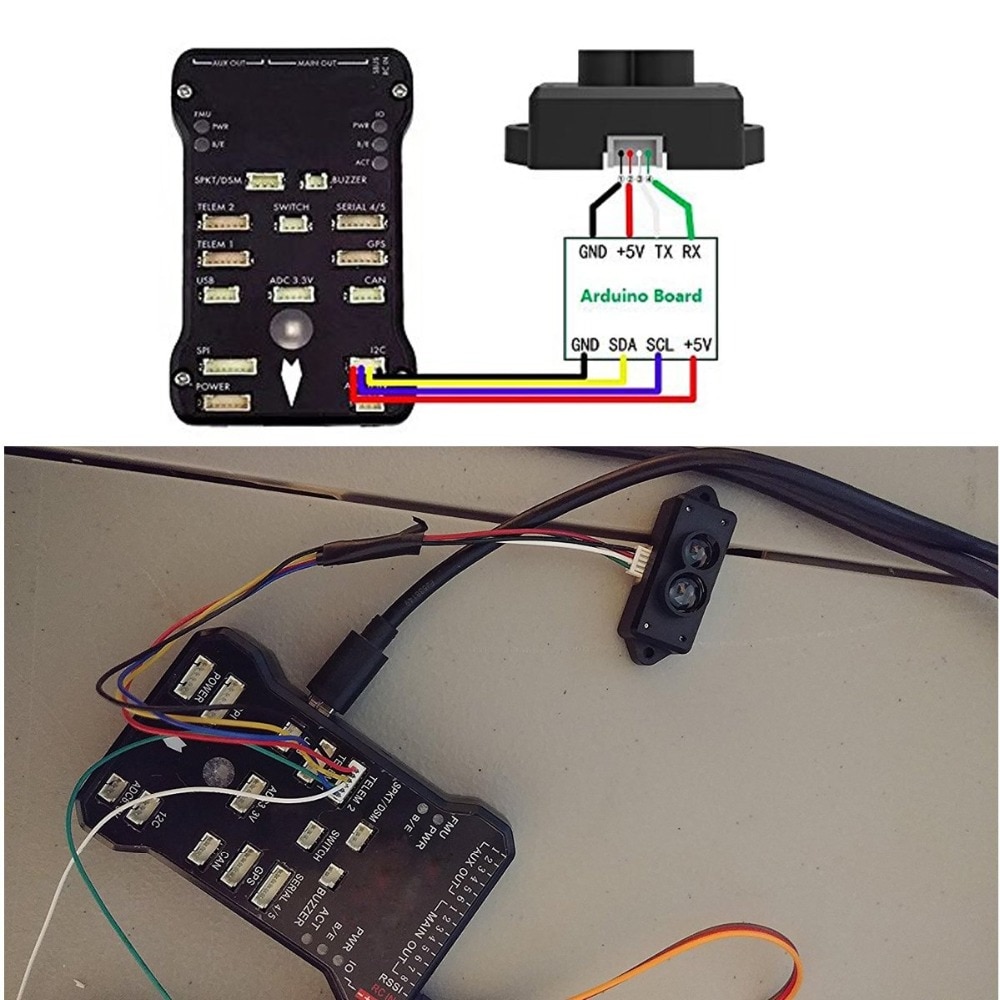

  • Communication Interface

    UART(TFmini)

    UART(TFmini-S)

    Default baud rate

    115200(adjustable)

    115200(adjustable)

    Data bit

    8

    8

    Stop bit

    1

    1

    Parity check

    None

    None



    Configurable items

    Description

    TFmini Default

    TFmini-S Default

    communication interface

    support communication interface configuration

    UART

    UART、I2C

    Frame rate

    Support serial port baud rate configuration

    Adjustable from 1Hz to 100Hz

    Adjustable from 1Hz to 1000Hz

    Protocol format

    Support 3 kinds of output format:9Bytes(cm)、Pixhawk、9Bytes(mm)

    9Bytes(cm)

    9Bytes(cm)

    Exclude threshold

    of Strength

    When the strength is lower than the minimum threshold, the output is specified value

    Minimum strength setting:20

    Value below minimum strength:-1

    Minimum strength setting:100

    Value below minimum strength:0

    Range limit

    Threshold of ranging limit (mm),

    Maximum: 1200cm

    Minimum: -1cm

    Maximum: 1200cm

    Minimum: -1cm

    Low-power Consumption Mode

    enable/disable low-power mode

    Not support

    Off

    Baud rate

    Support baud rate setting of 9600-921600

    115200

    115200

    Trigger sources

    Setting internal trigger mode or external trigger mode

    internal trigger

    internal trigger

    Restore factory

    settings

    Restore all configurations to factory configuration

    /

    /
