Description
2. Accept Dropshipping and Delivery in 24 hours
4.Accept OEM/ODM orders
|
Model
|
NEJE Module 500MW (INPUT about 3500MW)
|
|
Heatsink Material
|
Aircraft Aluminum + Brass Shell
|
|
Laser diode
|
sharp 350mw 5.6mm laser diode (The maximum power 405nm 5.6mm laser diode)(Real 500mw continuous work)
|
|
LD current
|
350mA
|
|
Luminous Color
|
Blue
|
|
Section Size
|
30mm x 30mm
|
|
Cooling Mode
|
20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan
|
|

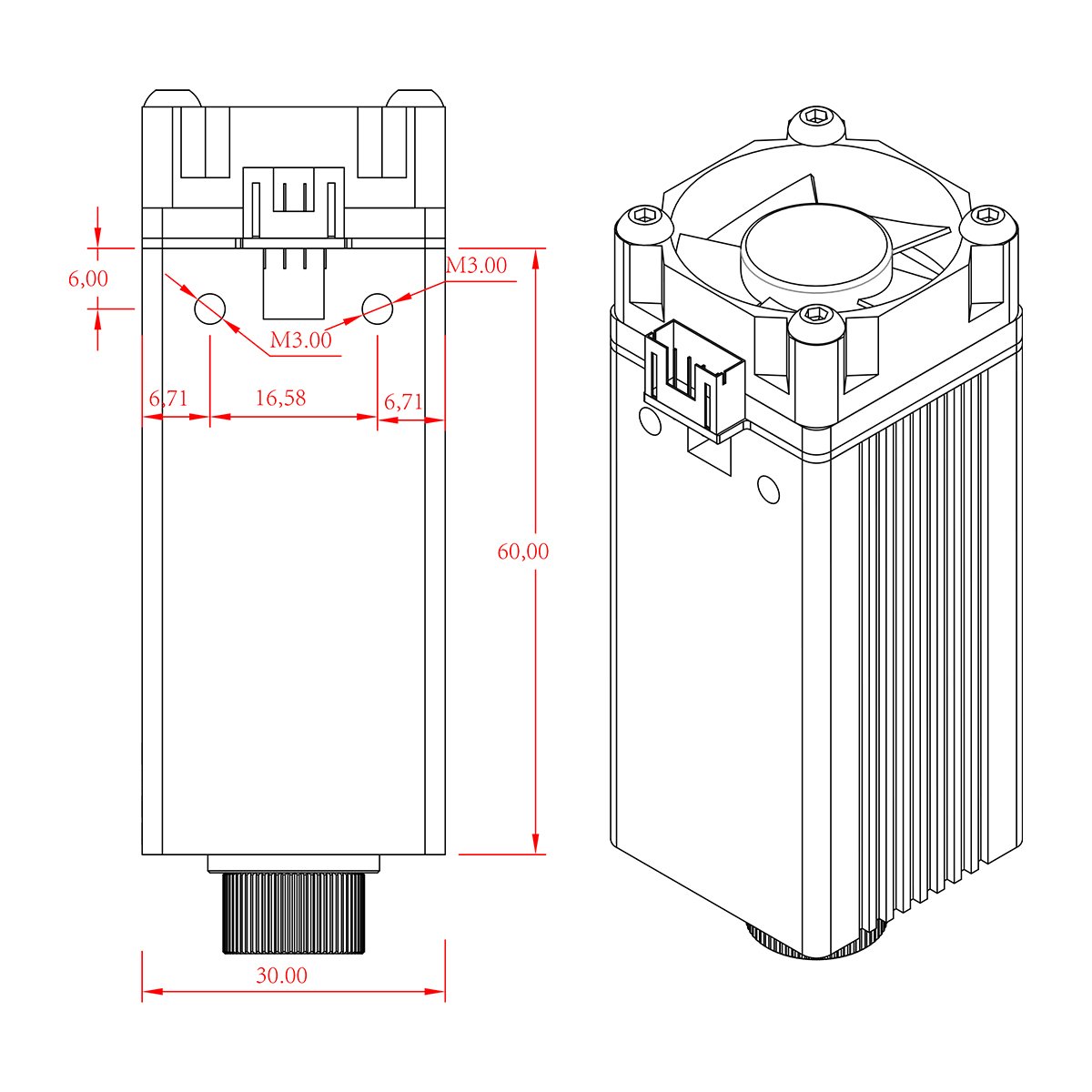

Dimension
|
60 * 30 * 30mm
|
|
Adapter Output Voltage
|
DC 12V 2A
|
|
Can Engrave
|
MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
|
|
Can Not Engrave
|
Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
|
|
Module Input
|
3500MW
|
|
Laser Output Power
|
500MW
|
|
Wavelength
|
405nm
|
|
Beam Shape
|
Dot (Focusable)
|
|
Working Voltage
|
DC 12V
|
|
TTL&PWM Modulation
|
YES, Compatible with Both TTL & PWM Modulation
|
|
Input Voltage
|
DC12V
|
|
PWM/TTL Input
|
DC3.3V-12V
|
|
Input Interface
|
PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
|
|
Drive Mode
|
External ACC
|
|
Safe temperature range
|
<70°C
|
|
Module weight
|
115g ( The lighter the weight, the smaller the moving inertia, the better the performance )
|
|
Life Time
|
20,000 hours
|
Features（Unique technology）
1. Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
2. Original laser diodes, High-quality, Ensure service life！
3. Built-in driver board, 20mm threaded copper core with thermal grease compound, Temperature sensor，NEJE factory 48 hours 100% power aging test, Ensure long time working！
4. New lens, Clear focus, Not stray light, Adjustable focal length.
5. Can carving MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal).
Note(Please pay attention)
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. Do not engrave mirror objects，Pay attention to fire，Pay attention to pets when working！
3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
4. The warranty period of the laser module is one year. If you have any quality problems (Except individual situations like using the laser module more than 30 minutes per time and cause damage ), please feel free to ask our customer service for help.
5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
6. If you have any quality problem with the machine, please feel free to contact us. Many operative problems can be solved according to your video and problem description. Thank you in advance.
7. This laser module is compatible with our NEJE machine.

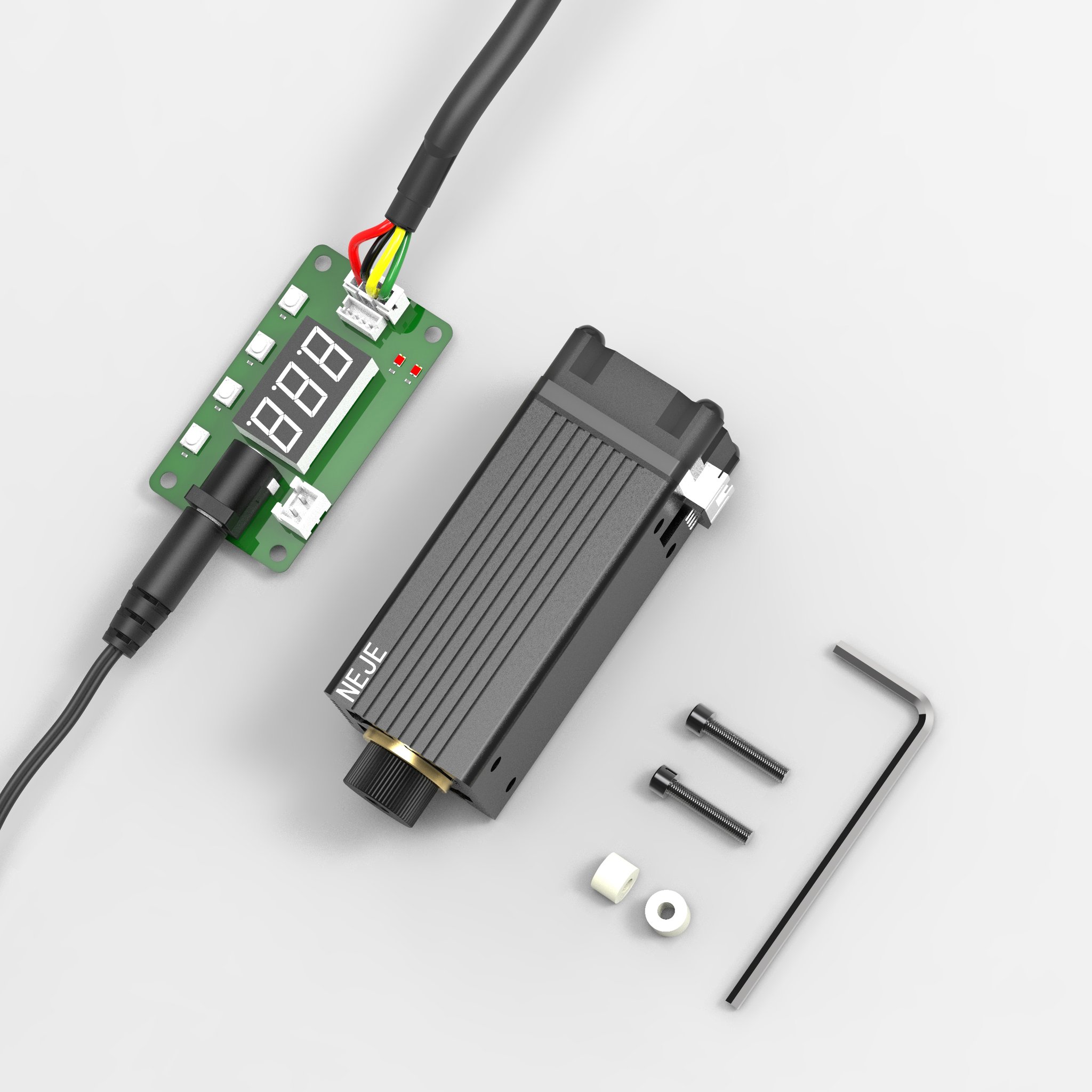

Package Included
* 1 x 500MW Laser Engraving Module
* 2 x Screw
* 2 x ABS cushion post
* 1 x L-shaped wrench
* 1 x 4 Pin Cable(300mm Sports Cable)
* 1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board
