Seoul Viosys UVC 275nm CUD7GF1A Ultraviolet UVC LED Emitter With KDLITKER DTP Copper MCPCB – 1 pc

$11.41$13.52

SKU: 4000925893636 Category:

Description

  • Item Type: BALL
  • Model Number: Seoul Viosys UVC 375nm CUD7GF1A
  • Certification: ce
  • Voltage: 6V
  • Current: 40mA

Description

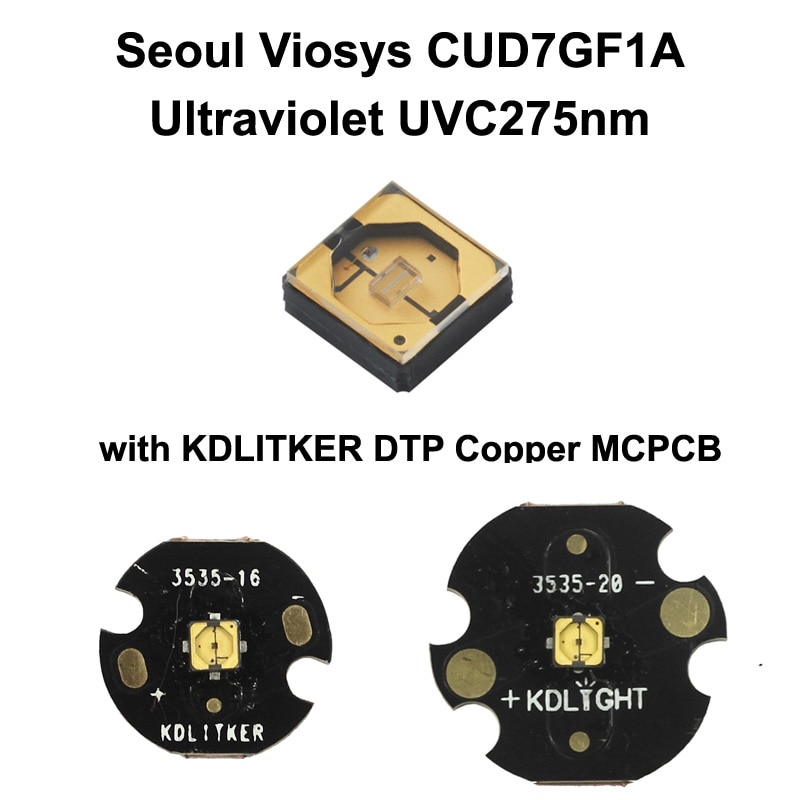

CUD7GF1A is a deep ultraviolet light emitting diode with peak emission wavelengths from 270nm to 278nm. The LED is sealed in Ceramic packages including an optical transparent window. It incorporates state of the art SMD design and low thermal resistance. CUD7GF1A is designed for air and water sterilization and tools including chemical and biological analysis in that spectral range.



Features and Benefits

– Deep ultraviolet LED

– Low thermal resistance

– SMT solderable

– Lead Free product

– RoHS compliant



Key Applications

– Disinfection

– Fluorescent spectroscopy

– Chemical and Biological analysis



Product Specifications:

Peak Wavelength: 275nm
Power Dissipation: 280mW max.
Forward Voltage: 6.2V
Forward Current: 40mA
Spectrum Half Width: 11nm
View Angle: 120-Degree


Package Content:1 x UV LED Emitter

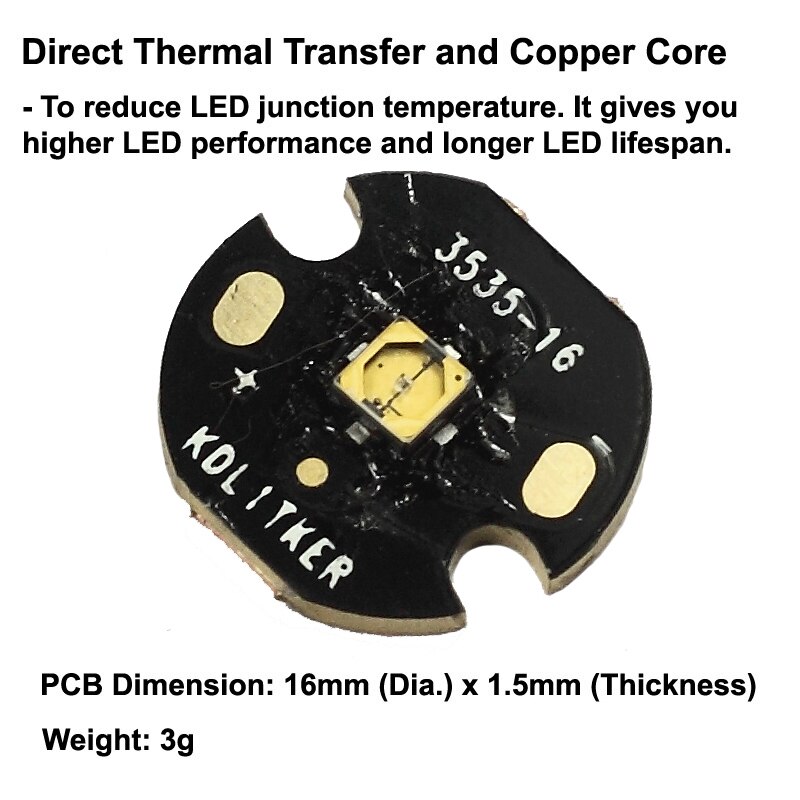

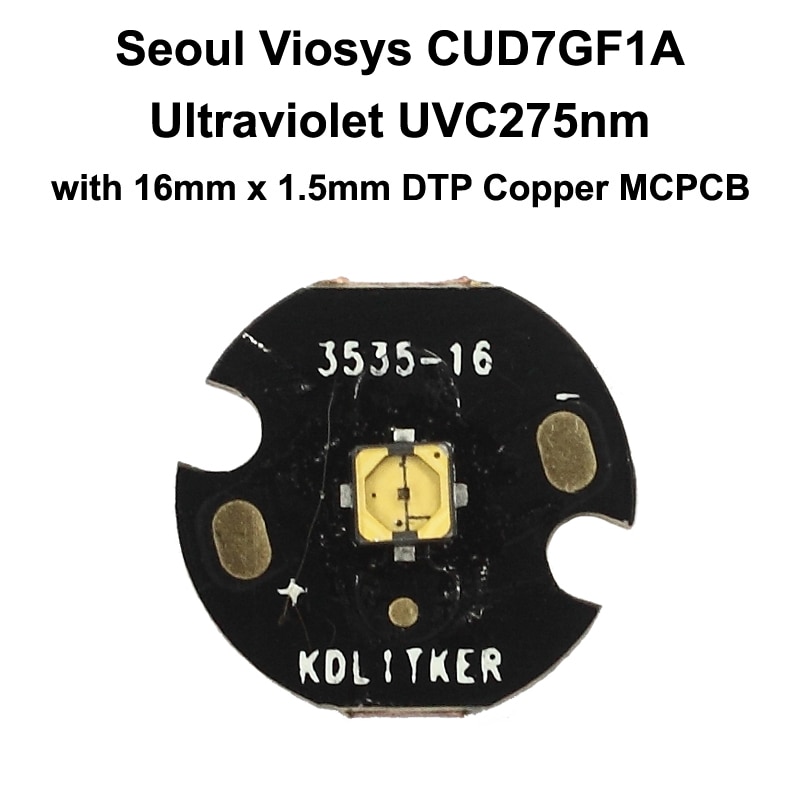

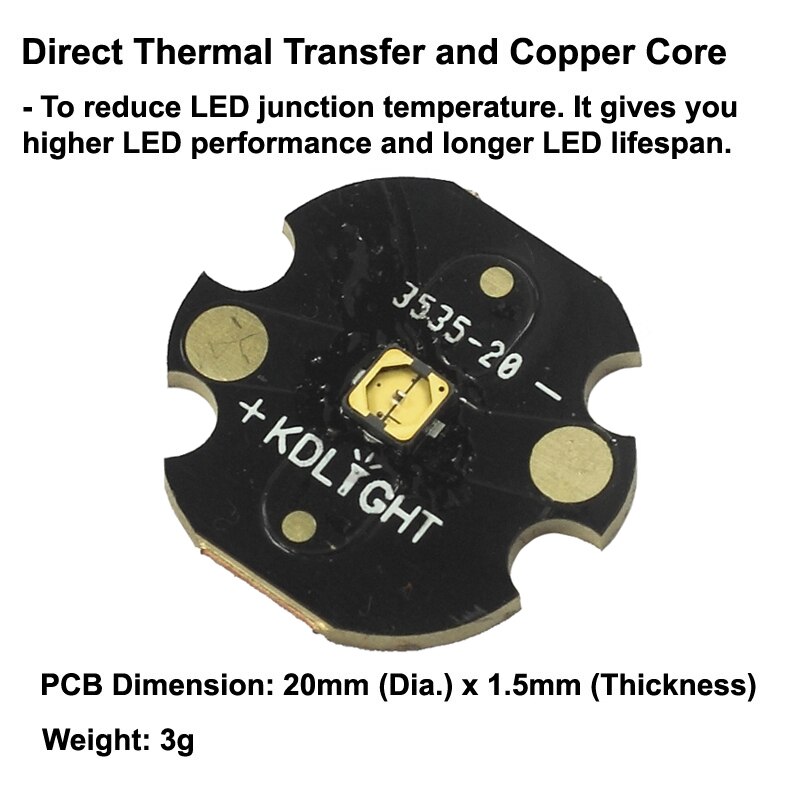

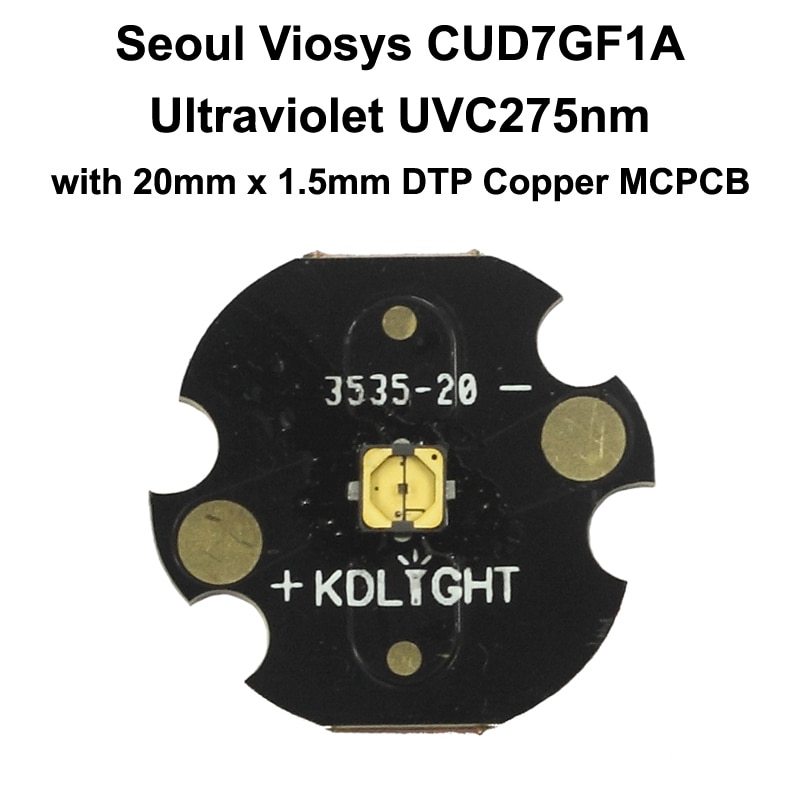

With KDLITKER DTP Copper MCPCB

Product Specifications:

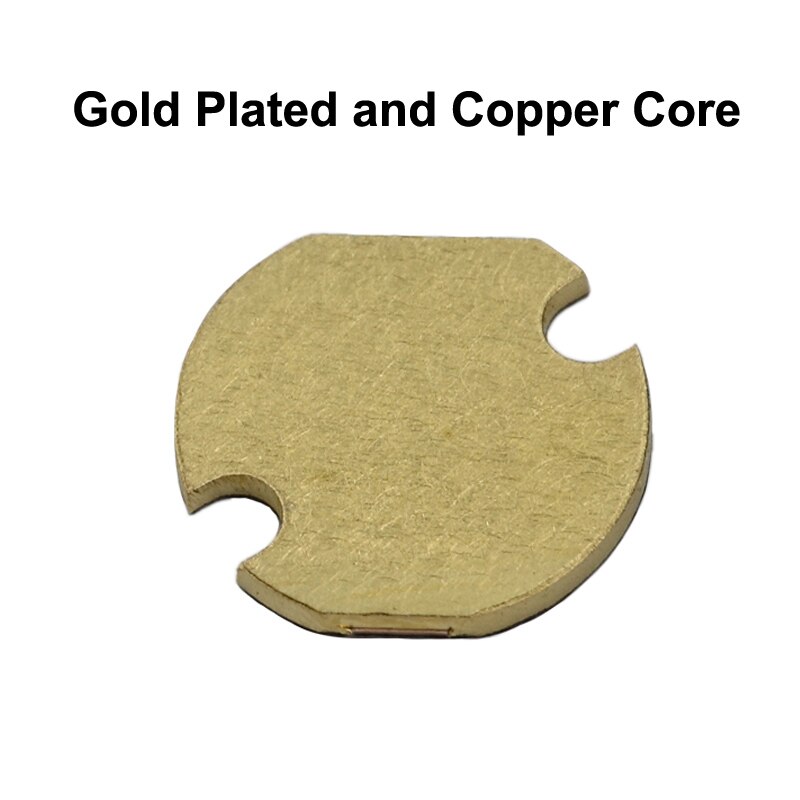

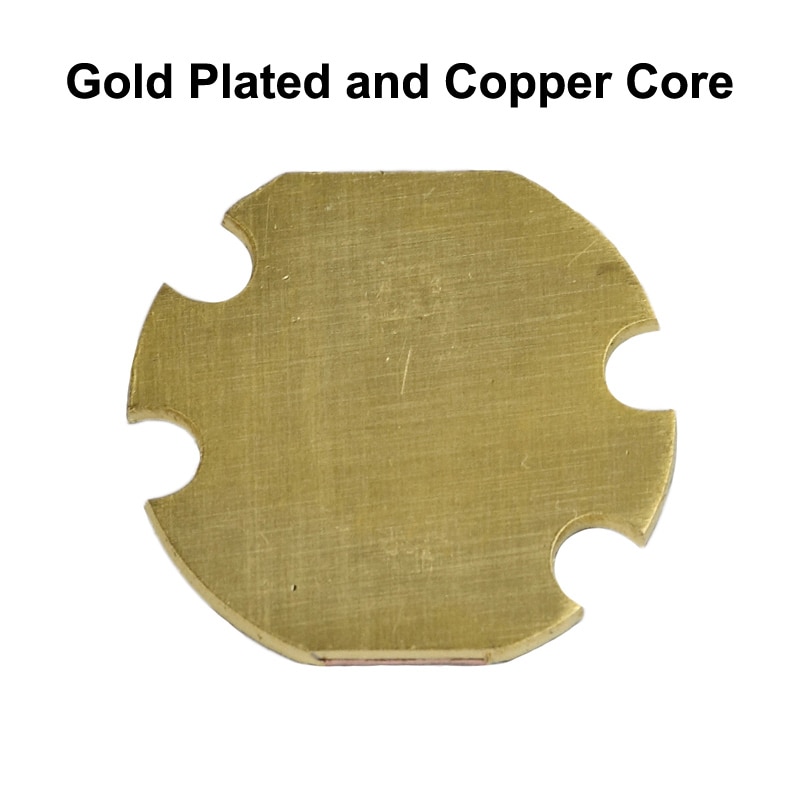

Material: Copper
LED: Seoul Viosys UV 275nm CUD7GF1A LED
Base Plate Dim.:

10mm (Dia.) x 1.5mm (Thickness) /

16mm (Dia.) x 1.5mm (Thickness) /

20mm  (Dia.) x 1.5mm (Thickness)

(options)

Weight: 5g
Package Content: 1 x LED Star
