Description
- Item Type: BALL
- Model Number: Seoul Viosys UV 365nm
- Certification: ce
- Voltage: 3.0-3.6V
- Current: 500mA
Description
– High power UV LED series are designed for high current operation and high power output applications.
– It incorporates state of the art SMD design and low thermal resistant material.
– Z5 NUV LED is ideal UV light source for curing, printing, and detecting applications
Features and Benefits
– High power output
– Designed for high current operation
– Low thermal resistance SMT type
– Lead Free product
Product Specifications:
Peak Wavelength: | 365nm |
Radiant Flux: | 990mW |
Forward Voltage: | 3.6V |
Forward Current |
500mA (1000mA – 1200mA max.) Tested by KD Support Team |
Spectrum Half Width: | 9nm |
View Angle: | 120 deg. |
Package Content:1 x UV LED Emitter

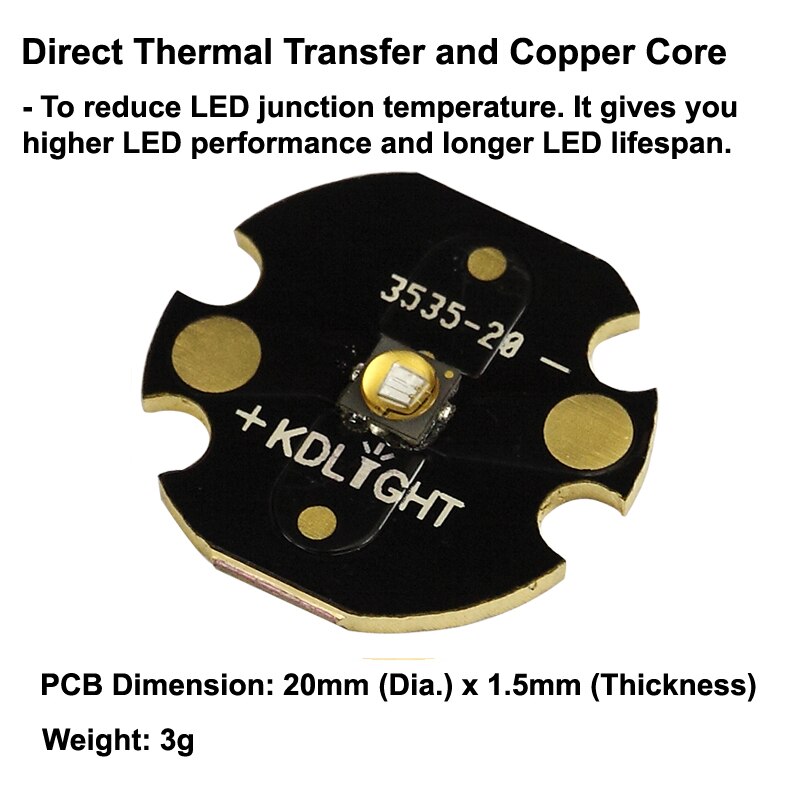

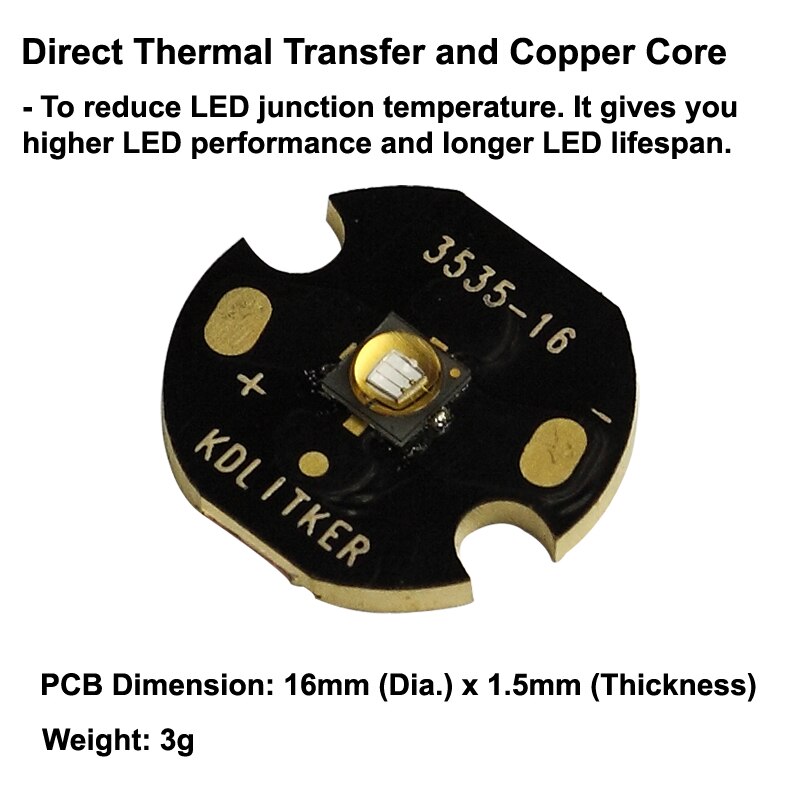

With KDLITKER DTP Copper MCPCB
Product Specifications:

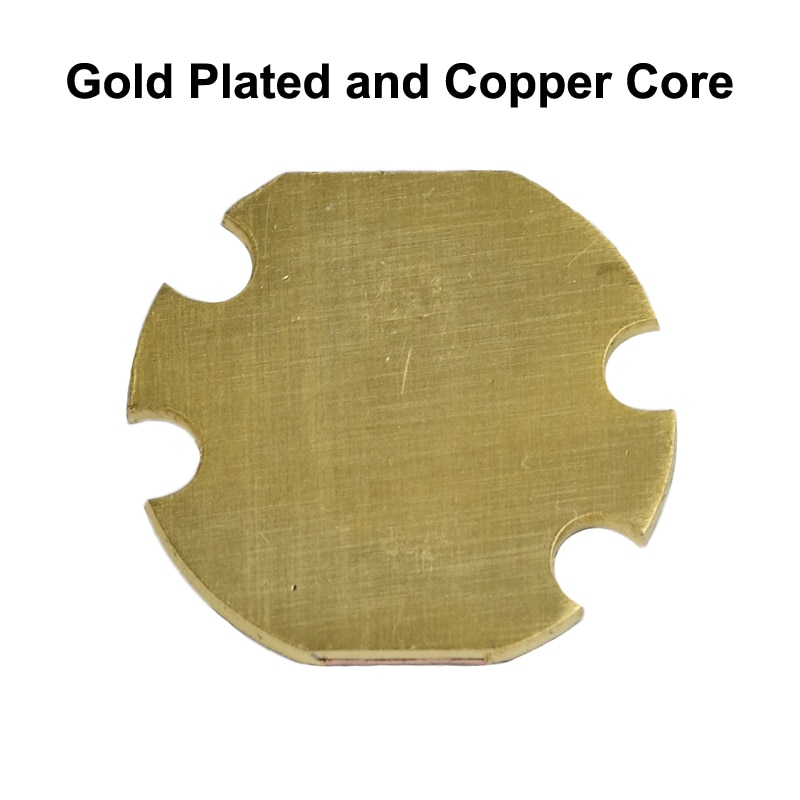

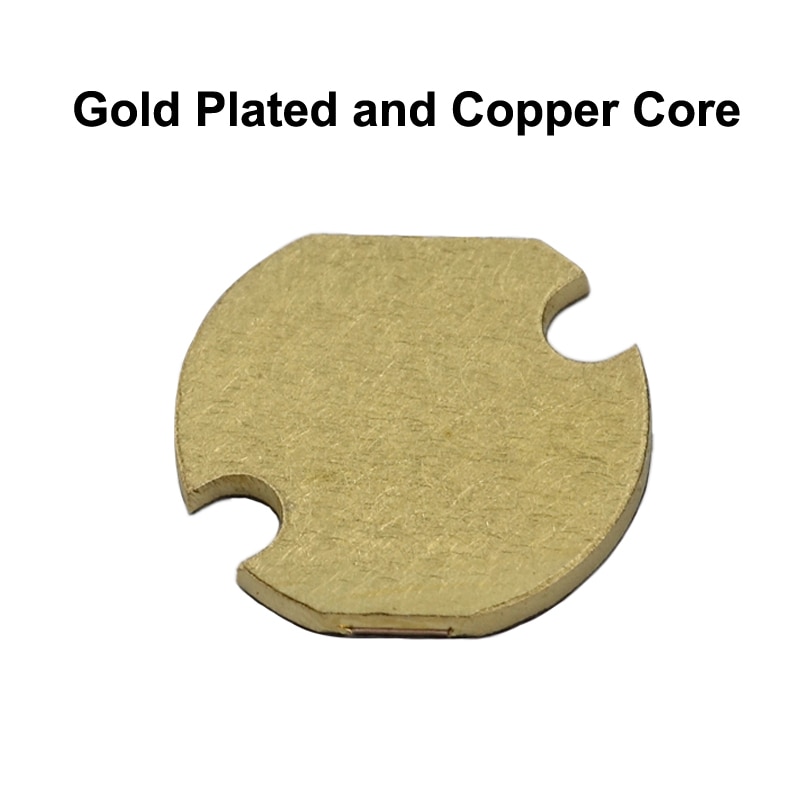

Material: | Copper |

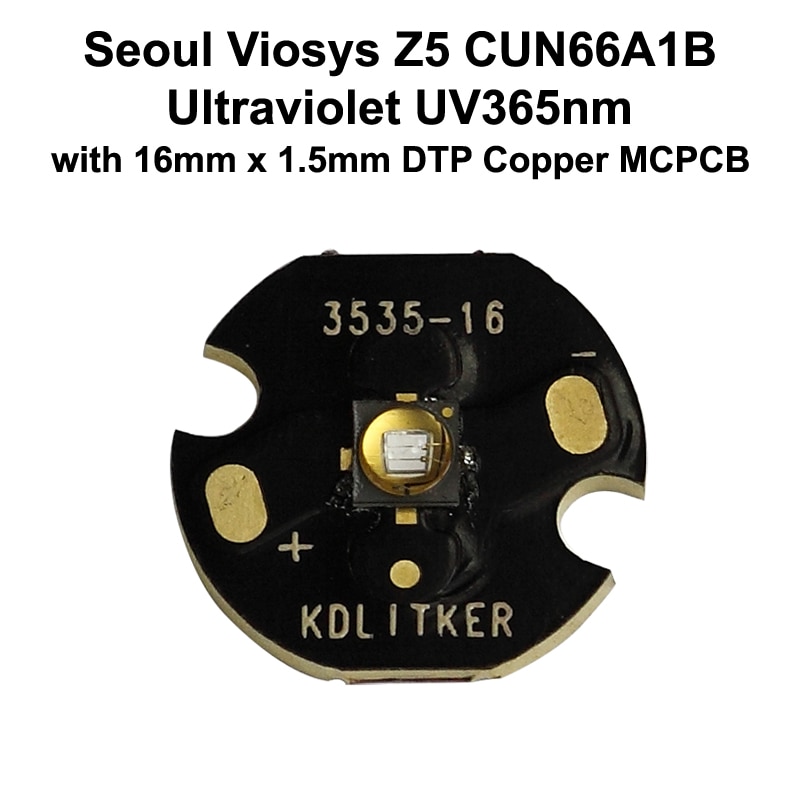

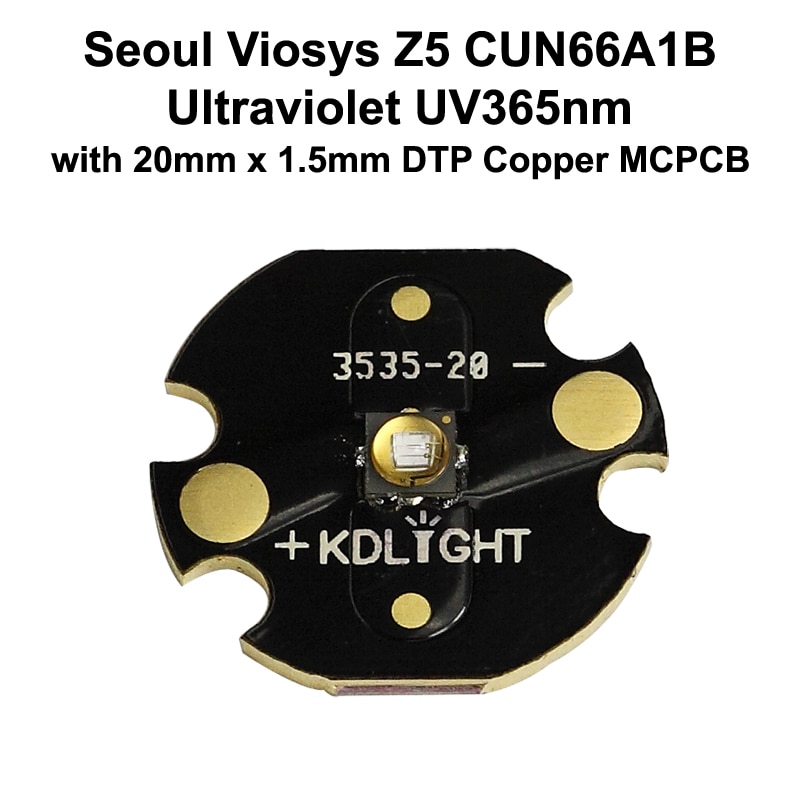

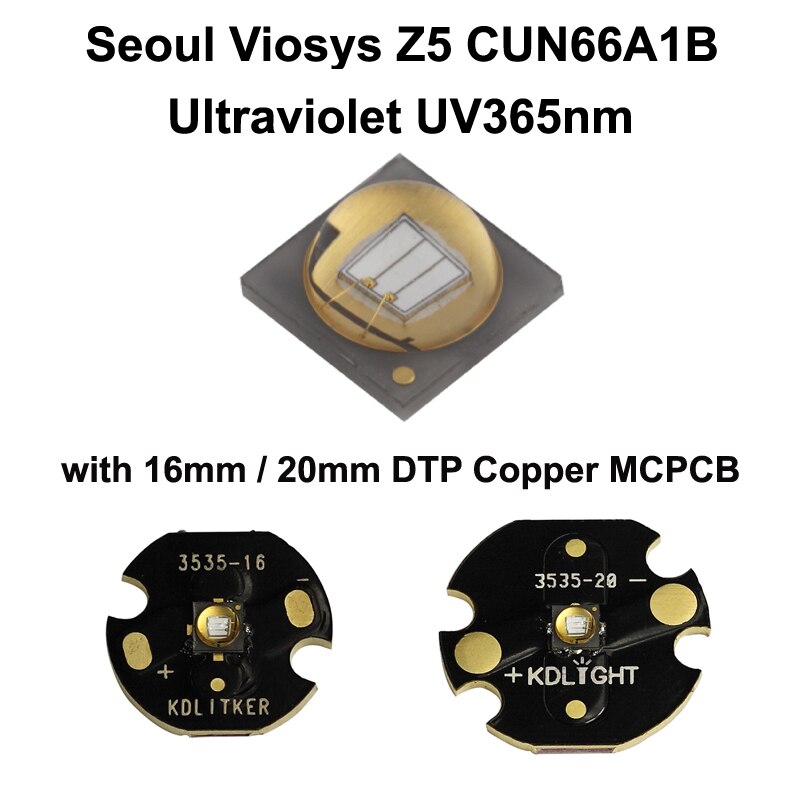

LED: | Seoul Viosys UV 365nm CUN66A1B LED |
Base Plate Dim.: |
10mm (Dia.) x 1.5mm (Thickness) / 16mm (Dia.) x 1.5mm (Thickness) / 20mm (Dia.) x 1.5mm (Thickness) (options) |
Weight: | 5g |
Package Content: | 1 x LED Star |
