SDG1020 Signal Generator Function/Arbitrary Waveform Generator 20MHz

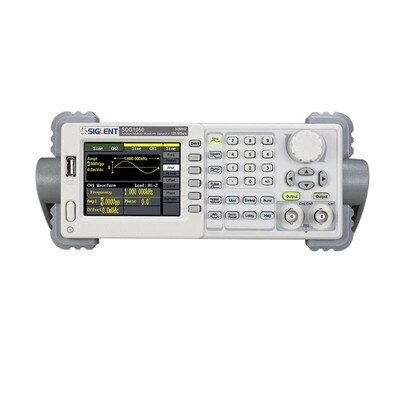

Siglent SDG1020 Signal Generator Function/Arbitrary Waveform Generator 20MHz

This is 100% Brand New Siglent SDG1020 Signal Generator . Siglent SDG1020 dual channel function and aribitrary waveform generator.

Features:

Apply DDS technology, double output, adjustable phase, the highest output frequency is 50MHz.
125MSa/s sample rate, 14bit vertical resolution, 16Kpts wave length.
Output 5 types of standard waveform, internally installed 48 types of waveform;
Internally installed high precision, wide frequency counter, frequency is up to 200MHz.
Abundant modulation function, sweep-frequency output, pulse train output.
Standard collocation connection: USB Device, USB Host, support U Disk storage and software upgrading;
GPIB and LAN port are optional.
Can connect to SDS1000 series digital oscilloscope perfectly, and support remote command control

Specification:

Model	SDG1005	SDG1010	SDG1020	SDG1025	SDG1050
highest frequency output	5MHz	10MHz	20MHz	25MHz	50MHz
output channels	2
sample rate	125 MSa/s
wave length	16 Kpts (channel one can choose 512Kpts)
frequency resolution	1 μHz
vertical resolution	14 Bit
waveform	Sine wave£¬ square wave £¬ triangular wave £¬ pulse wave £¬white noise£¬48 types of function waveform
Sine wave	1μHz ~ 5MHz	1μHz ~ 10MHz	1μHz ~ 20MHz	1μHz ~ 25MHz	1μHz ~ 50MHz
square wave	1μHz ~ 5MHz	1μHz ~ 10MHz	1μHz ~ 20MHz	1μHz ~ 25MHz	1μHz ~ 25MHz
pulse	1μHz ~ 5MHz	1μHz ~ 10MHz	1μHz ~ 10MHz	1μHz ~ 10MHz	1μHz ~ 10MHz
Ramp	1μHz ~ 300KHz	1μHz ~ 300KHz	1μHz ~ 300KHz	1μHz ~ 300KHz	1μHz ~ 300KHz
Gaussian white noise	5MHz bandwidth£¨-3dB£©	10MHz bandwidth£¨-3dB£©	20MHz bandwidth£¨-3dB£©	25MHz bandwidth£¨-3dB£©	50MHz bandwidth£¨-3dB£©
wave	1μHz ~ 5MHz	1μHz ~ 10MHz	1μHz ~ 10MHz	1μHz ~ 10MHz	1μHz ~ 10MHz
modulation function	AM£¬FM£¬PM£¬ASK£¬FSK£¬PWM etc.
other functions	Frequency counter£ºfrequency is up to200MHz
Standard configuration	USB Host & Device
Optional port	GPIB(IEEE-488)£¬LAN
product classify	function/waveform generator

General Characteristics:

• Power Supply: AC220V (1±10%) / AC110V (1±10%) (Pay attention to the voltage selection on rear panel)

• Frequency:50Hz (1±5%)

• Power Consumption: < 45VA

• Operating Temperature: 0°C to +40°C

• Operating Humidity: 80% R.H

• Operation Characteristics: Keypad operation and rotary knob operation

• Dimensions: 415mm x 295mm x 195mm

• Display: TFT display, 320*240

• Weight: 3.5kg

Packing list:

1 x Signal Generator

1 x USB wire

1 x powe cord

1 x Manual
