for Sculpfun S9

Features:

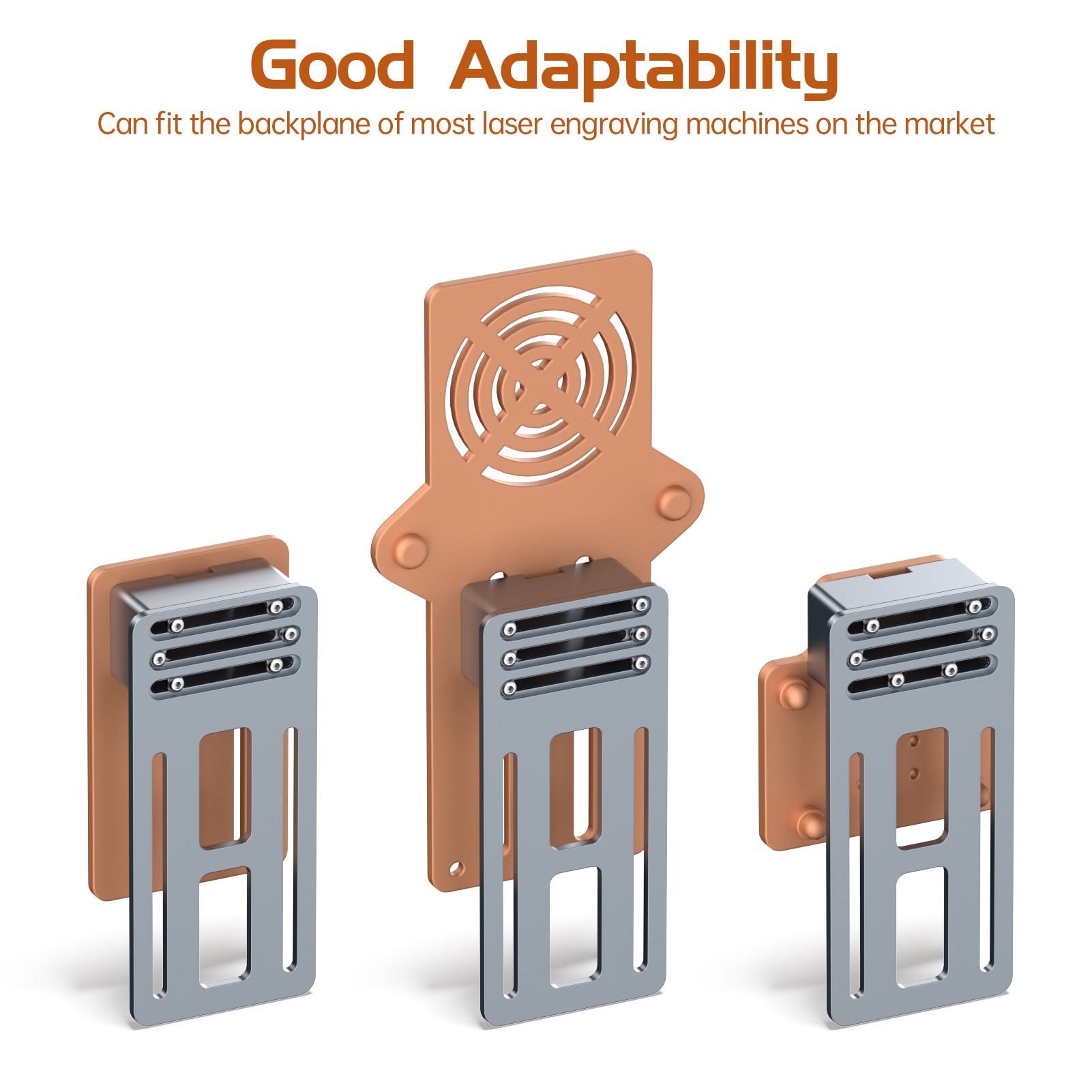

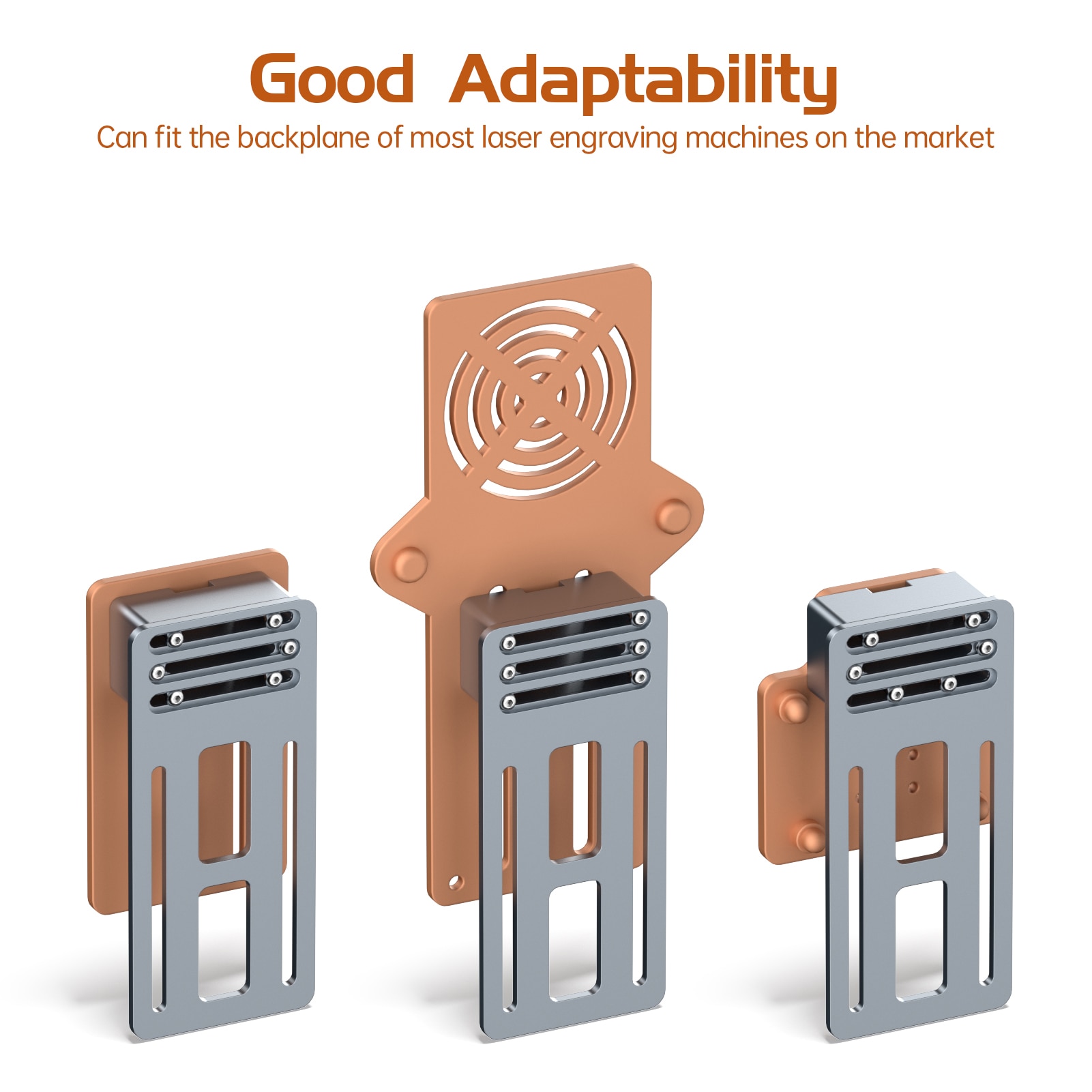

Widely Compatible Design: The SCULPFUN laser module has a clever and widely compatible structural connection device, which can be well adapted to different laser engraving machines, laser cutting machines, 3D printers, CNC milling machines, etc. It can be installed on a variety of brand machines, such as SCULPFUN, ATOMSTACK, ORTUR laser engraving machine, or other DIY type machines.

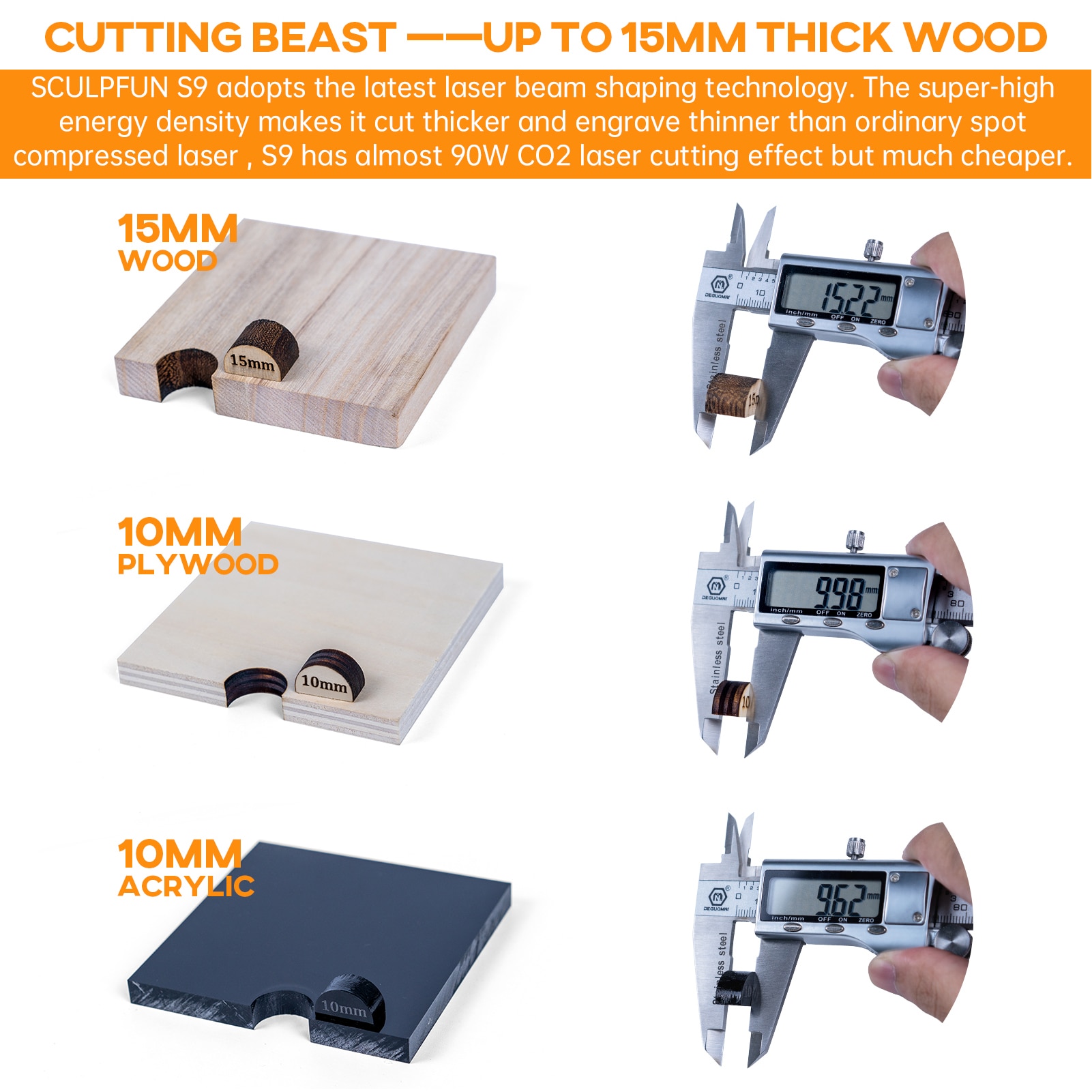

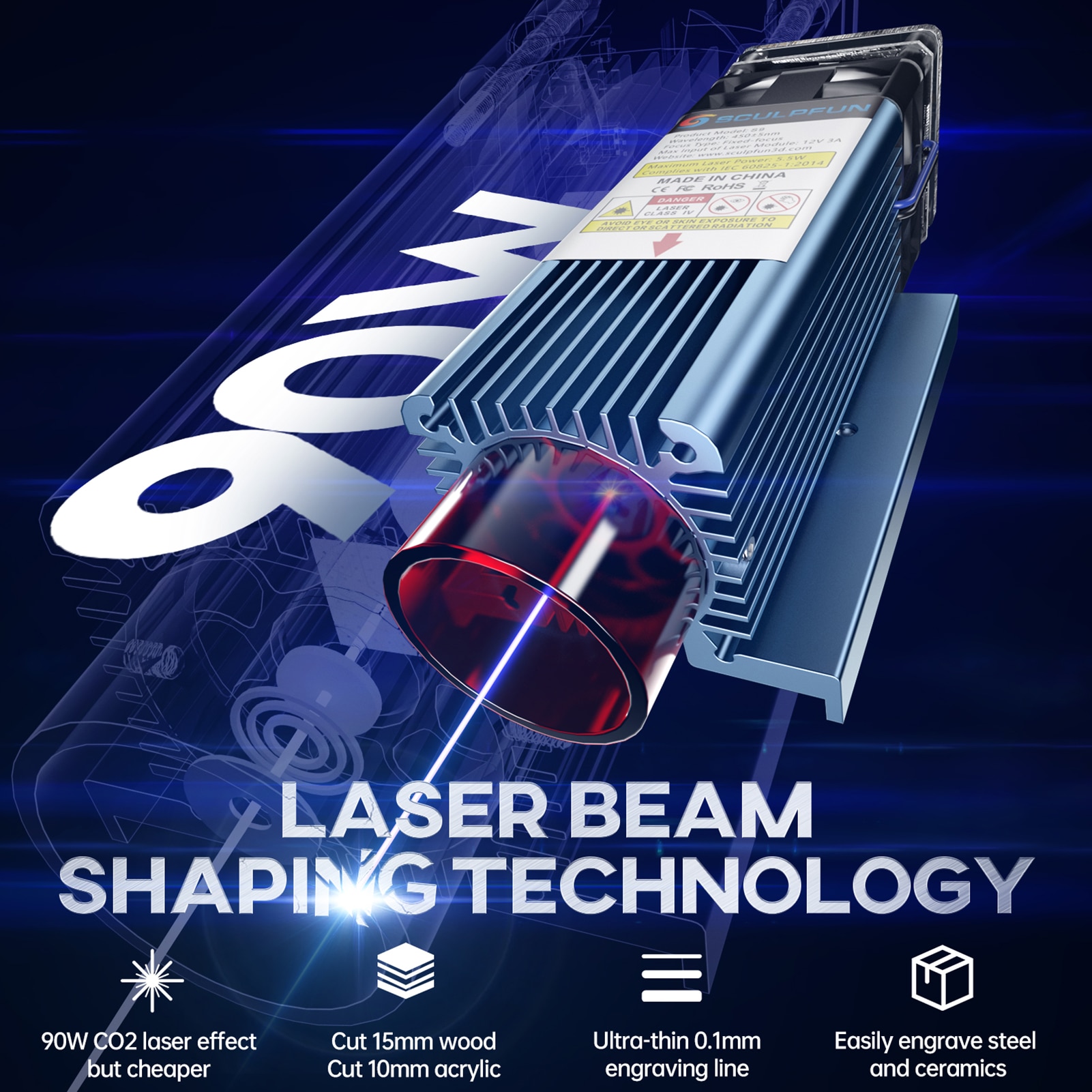

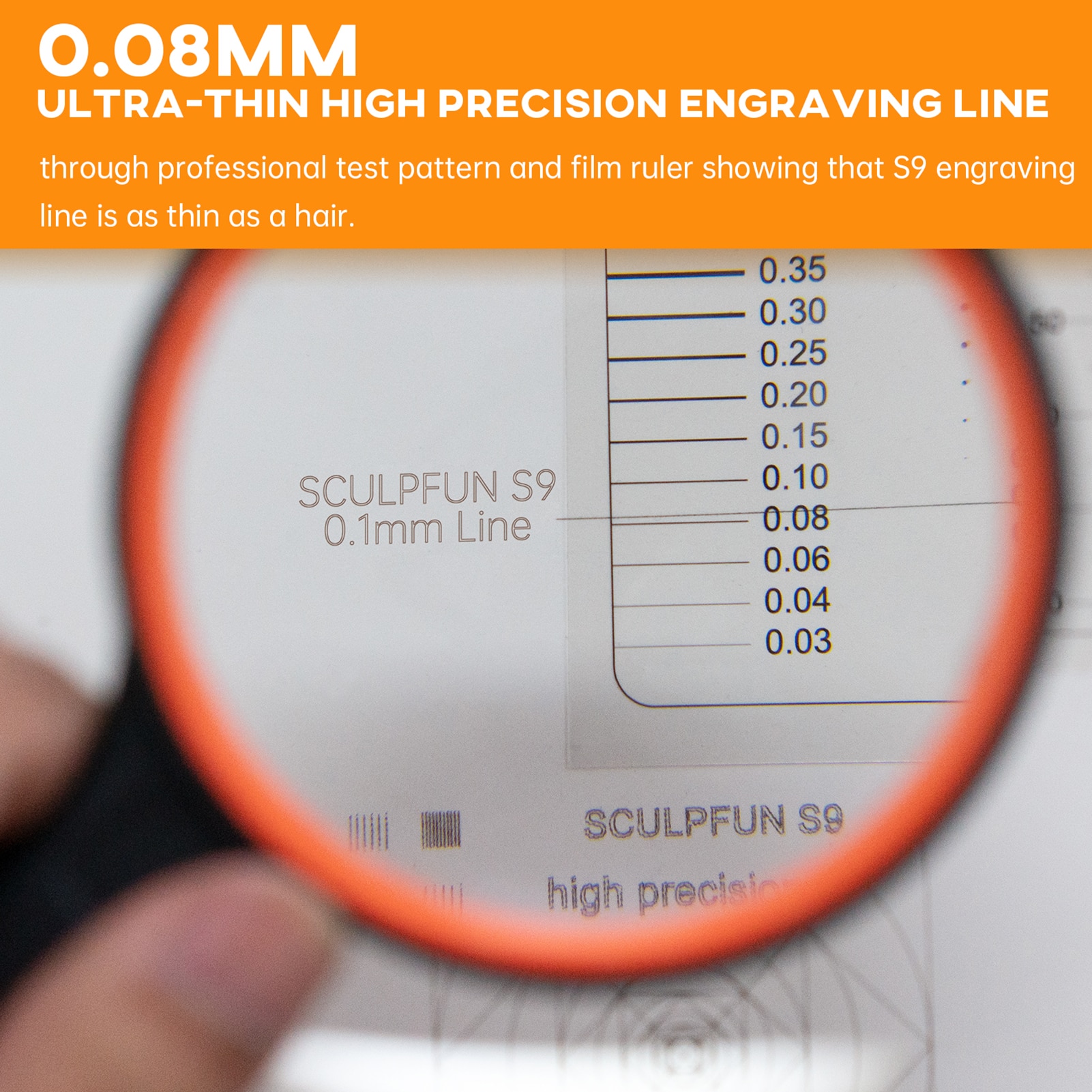

High Performance Laser Beam: S9 uses the latest 5.5W laser beam shaping technology ,the effect of this technique is to get a super-high-density energy laser beam , it is more than just a focus, the entire beam is very thin. It has an ultra-fine 0.06mm sharp laser focus, with super cutting penetration and precision, he can cut up to 15mm thick wood, 10mm acrylic, carve ceramics and stainless steel, this is almost beyond the effect of 90W CO2 laser.

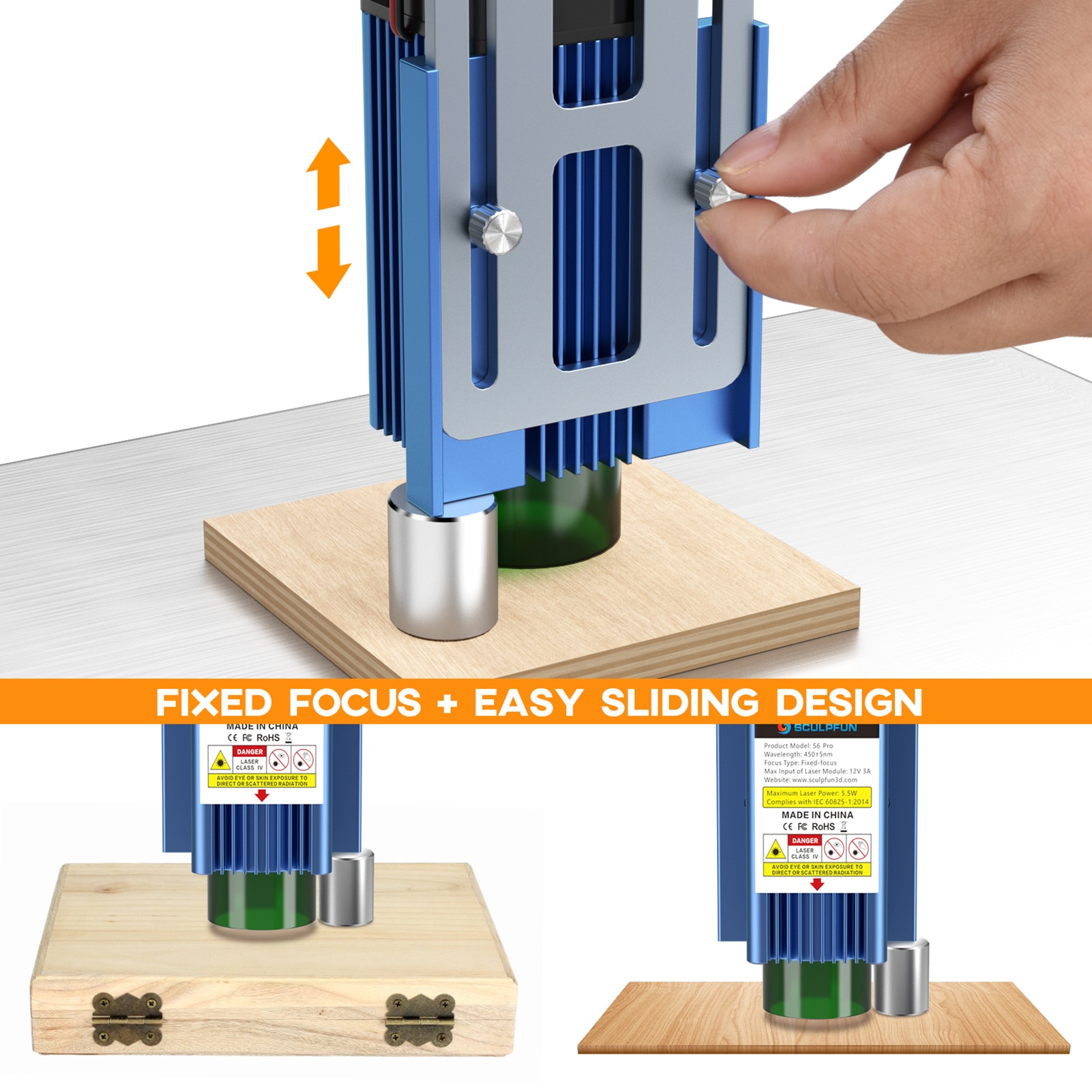

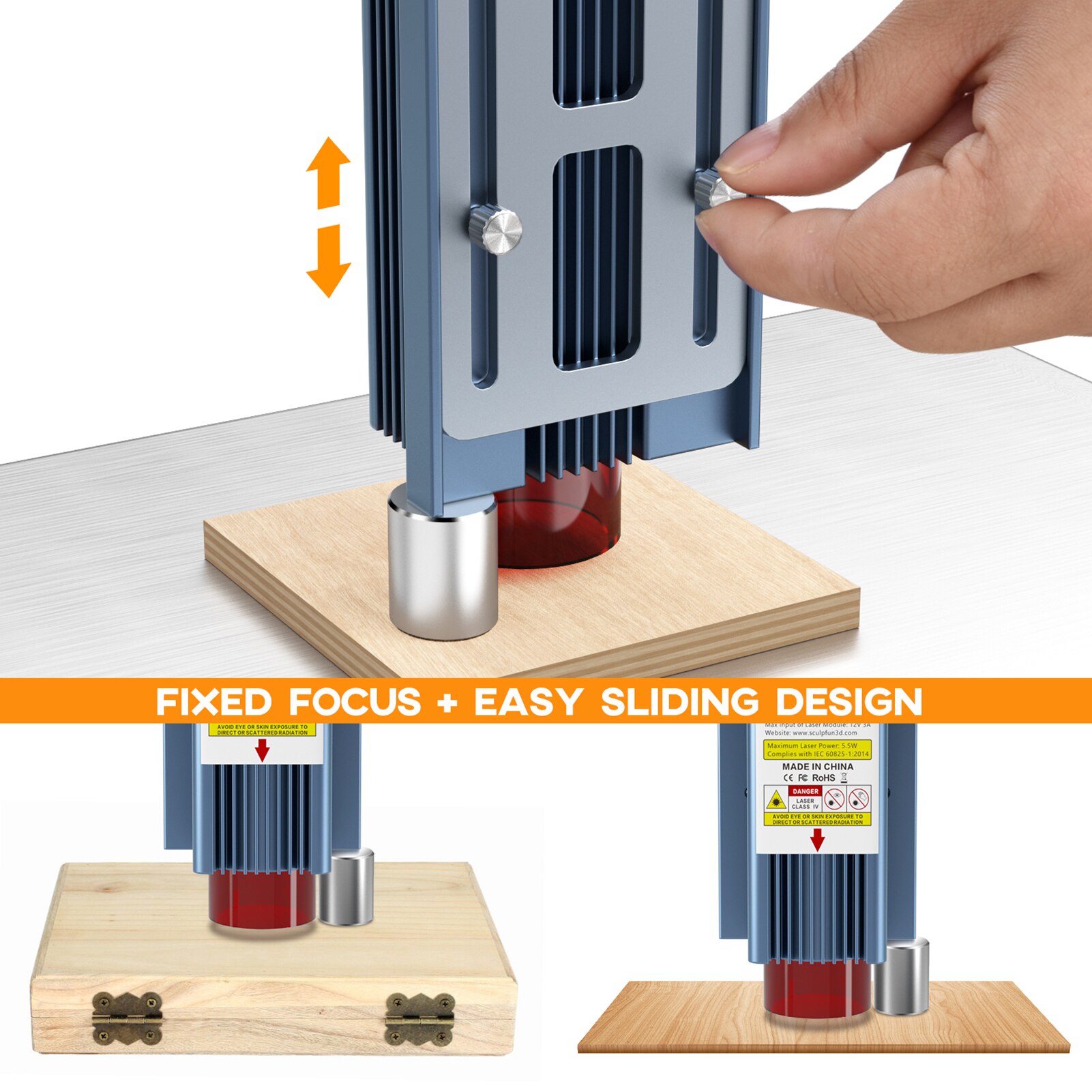

Fast Fixed-focus Design: The S9 laser module has the fastest focusing design on the market. It combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete focusing. This makes the use of the laser very simple. Using it on different machines does not affect its sliding fixed focusing function.

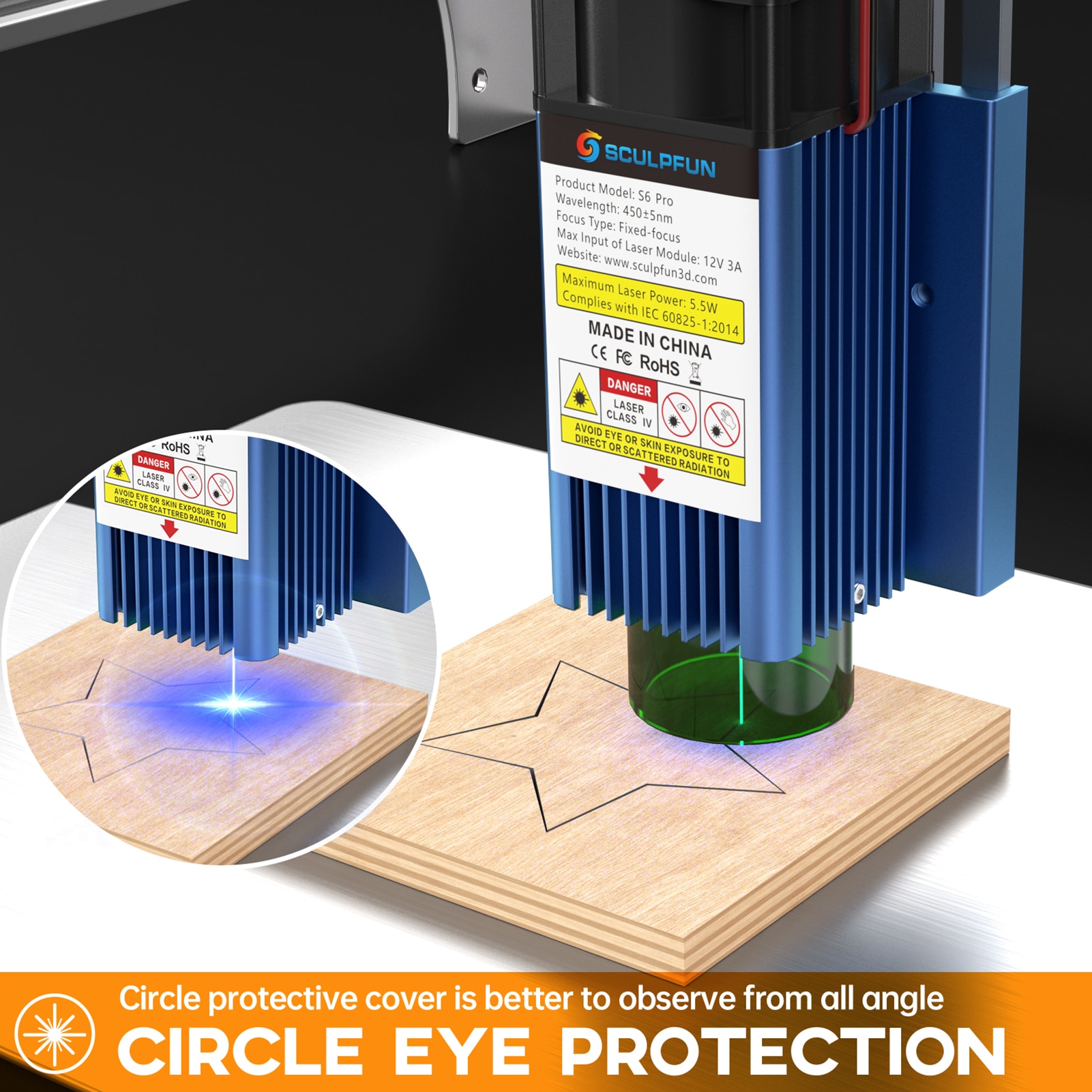

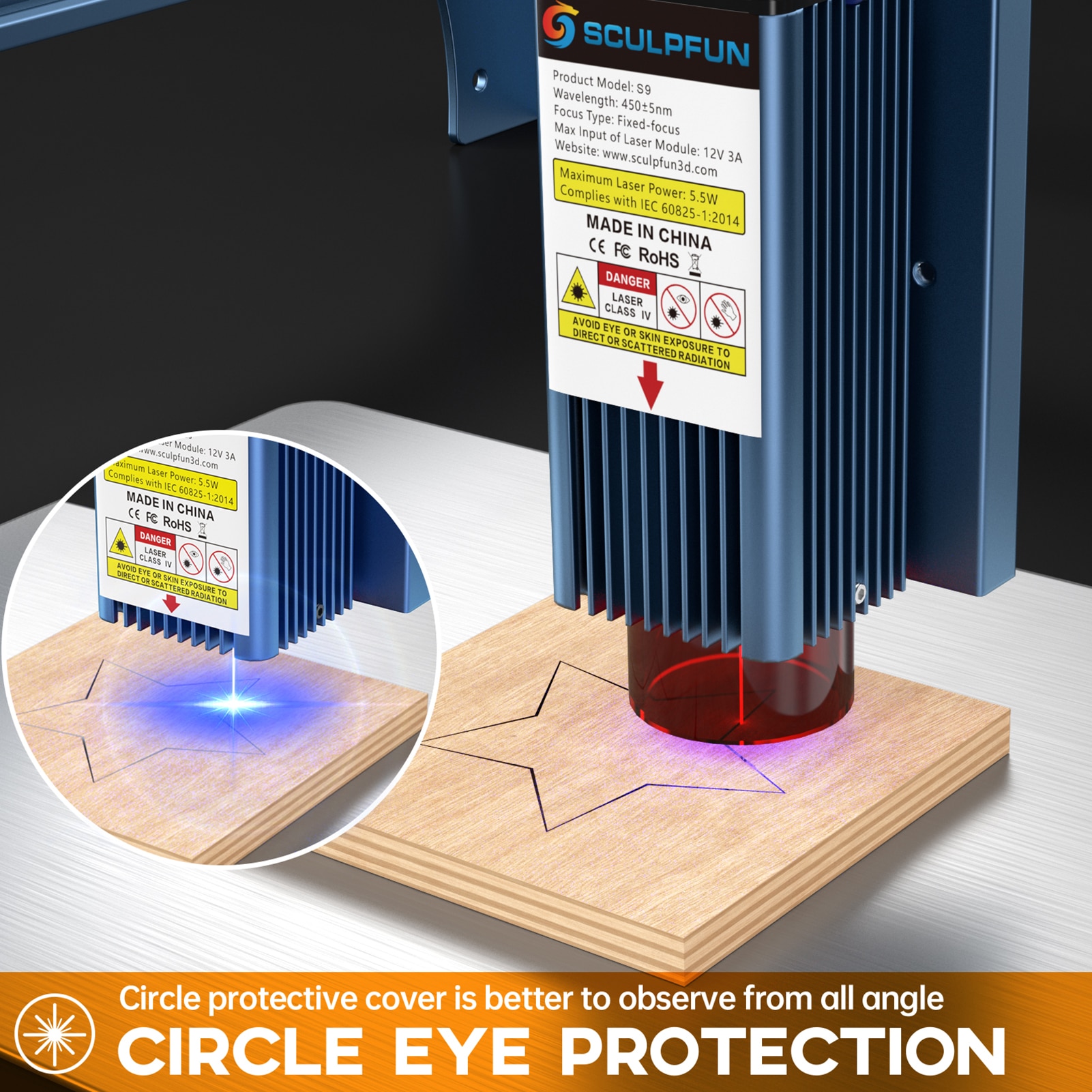

Eye-protection Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. You and the people around you can watch laser engraving from all angles without wearing goggles. At the same time, it can prevent animals from catching the laser spot.
General 12V/PWM Modulation Board: It uses a common 12V/PWM modulation board, which can be adapted to common GRBL or CNC motherboards. You can view product pictures for details.

Specifications:

Model: SCULPFUN S9 Laser Module
Applicable Machines: laser engraving machines such as SCULPFUN, ATOMSTACK, ORTUR, ELEKSMAKER, or DIY 3D printers, CNC machine tools.
Engraving Materials: Paper, cardboard, plastic, white, PCB board, alumina, stainless steel, black metal, ceramic
Cutting Material: Thin board, acrylic board, cardboard, non-woven fabric, bamboo, some plastic board;
Laser Output Power: 5.5-6W (light energy)
Laser Wave Length 455±5nm
Laser Type and Fixed Focus Method: fixed focus laser, fixed focus through 20mm measuring column
Laser Protective Cover: The ring-shaped violet filter cover protects the user’s eyes and prevents animals, etc. from contacting the laser spot.
Laser Shell Material: Aluminum alloy
Packing Size: 11*12*18cm
Package Weight: 0.5kg

Laser Circuit Board Parameters:
Circuit Board Size: 40*40mm
Circuit Board:12V/PWM modulation board
Input voltage: 12V
Max Input of laser module:12V 3A

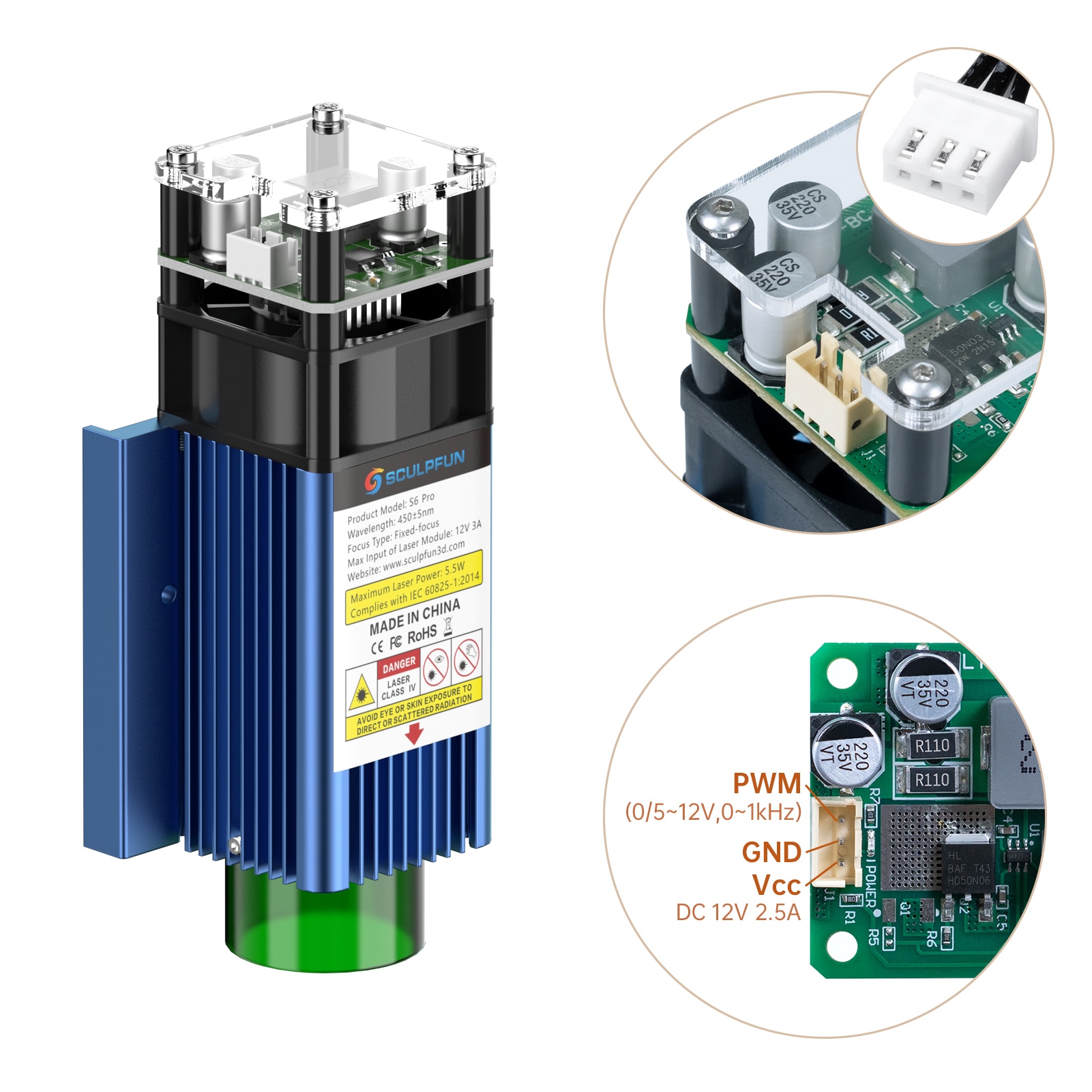

Wire Rod:HY2.0, 3Pin terminal (3-core cable, A: PWM +, B: GND, C: VCC ).
Fan:12V 0.15A 4020 fan
Fan speed: 10000 rpm
Operating Temperature: -20 ℃ to 70 ℃

Precautions:
●For detailed machine instructions, please refer to the manual for parameter settings.
●Before installing and using the laser, you should understand the adaptability and the maximum input voltage and current to avoid damage to the laser.
●Do not touch the laser with your hands, otherwise you may burn your hands.
●Please avoid strong impact on the machine.
●It is forbidden for children under 14 years old to use this product. Children over 14 years old need adult supervision.
●Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.

Package List:
Laser head*1
Multi-function Structural Connection Device *1
20mm Measuring Column*1
Screws Tool Kit*1

Features:
Widely Compatible Design: The SCULPFUN laser module has a clever and widely compatible structural connection device, which can be well adapted to different laser engraving machines, laser cutting machines, 3D printers, CNC milling machines, etc. It can be installed on a variety of brand machines, such as SCULPFUN, ATOMSTACK, ORTUR laser engraving machine, or other DIY type machines.

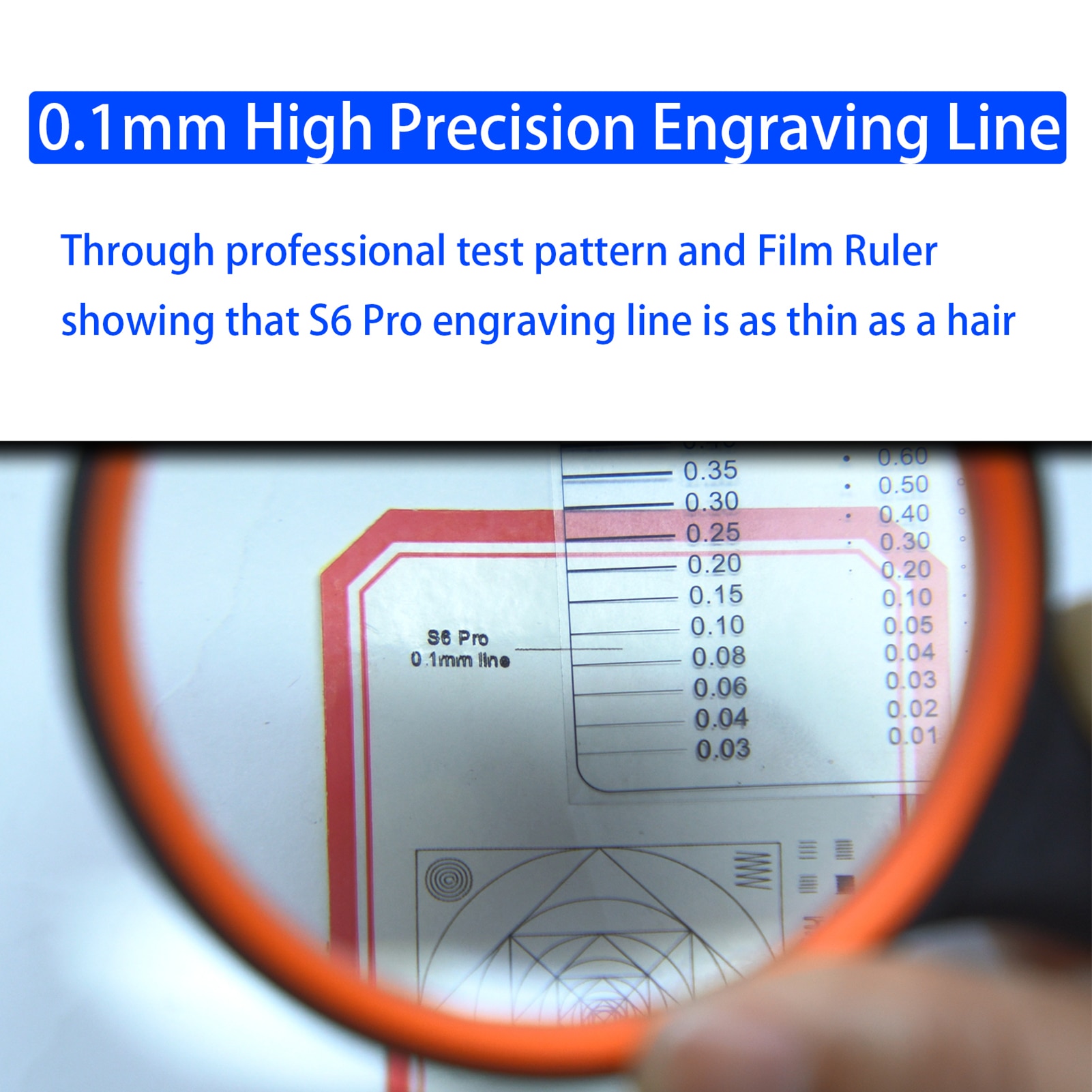

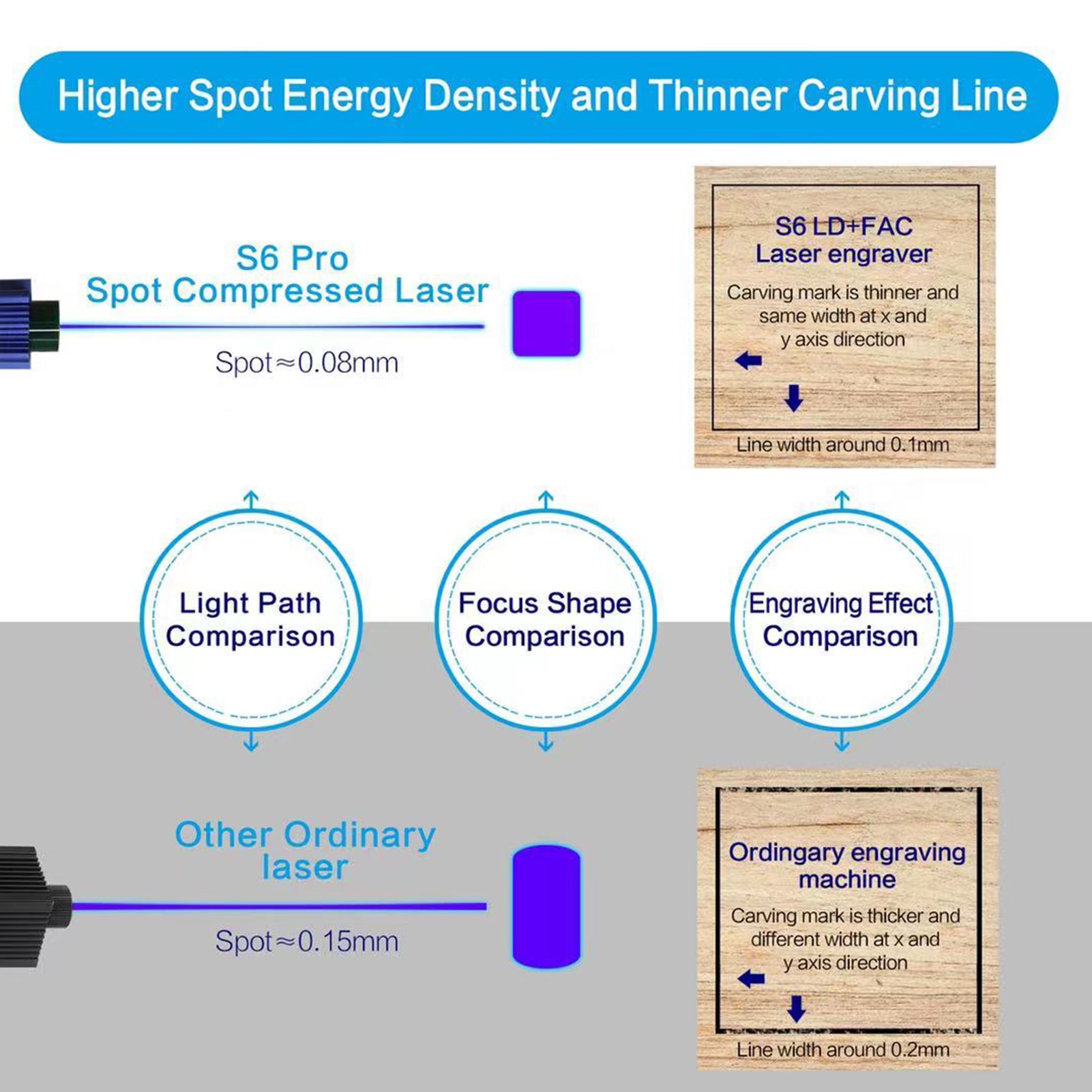

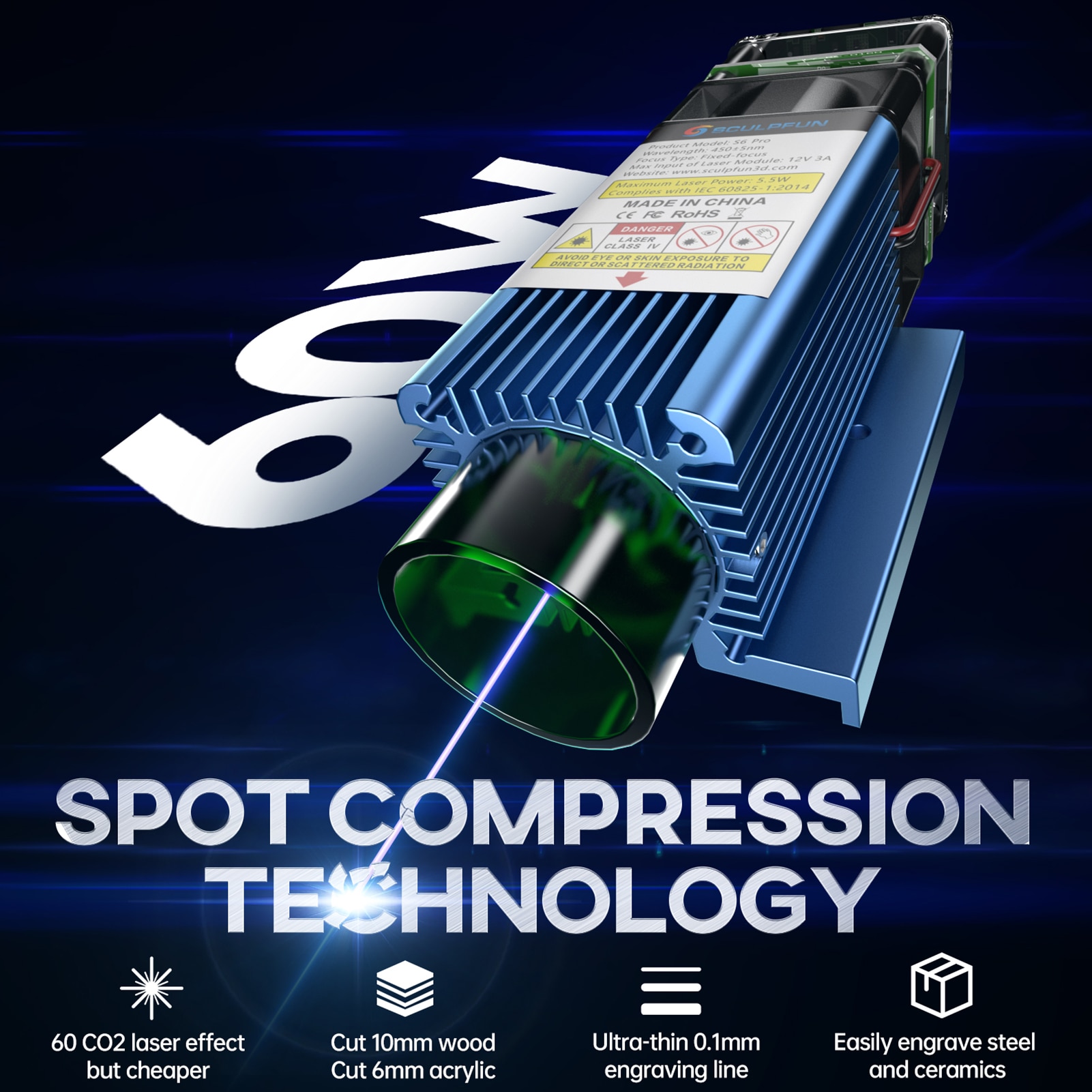

Powerful 60W Effect Spot Compressed Laser: S6 pro uses the latest 5.5W diode spot compression laser. It has an ultra-thin square laser focus, and its cutting penetration and accuracy are twice of ordinary lasers. Even in the field of spot compression lasers, S6 pro has finer engraving marks and stronger cutting and penetration capabilities. It can cut 10mm thick wood boards and engrave ceramics and metals, which is almost beyond the effect of 60W CO2 laser.
Fast Fixed-focus Design: Combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete focusing. This makes the use of the laser very simple. Using it on different machines does not affect its sliding fixed focusing function.
Circle Eye-protection Cover Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. You and the people around you can watch laser engraving from all angles without wearing goggles. At the same time, it can prevent animals from catching the laser spot.
General 12V/PWM Modulation Board: It uses a common 12V/PWM modulation board, which can be adapted to common GRBL or CNC motherboards. You can view product pictures for details.

Specifications:
Model: SCULPFUN S6 Pro Laser
Applicable machines: laser engraving machines such as SCULPFUN, ATOMSTACK, ORTUR, ELEKSMAKER, or DIY 3D printers, CNC machine tools.
Engraving materials: paper, paper, cardboard, plastic, white, PCB board, alumina, stainless steel, black metal, ceramic
Cutting material: thin board, acrylic board, cardboard, non-woven fabric, bamboo, some plastic board;
Laser effect power: 60W (cutting effect similar to 60W CO2 laser)
Laser output power: 5.5-6W (light energy)
Laser wave length 455±5nm
Laser type and fixed focus method: fixed focus laser, fixed focus through 20mm measuring column
Laser protective cover: the ring-shaped violet filter cover protects the user’s eyes and prevents animals, etc. from contacting the laser spot.
Laser shell material: aluminum alloy
Laser Circuit Board Parameters:
Circuit Board Size: 40*40mm
Circuit Board:12V/PWM modulation board
Input Voltage: 12V
Max Input of Laser Module:12V 3A
Wire Rod:HY2.0, 3Pin terminal (3-core cable, A: PWM +, B: GND, C: VCC ).
Fan:12V 0.15A 4020 fan
Fan Speed: 10000 rpm
Operating Temperature: -20 ℃ to 70 ℃
Package Weight: 0.5kg/ 1.1lbs
Package Size: 11*12*18cm/ 4.33*4.72*7.08in

Precautions:
●For detailed machine instructions, please refer to the manual for parameter settings.
●Before installing and using the laser, you should understand the adaptability and the maximum input voltage and current to avoid damage to the laser.
●Do not touch the laser with your hands, otherwise you may burn your hands.
●Please avoid strong impact on the machine.
●It is forbidden for children under 14 years old to use this product. Children over 14 years old need adult supervision.
●Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.

Package List:
Laser Head*1
Multi-function Structural Connection Device *1
20mm Measuring Column*1
Screws Tool Kit*1

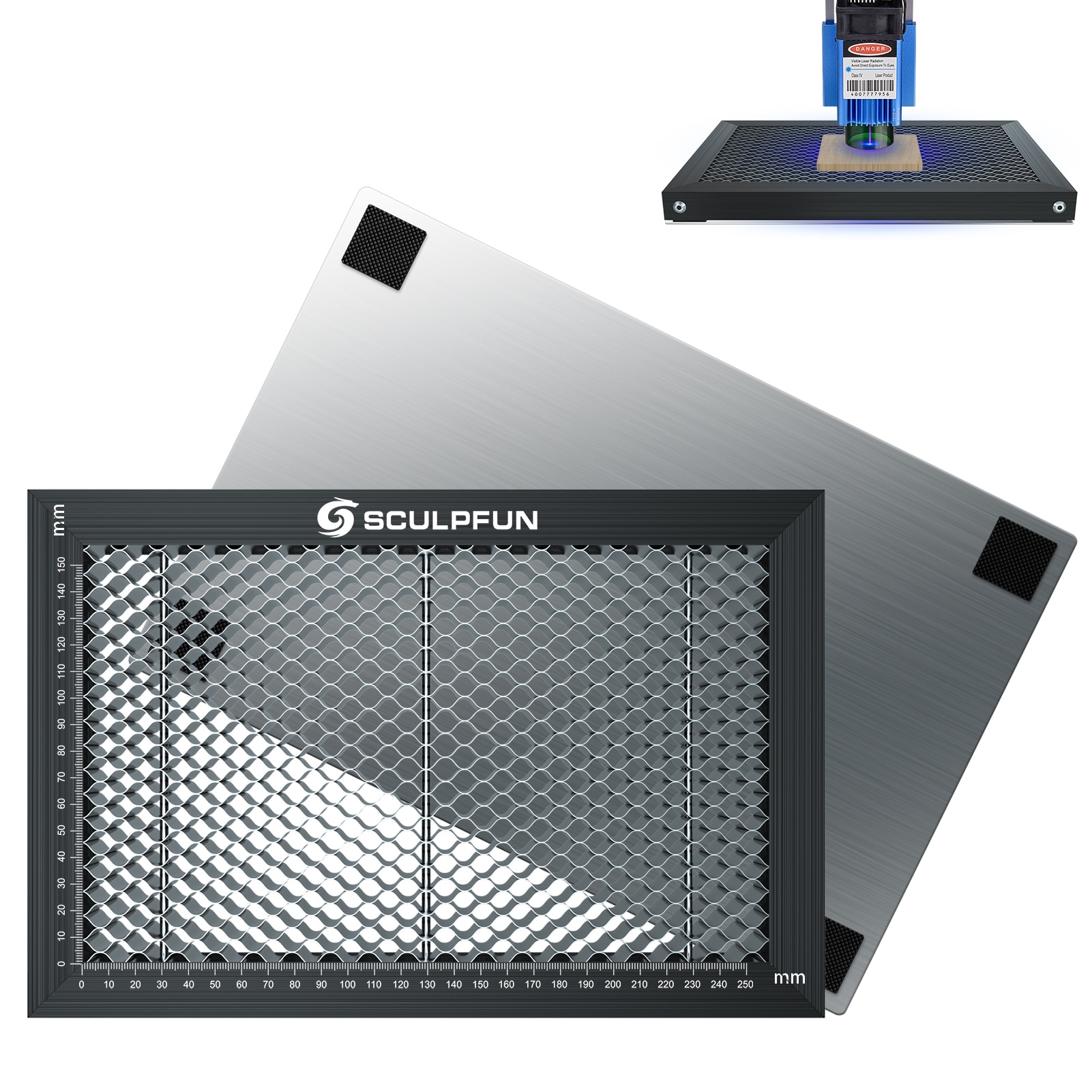

Honeycomb Panel

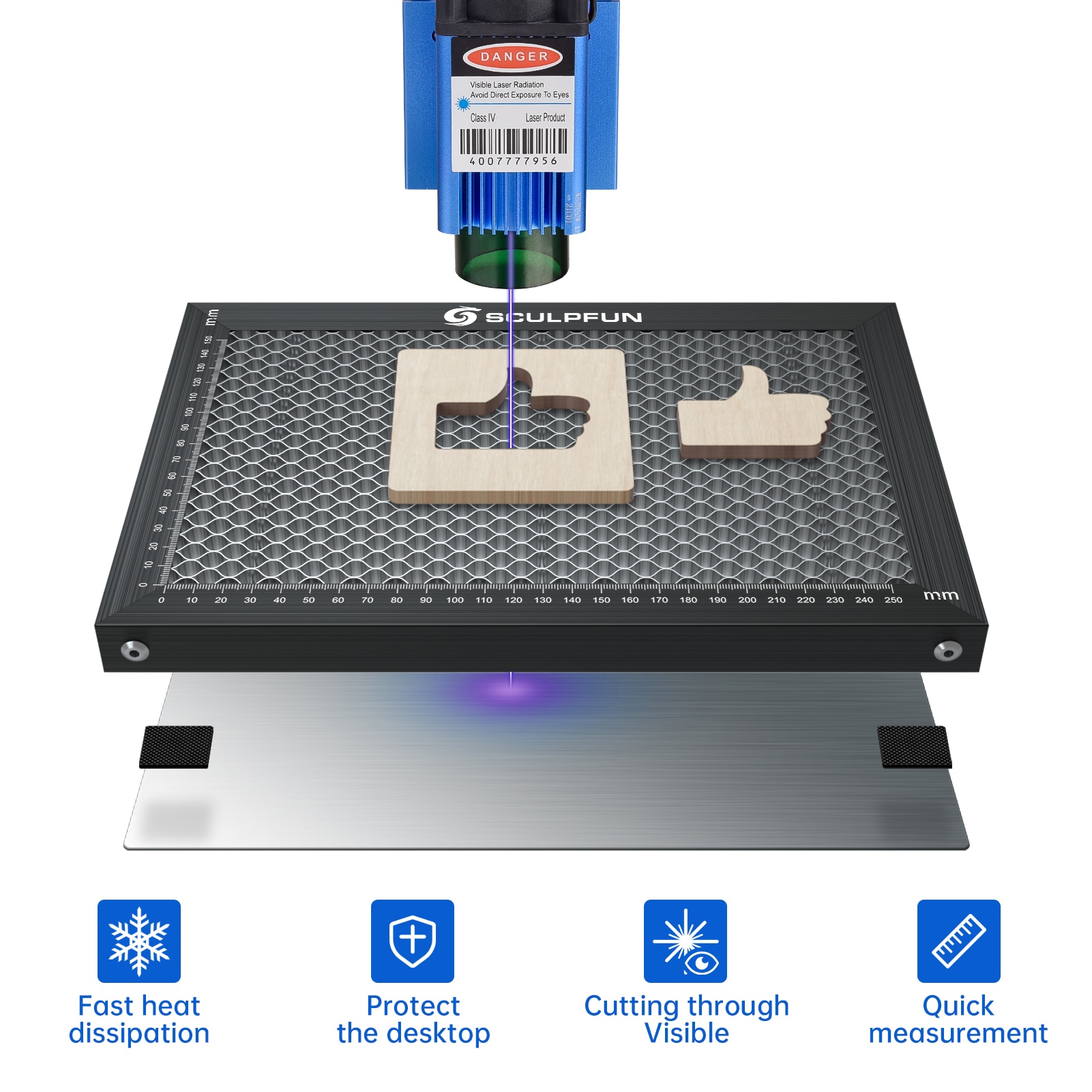

Features:

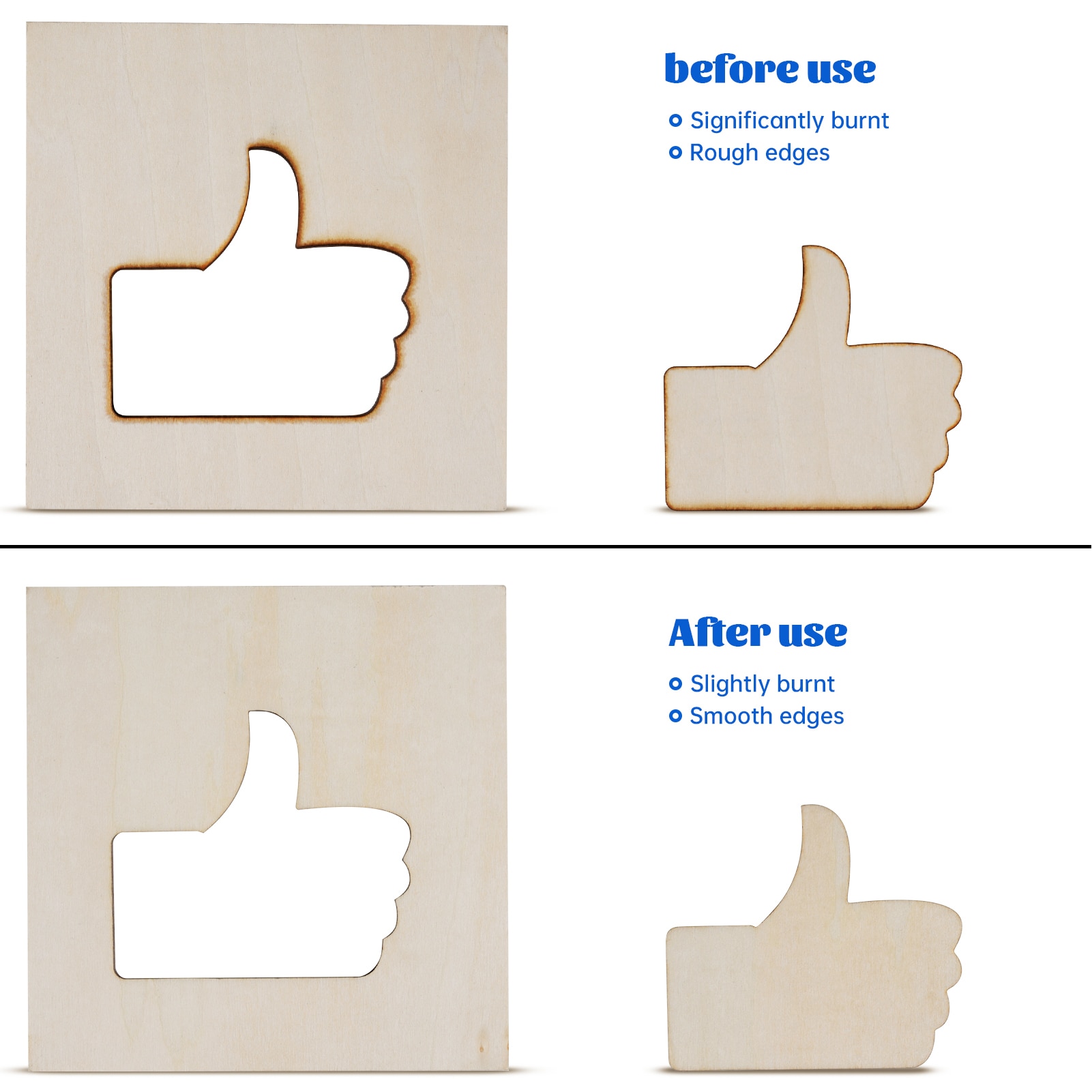

Necessary Accessories for Laser Cutting: After using this laser cutting honeycomb table to cut wood, acrylic and other materials, the edges of the wood are neat and clean, not easy to be yellowed by smoke, and you can get a clean cutting work .
Cutting Through Observable Design: SCULPFUN honeycomb table contains a very convenient cutting and observation design. When the laser cuts through wood or acrylic, the metal plate at the bottom of the honeycomb will emit a bright light, which means that the cutting has penetrated. Solve the problem that ordinary engraving machine is difficult to judge whether cutting through.
Safe Metal Desktop Protection Board: SCULPFUN honeycomb board is equipped with a metal desktop protection board, which can protect the table from laser damage, which is very suitable for  many different diode laser engravers.

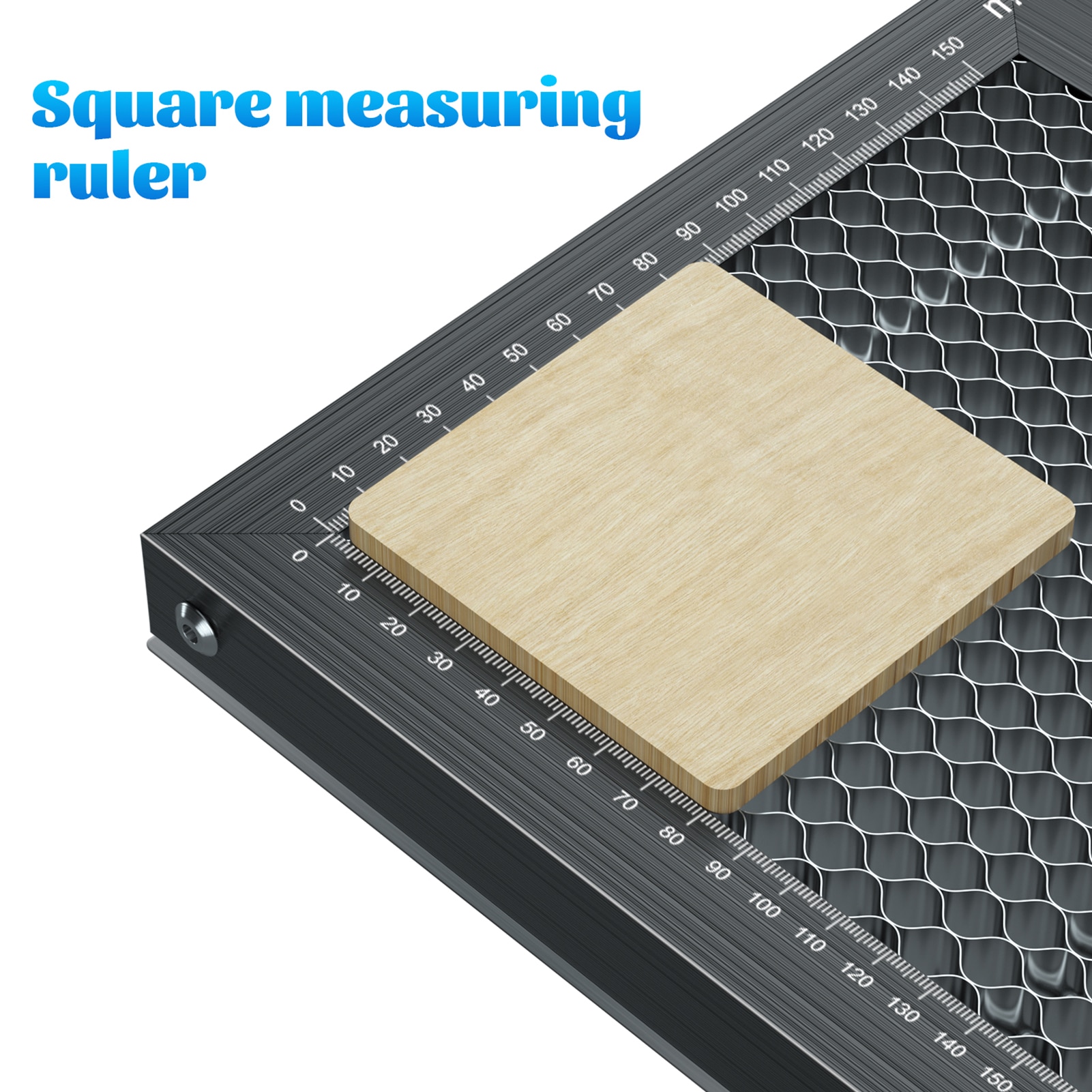

All-metal High Flatness: SCULPFUN is all made of metal, processed by high-precision CNC, solid structure not easy to deform, high flatness. Wiith X-axis and Y-axis precise scale lines for you to measure the size of cutting objects quickly.
Wide Compatibility: The machine can be compatible with various mature laser engraving machines, such as diode DIY laser engraving machine and CO2 laser engraving machine.

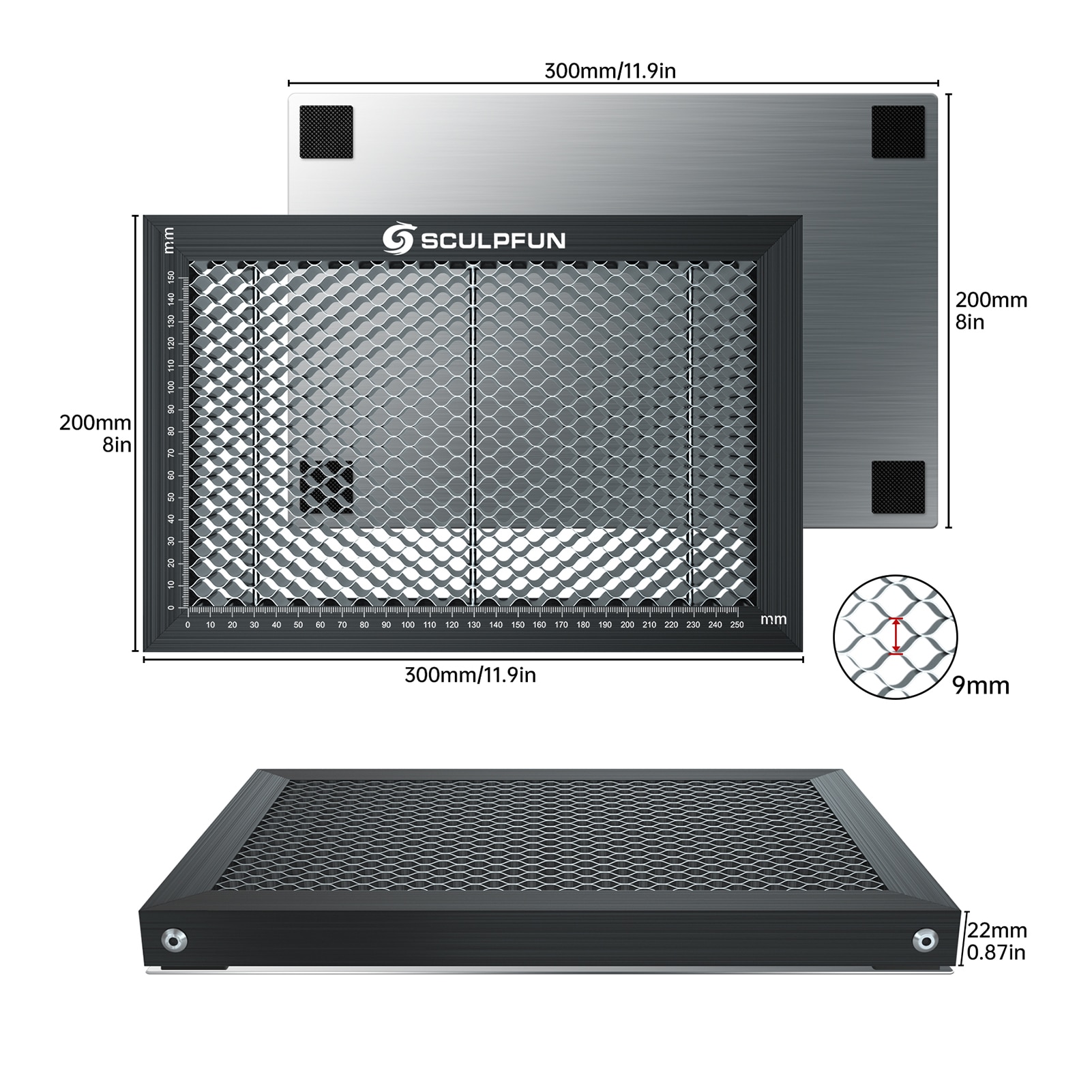

Specifications:
Brand: Sculpfun
Material: High-strength Steel
Item Size: 300*200*22mm/ 11.9 * 8 * 0.87in
Item Weight: 0.65kg/ 1.43lbs
Diameter of Honeycomb Mesh: 9mm
Package Weight: 0.8kg/ 1.76lbs
Package Size: 31*21*3cm/ 12.2 * 8.26 * 1.18in

Package List:
1× SCULPFUN Honeycomb Panel
1× 200x300mm Metal Desktop Protection Board

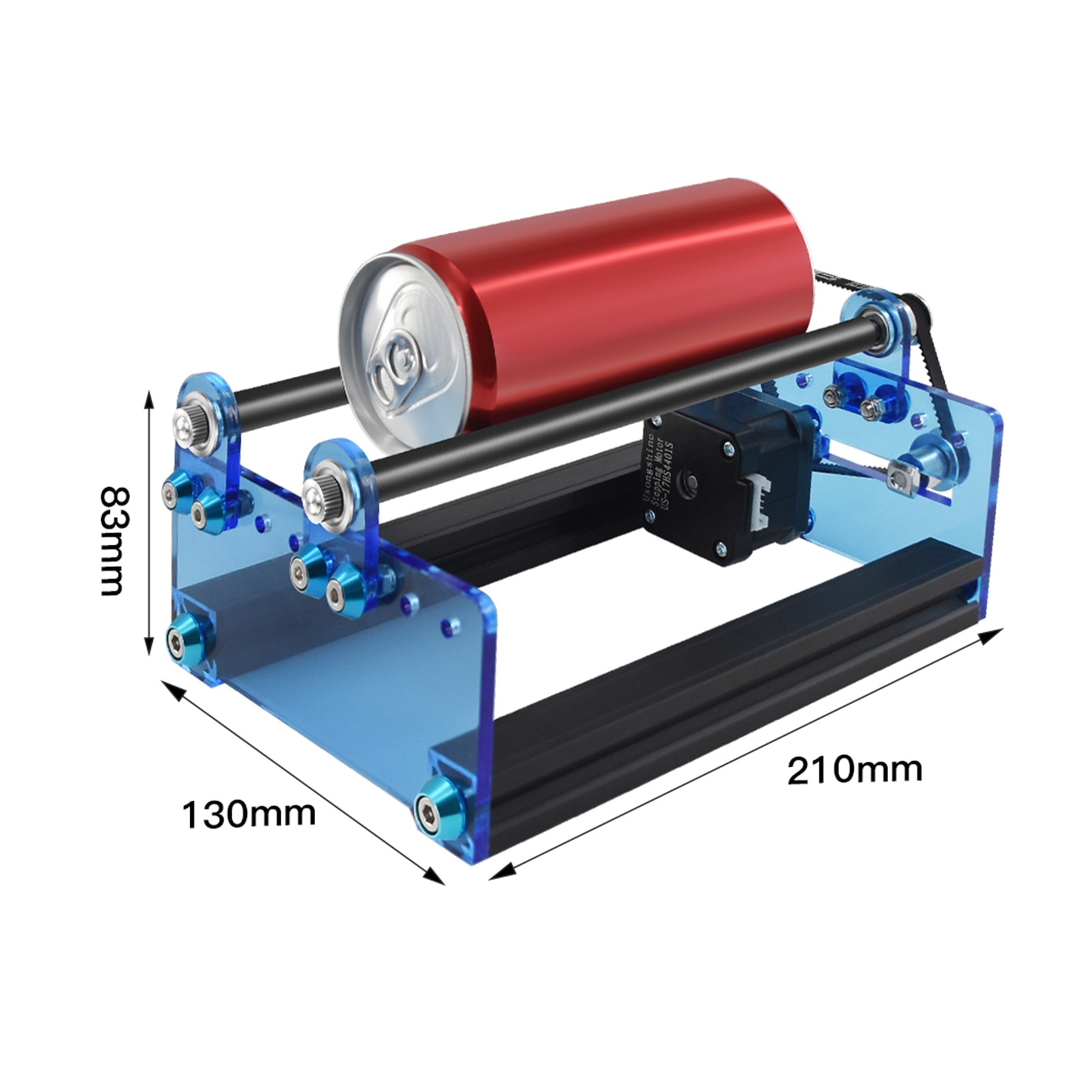

Roller
