Description

Features:
Latest Laser Beam Shaping Technology: S9 uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.06mm sharp laser focus, with super cutting penetration and precision, can cut up to 15mm thick wood, 10mm acrylic, carve ceramics and stainless steel.
Fast Focusing Design: Combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete the focusing. This makes it very easy to use.

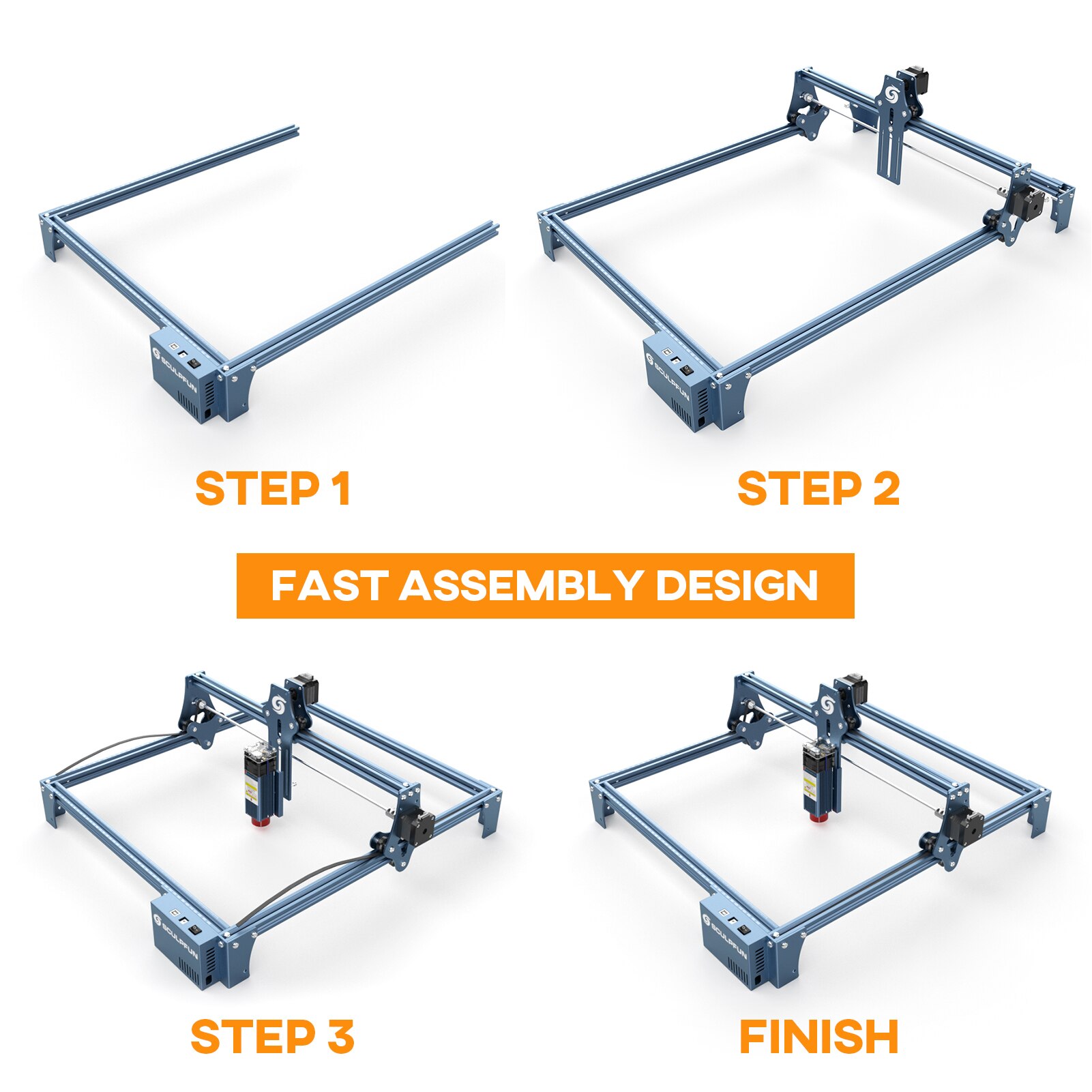

Solid & Easy Assembly Structure: The full-metal structure design makes the machine work stably, and improves the engraving accuracy. The assembly can be completed in 10-20 minutes. The structural frame is very durable and available to upgrade. During use,
Wide Compatibility: The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows system, A-pple system (LightBurn), and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.

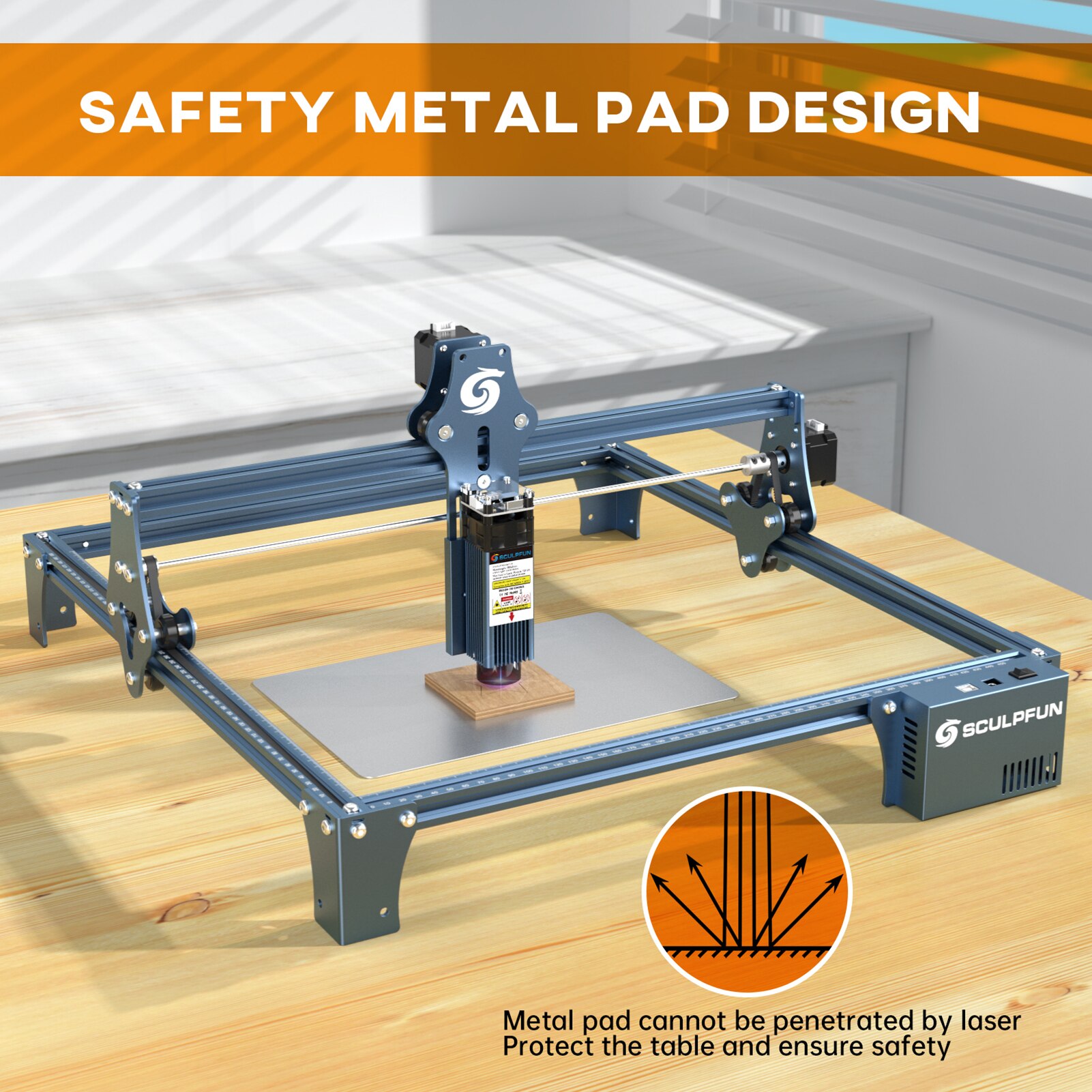

Safe Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. And comes with a A4 size steel pad to protect the table from laser damage. Isolate fire hazards.

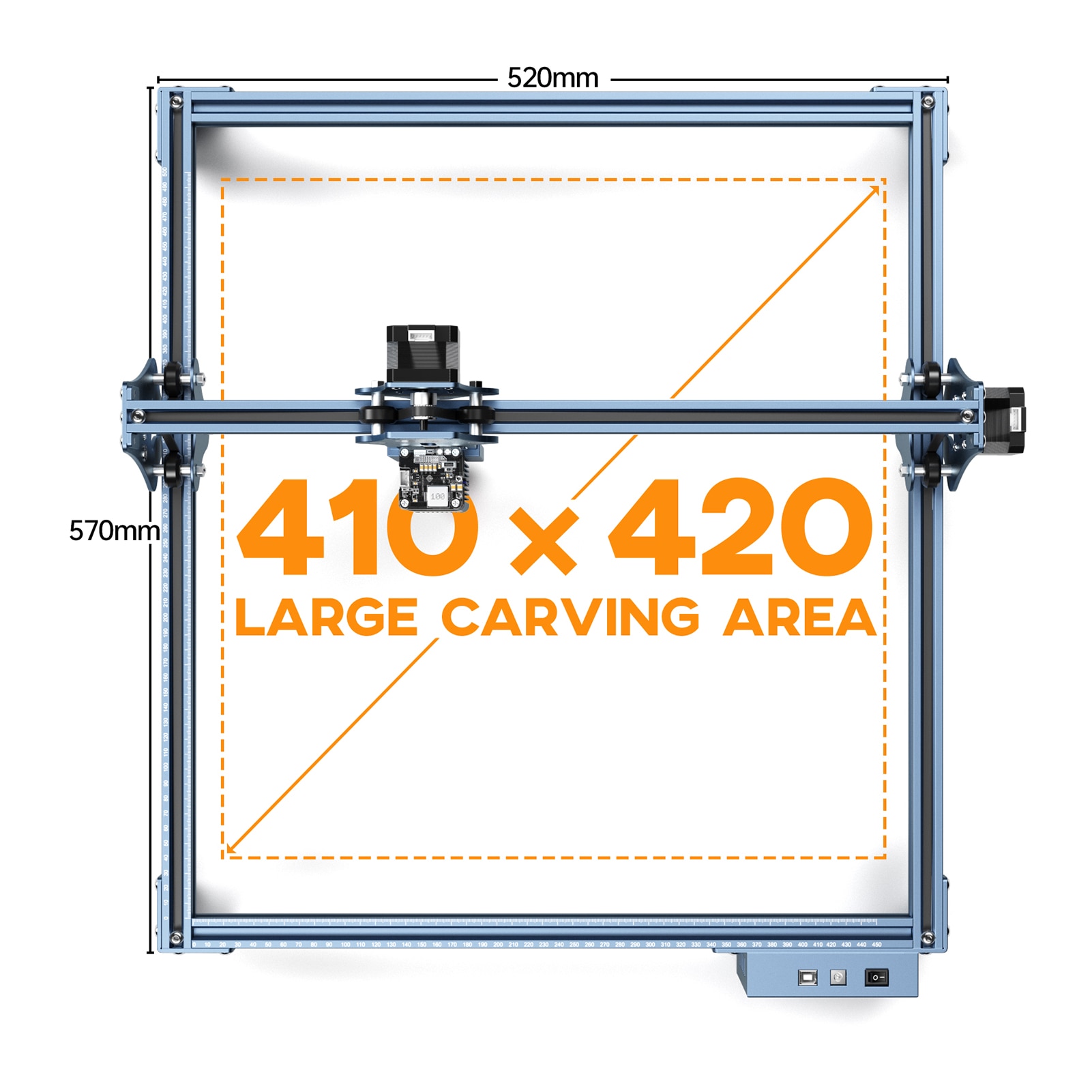

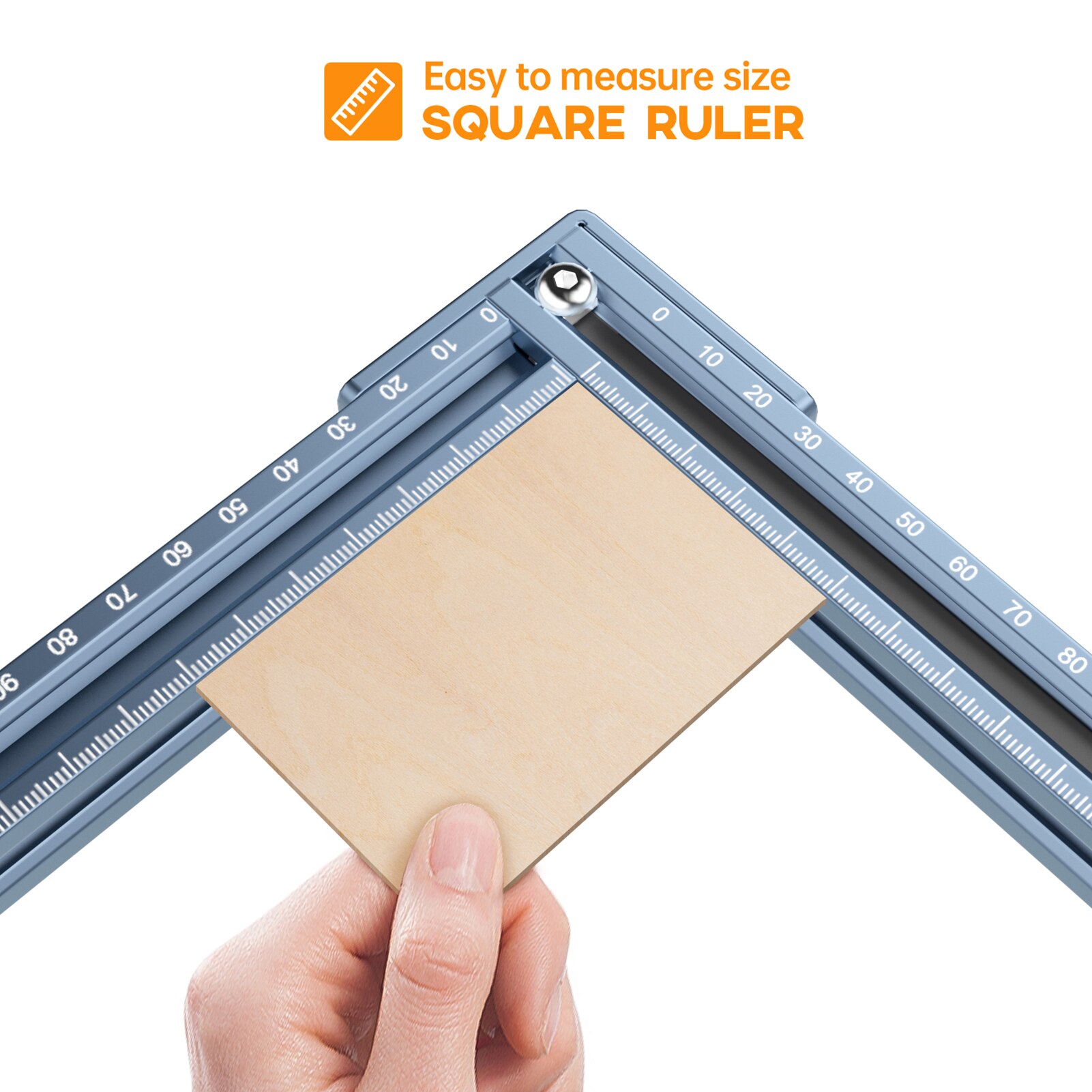

8.Square measuring ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 410x420mm large-area engraving interval can meet your various engraving needs.

Specifications:
Model: SCULPFUN S9
Engraving Size: 410*420mm
Engraving Materials: Wood, paper, cardboard, plastic, white, PCB board, aluminum oxide,  304 Stainless steel, ceramic,dark stone
Cutting Material:  Wood, acrylic, cardboard,  fabric, bamboo, plastic board, KT board
Machine Electricity Power: 30W  (It has nothing to do with cutting or engraving performance,just electricity consumes)

Diode Laser Power: 5.5-6W
Laser Wave Length 455±5nm
Engraving Accuracy: 0.01mm
Focusing Method: Ffixed focus laser + sliding device
Laser Protective Cover: The light filter cover on the laser protects the user’s eyes and prevents animals grabing the laser spot.
Operating Software: Compatible with LaserGRBL, LightBurn, Benbox, GrblController, LiteFire,
etc.
Operatin System: Compatible with A-pple system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data Transmission Method: USB connection
Power Supply: International universal standard power input: 100-240V AC, 50/60HZ output: 12V 5A
Machine Weight: 3.0kg/ 6.61lbs
Package Weight: 4.4kg/ 9.7lbs
Package Size: 615*345*130mm/ 24.21*13.58*5.11in

Note:
●For detailed machine instructions, please refer to the manual for parameter settings.
●When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

Package List:
1× X axis assembly
2× X shaft
2× Y shaft
1× Control box module set
3× Support feet
1× Laser module set
1× Power Supply
1× USB cable
1× Tool Kit
1× Goggles
1× 10x10cm  wood chip 3mm thickness
1×  10x10cm  wood chip 10mm thickness
1× A4 size steel desktop protection pad
