Description
SCULPFUN S9 diode Laser module for wood laser engraving and cutting machine module laser head
Products Description
|
Product Model
|

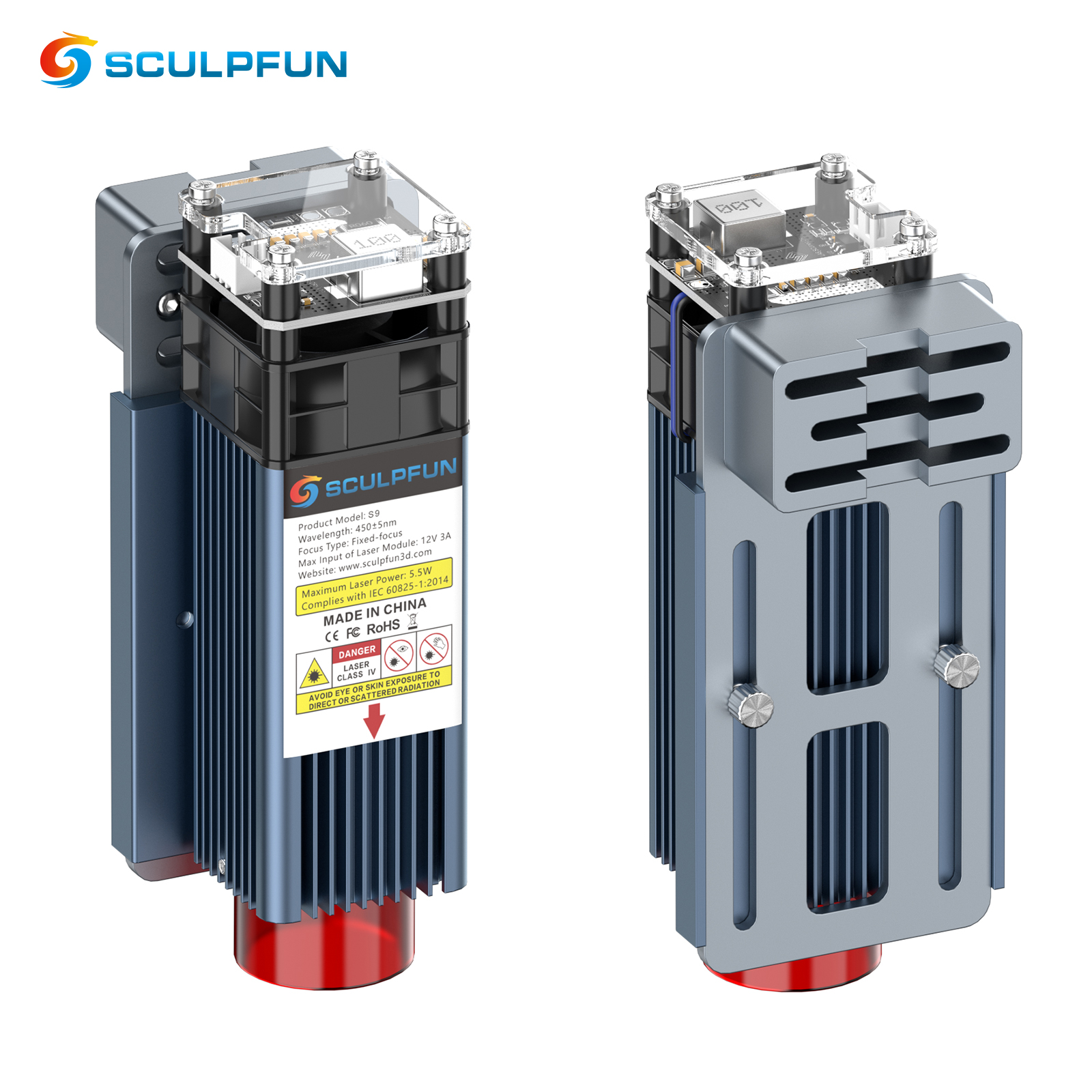

SCULPFUN S9 Laser module
|
|
Applicable Machines |
laser engraving machines such as SCULPFUN, ATOMSTACK, ORTUR, ELEKSMAKER, or DIY 3D printers, CNC machine tools.
|
|
Engraving Materials
|
paper, paper, cardboard, plastic, white, PCB board, alumina, stainless steel, black metal, ceramic
|
|

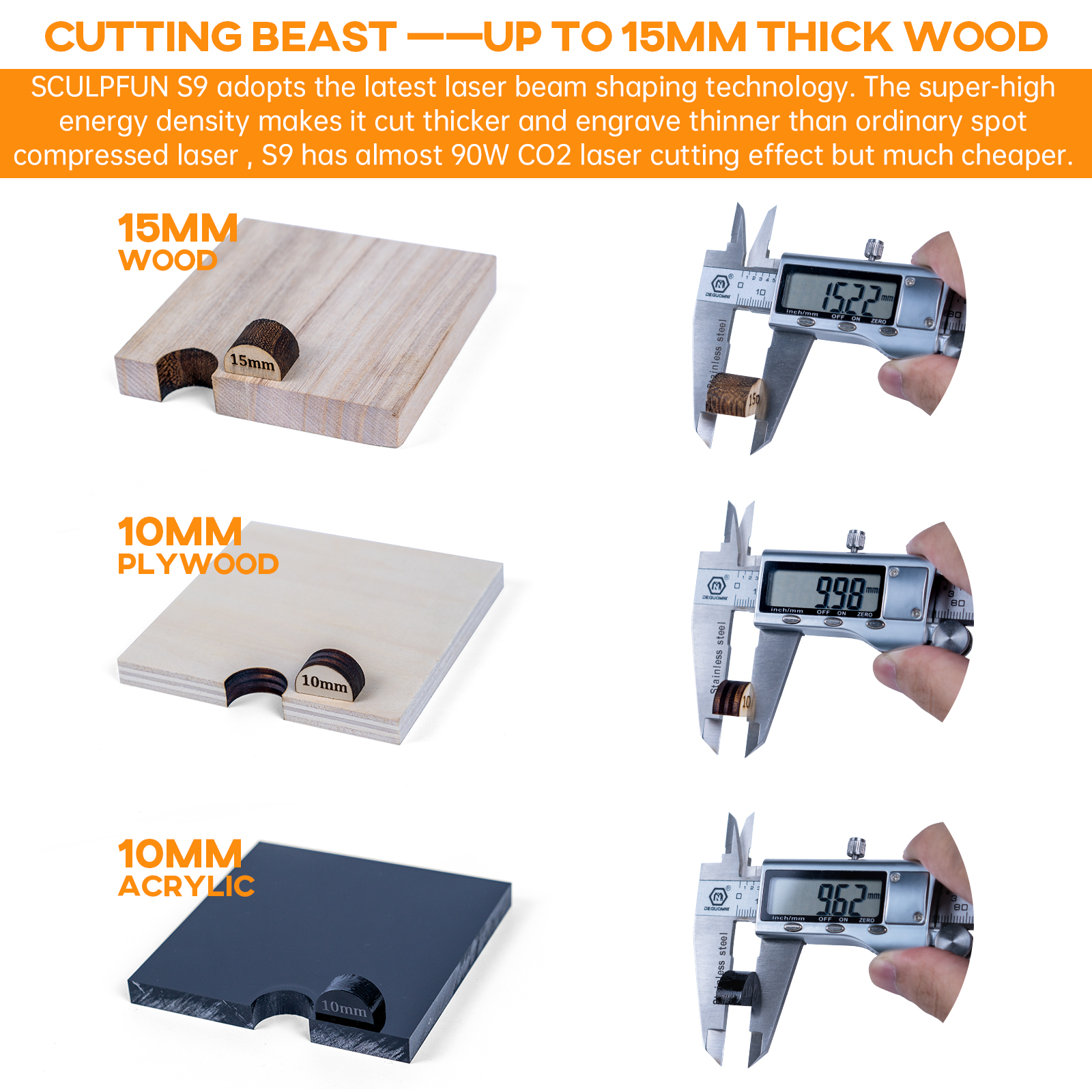

Cutting Materials
|
thin board, acrylic board, cardboard, non-woven fabric, bamboo, some plastic board;
|
|
Laser Effect Power
|

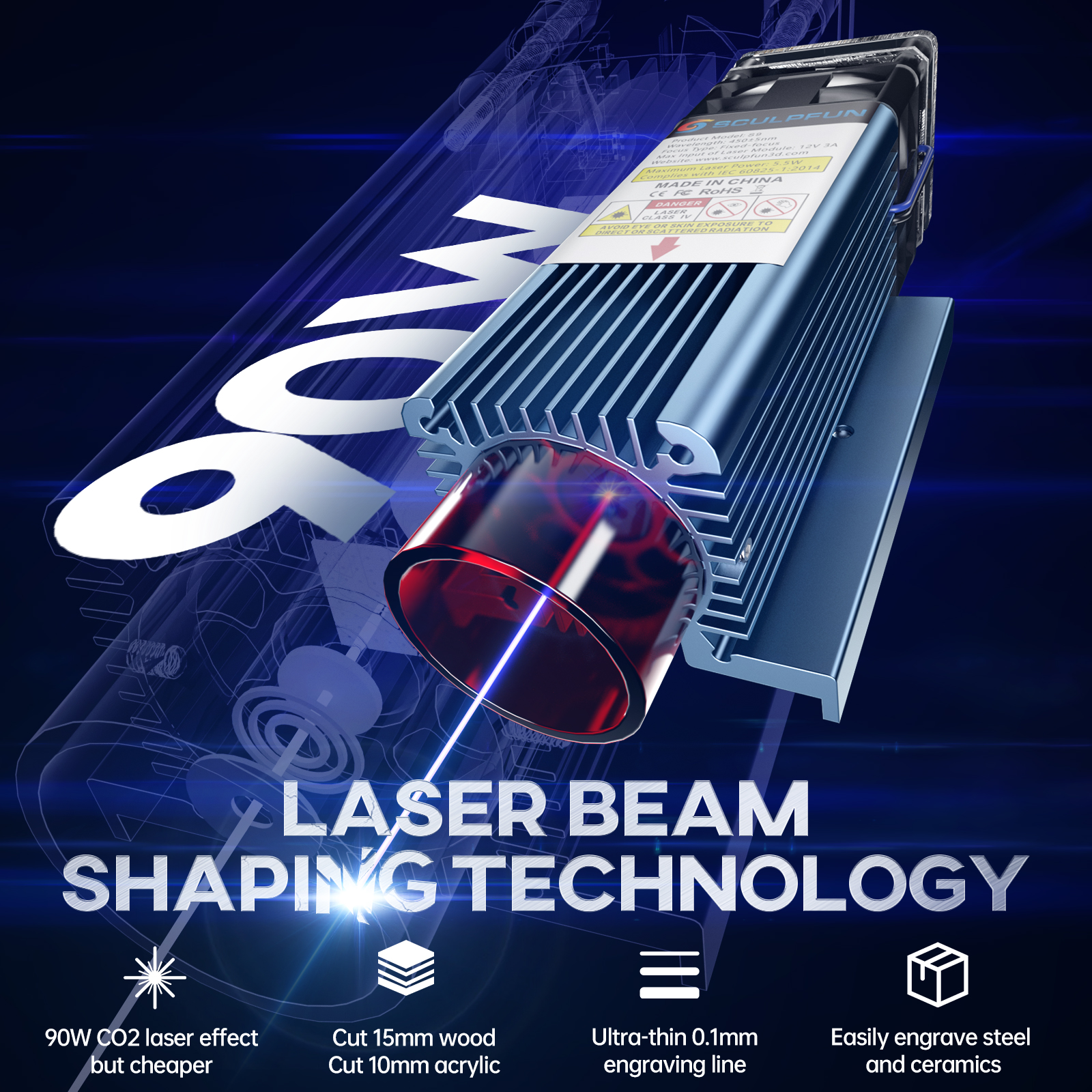

Cutting effect similar to 90W CO2 laser
|
|
Laser Output Power |
5.5-6W (light energy)
|
|
Laser Wave Length
|
455±5nm
|
|
Laser Type And Fixed Focus Method |
fixed focus laser, fixed focus through 20mm measuring column
|
|
Laser Protective Cover
|
the ring-shaped violet filter cover protects the user’s eyes and prevents animals, etc. from contacting the laser spot.
|
|
Laser Shell Material |
aluminum alloy
|
Laser circuit board parameters:
|
Circuit Board Size
|
40*40mm
|
Circuit Board
|
12V/PWM modulation board
|
|
Input Voltage
|
12V
|
Max Input of Laser Module
|
12V 3A
|
|
Wire Rod
|
HY2.0, 3Pin terminal (3-core cable, A: PWM +, B: GND, C: VCC ).
|
Operating Temperature
|
-20 ℃ to 70 ℃
|
|
Fan
|
12V 0.15A 4020 fan
|
Fan Speed
|
10000 rpm
|
|
Package Weight
|
0.5kg
|
Packing Size
|
11*12*18cm
|
S9 Laser Module packing list:
Laser head*1

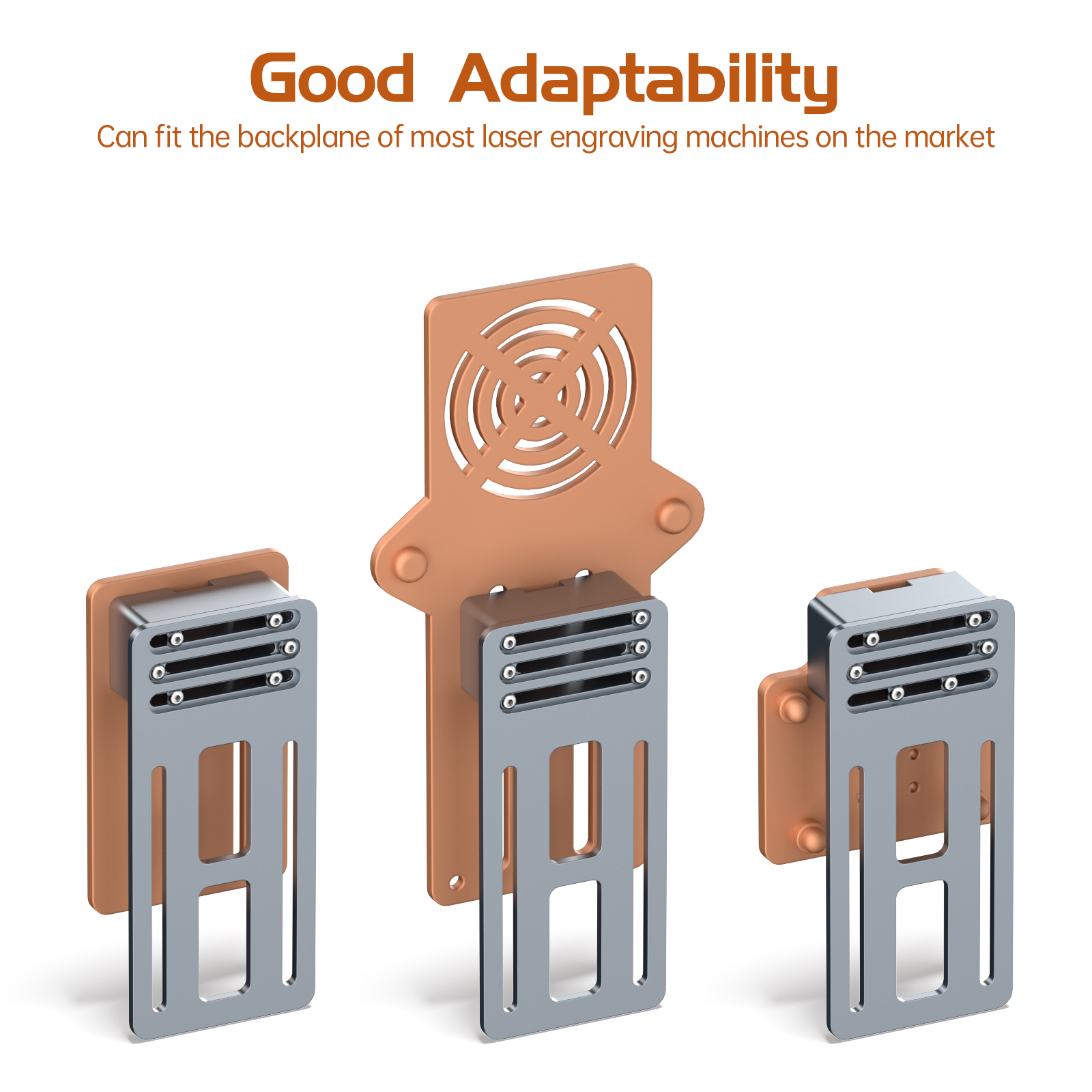

Multi-function structural connection device *1
20mm measuring column*1
Screws and tool kit*1
Multi-function structural connection device *1
20mm measuring column*1
Screws and tool kit*1
Details Images
