Description
- Origin: CN(Origin)
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Condition: New
- Model Number: S6 Pro
- CNC or Not: CNC
- Is Smart Device: YES
- Feature 1: CNC
- Feature 2: Laser Engraver
- Feature 3: Laser
- Feature 4: Engraver
- Feature 5: Laser Cutting Machine
- Feature 6: CNC Machine
- Feature 7: Laser Printer
- Feature 8: Tools
- Feature 9: Laser CNC
- Feature 10: Laser Machine
- Feature 11: CNC Laser Machine
- Feature 12: Engraving Machine
- Feature 13: Woodworking DIY
- Feature 14: Wood Cutters
- Feature 15: Printer
- Feature 16: Laser Engraving Machine
- Feature 17: CNC Wood Machine
- Feature 18: Woodworking Machine
- Feature 19: Laser Cutter
- Feature 20: CNC Laser Engraver

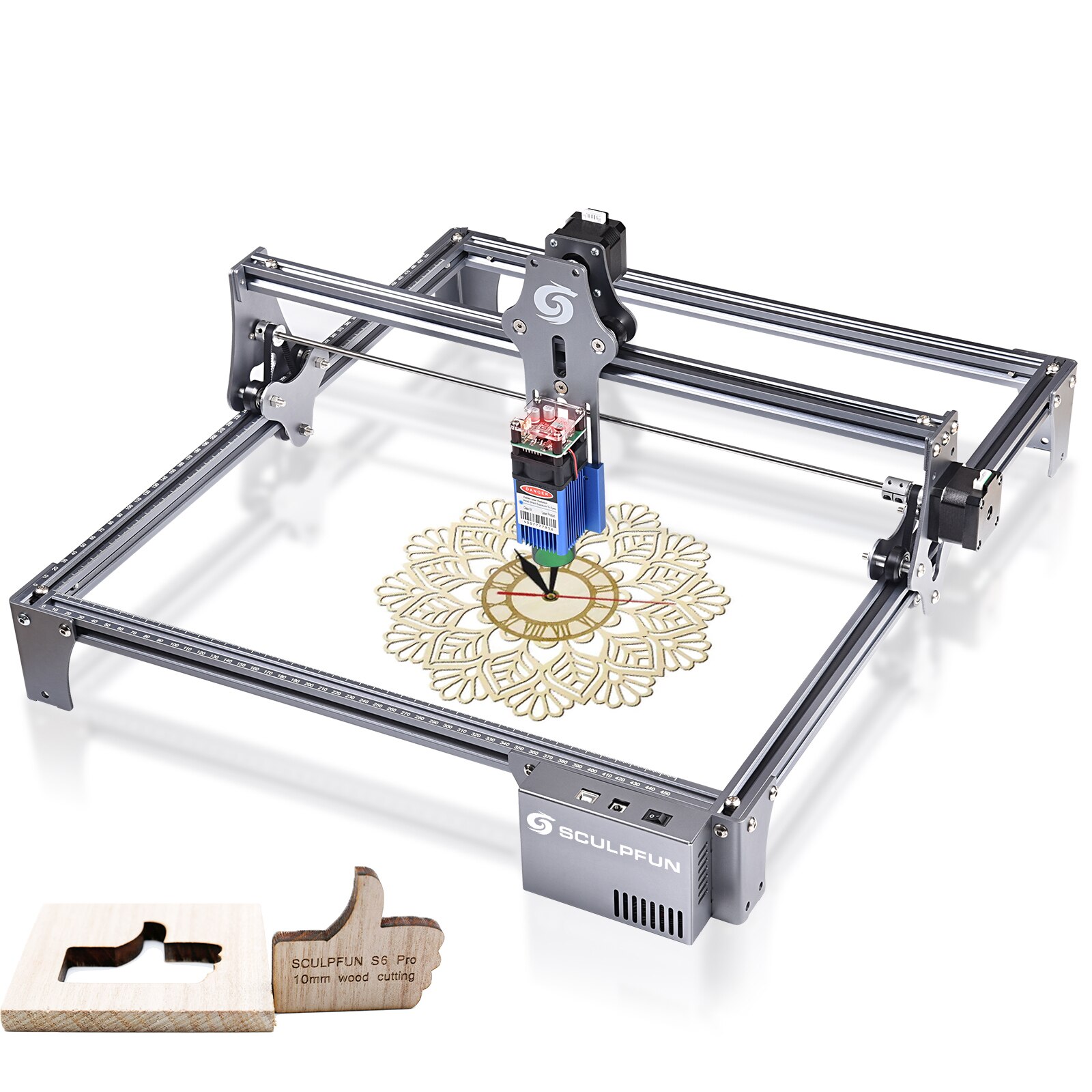

SCULPFUN S6 Pro 60W High Accuracy Ultra-Fine CNC Laser Engraver DIY Woodworking Engraving Machine Wood Cutter 410*420mm Area
Features:

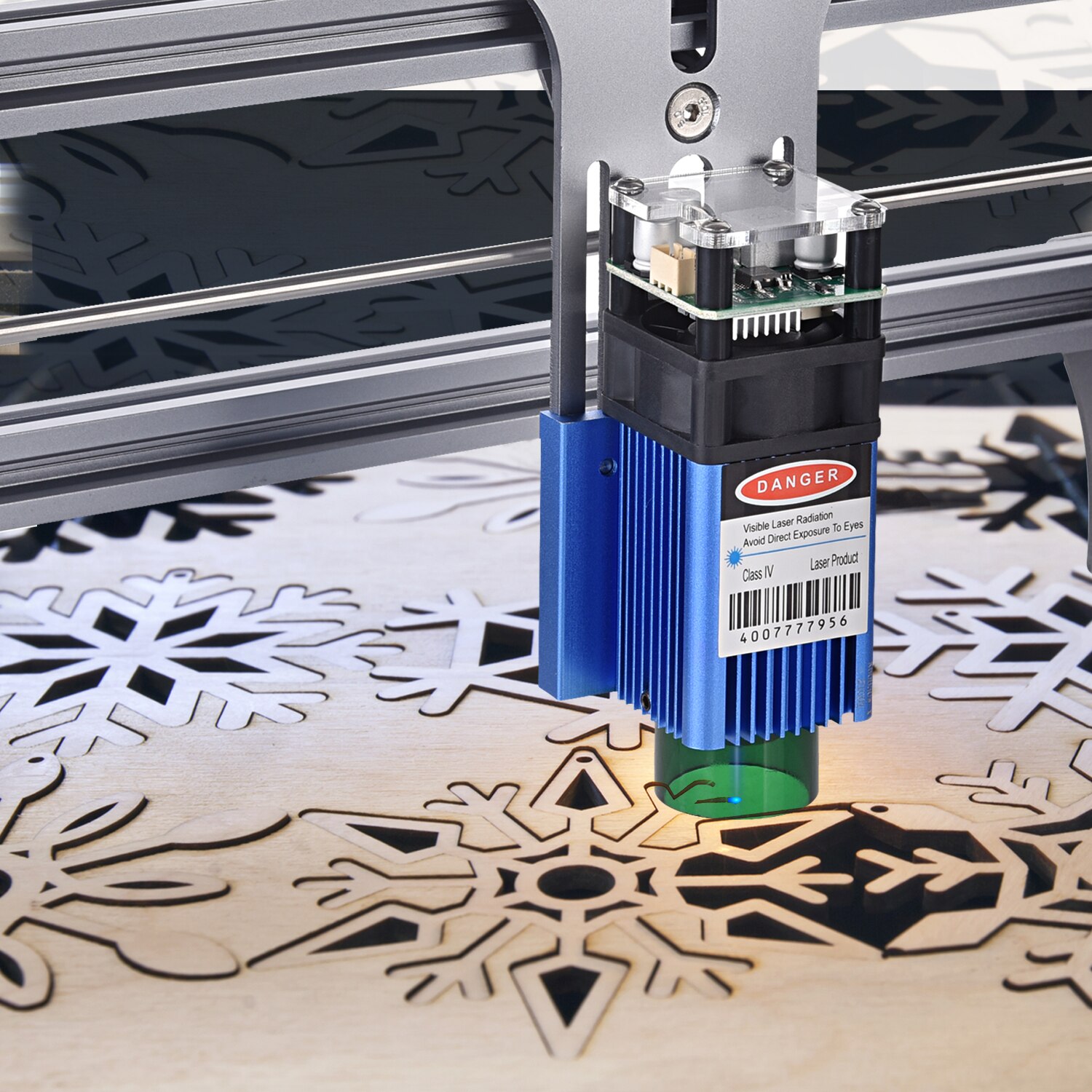

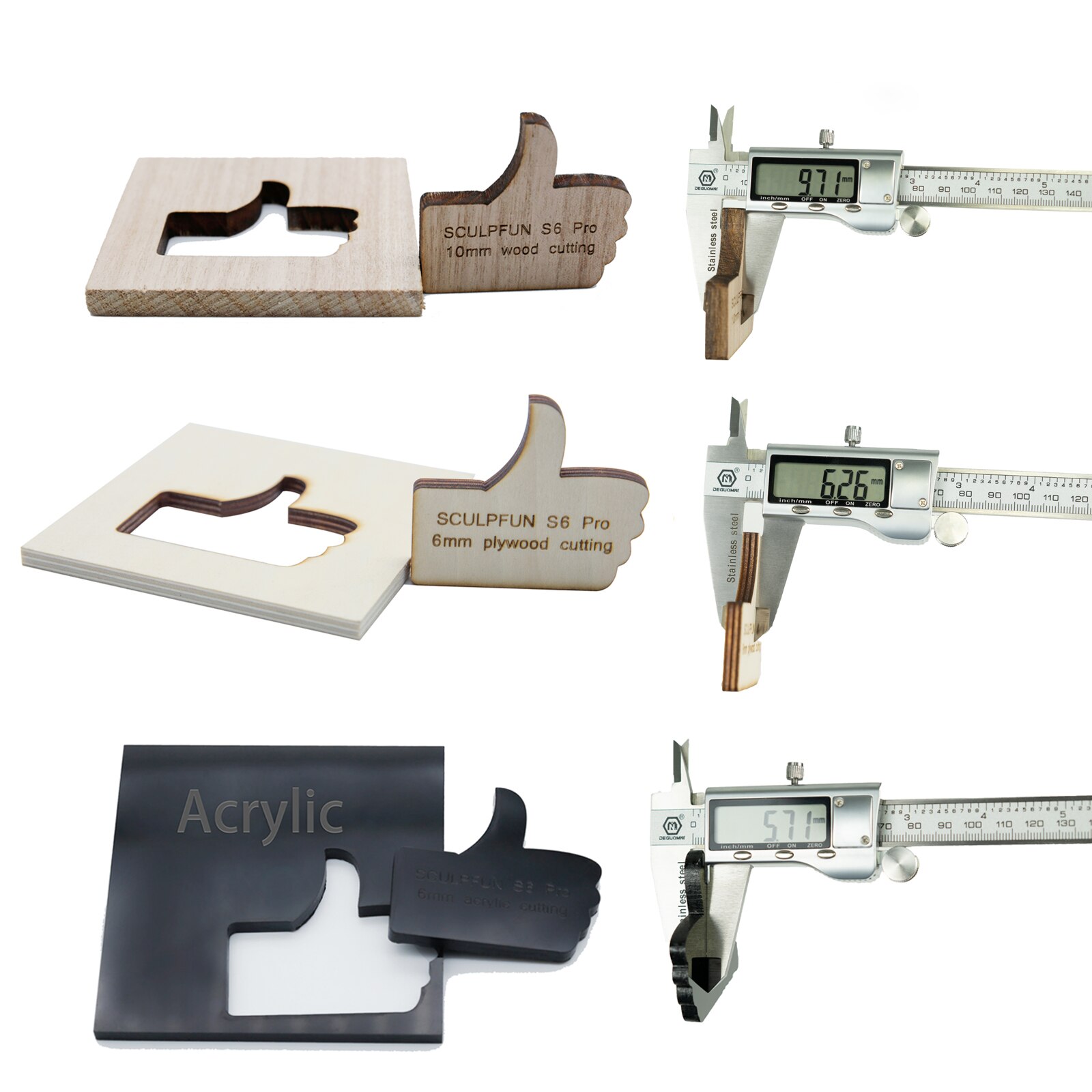

1. 60W effect unique spot compression laser: S6 pro uses the latest 5.5W diode spot compression laser. It has an ultra-fine square laser focus, and has twice cutting penetration and accuracy of ordinary lasers. Even in the field of spot compression lasers, S6 pro has thinner engraving marks and stronger cutting and penetration capabilities. It can cut 10mm thick wooden boards and engrave ceramics and metals, which is almost beyond the effect of a 60W CO2 laser.
2. Fast focusing design: S6 has the fastest focus design on the market. The S6 laser combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete the focusing. This makes it very easy to use the laser .
3. Solid and easy-assembly structure design: The full-metal structure design makes the machine extremely solid, and it improves the accuracy of engraving. The whole structure is designed for easy-assembly, and the assembly can be completed in 10-20 minutes. The structural frame is very durable and remains open to upgrade. During use, you can keep the frame and replace with other new lasers. Or replace longer metal beams to expand the engraving area.
4. New eye protection design: The laser filter cover filters 98% of the ultraviolet light to the eyes. You and the people around you can watch laser engraving without wearing goggles. At the same time it can prevent animals from catching the laser spot.
5. Wide compatibility: The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows system, MAC system (LightBurn), and engraving file format Support JPG, PNG, DXF, AI, SVG, G-code, NC, BMP, etc.
6. Safe design: The machine is equipped with a very convenient power switch, which is not available in other homes. Fixing holes are reserved on the four feet and the body structure to facilitate fixing the machine and the data cable.
7. A4 steel pad: The free A4 size steel pad can protect the table from laser damage. Isolate fire hazards.
8. Right angle measuring ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 410x420mm large area engraving interval can meet your various engraving needs.
Specification:
Product Brand: SCULPFUN
Product Model: S6 Pro
Engraving Size: 410*420mm
Engraving/Cutting Material:
Engraving Materials: Wood, Paper, Cardboard, Plastic, White, PCB Board, Aluminum Oxide, 304 Stainless Steel, Ceramic, Dark Stone
Cutting Material: Wood, Acrylic, Cardboard, Fabric, Bamboo, Plastic Board, KT Board
Laser Effect Power: 90W (cutting effect compared to 90W CO2 laser)
Machine Electricity Power: 30W (It has nothing to do with cutting or engraving performance, just electricity consumes)
Diode Laser Power: 5.5-6W (Please note that this is light energy and not electric energy)
Laser Wave Length: 455±5nm
Engraving Accuracy: 0.01mm
Focusing Method: Fixed Focus Laser + Sliding Device
Laser Protective Cover: The light filter cover on the laser protects the user’s eyes and prevents animals grabing the laser spot.
Operating Software: LaserGRBL, LightBurn, LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data Transmission Method: USB Connection
Power Supply:
Input: AC100-240V, 50/60HZ
Output: 12V 5A
Equipment Net Weight: 3.0kg
Package Weight: 4.4kg
Packing Size: 615*345*130mm
Certification: CE FCC RoHS FDA IEC

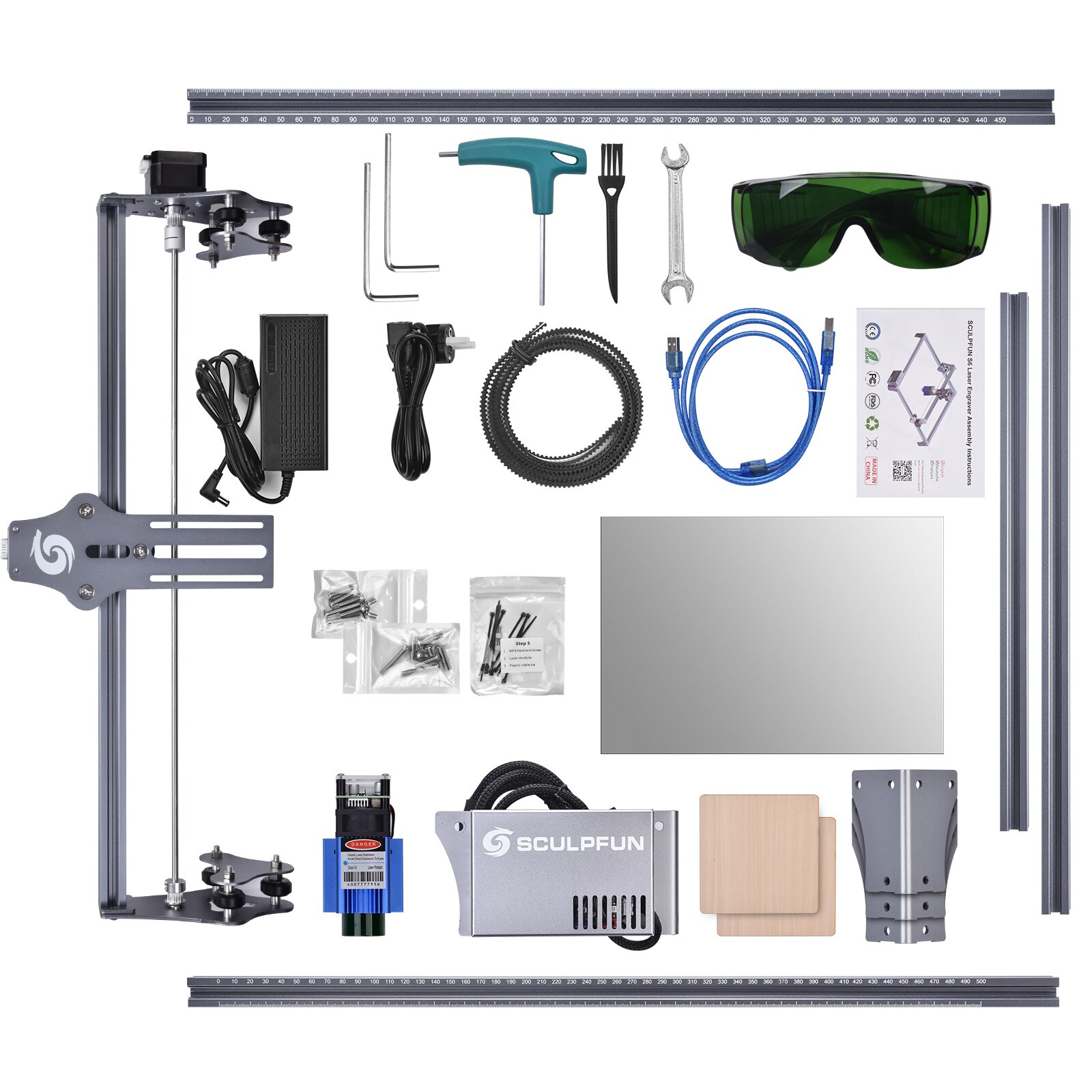

S6 Pro Engraving Machine Packing List:
1 x X Axis Assembly
2 x X Shaft
2 x Y Shaft
1 x Control Box Module Set
3 x Support Feet
1 x Laser Module Set
1 x 12V 5A Power Adapter
1 x Power Adapter
1 x USB Cable
Step 1~5 Screw Installation Package
2 x Belt
1 x T-Shaped M5 Screwdriver
1 x L-Shaped M4 Screwdriver
1 x L-Shaped M3 Screwdriver
10 x Tie
1 x 8-10mm Nut Wrench
1 x Brush
1 x Laser Goggles
2 x 10x10cm Wood Chip 3mm Thickness
1 x A4 Size Steel Desktop Protection Pad
Note:
1. For detailed machine instructions, please refer to the manual for parameter settings.
2. When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
3. Please do not touch the laser emitter with your hand, or it may burn your hand.
4. Please avoid strong impact on the machine.
5. Children under 14 are not allowed to use this product and children over 14 need adult supervision.
6. The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
7. If you choose to ship from China warehouse, please leave a message: US Plug or EU Plug.
