Description
Products Description
|
Product Model
|

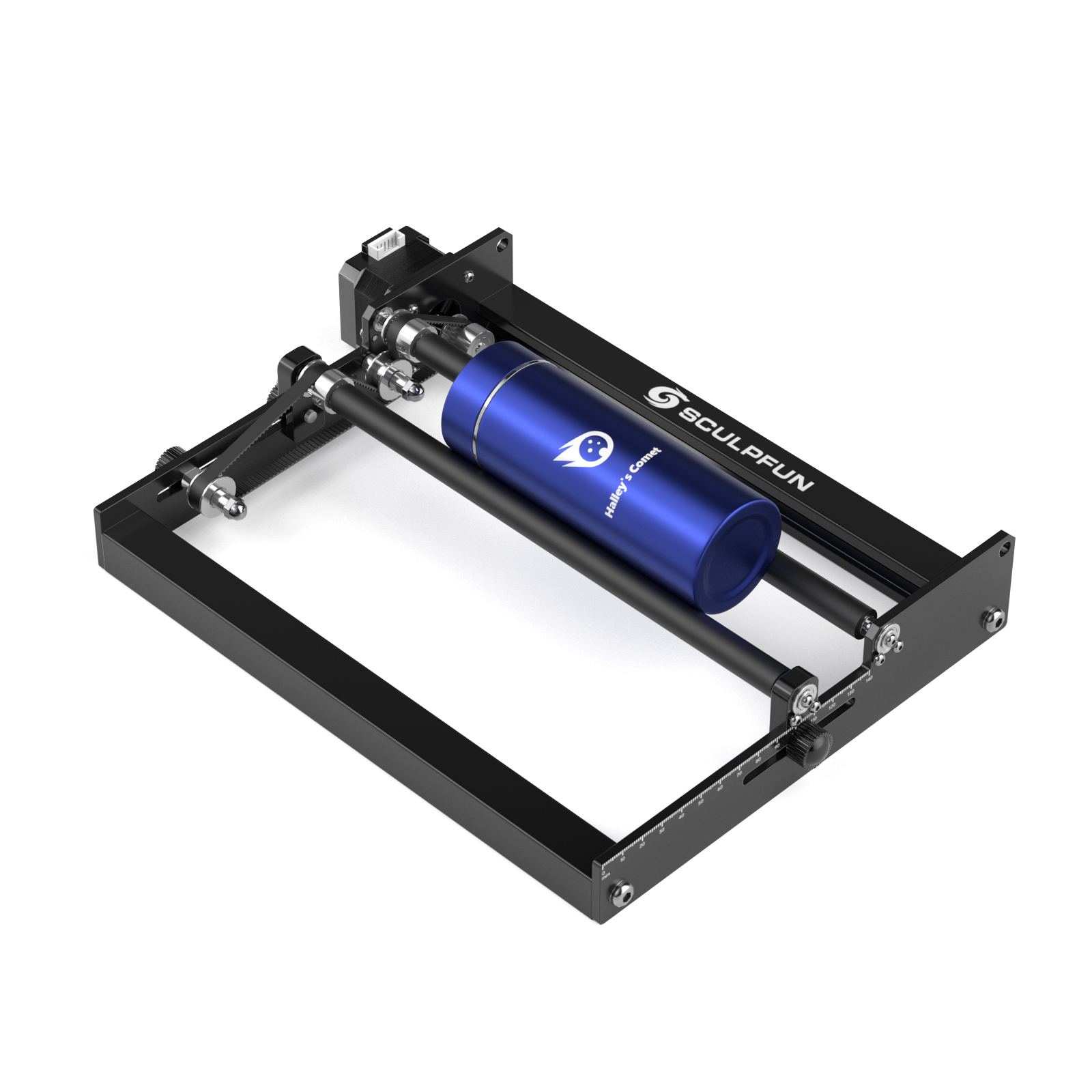

SCULPFUN Rotary Roller
|
|
Material
|
high friction 70A rubber shaft
|
|
Product size
|
27x22x5cm
|
|
Package weight
|
1.5KG
|
|
Packing size
|
34*25*9cm
|
|
Packing list
|
1× Roller device
1× A Type wiring
1× B Type wiring 4× raise feet 1× screw bag 1× soft ruler 1× user manual |
Main feature:
1. 100% pre-assembled, plug and play: the machine is 100% installed in the package, equipped with an adapter cable, and only needs to be connected to the Y-axis wiring of the laser engraving machine to engrave Cylindrical objects, such as pens, water bottle,etc.

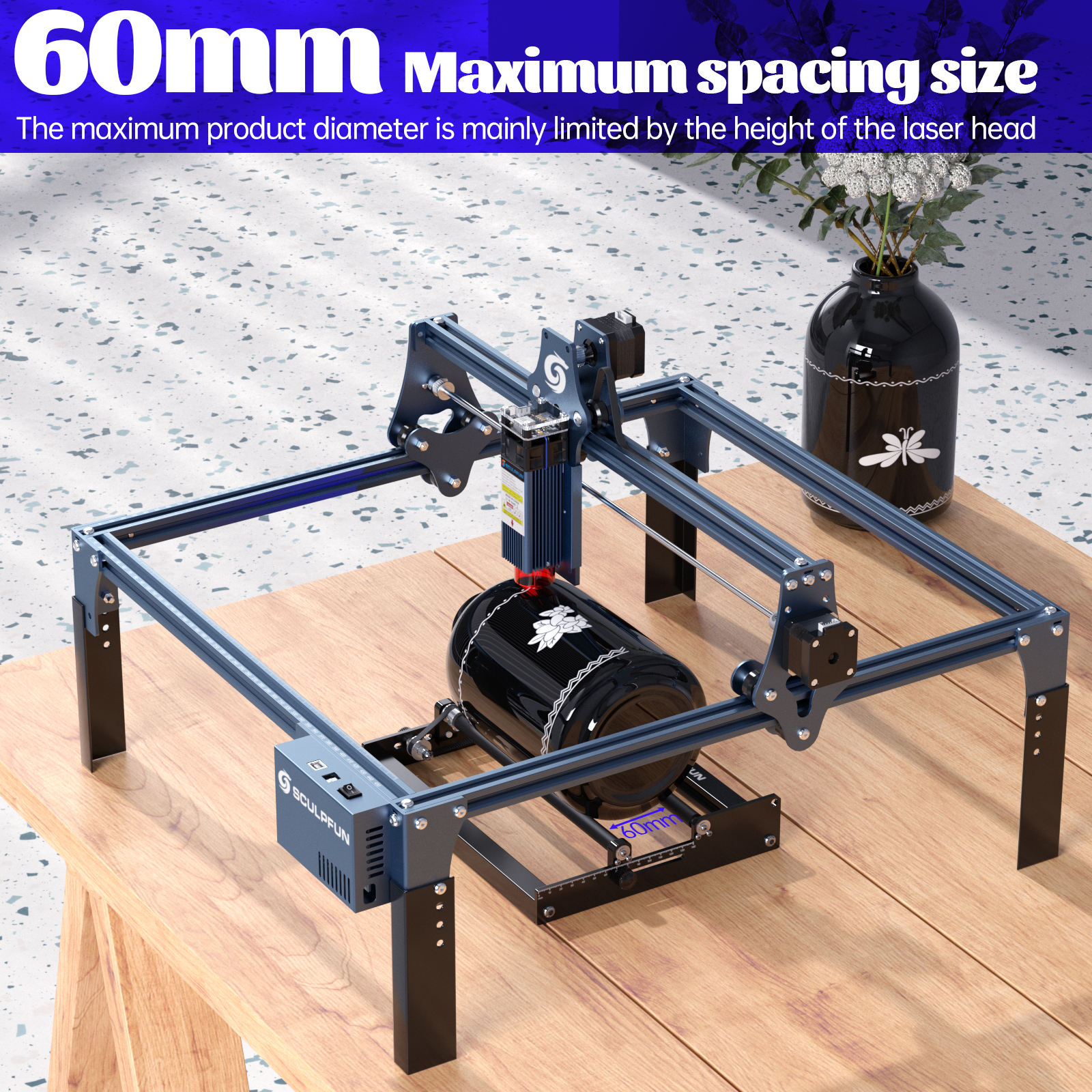

2. Huge engraving space and 4 raising feet: SCULPFUN roller base design is lower and stable, and equipped with 4 sturdy metal raising feet, so that it has a larger engraving diameter of 6-150mm, which can meet more engravings. need. Metal feet are more solid than plastic feet, and the machine is more stable when engraving.
3. Sliding space adjustment: SCULPFUN roller adjusts the size of the space between the two rubber rollers by sliding, and fixes the rolloer by handscrew, which is simpler and faster than the traditional multi-stage fixing hole adjustment.

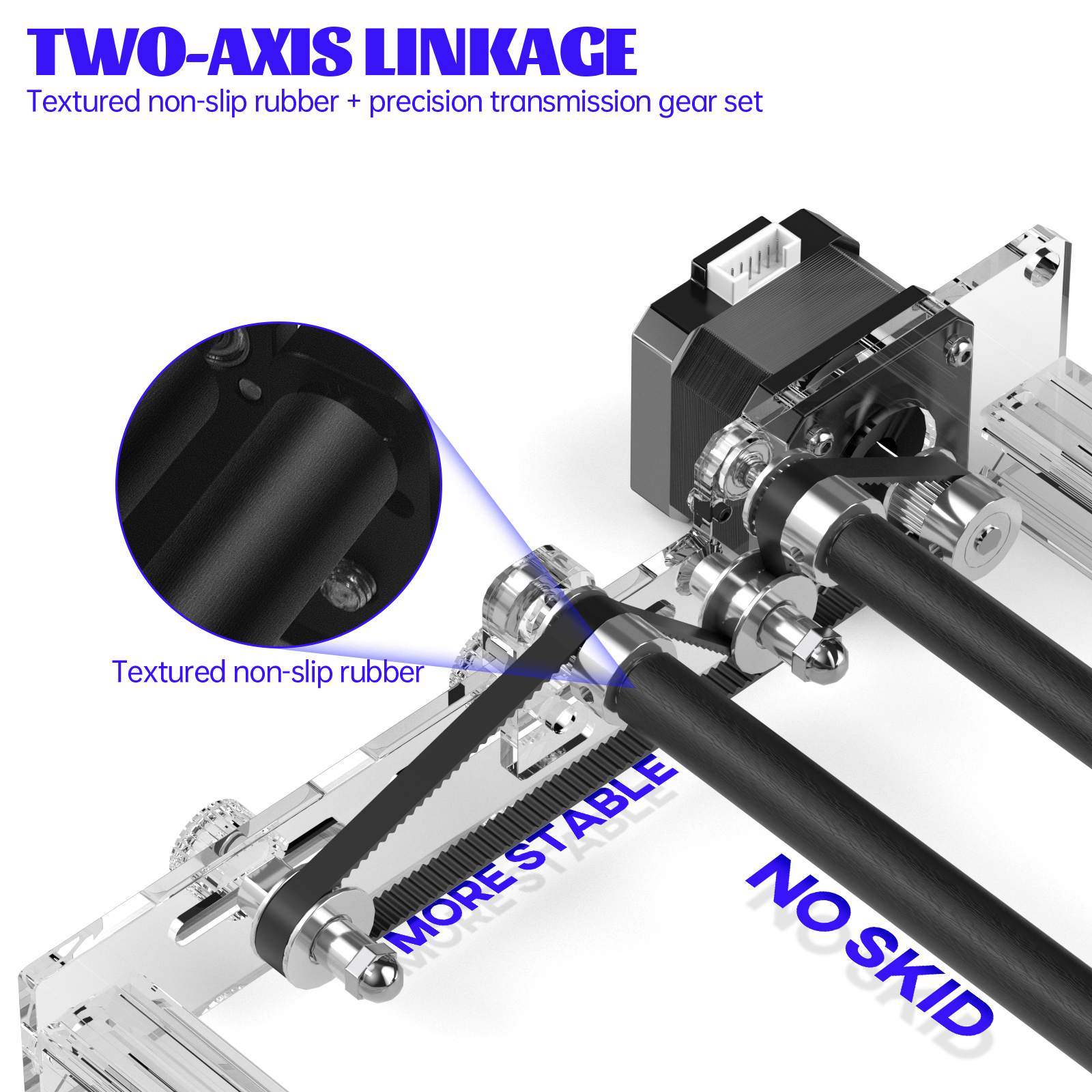

4. 100% original scale high-precision engraving: SCULPFUN roller adopts high friction 70A rubber shaft to prevent slipping, and the linear speed of the rotating surface has been precisely calculated. Directly plug in the engraving machine cable to engrave the original image in 100% original scale. Does not enlarge or reduce the image.
5. Wide compatibility: SCULPFUN roller is suitable for multiple engraving software such as lightburn or laserGRBL, and it can be used directly , no need to set parameters in software. In addition, it can be applied to 95% of the engraving machines on the market such as SCULPFUN, NEJE, Ortur, ATOMSTACK, etc.
6. Free useful accessories: a free soft ruler to measure the size of object; 4 free raising feet, which can be used to increase the height of a variety of machines.
Details Images
Production Process
Quality Control
Our Advantages
Features:
1. Necessary accessories for laser cutting:
After using this laser cutting honeycomb table to cut wood, acrylic and other materials, the edges of the wood are neat and clean, not easy to be yellowed by smoke, and you can get a clean cutting work . 2. Cutting through observable design:
SCULPFUN honeycomb table contains a very convenient cutting and observation design. When the laser cuts through wood or acrylic, the metal plate at the bottom of the honeycomb will emit a bright light, which means that the cutting has penetrated. Solve the problem that ordinary engraving machine is difficult to judge whether cutting through.You don’t need to calculate the number of cuts , just keep repeating cutting until the bottom glows, which means the material has been cut through. 3. Safe metal desktop protection board:
SCULPFUN honeycomb Board is equipped with a metal desktop protection board, which can protect the table from laser damage, which is very suitable for many different diode laser engravers. 4. Square measuring ruler:
X-axis and Y-axis contain precise scale lines to form a right-angle measuring ruler, which is convenient for you to measure the size of cutting objects quickly. 5. Wide compatibility:
The machine can be compatible with various mature laser engraving machines, such as diode DIY laser engraving machine and CO2 laser engraving machine. 6. All-metal high flatness:
SCULPFUN is all made of metal, processed by high-precision CNC, solid structure not easy to deform, and high flatness.
