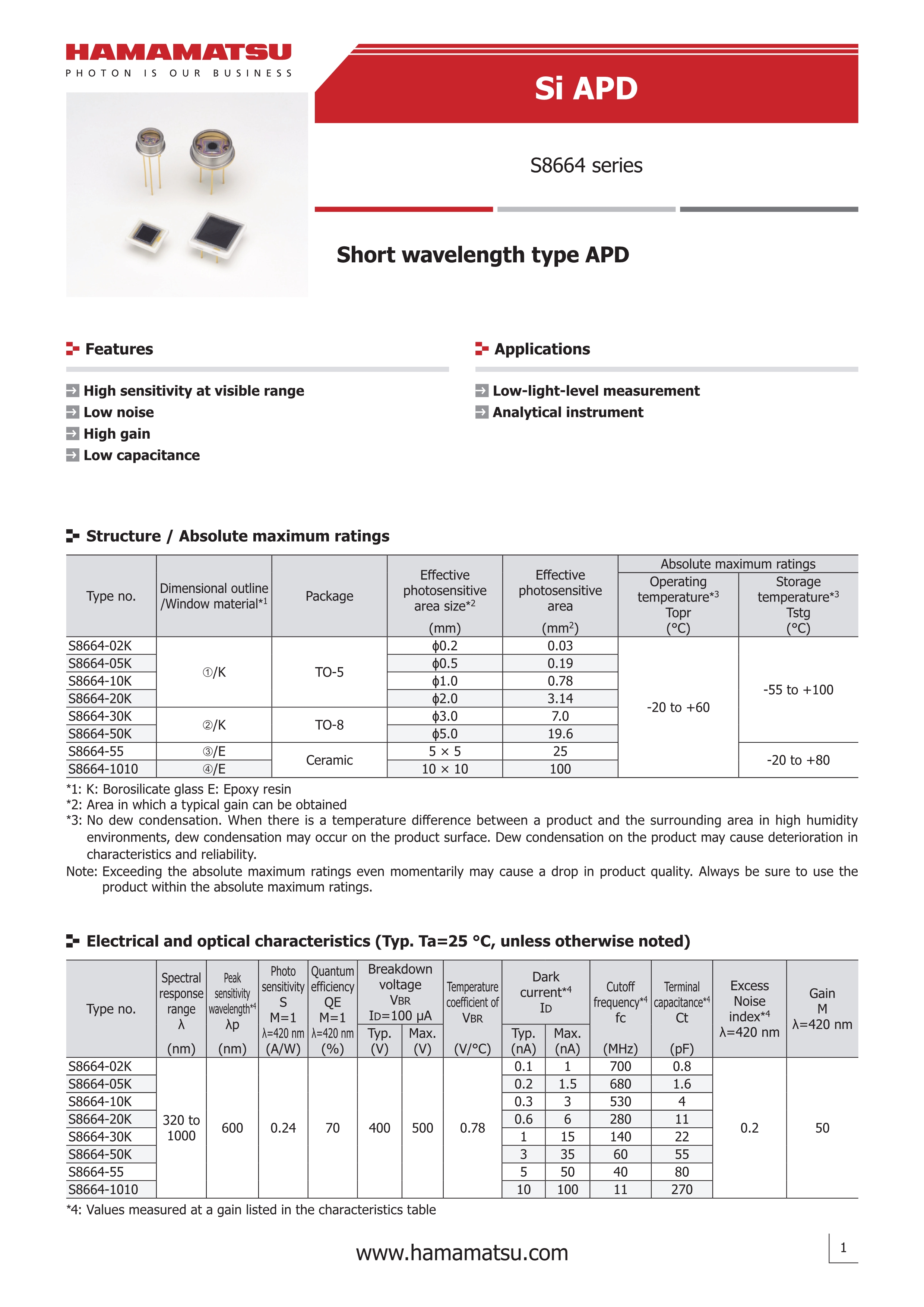

Si APD S8664-1010 Short wavelength type APD

Features
-High sensitivity at visible range
-Low noise
-High gain
-Low capacitance

Type Short wavelength type
(low terminal capacitance)
Photosensitive area 10 × 10 mm
Package Ceramic
Peak sensitivity wavelength (typ.) 600 nm
Spectral response range 320 to 1000 nm
Photosensitivity (typ.) 0.24 A/W
Dark current (max.) 100 nA
Cutoff frequency (typ.) 11 MHz
Terminal capacitance (typ.) 270 pF
Breakdown voltage (typ.) 400 V
Temperature coefficient of breakdown voltage (typ.) 0.78 V/℃
Gain (typ.) 50
Measurement condition Typ. Ta=25 ℃, unless otherwise noted,
Photosensitivity: λ=420 nm, M=1
