Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- Type: gas analyzer
- Customized support: OEM, ODM
- Place of Origin: Beijing, China
- Brand Name: Sunny
- Model Number: P860-3O
- Detecting Gas: OXYGEN
- Monitor: Five-digital dynamic LED monitor, visible display window: 90mm*25mm
- Measure Range: 10ppm~21%, 100ppm~21%, 1000ppm~21% O2
- Sample Gas Flow: 150~300ml/mim
- Response Time: 90% of FS reading ≤20 seconds
- Accuracy: 2% F.S
- Stability: 1%.FS (168h)
- Power supply: 220±10% VAC, 50/60Hz, the power loss ≤6VA
- Sensor Life: 20000 hours at 25℃ and 1 atm
- Warranty: 12 months analyzer; 12 months sensor
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:893px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:893px}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{text-align:center}#detail_decorate_root .magic-9{font-family:inherit;font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-10{font-size:18px}#detail_decorate_root .magic-11{font-size:16px}#detail_decorate_root .magic-12{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-13{margin-bottom:0}#detail_decorate_root .magic-14{position:relative;width:100%}#detail_decorate_root .magic-15{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:1131px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750px;height:1131px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:1111px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;height:1111px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:752px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:752px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:760px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:760px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:772px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:772px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:170px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:170px}
Products Description
S430 Infrared Nir Spectrometer New Model Gold / Silver Detector Oxygen Nitrogen Hydrogen Analyzer

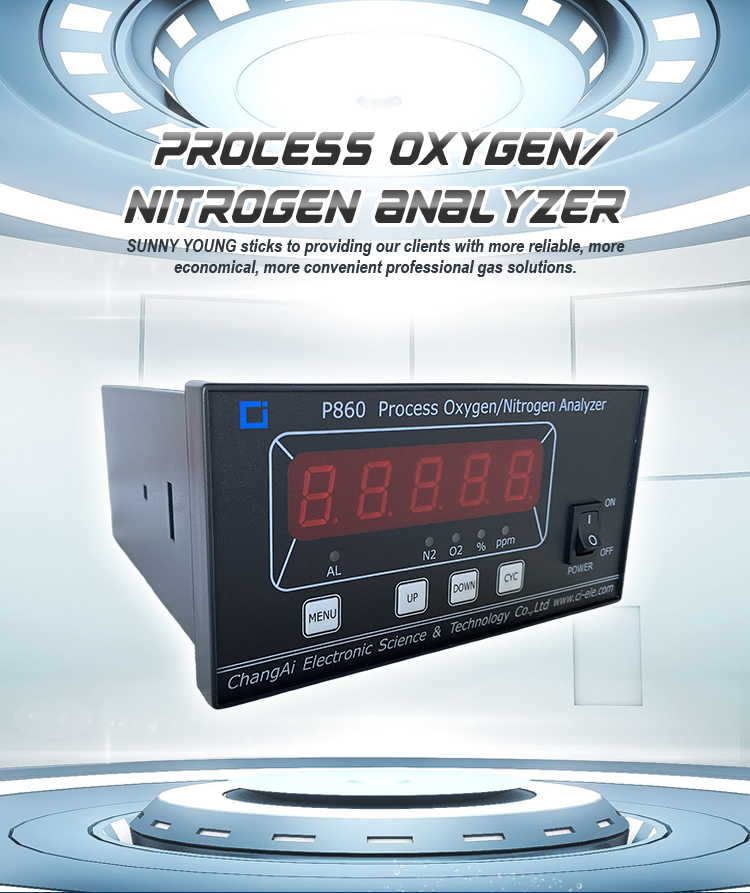

Online zirconia oxygen gas analyzer

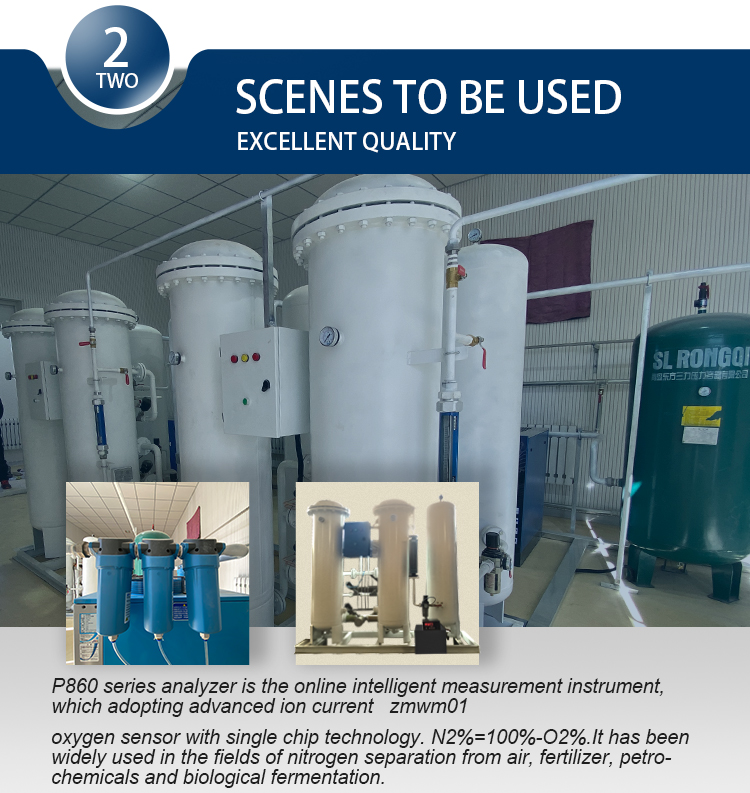

P860 series online zirconia oxygen gas analyzer is the online intelligent measurement instrument, which adopting advanced ion current oxygen sensor with single chip technology. N2%=100%-O2%. It has been widely used in the fields of nitrogen separation from air, fertilizer, petrochemicals and biological fermentation. P860 series online zirconia oxygen gas analyzer can analyze the nitrogen purity from 79%~99.9% , and also can test the oxygen from 21.0%~1000ppm.
Technical Specifications of nitrogen/oxygen as analyzer Monitor: Five-digital dynamic LED monitor, visible display window:
90mm×25mm
Measure Range: 10ppm~21%, 100ppm~21%, 1000ppm~21% O2 Measure Mode: Air in-flowing or convection diffusing Sample Gas Flow: 150~300ml/mim Accuracy: ±2% F.S Response Time: 90% of FS reading ≤20 seconds Ambient Temp.: -10℃~+50℃ Ambient Humidity: <80%RH Stability: <±1%.FS (168h) Signal Output: 4~20mA Power Supply: 220±10% VAC, 50/60Hz, the power loss ≤6VA Sensor Life: 20000 hours at 25℃ and 1 atm Warranty: 12 months analyzer; 12 months sensor Weight: 1kg Appearance Dimension: 160mm×80mm×176mm (W×H×D) Opening Size: 151mm×75mm

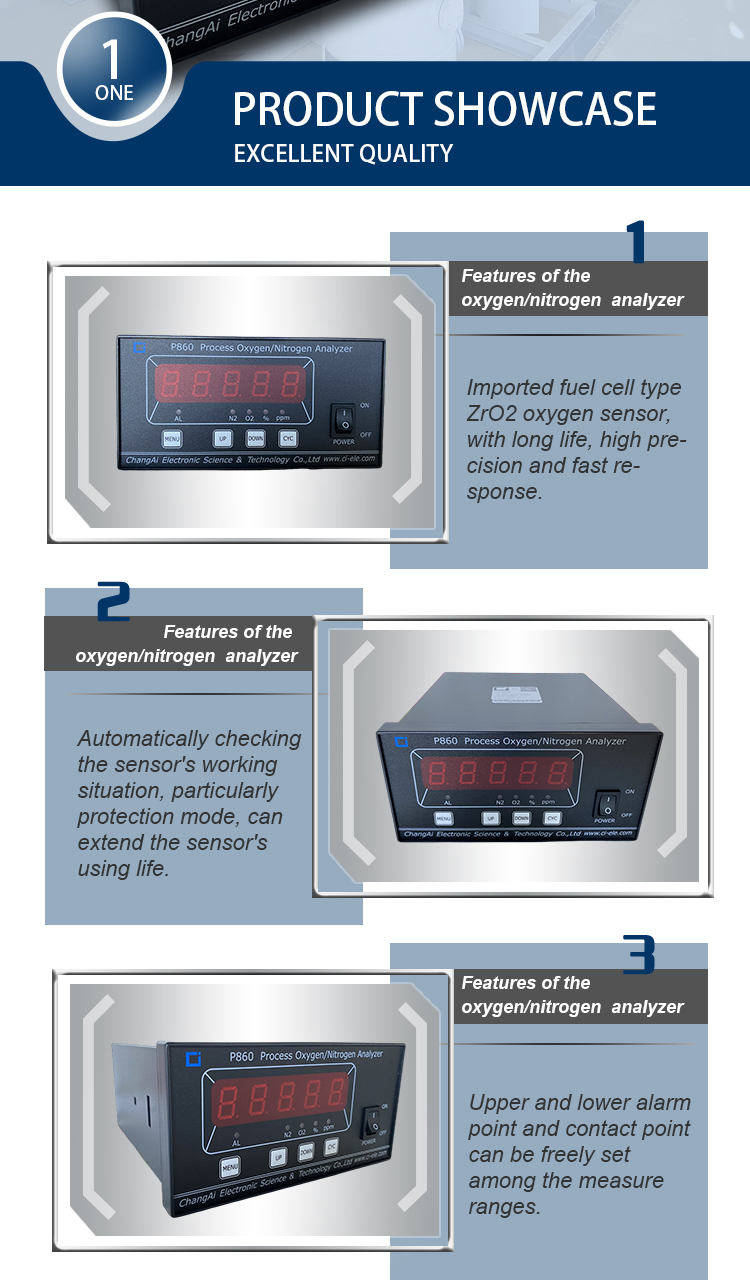

Our Advantages
New pattern long-life conversion ion current tester with fast response and high sensitivity N2 or O2 concentration display
Checking the sensor working state automatically and unique double-line working change mode extending the sensor’s life
Setting alarm value freely
High precision, automatic temperature compensation, eliminating the impact of environmental temperature
Recommend Products

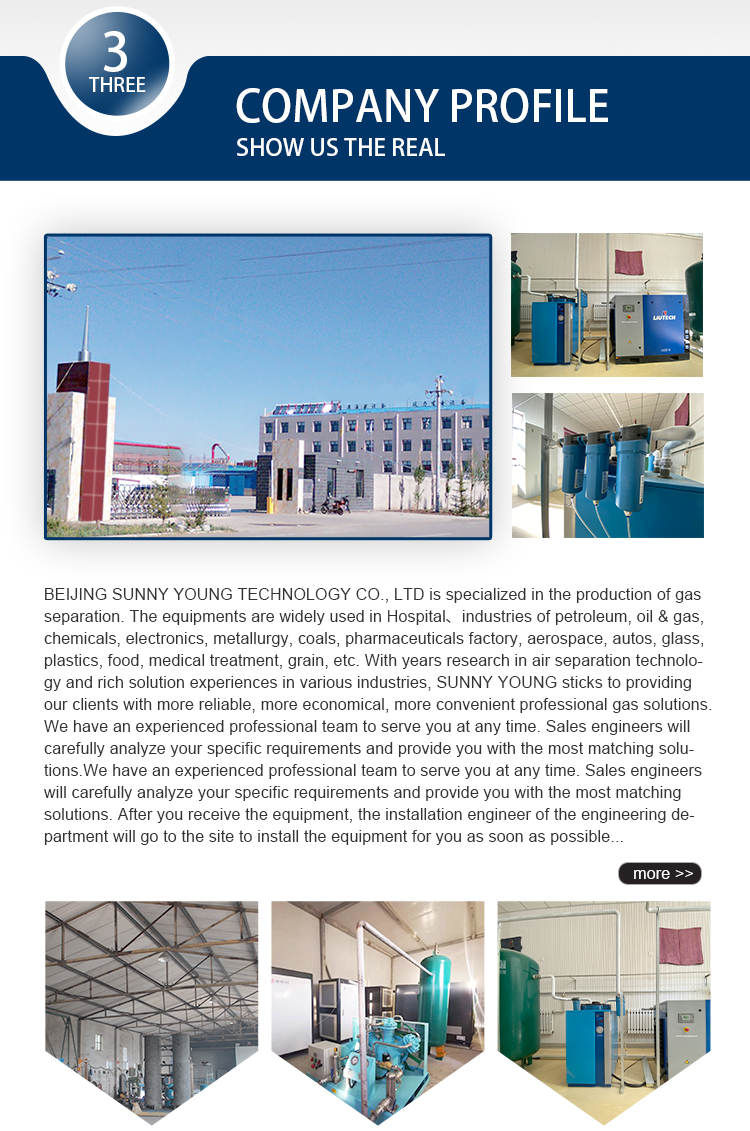

Company Profile
FAQ
Q1: Are you manufacturer or trading company?
Q5: How to get a prompt quotation?
A1:We are professional manufacturer.
Q2: Can you produce according to the client’s requests?
A2: Yes, we can produce by your request or technical drawings. We can build the molds and fixtures.
Q3: How about your delivery time?
A3: Generally 45 days.
Q4: What’s the terms of payment?
A4: L/C, T/T.
A4: L/C, T/T.
Q5: How to get a prompt quotation?
A5: When you send the inquiry to us, pls kindly send it with below technical information.
1)Flow rate: _____Nm3/hr
2) Purity: _____%
3) Dscharge pressure: _____Bar
4) Voltages and Frequency : ______V/___PH/___HZ
5) Application or use for which industry.
6) Local altitude _____m and Dew point temperature_____℃
