Description
- Brand Name: diymore
- Condition: New
- Resistance Tolerance: 10%
- Technology: Metal Alloy
- Type: Rotary Potentiometer
- Operating Temperature: 10- 85
- is_customized: Yes
- Max. Operating Voltage: as the description
- Model Number: RV24YN20S with A03 kob
- Rated Power: 0.25W.0W.0.125W,0W
Product features
Product name : Carbon Potentiometer
Tolerance : 10%;
Model : rv24yn20s;
Technology : carbon composition;
Resistance value : 1K 2K 5K 10K 20K 100K 200K 500K 1M Ohm
Turn number : single turn (Type B);
Adjustment Type : top adjustment;
Features : round shaft

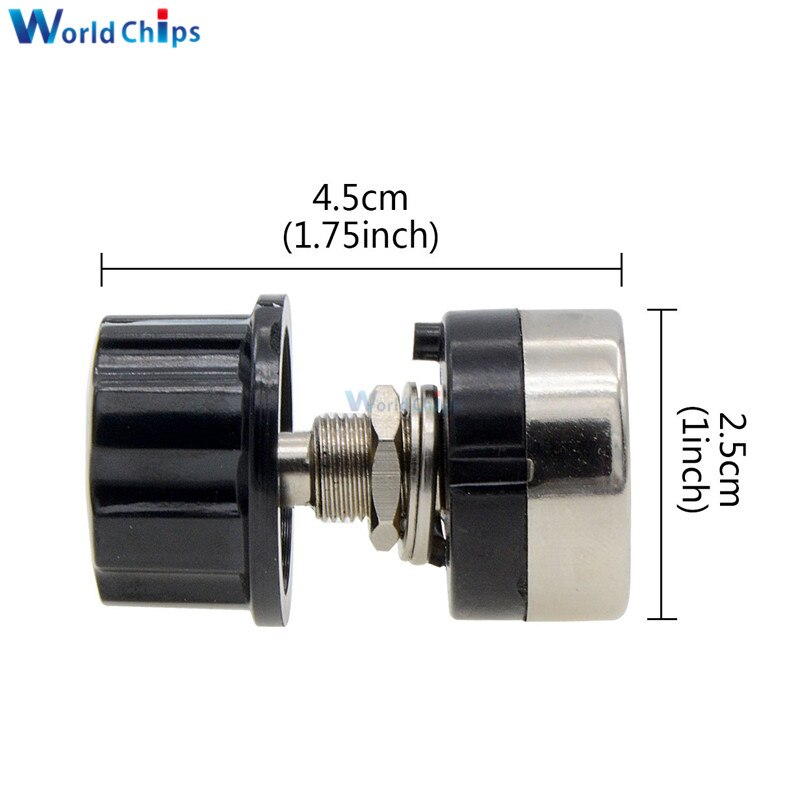

Terminals number : 3; body Size : 24 x 13 mm 0 95″ x 0. 5″(D * H); Screw thread DIA. : 8. 6mm / 0. 33″
Shaft diameter : 6 mm / 0. 24″;
Shaft Length : 10 mm / 0. 4″;
Total Length : 33 mm / 1. 3″
Color : black, Silver Tone;
A03 Rotary Knob Size : 15 x 27mm/0. 6″ x 1. 1″(H*Max. D)
Product description

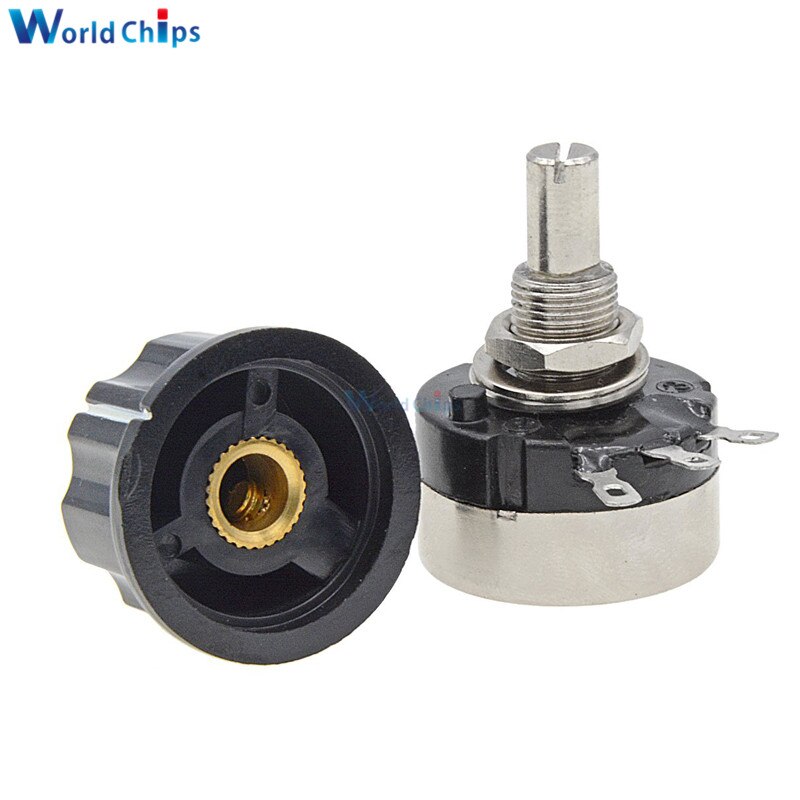

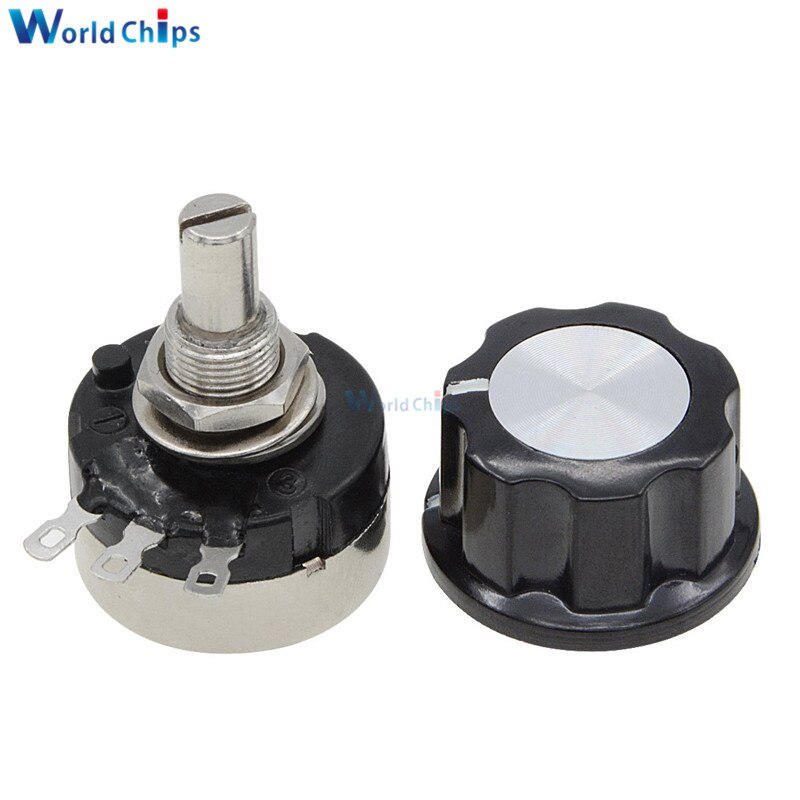

Features: 3 terminals, single turn, carbon rotary taper potentiometer. Main used to control electrical devices such as volume controls on audio equipment. Knurled shaft with split design for push-on knob.
Potentiometer

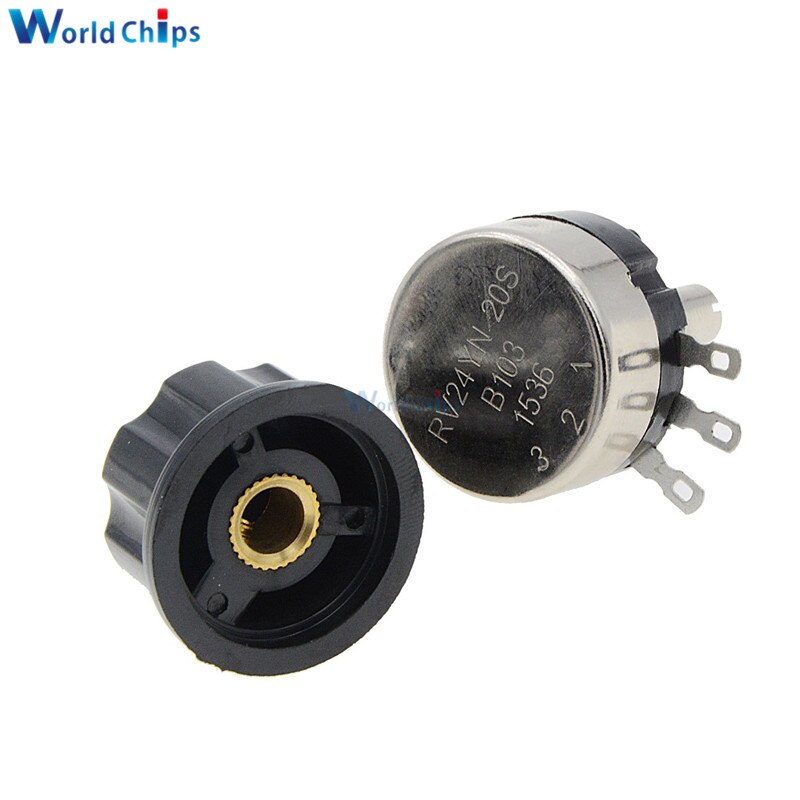

RV24YN20S 1K ohm =B102
RV24YN20S 2K ohm =B202
RV24YN20S 5K ohm =B502
RV24YN20S 10K ohm =B103
RV24YN20S 20K ohm =B203
RV24YN20S 50K ohm =B503
RV24YN20S 100K ohm =B104
RV24YN20S 200K ohm =B204
RV24YN20S 500K ohm =B504
RV24YN20S 1M ohm =B105
Package content :
1 x carbon potentiometer with A03 Knob
