Description
- Brand Name: VEVOR
- Origin: CN(Origin)
- Certification: ce
- Model Number: 8KH7050DKJ80W00001V2
- Certification: CE
- Control system: DSP
- Laser tube type: Co2 Glass sealed laser tube
- Driver type: Micro Stepping Motor
- Max speed: 1000mm/s
- Resolution: 1000 DPI
- Location precision: 0.01mm
- PC Interface: USB2.0 and USB Disk
- Software: Auto Laser
This machine is equipped with DSP Control System for RDdraw directly,also supports CoreDraw and Auto CAD and other advance software. It must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer. Even on the same Job, you can do setting with different colour in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.
-

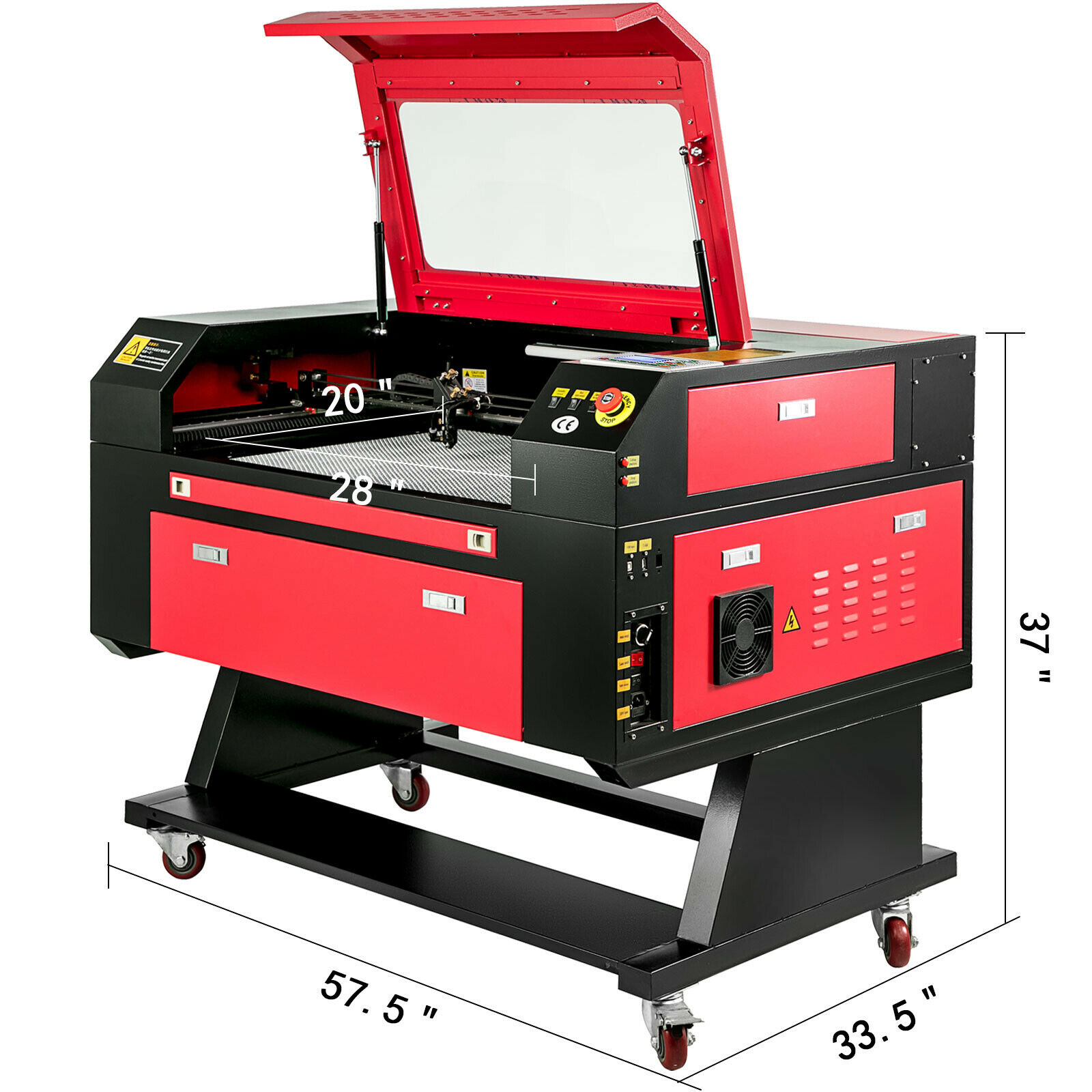

【DURABLE QUALITY】- Adopts CO2 glass sealed laser tube, whose lifetime is up to 2000-4000 hours, 80W premium laser head, international standard laser power supply, and integrated framework design; With large engraving area of 28″x20″ (70x50cm).
-
【SAFETY & RELIABILITY】- With air assist, removing heat and combustible gases from the cutting surface to prevent burning during engraving working, and with a built-in cooling fan for effective ventilation; Owns FDA, CECertification, ISO9001 Quality Certification.
-
【POWERFUL PERFORMANCE】- Support USB2.0 port, U disk reading and writing, support U disk system upgrade; With 128MB storage, able to work independently of PC; Visible red dot pointer for better guidance; Use virtual array list and additional off-cut graph to realize the off-cut function; With feeding devices to realize the cyclical model of working-feeding-working.
-
【HIGH COMPATIBILITY】- Supports multiple graphic formats, including HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI, etc. Adopts advanced RD Works digital control system, able to directly output from RD draw, CorelDRAW and Auto CAD.
-
【WIDELY USED】- Can be used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, glass, etc. Suitable for advertisement, gifts, shoes, toys etc.
Applicable Material:
Wood , Bamboo, Jade, Marble,Organic Glass, Crystal, Plastic, Garments, Paper, Leather, Penelope, Rubber, Glass, Textile Cutting, Industrial Prototyping, Industrial Marking, Signmaking, Medical Part Marking, Aerospace, Architectural Modeling, Specialty Advertising, Plastics Fabricating, Flexo, Point of Purchase, Rubber Stamps, Picture Framing, Gift Manufacturing, Bar Coding, Engraving, Gasket Cutting, Puzzles, Cabinetry, Awards &Recognition, Personalized Pens, Door Pulls, Cut Scroll Patterns, Games & Toys, Finger Joints, Inlays & Overlays, Fraternity Paddles, Music Boxes, Light Switch plates, jewelry boxes, parts marking, Router Templates, Desk Sets, Scrap Booking, Photo Albums, Jewelry, Crafts, Italian Charms.
Note: All laser engraving machines can not carve and cut metal.
Features
CE Certification
Smooth and Precise Engraving and Cutting.
Output from RDdraw directly,also supports CoreDraw and Auto CAD .
Optimization of mechanical and electrical design.
More friendly control panel with Color Screen.
English, French, German, Italian, Spanish and more languages updating.
Separation of cutting up to 256 Colors.
One key to install, more convenient.
Use virtual array list and additional off-cut graph to realize the off-cut function.
Machines with feeding devices can realize the cyclical model of working-feeding-working.
USB Interface, U-Flash Disk Supported,Machine will read files from memory stick,you can work even without a PC.

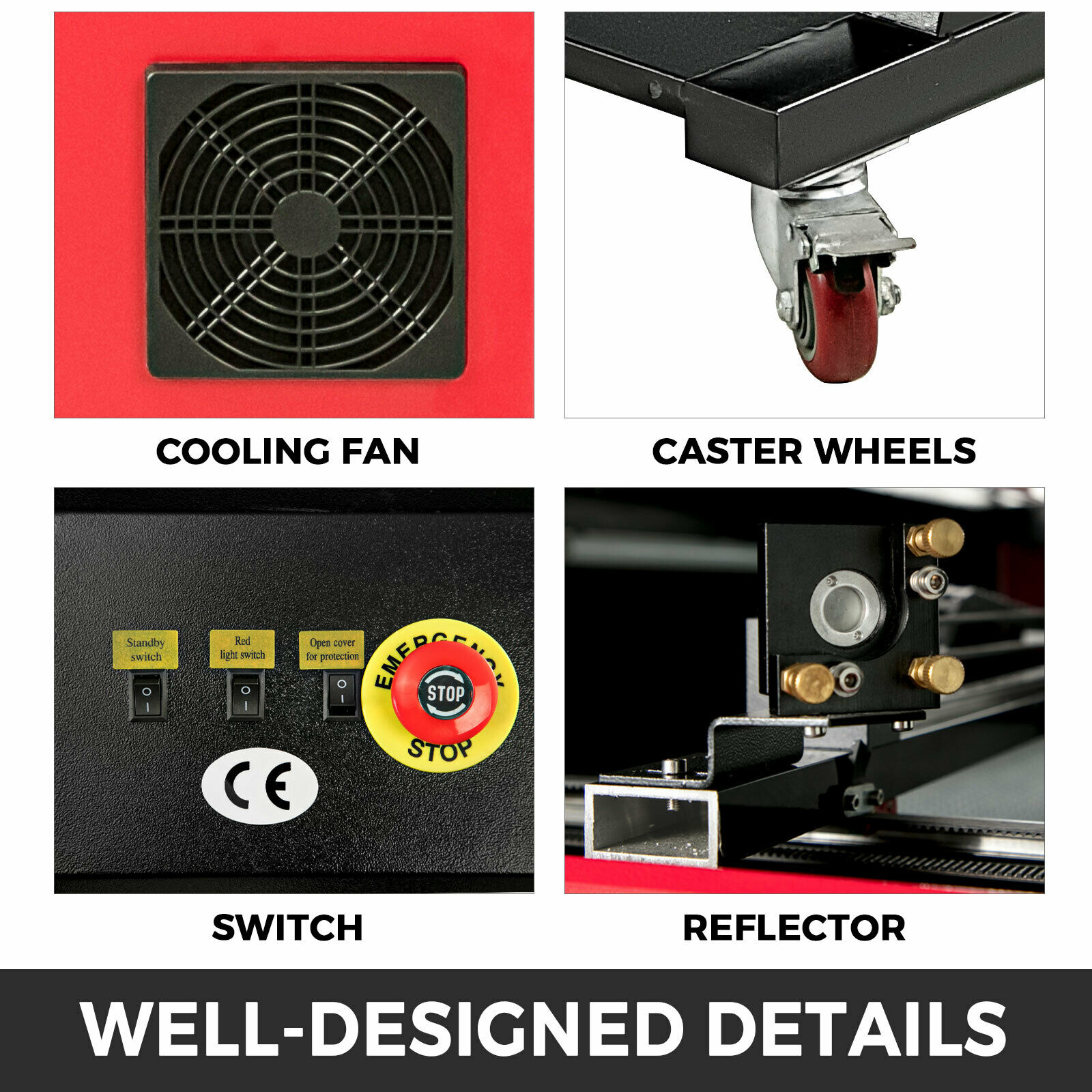

Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
Adopt advanced DSP digital control system, international standard laser power supply,integrated framework style
Packing List
Laser Engraving software Package (English Version)
User Manual (CD)
Industry water cooling system
Air exhaust fan
Air Pump
Communication cable
3 Reflect optics (installed in the machine)
1 Focus optics (installed in the machine)
1 Laser tube
