Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Place of Origin: Shaanxi, China
- Brand Name: XIYING
- Product Name: Digital Ammonia Nitrogen Mete
- Principle: Fluorescence method
- Range: 0-270, 000 cells/mL
- Resolution: 1 cells/mL
- Detection limit: 300 cells/mL
- Power Supply: 5~12vdc,current <50mA (when not cleaned)
- Housing material: SS316
- Response time: 10 sec
- Deepest depth: Underwater 10 meters
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#000;font-family:Arial,Helvetica;font-size:24px;color:#000;background-color:#7a90b2;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-6{font-size:24px}#detail_decorate_root .magic-7{font-size:18px}#detail_decorate_root .magic-8{width:750px;border-collapse:collapse}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:207px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:484px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{display:none}#detail_decorate_root .magic-12{min-height:18px;padding:5px 10px;width:47px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:57px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:43px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:207px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;width:484px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;width:173.778px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:18px;padding:5px 10px;width:43px;box-sizing:content-box}#detail_decorate_root .magic-19{width:750px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:361px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:361px}#detail_decorate_root .magic-24{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-25{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-26{width:371px;height:416.63101604278074px;overflow:hidden}#detail_decorate_root .magic-27{position:relative;left:0;top:0;width:371px;height:416.63101604278074px}#detail_decorate_root .magic-28{padding:0;margin:0;color:#333;font-size:14px;line-height:20px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-29{width:371px;height:416px;overflow:hidden}#detail_decorate_root .magic-30{position:relative;left:71px;top:-6px;width:301px;height:418px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:314.3835616438356px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:314.3835616438356px}#detail_decorate_root .magic-33{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-34{width:245px;height:245px;overflow:hidden}#detail_decorate_root .magic-35{position:relative;left:0;top:0;width:245px;height:245px}#detail_decorate_root .magic-36{position:relative;left:0;top:0;width:245.00000000000003px;height:245.00000000000003px}#detail_decorate_root .magic-37{position:relative;left:0;top:0;width:245px;height:268.19174757281553px}#detail_decorate_root .magic-38{position:relative;left:0;top:0;width:245px;height:252.7426636568849px}#detail_decorate_root .magic-39{position:relative;left:0;top:0;width:272.1335504885994px;height:245.00000000000003px}#detail_decorate_root .magic-40{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-41{width:320px}#detail_decorate_root .magic-42{overflow:hidden;width:320px;height:157px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:-82px;margin-left:-4px;width:320px;height:236.46481178396073px}#detail_decorate_root .magic-44{overflow:hidden;width:320px;height:157px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:-5px;margin-left:0;width:320px;height:250.5790838375108px}#detail_decorate_root .magic-46{overflow:hidden;width:426px;height:319.5px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:426px;height:319.5px}#detail_decorate_root .magic-48{overflow:hidden;width:426px;height:276.3642671292281px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:4px}#detail_decorate_root .magic-49{margin-top:0;margin-left:0;width:426px;height:276.3642671292281px}#detail_decorate_root .magic-50{overflow:hidden;width:320px;height:136px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-51{margin-top:-23px;margin-left:-2px;width:320px;height:180.78966259870782px}#detail_decorate_root .magic-52{overflow:hidden;width:320px;height:136px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:-29px;margin-left:2px;width:320px;height:249.34707903780068px}#detail_decorate_root .magic-54{width:245px;height:137.23185265438786px;overflow:hidden}#detail_decorate_root .magic-55{position:relative;left:0;top:0;width:245px;height:137.23185265438786px}#detail_decorate_root .magic-56{font-size:32px}#detail_decorate_root .magic-57{width:245px;height:137px;overflow:hidden}#detail_decorate_root .magic-58{position:relative;left:0;top:0;width:245px;height:164.43693693693695px}#detail_decorate_root .magic-59{position:relative;left:0;top:-26px;width:245px;height:239.58990536277602px}#detail_decorate_root .magic-60{overflow:hidden;width:750px;height:825px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-61{margin-top:0;margin-left:0;width:750px;height:825px}#detail_decorate_root .magic-62{min-height:18px;padding:5px 10px;width:174px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-63{min-height:18px;padding:5px 10px;width:510px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-64{min-height:18px;padding:5px 10px;width:174.556px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-65{overflow:hidden;width:750px;height:350px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-66{margin-top:0;margin-left:0;width:750px;height:350px}#detail_decorate_root .magic-67{overflow:hidden;width:373px;height:174.06666666666666px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-68{margin-top:0;margin-left:0;width:373px;height:174.06666666666666px}#detail_decorate_root .magic-69{overflow:hidden;width:373px;height:174px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-70{margin-top:0;margin-left:0;width:373px;height:225.18148148148148px}#detail_decorate_root .magic-71{overflow:hidden;width:750px;height:562.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-72{margin-top:0;margin-left:0;width:750px;height:562.5px}#detail_decorate_root .magic-73{overflow:hidden;width:750px;height:350px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}
Product Description

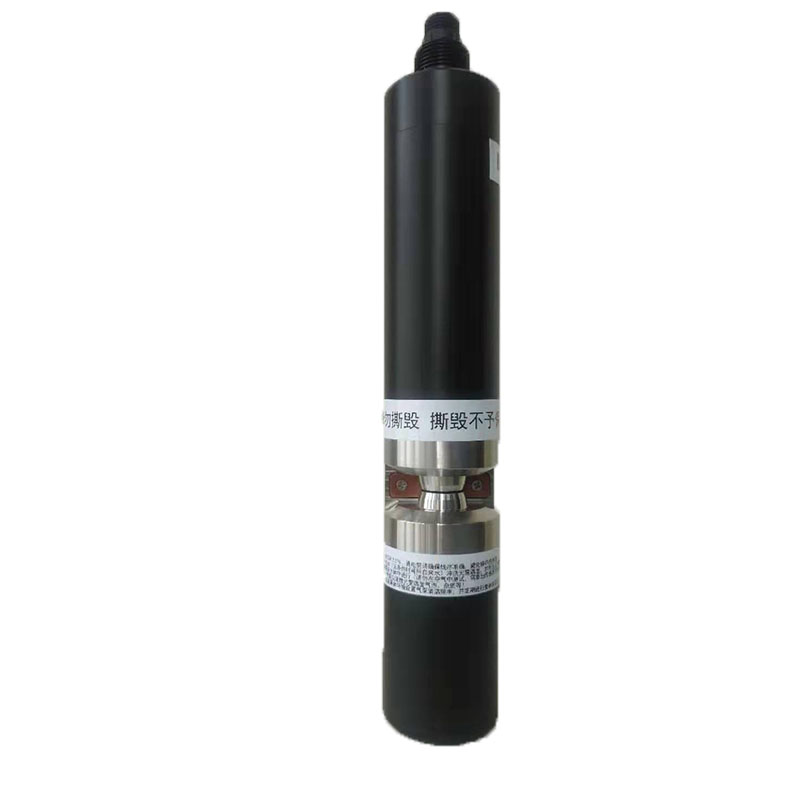

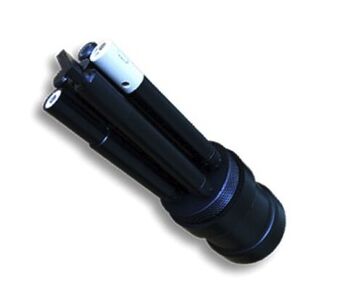

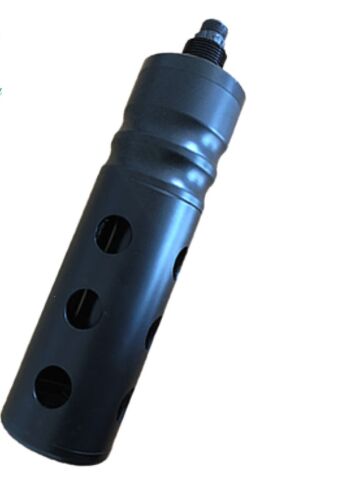

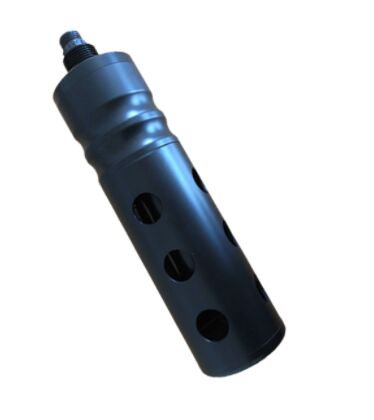

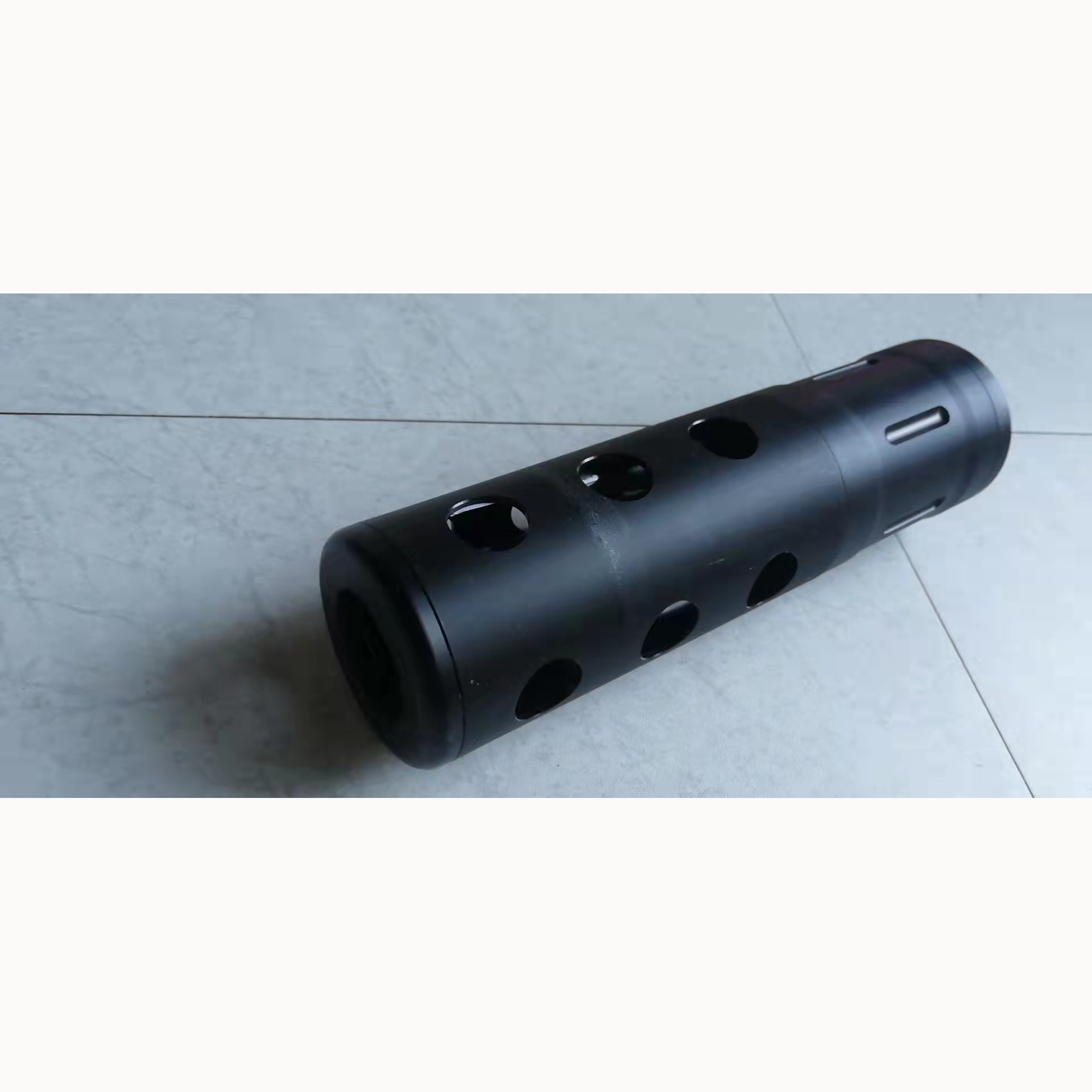

On-line ammonia nitrogen sensor

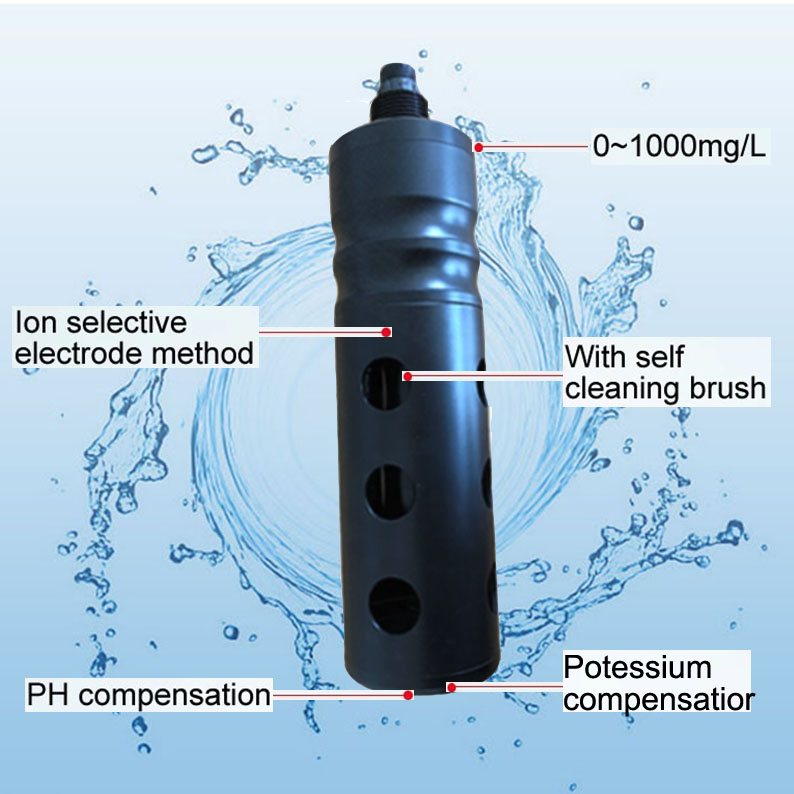

On-line ammonia nitrogen sensor, no reagents required, green and non-polluting, can be monitored online in real time. Integrated ammonium, potassium (optional), pH and reference electrodes automatically compensate for potassium (optional), pH and temperature in water. It can be directly put into installation, which is more economical, environmentally friendly and convenient than traditional ammonia nitrogen analyzer. The sensor has a self-cleaning brush that prevents microbial adhesion, resulting in longer maintenance intervals and excellent reliability. It adopts RS485 output and supports Modbus for easy integration.
|
Item
|
Specifications
|
||||||
|
Product Name
|
Ammonia nitrogen sensor
|
||||||
|
Model
|
XY260
|
||||||
|
Ammonia nitrogen range
|
0-1000mg/L NH4-N
|
||||||
|
Ammonia nitrogen precision
|
5%
|
||||||
|
Ammonia nitrogen resolution
|
0.1 mg/L
|
||||||
|
pH range
|
4-10
|
||||||
|
pH accuracy
|
±0.1
|
||||||
|
pH resolution
|
0.01
|
||||||
|
Protection level
|
IP68
|
||||||
|
Deepest depth
|
10 meters underwater
|
||||||
|
Temperature range
|
0 ~ 50 °C
|
||||||
|
Sensor interface
|
Support RS-485, MODBUS protocol
|
||||||
|

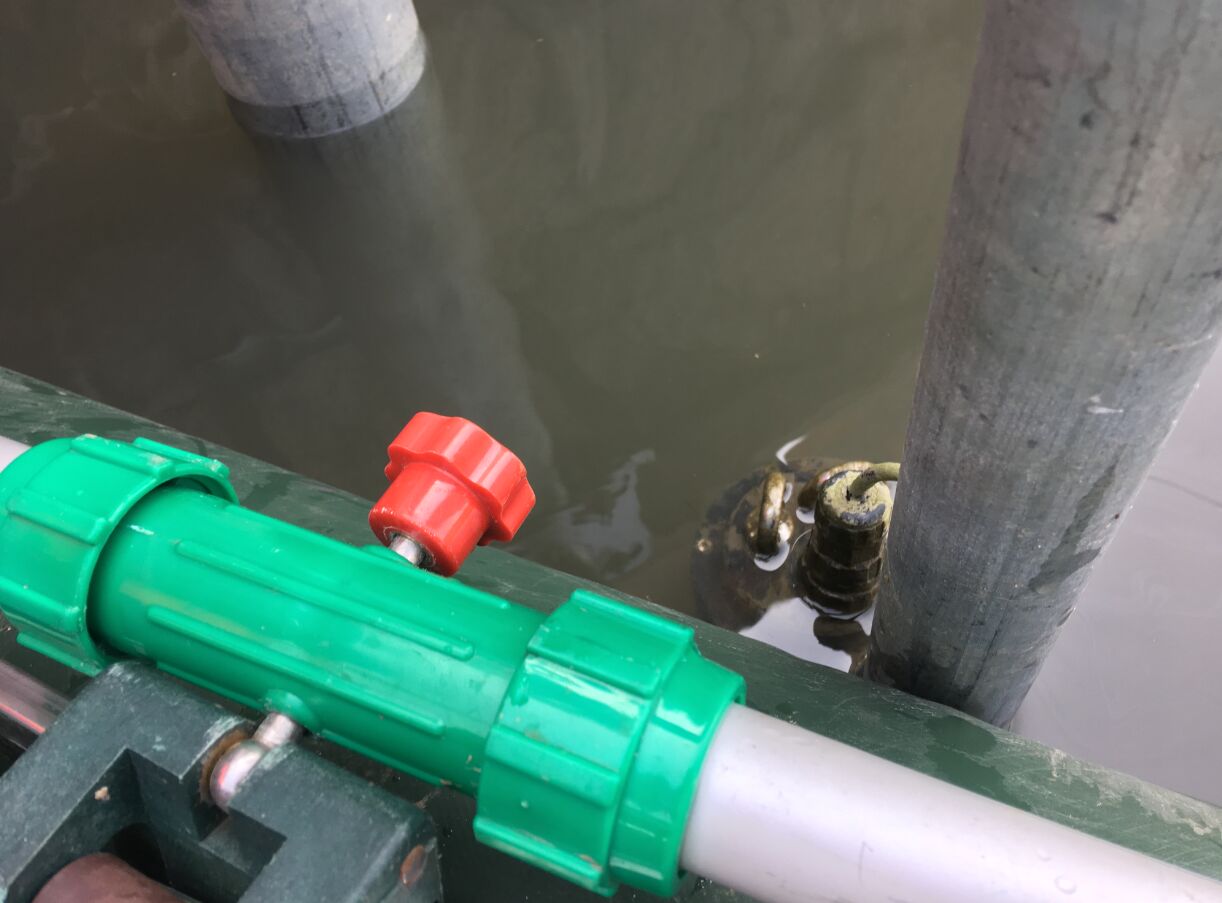

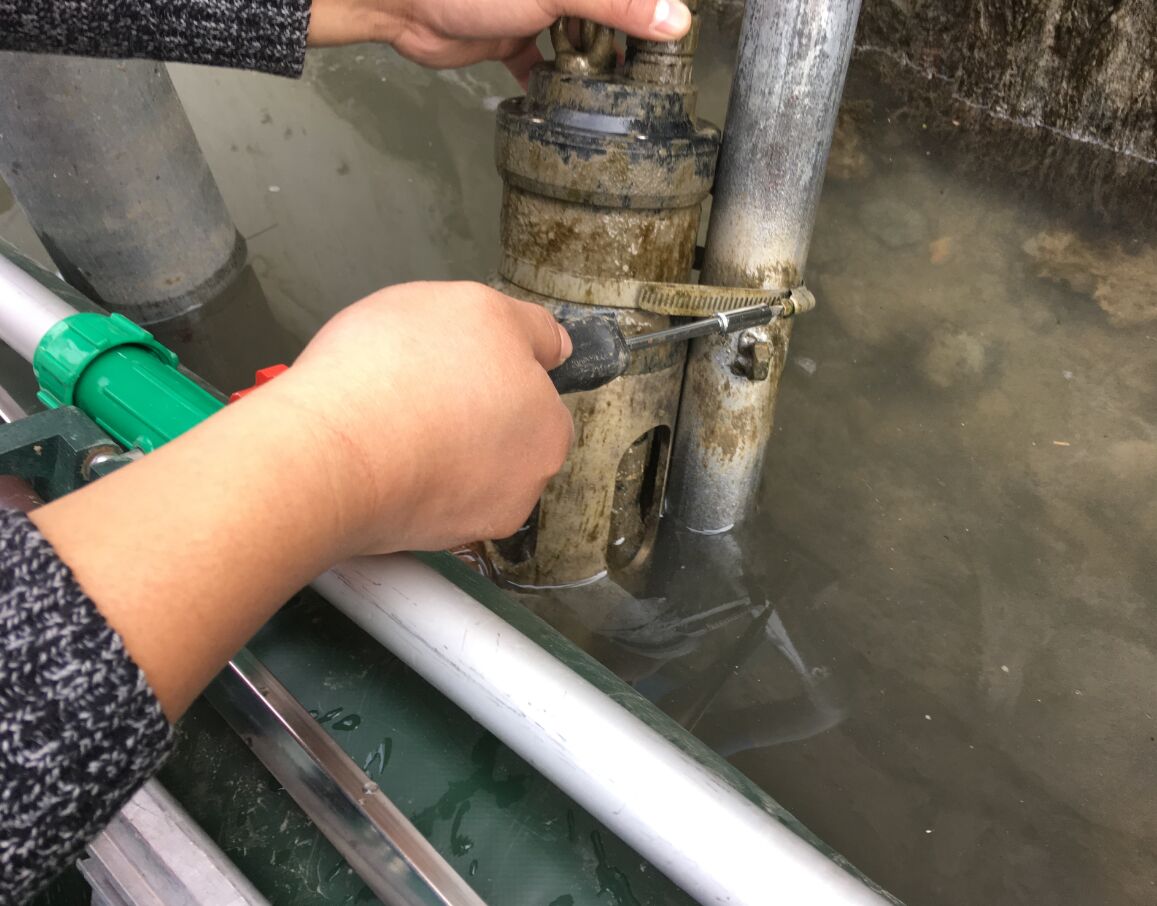

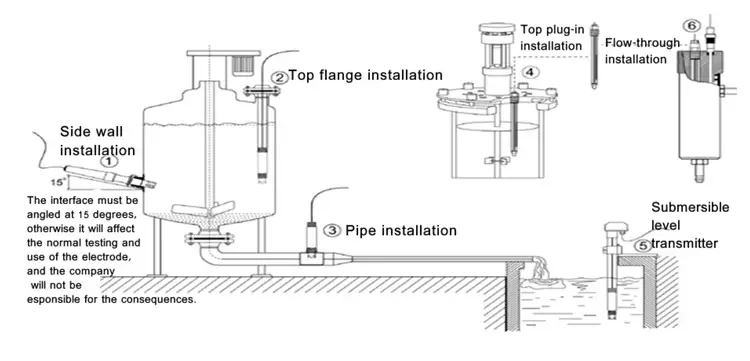

Installation
|
Input type，Circulation type
|
||||||
|
Power information
|
DC8~26VDC±10%, current <50mA
|
||||||
|
Probe cable length
|
10 meters (default), can be customized
|
||||||
|
Housing material
|
POM
|
||||||
Feature
(1) Digital sensor, RS-485 output, support MODBUS
(2) No reagents, no pollution, more economical and environmentally friendly
(2) No reagents, no pollution, more economical and environmentally friendly
(3) Automatically compensates for pH and temperature in water

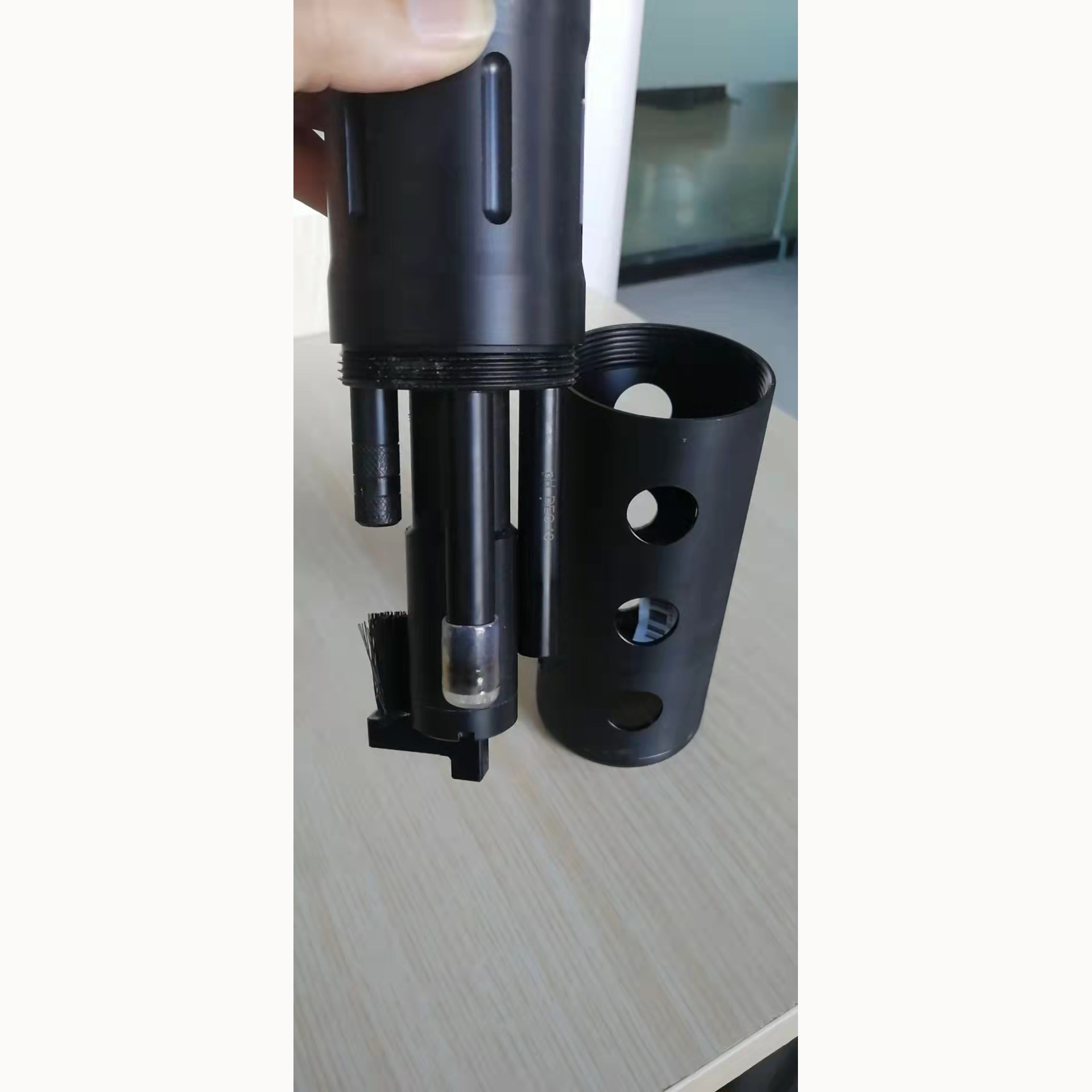

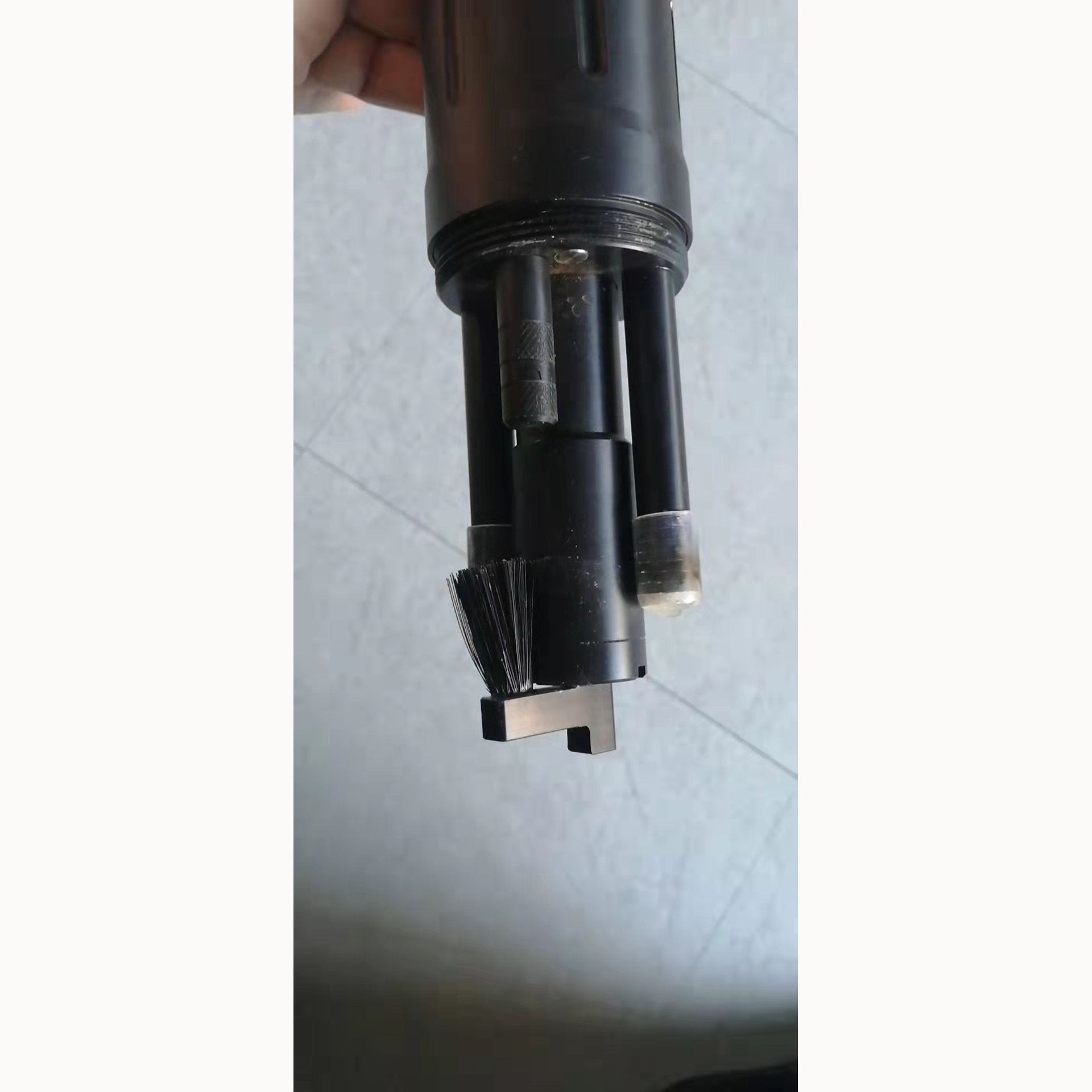

(4) Self-cleaning brush to prevent microbial adhesion and longer maintenance intervals

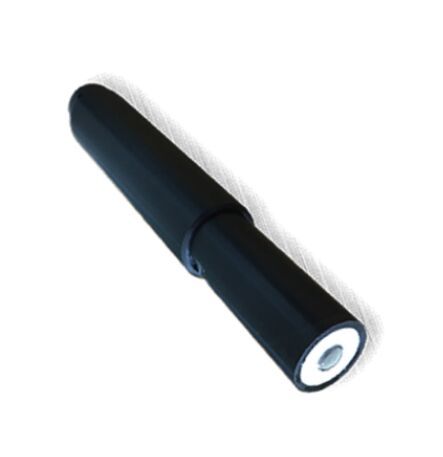

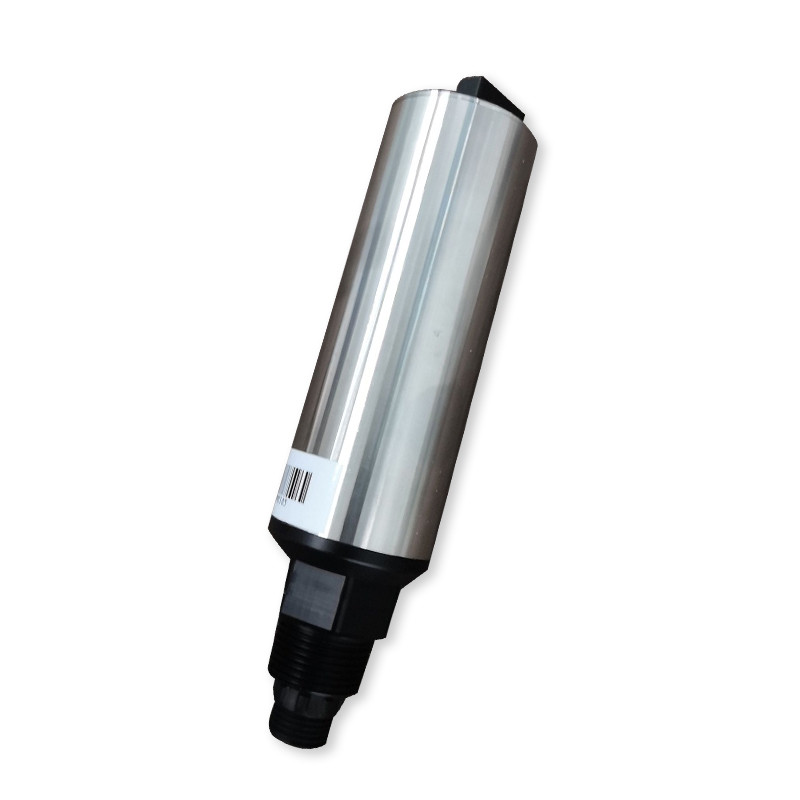

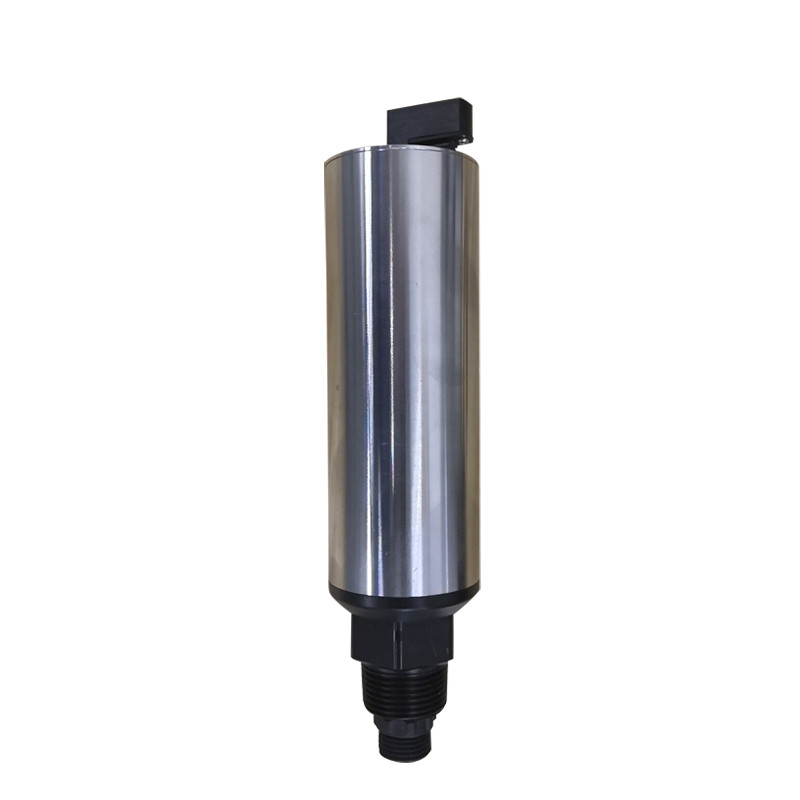

Related Products

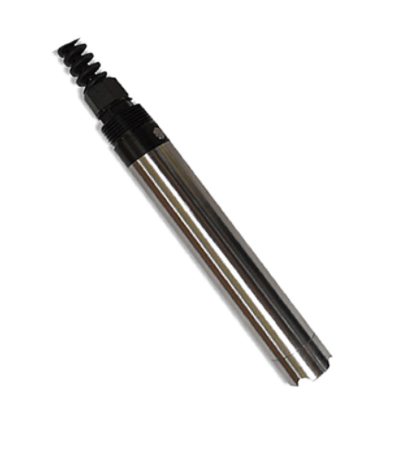

Oil in Water Sensor
COD Sensor
Dissolved Oxygen Sensor
Blue-Green Algae Sensor
PH Sensor
Muti-parameter Sensor

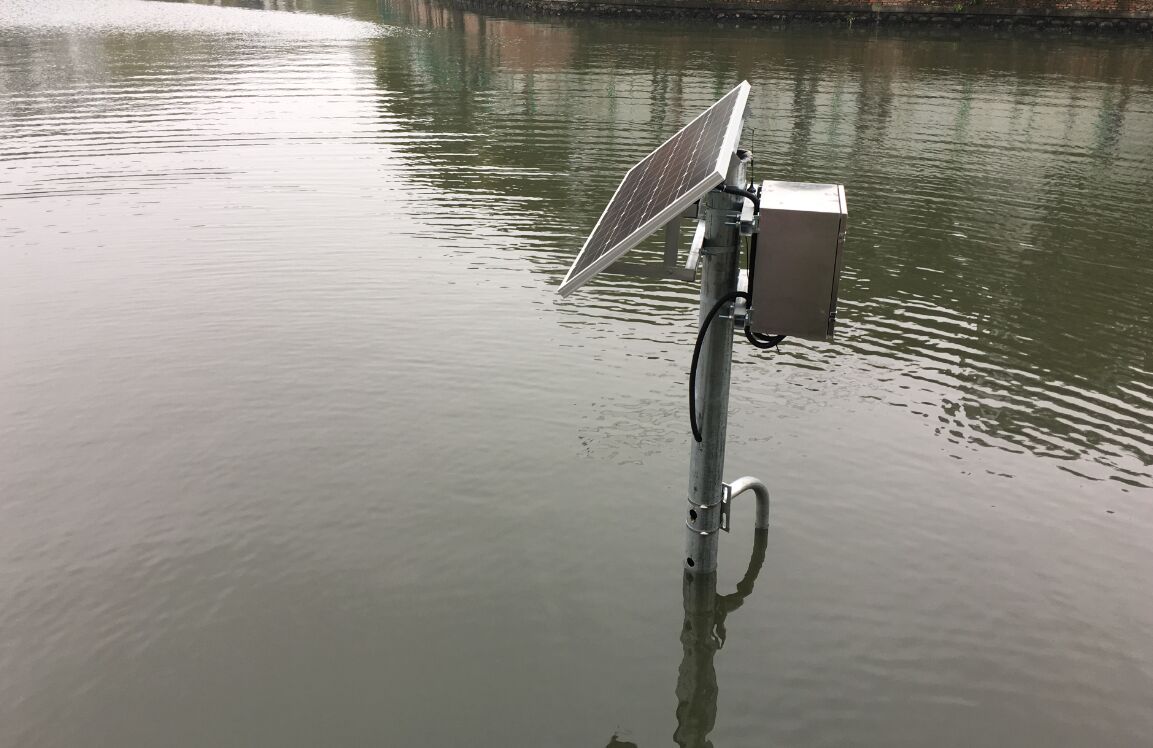

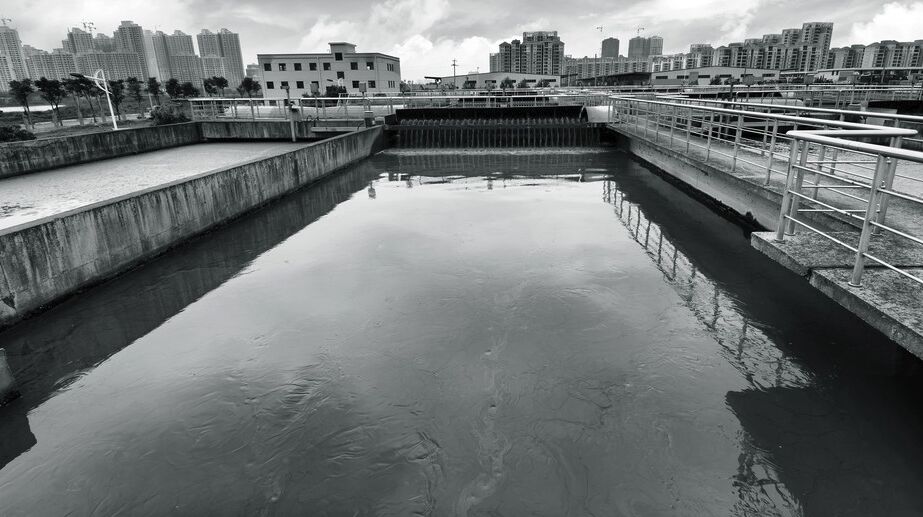

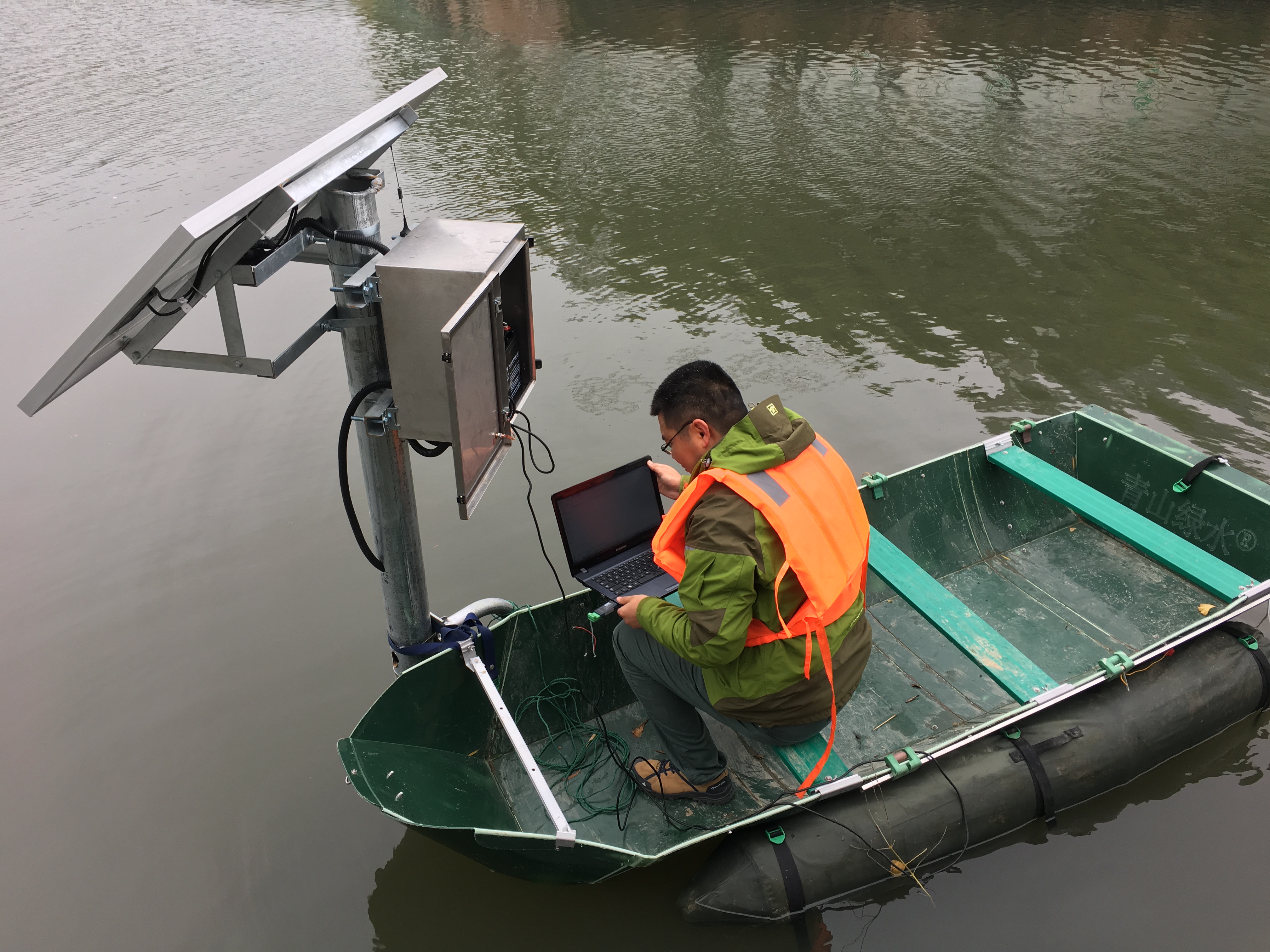

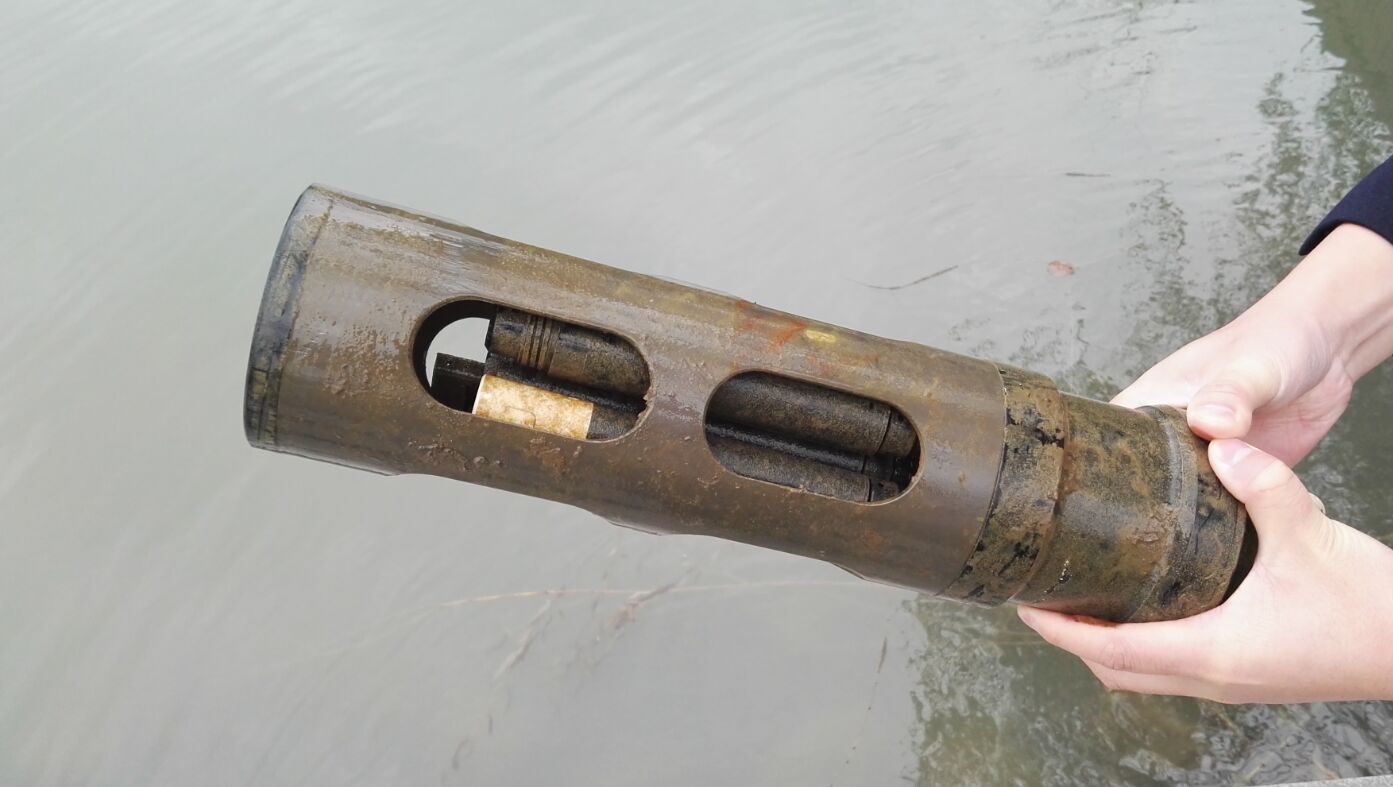

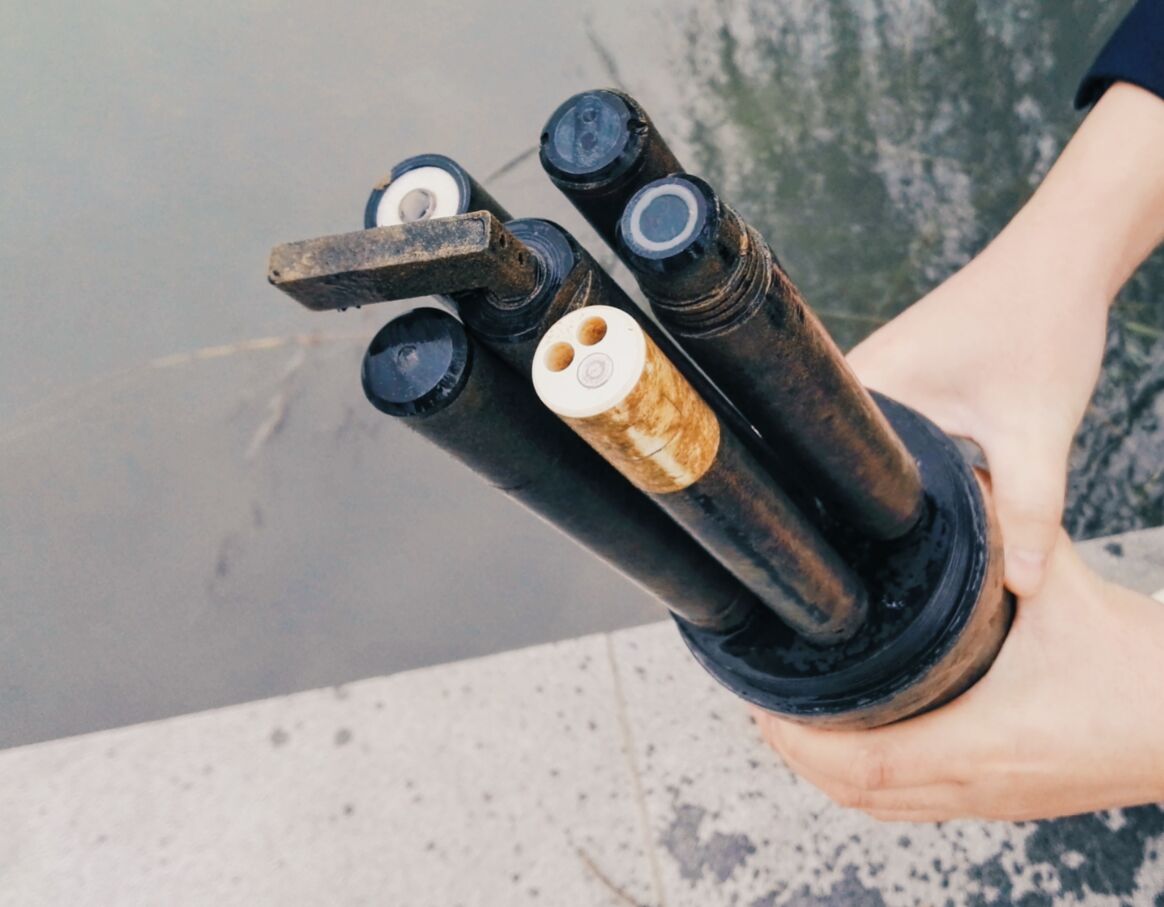

Application
On-line ammonia nitrogen sensor suitable for environmental monitoring,environment analysis,modern agriculture,sewage treatment,smart city,food and medical,water treatment,tap
water otheprocess and fields
water otheprocess and fields
Industrial
Breed Aquatics
Offshore
Packing&Shipping
|
Packing Details
|
Packed by carton ,plywood case , or on request
|
|
Delivery Details
|
3-5 Working Days After Received The Payment
|
|
Express
|
DHL.TNT. UPS .FEDEX. ARAMEX
|

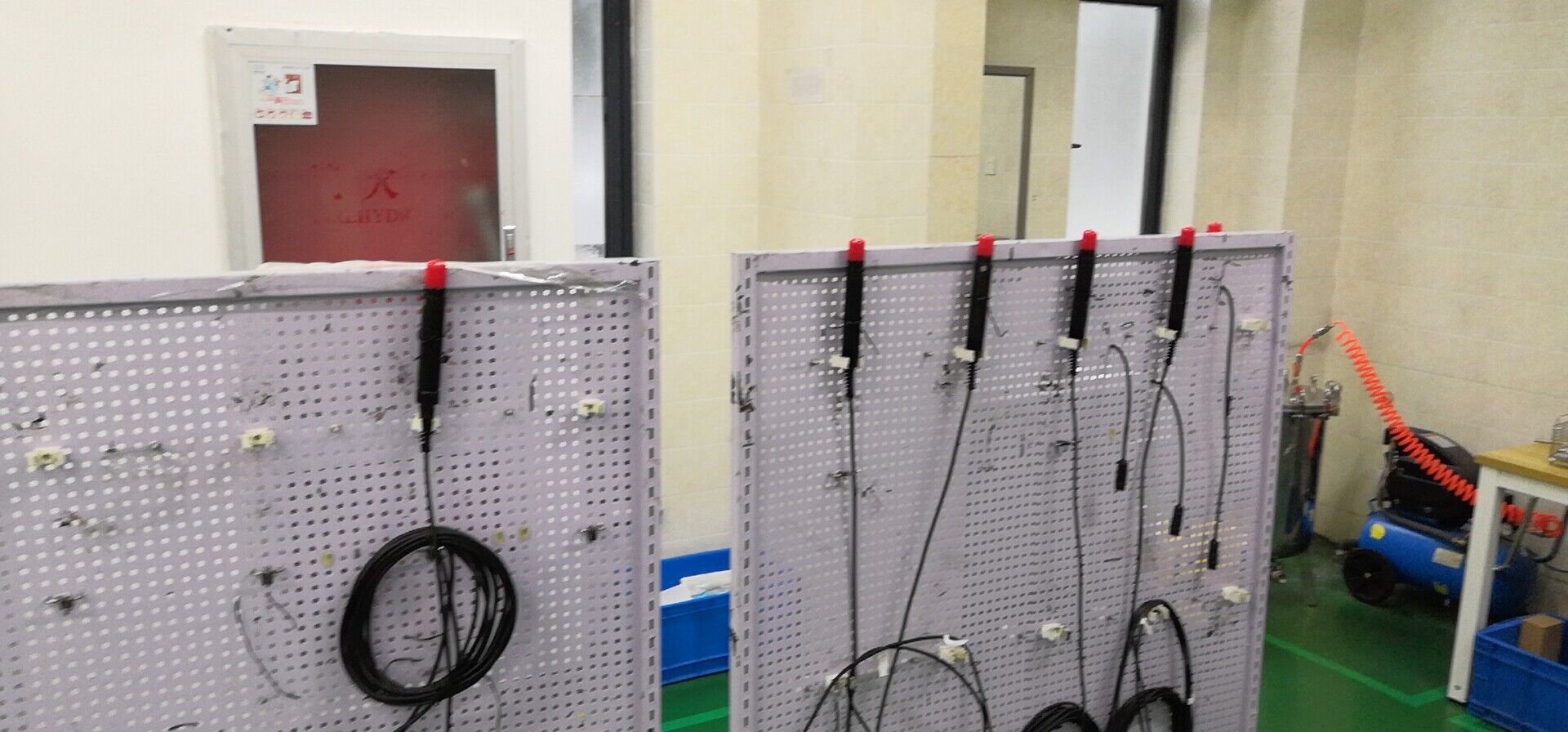

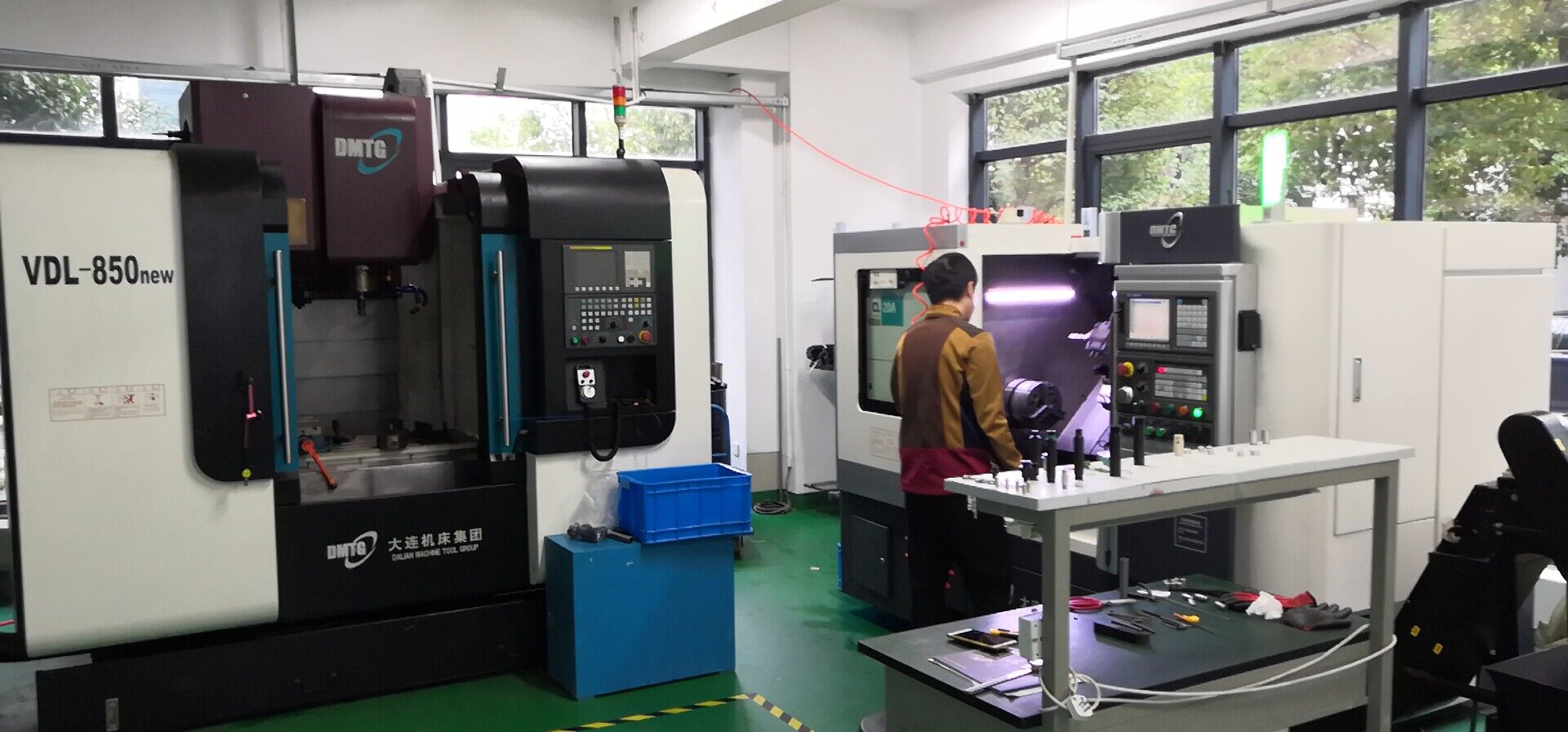

Workshop
If you have any doubt, pls Click Here to contact us

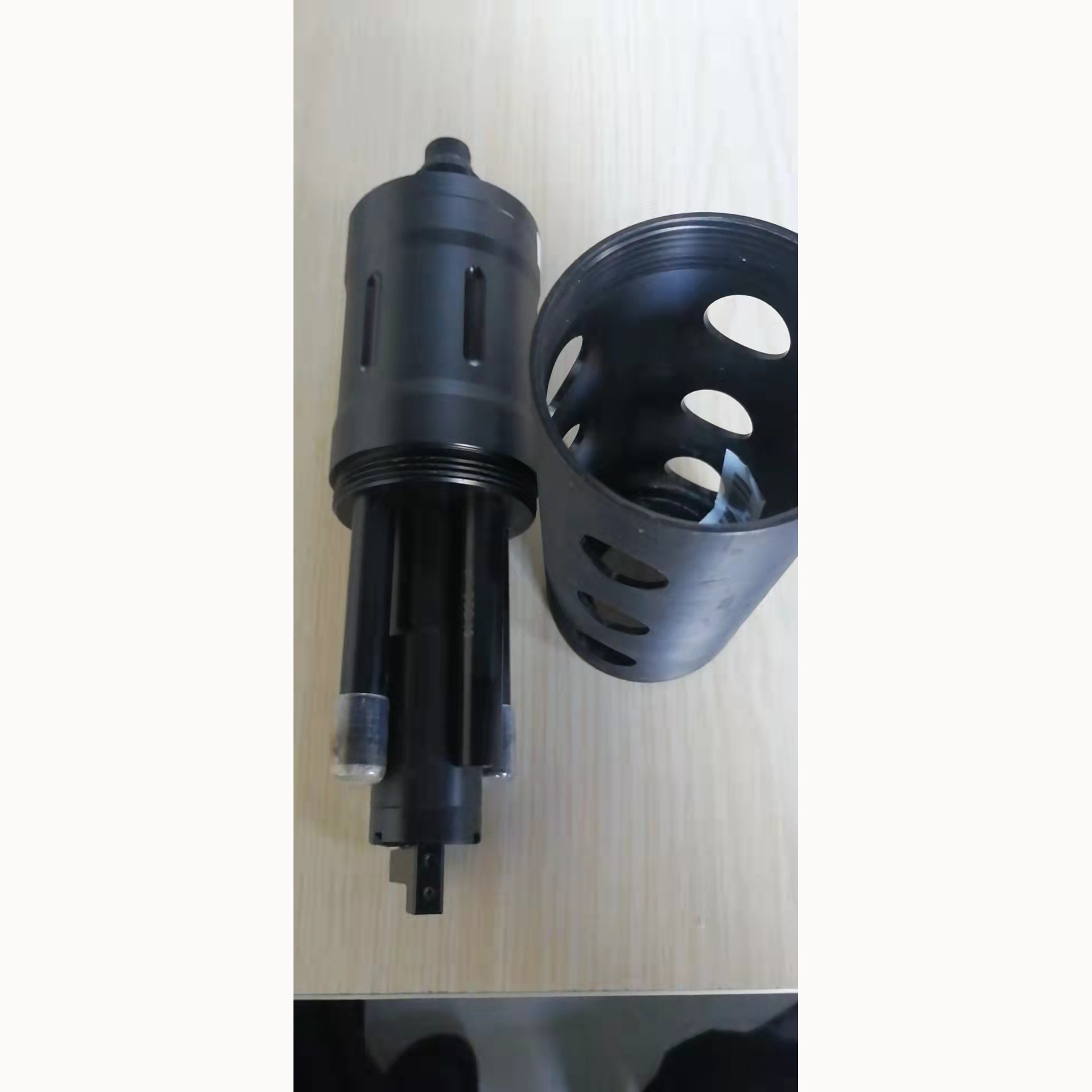

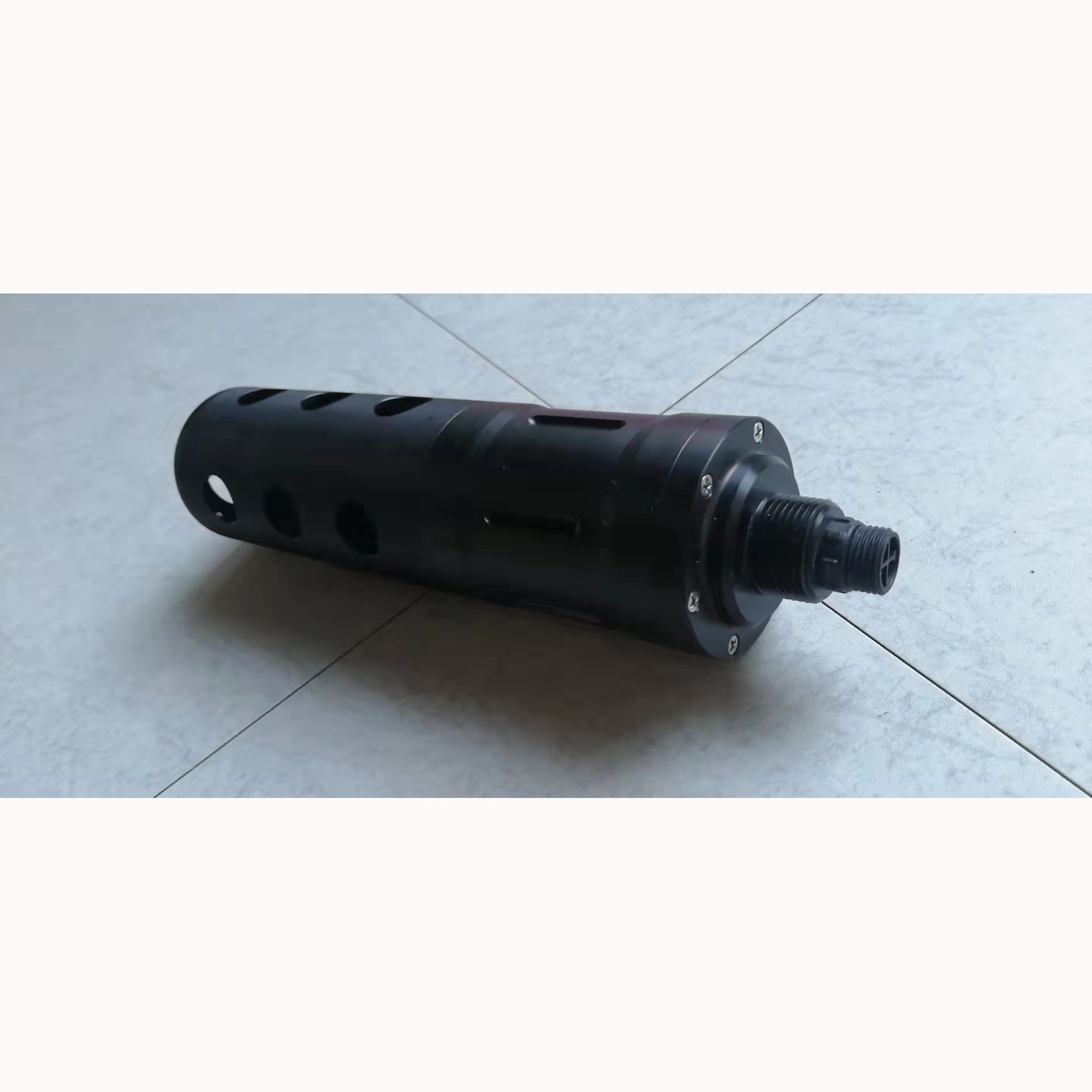

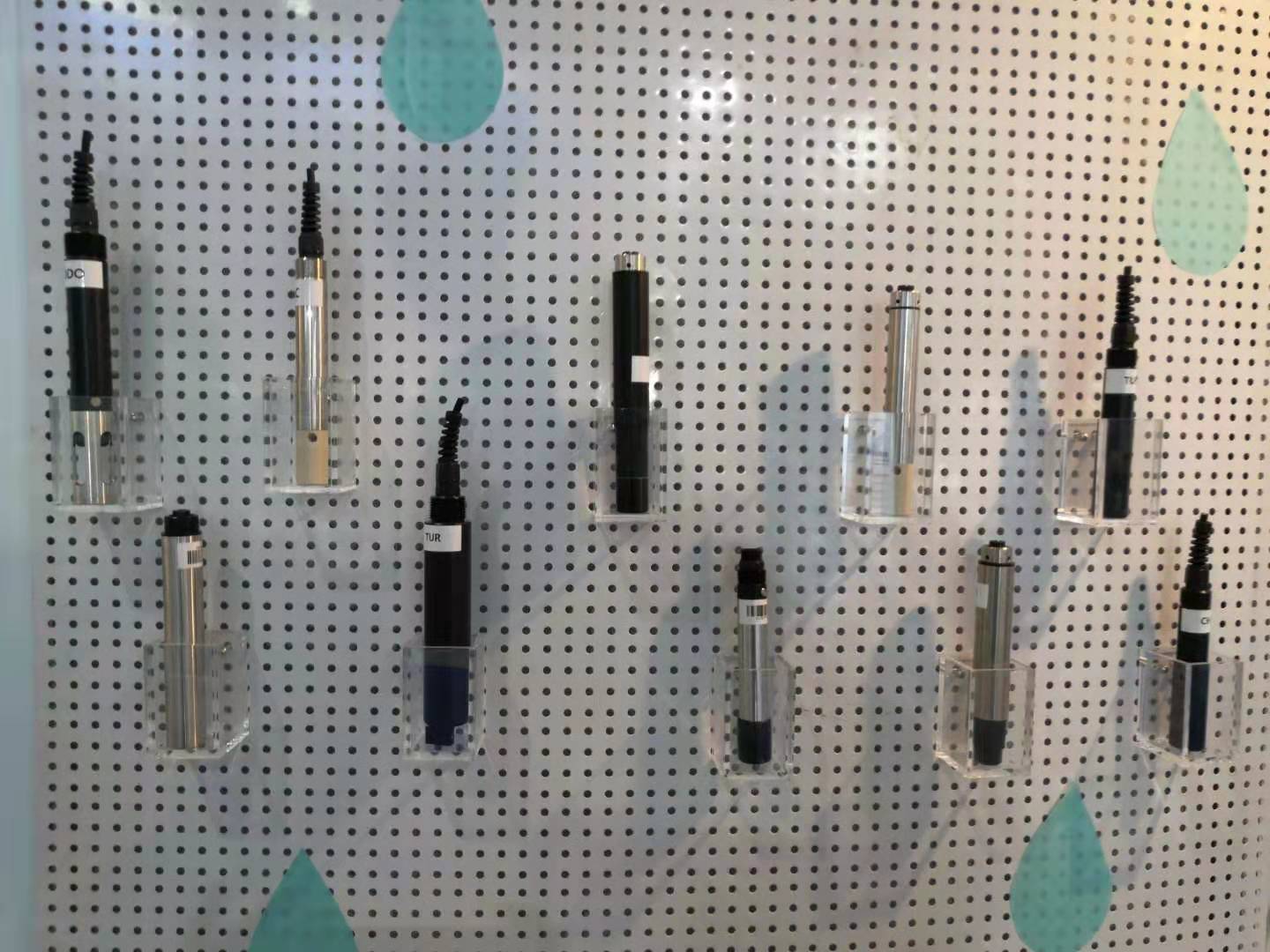

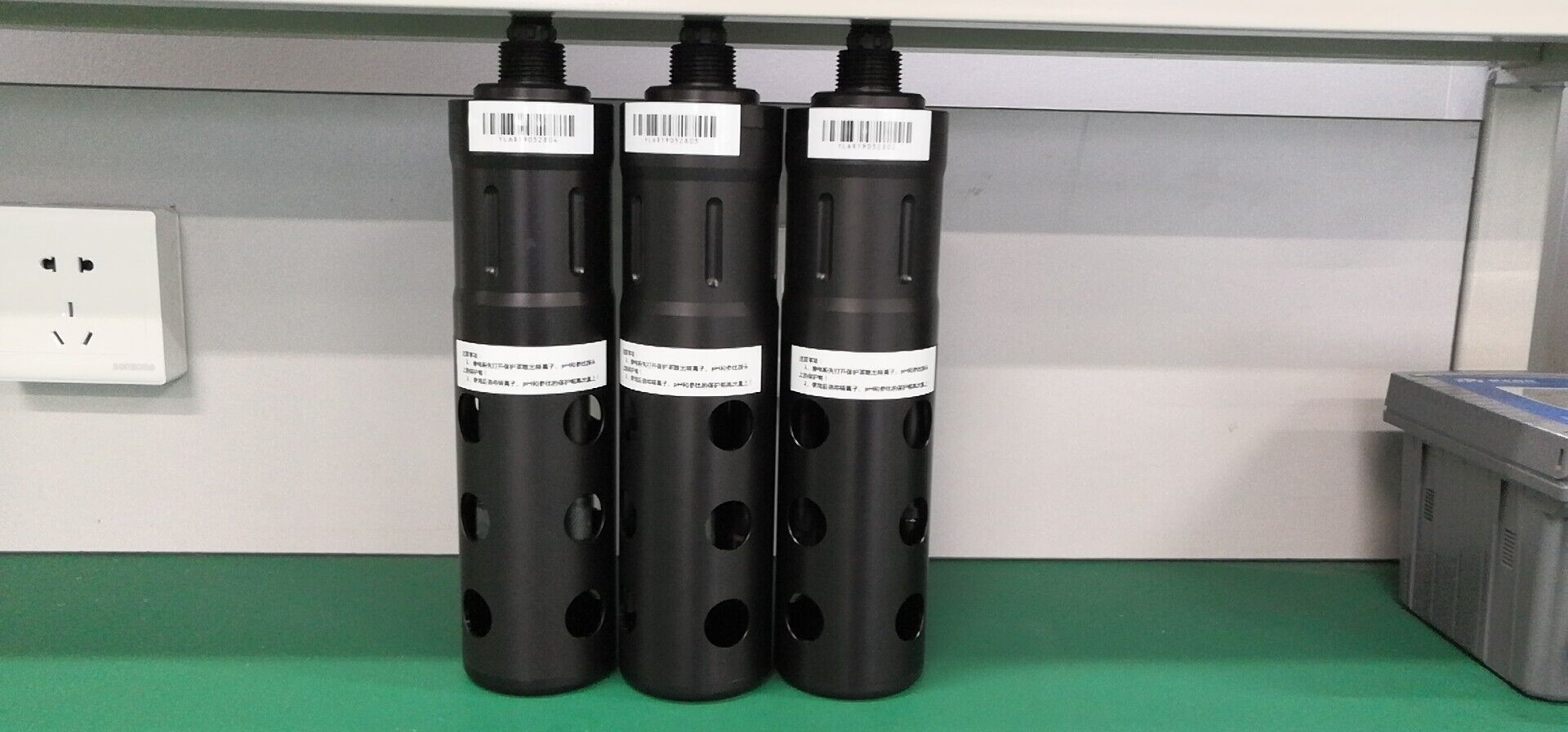

Product Display
