Description
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: BCX LASER
- CNC or Not: CNC
- Is Smart Device: YES
Products Description

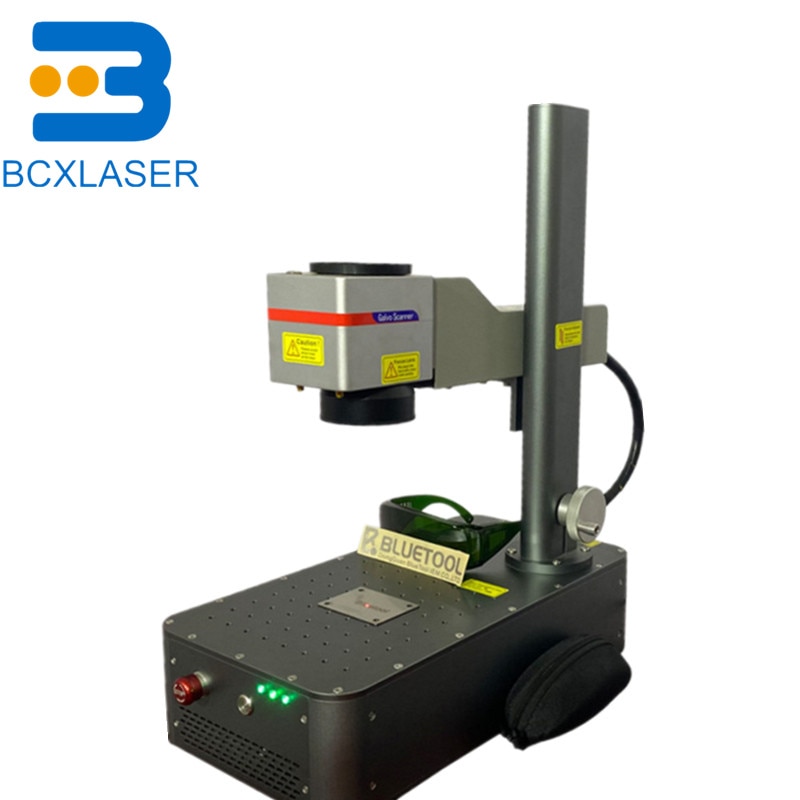

The Portable Type Fiber Laser Marking Machine with JPT/MAX/RAYCUS /IPG Source
1. Model: Fiber Laser Marking Machine
2. Applicable materials:
Applicable various metal, such as silver, alloy, aluminum, stainless steel, copper etc, and some non-metal materials,
2. Applicable materials:
Applicable various metal, such as silver, alloy, aluminum, stainless steel, copper etc, and some non-metal materials,
such as PVC,PC, black acrylic.3. Applicable industry:
They are widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.
They are widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.
NO
|
ITEM
|
DATE
|
1
|
Laser power
|
20W 30W 50W 100W
|
2
|
Laser wavelength
|
1064nm
|
3
|
Control software
|
Ezcad (provided)
|
4
|
Cutting depth
|
≤1mm(30W 50W 100W mark 1-3mins repeatedly then can cut)
|
5
|
Minimum line width
|
0.01mm
|
6
|
Marking size
|
110 * 110mm ( 75mm 200mm 300mm optional )
|
7
|
Working voltage
|
110/220V ± 10%, 50/60HZ
|
8
|
Cooling way
|
Air cooling
|
9
|
Graphic file format
|
PLT, DXF, AI, BMP, JPG,GIF,TGA,DST,TIF,PNG
|
10
|
Machine size
|
470*246*580mm
|
11
|
Machine weight
|
21Kg
|
12
|
Package size
|
500*255*380mm
|
13
|
Packed weight
|
22Kg
|
14
|
Packing
|
Plywood box
|
