Description

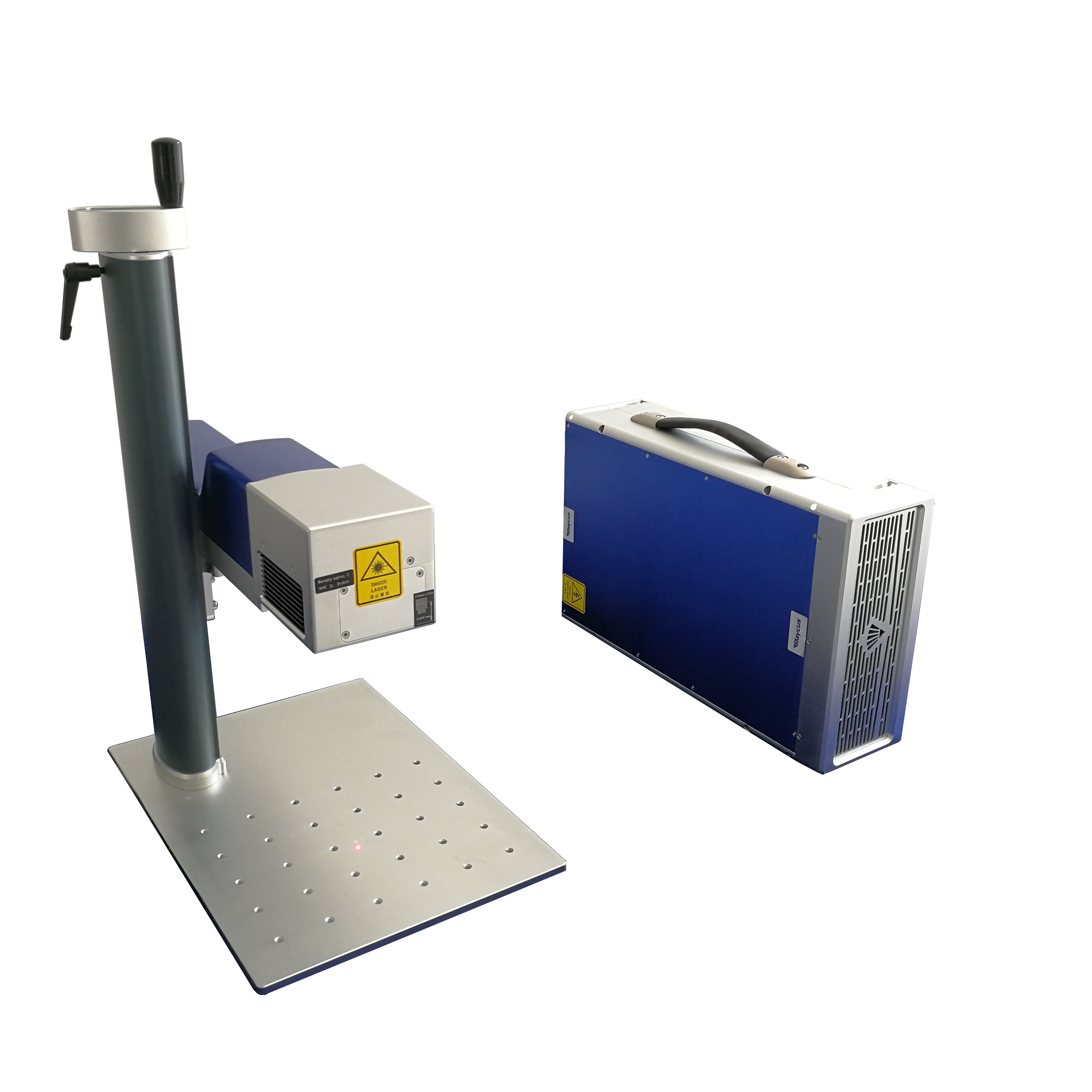

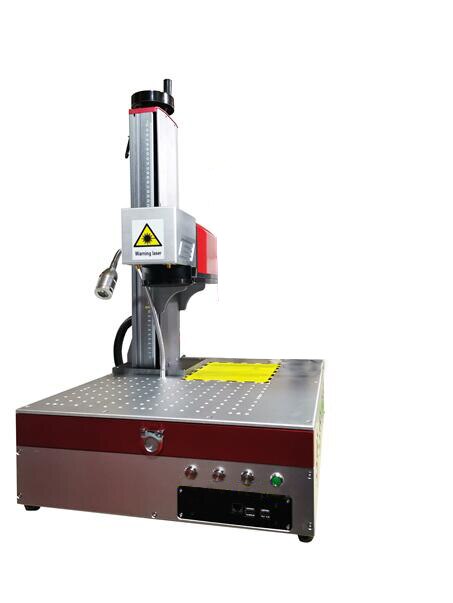

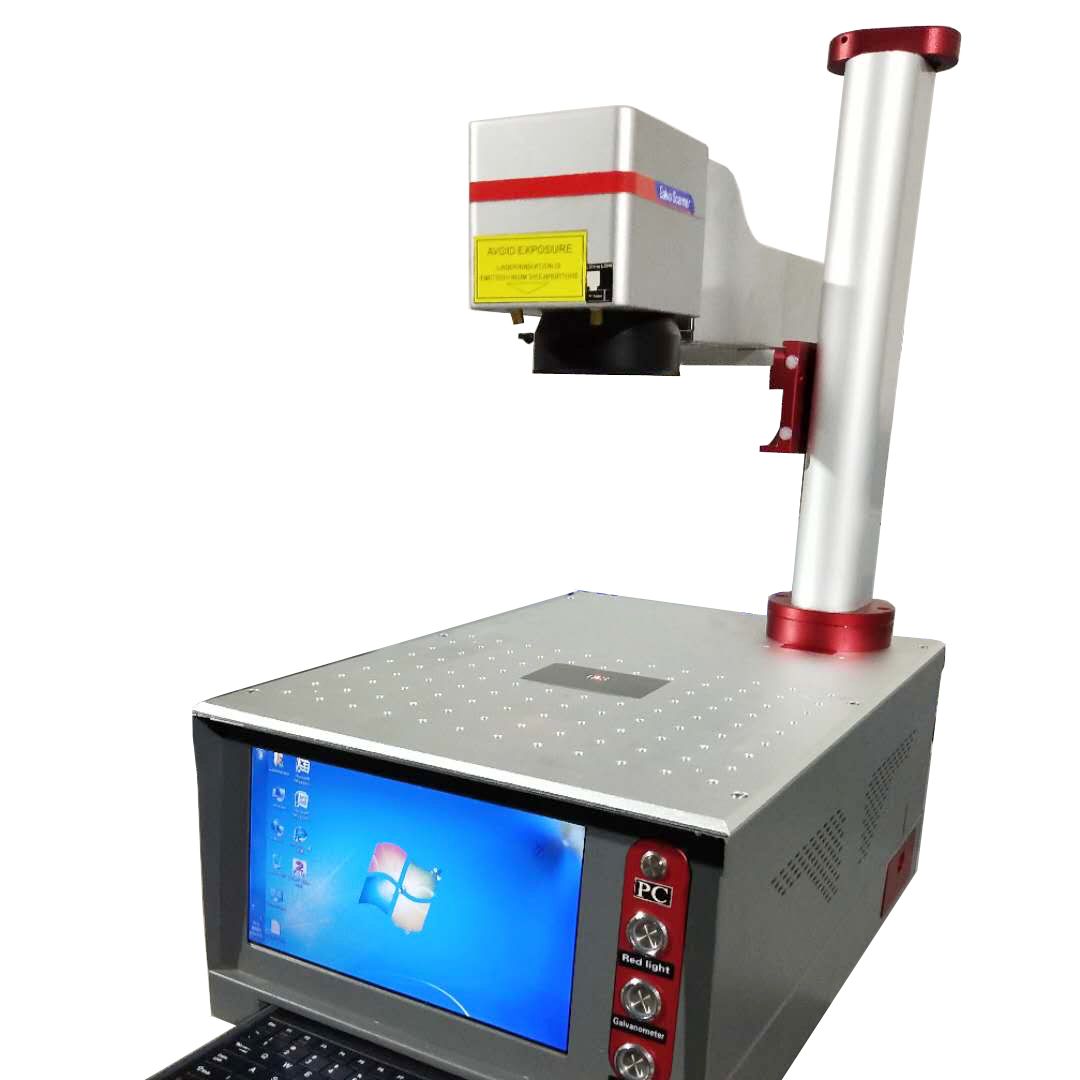

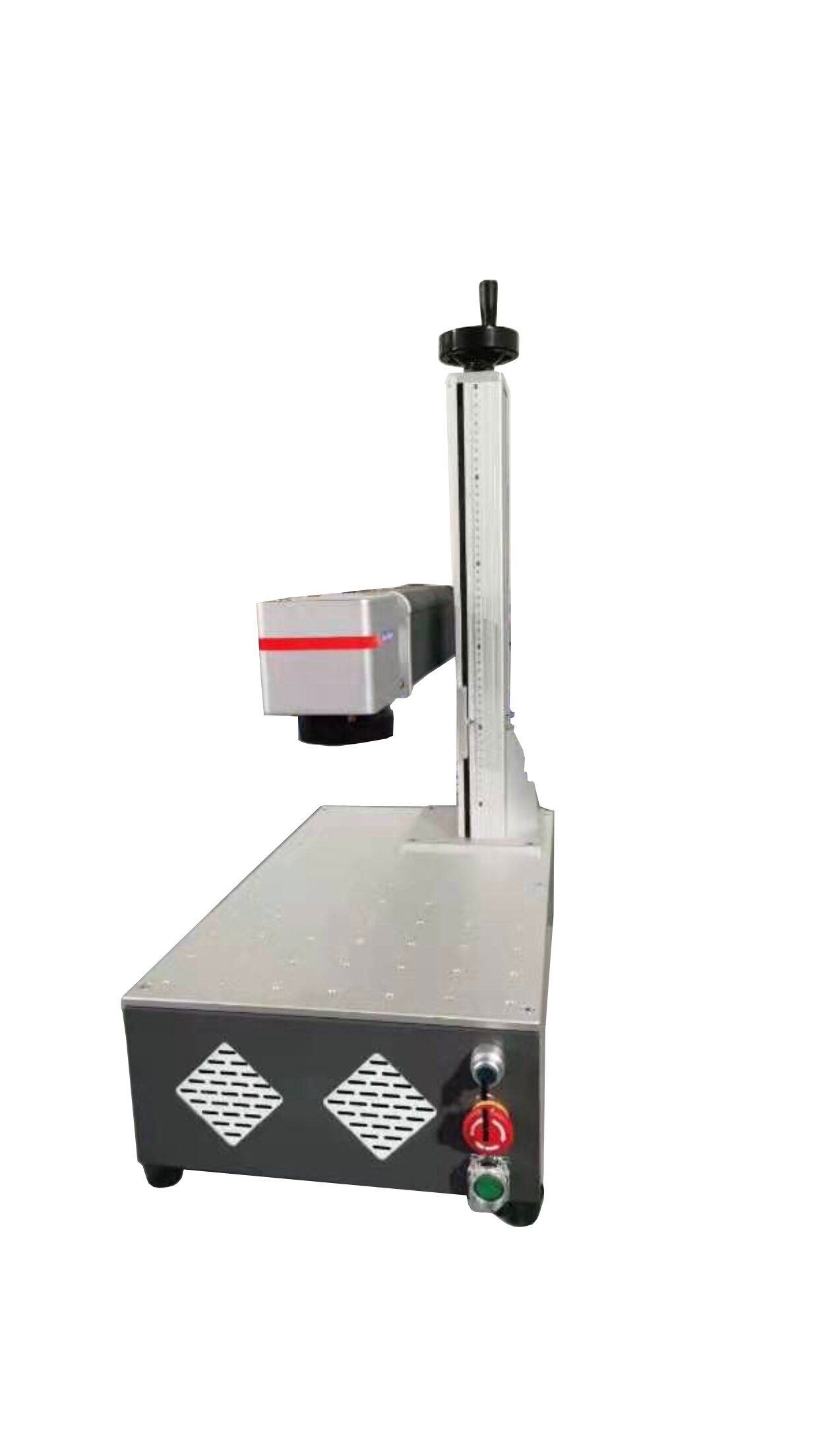

Rotary 20W 30W 50W Fiber Laser Marking Machine Raycus JPT Laser Source Engraver For Plastic Phone Case Ceramics Print Carving

Introduction:

1. Marking Area: 110*110mm, 175*175mm, 200*200mm, 300*300mm.However, largerwork-piececould be marked by our customized electrical XY working table.

2. Best Marking Effect: Owning to theoriginalRaycus laser source technology, the laser beam is fine and thin to ensure best marking effect. Together with the stable precision slider, the fiber laser marker isespeciallygood for large size seamless splicing image marking.
3. Higher Accuracy: The fiber laser marking machines can reach up to 0.001mm precision.
4. Long lifetime: the lifetime can reach 80,000 – 100,000hours.
5. No consumables except electricity.
6. Free Maintenance.
7. Easy operation: Machine is installed well.We will supply the installation training video for our dear customers to install laser marking machine.

Fiber laser marking machine could work perfectly for most metal marking applications, such as Gold Silver Brass Jewelry, Aluminium, Stainless Steel, Iron etc.

Especially the 50w and 100w laser marking machine could cut small gold silver brass jewelry, very popular now.

Parameters:

Model	AL-YLP20W/30W/50W/100W	Laser source	Raycus/MAX/JPT
Laser Type	Fiber laser	Positioning Way	Red light
Laser power	20W/30W/50W/100W	Laser Module Life	100000 hours
Weave length	1064 nm	Cooling Style	Air cooling
Marking area	110mm*110mm–300mm*300mm	Total power	≤500W
Marking speed	7000-12000mm/s	Operating Voltage	220v /110v 50hz
Marking depth	0.01-2mm	Supported Windows	Windows XP,7,8,10
Repetition Precision	0.001mm	Certificate	ISO, CE
Minimum Character	0.2 mm	Control software	EZCAD 2.14.11
Minimum Line Width	0.01mm	Supported Format	PLT, DXF, DST, AI, SDT, BMP, etc.
Packaging Dimension	83*52*59CM	Gross weight	60kg

Accressories

A whole set of machine will include:

1. Fiber laser marking machine

2. USB disk

3. Ruler

4. Safety goggles

5. Hexagon tools

6. Power wire

7. Foot switch

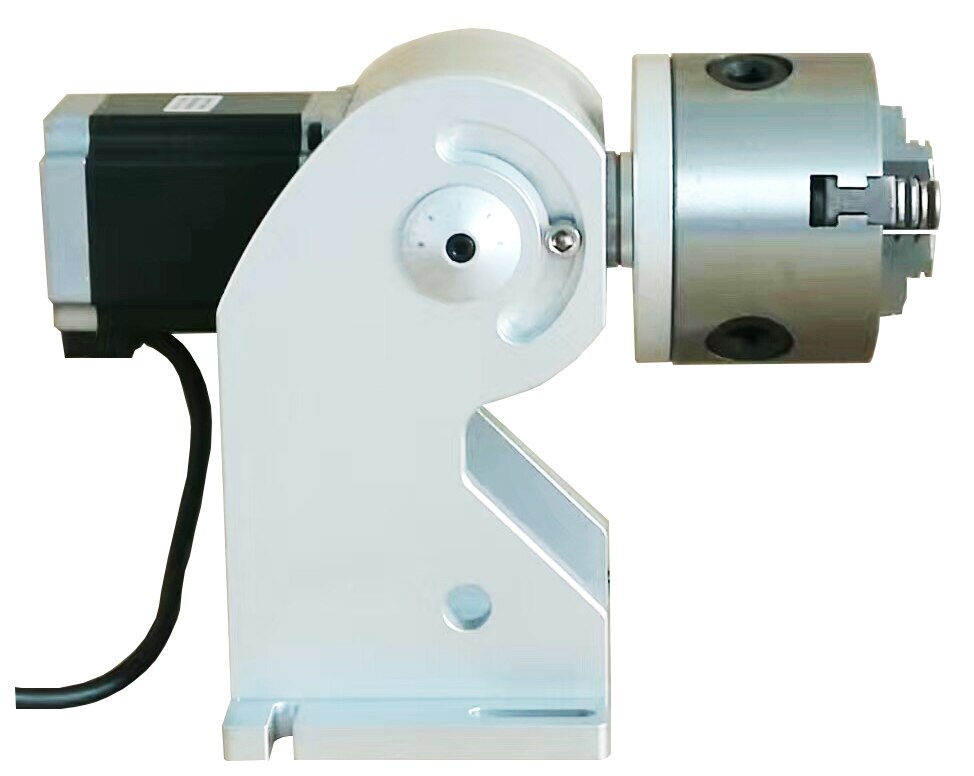

8. Rotary device
