Description
- Brand Name: Rabotec
- Origin: CN(Origin)
- Certification: CE
- Certification: FDA
- Condition: New
- Model Number: RTF-1530
- CNC or Not: CNC
- Is Smart Device: YES
- Item: fiber laser cutting machine
- Working area: 1500*3000mm
- Control system: Cypcut
- Working table: Blade
- Cooling mode: Water chiller
- Laser generator: 500w 1000w 1500w 2000w
- Generator: Raycus/IPG
- Motor: Japan servo motor
- Min line width: 0.1mm
- Warranty: 3 years

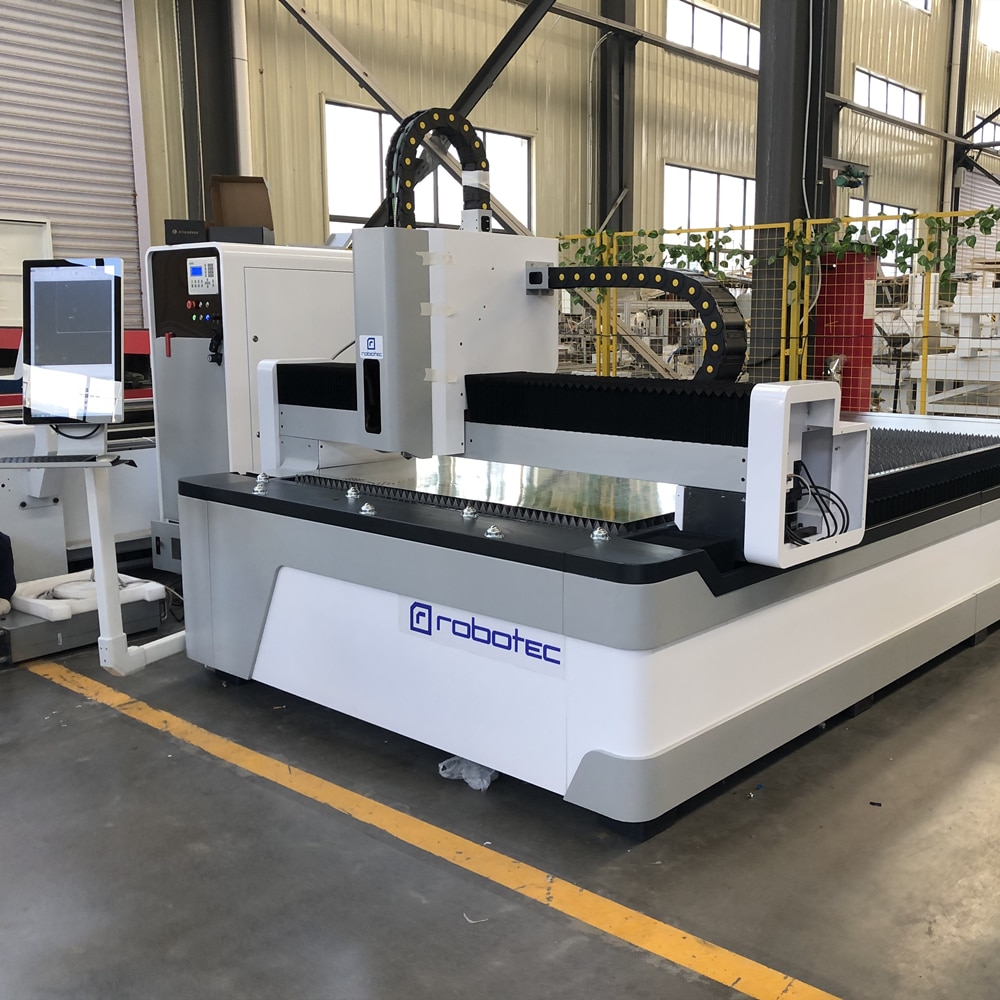

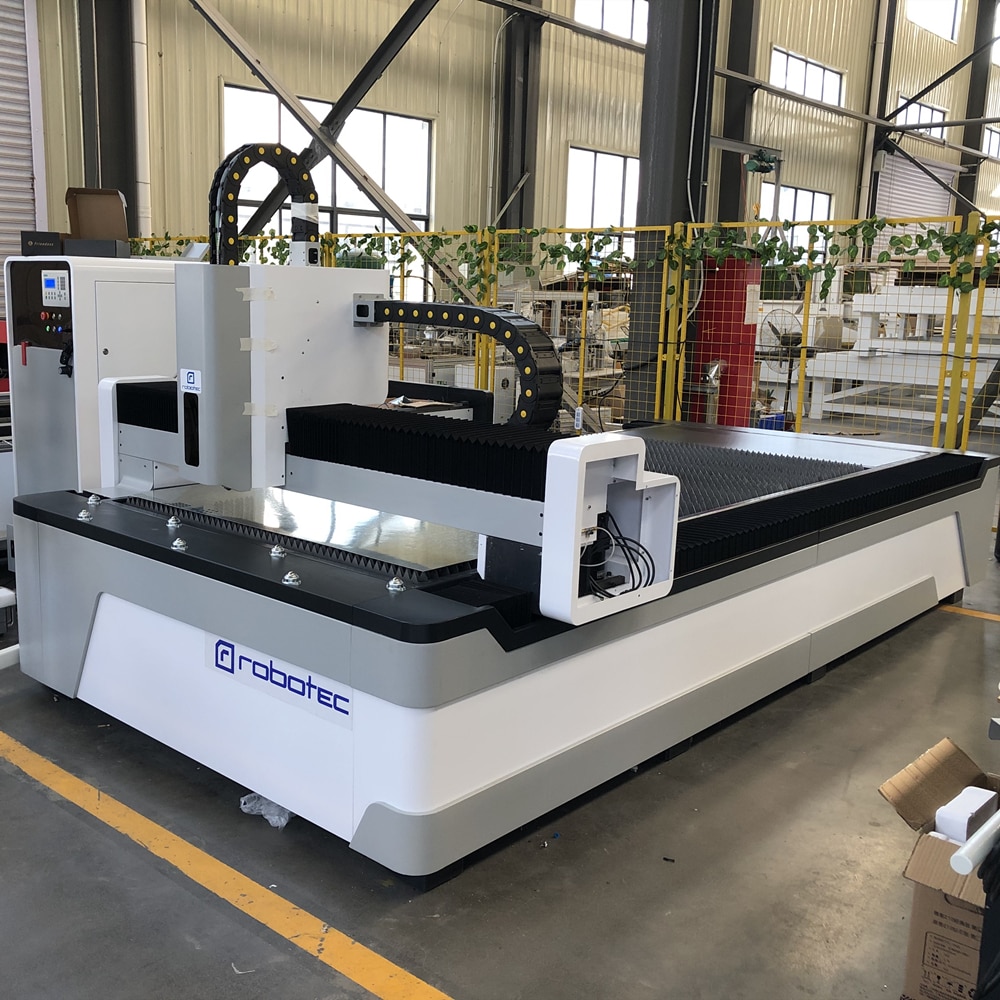

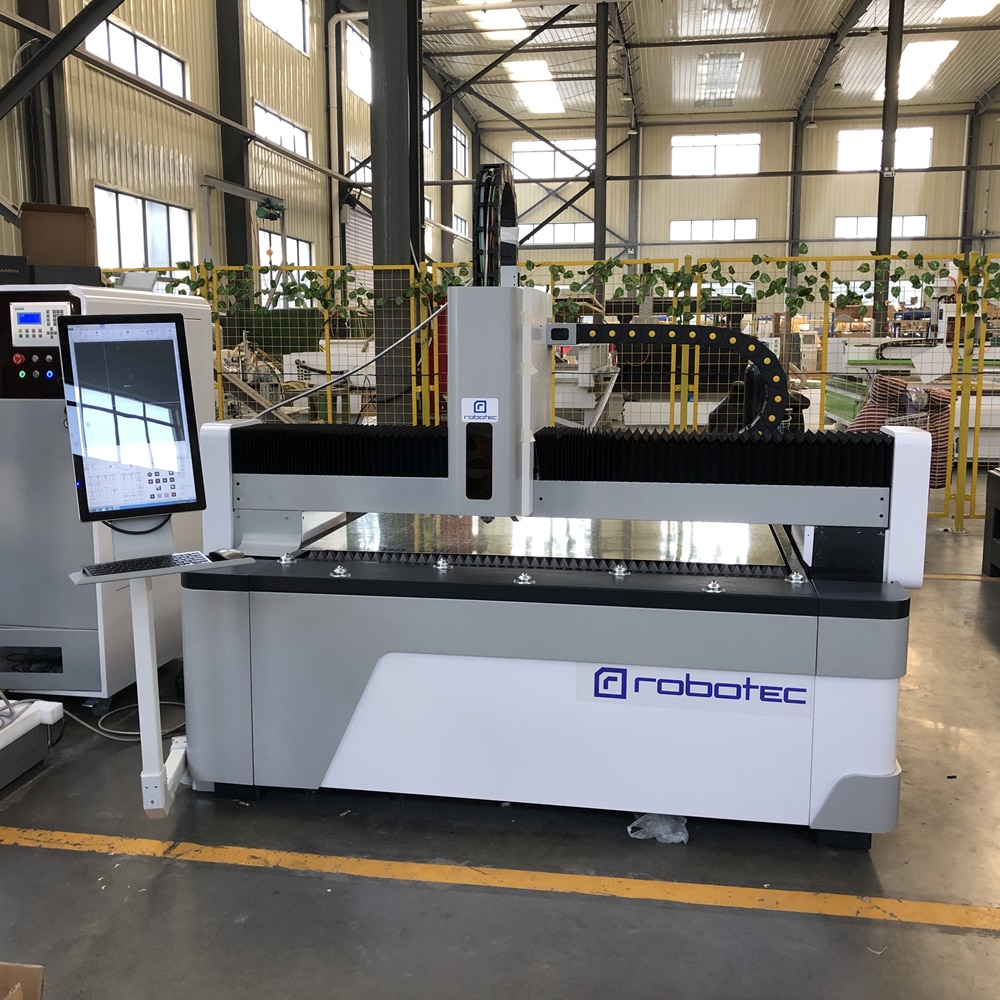

ROBOTEC Factory Fiber Laser Cutter With Raycus 1000w-3000w Fiber Module Metal Laser Cutting Machine For Metal Cutting
Description of Fiber laser cutting machine for metal
Model |
RTF-3015 |
Laser type |
Fiber Laser |
Working area |
1500*3000mm |
Laser Brand |
Raycus/IPG |
Laser power |
500W/1000W/1500W/2000W–8000W |
Working Table |
Saw working table |
Control System |
Cypcut |
Idle/Processing Speed |
120m/min / 60m/min |
Laser Head |
Raytools laser head |
Power Supply |
AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz |
Cooling System |
Dual temperature dual control water chiller with purification system |
Laser cooling system |
Horizontal air conditioning |
Auxiliary gas system |
dual-pressure gas route of 3 kind gas sources |
Cooling system |
Water-cooling with industrial water chiller |
Software |
Cyplite Metal Nesting Software |
Supported Format |
PLT, DXF, BMP, AI, DST, DWG, etc. |
Lubrication System |
Automatic lubrication |
Working environment |
0-45ºC, |
Operating Humidity |
5-95% |
Optional parts |
Rotary device for cylinderical materials |
PAD control screen |
Parts of Fiber laser cutting machine for metal
>> Features Fiber laser cutting machine for metal:
1. Laser Adopting the world’s top fiber laser, stable performance, high efficiency and low cost.
2. Mechanical structure
With double drive closed-loop structure displacement, Y direction has a strong driving force and high speed, which can give full play to the high speed characteristics of fiber laser.
After two times of aging treatment, the structure of bed body is strengthened to ensure the stability and precision of bed body for a long time.

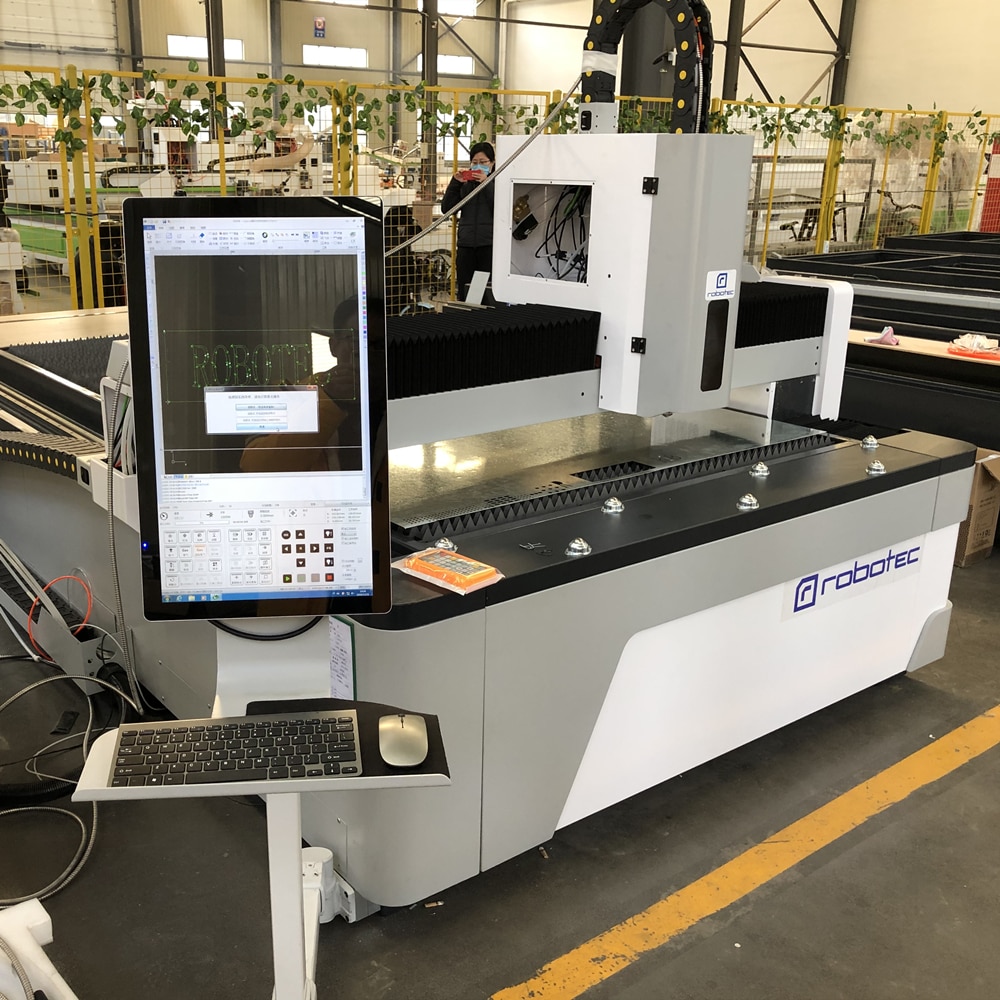

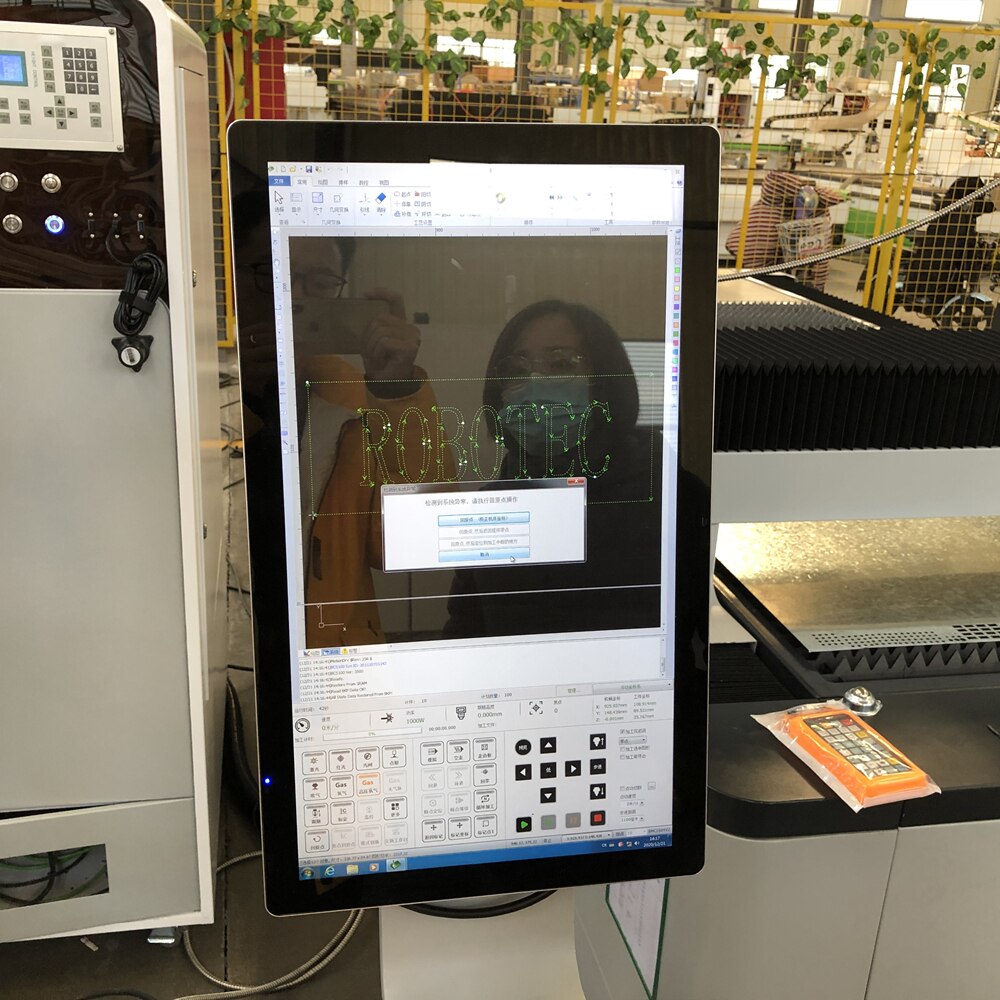

3. Control system
By using open CNC system provided by the top suppliers and integrating the company experience in laser industry for many years, the man-machine interface is so simple and more convenient to operate.
4. Follow-up cutting head
By using the follow-up cutting head of international famous brand, the laser is always in the focus position, can ensure the cutting effect.
5. Metal nesting software
The optimized software algorithm can save the material to the maximum extent. Integrated a variety of specialty metal cutting technology such as common edge,bridge and micro connection,the difficulty of operation is reduced, so that improves the material management function, make full use of waste materials and meet the management needs.
6. Auxiliary air blowing system
System combines high and low voltage conversion gas path and three gas source structure composed of high pressure air, nitrogen and oxygen, so customers can select the auxiliary gas according to the processing quality requirements and cost.
7. Lubrication system
The whole machine is equipped with lubrication system, which reduces the wear of moving parts and ensures the movement speed of the whole machine.
8. Editing system
The software supports the input and output of the general CAD format file (PLT, DXF, DST, AI, BMP, etc), as well as graphics editor (zoom, rotate, array, etc)function.
Sample Fiber laser cutting machine for metal
Fiber laser cutting machine for metal
>>Applicable Material ofFiber laser cutting machine for metal:
1. Stainless Steel
2. Carbon Steel
3. Alloy Steel
4. Spring Steel
5. Iron 6. Aluminum
7. Copper
8. Silver
9. Titanium
Other material please contact us
>>Applicable Industry ofFiber laser cutting machine for metal:
1.Sheet metal fabrication
2. Electrical cabinet
3. Elevator
4. Automotive parts
5. Aviation & aerospace
6. Lighting lamps
7. Metal carfts & decoration 8. Hardware tools
9. Advertising
10. Furnitures
11. Kitchenware equipment
12. Fitness equipment
13. Medical equipment
14. Agricultural and forestry machinery
For offer the most suitable machine with favorable price, would you like to confirm below questions:
1) What is your reuqested max working area, X:___mm, Y:___mm?
2) What mainly job you do ? Only engrave, cut or both ?
3) What kind are your materials, metal or non-metal, what are they?
After your return comments, we will send you more information about the machine along price . Thanks
