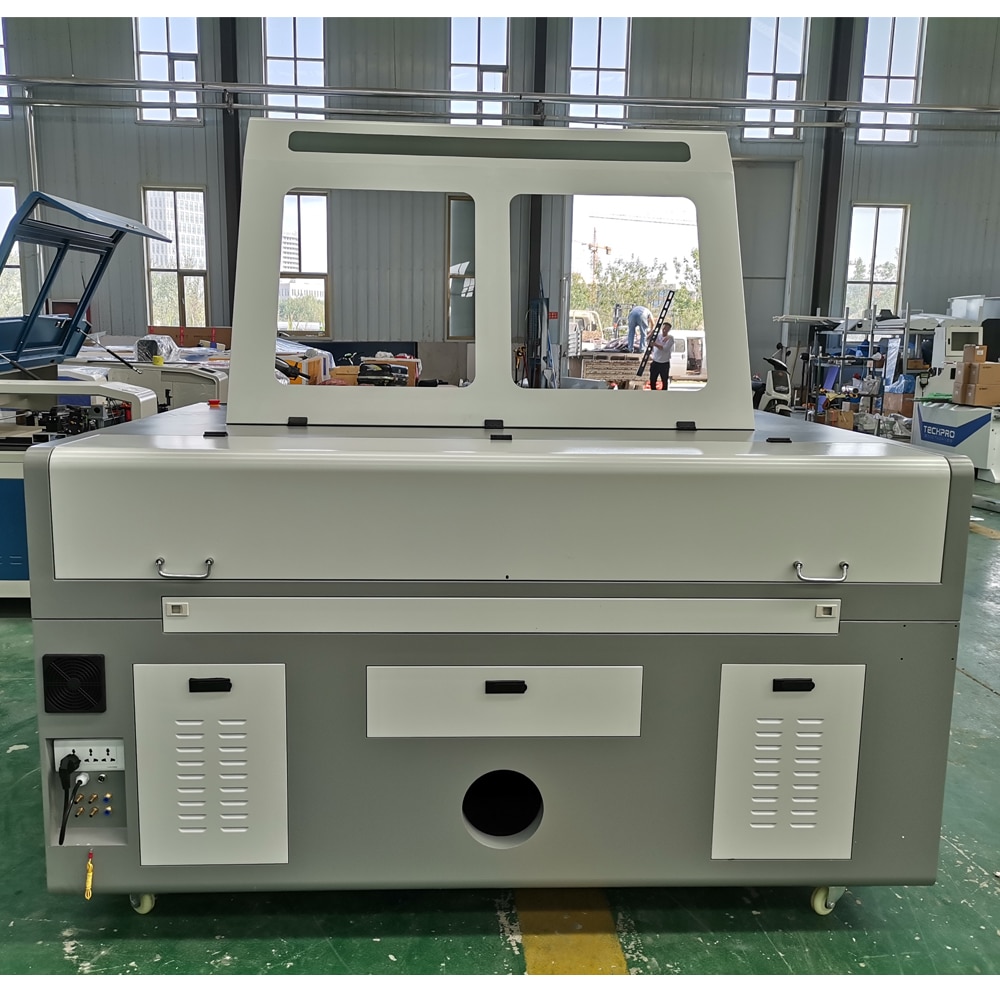

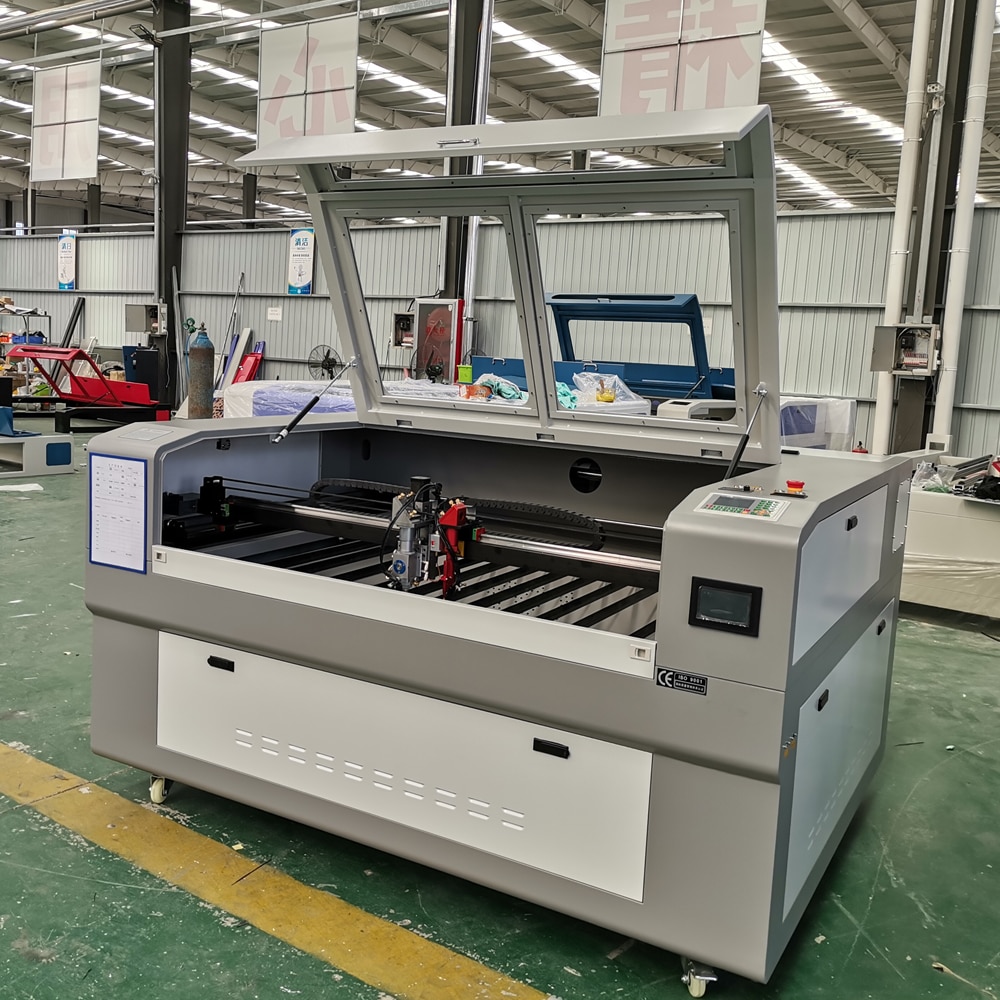

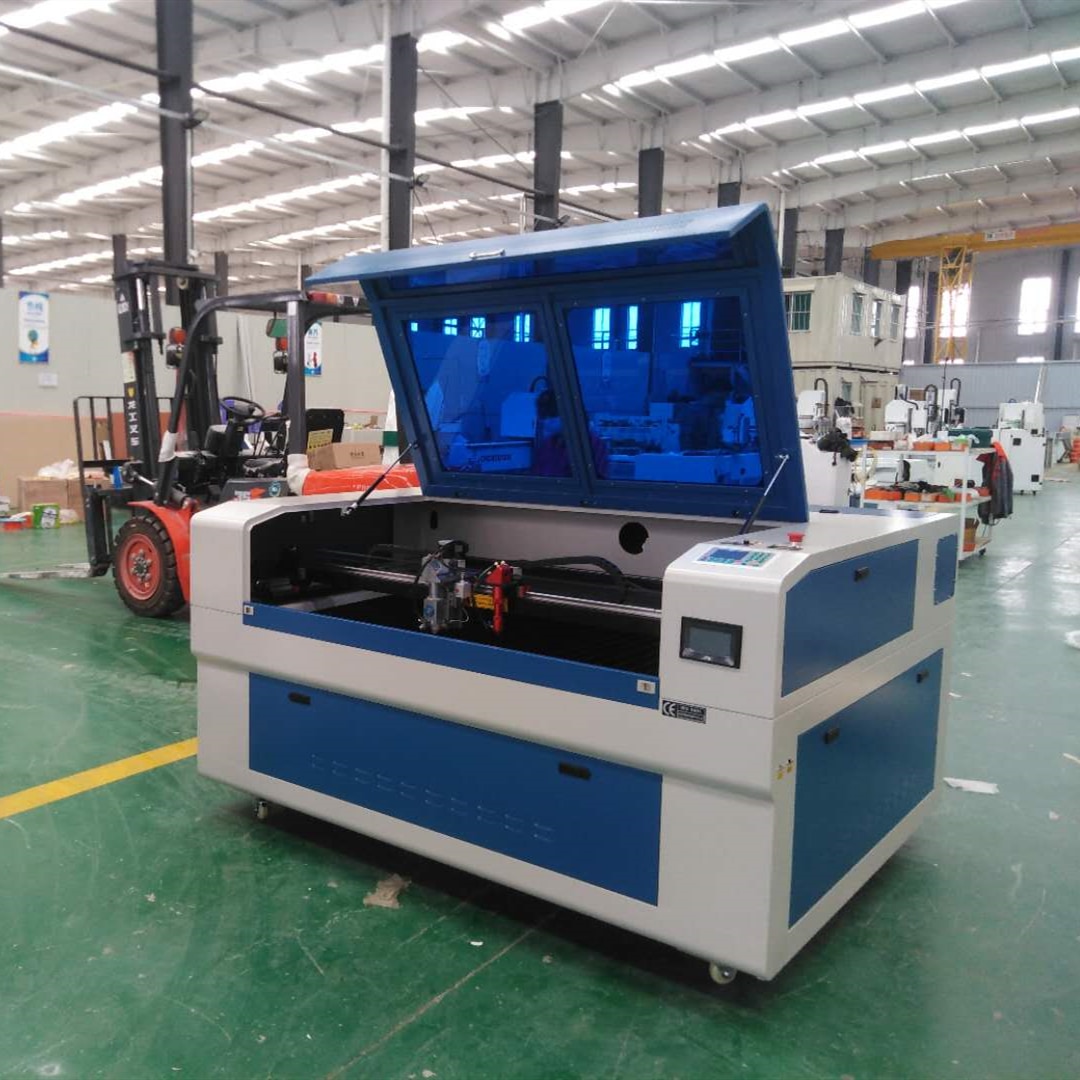

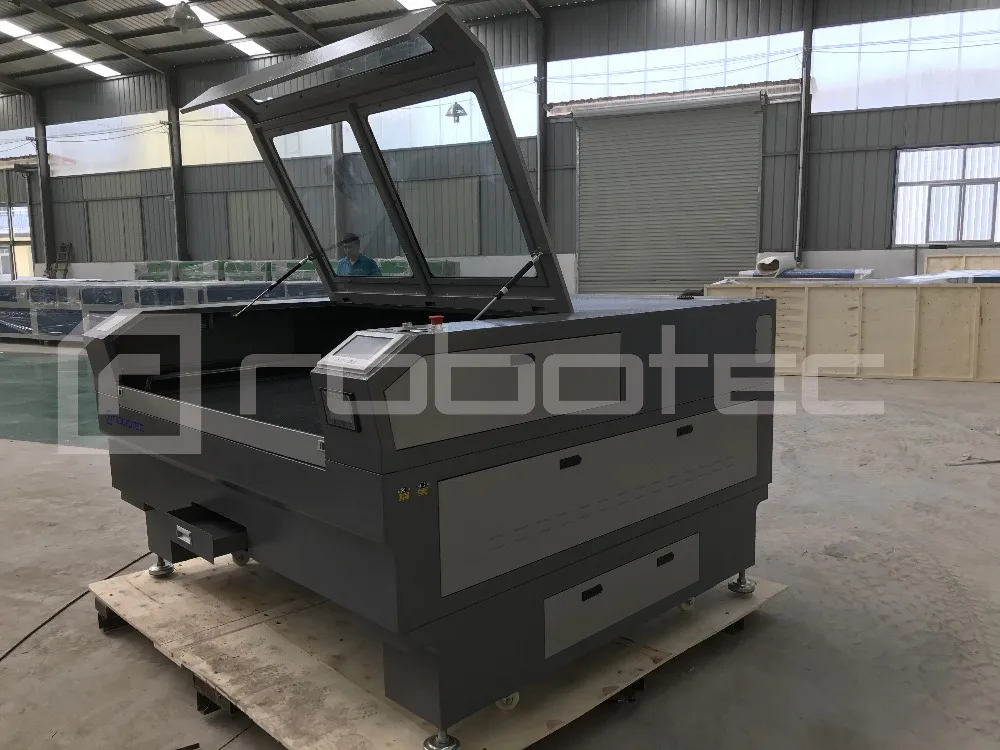

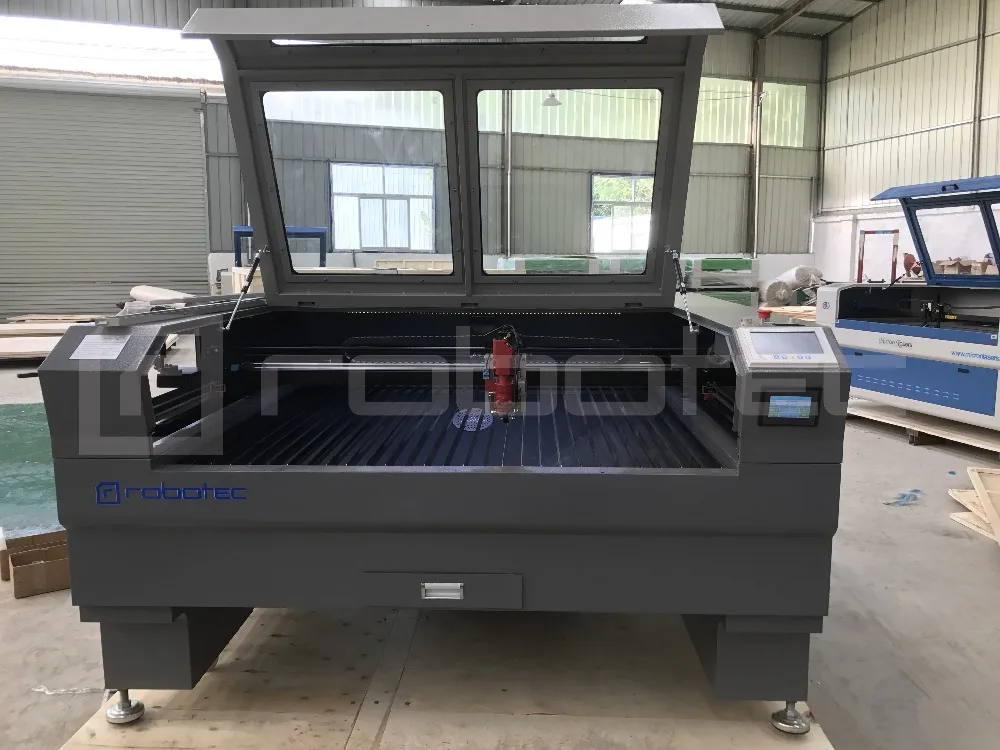

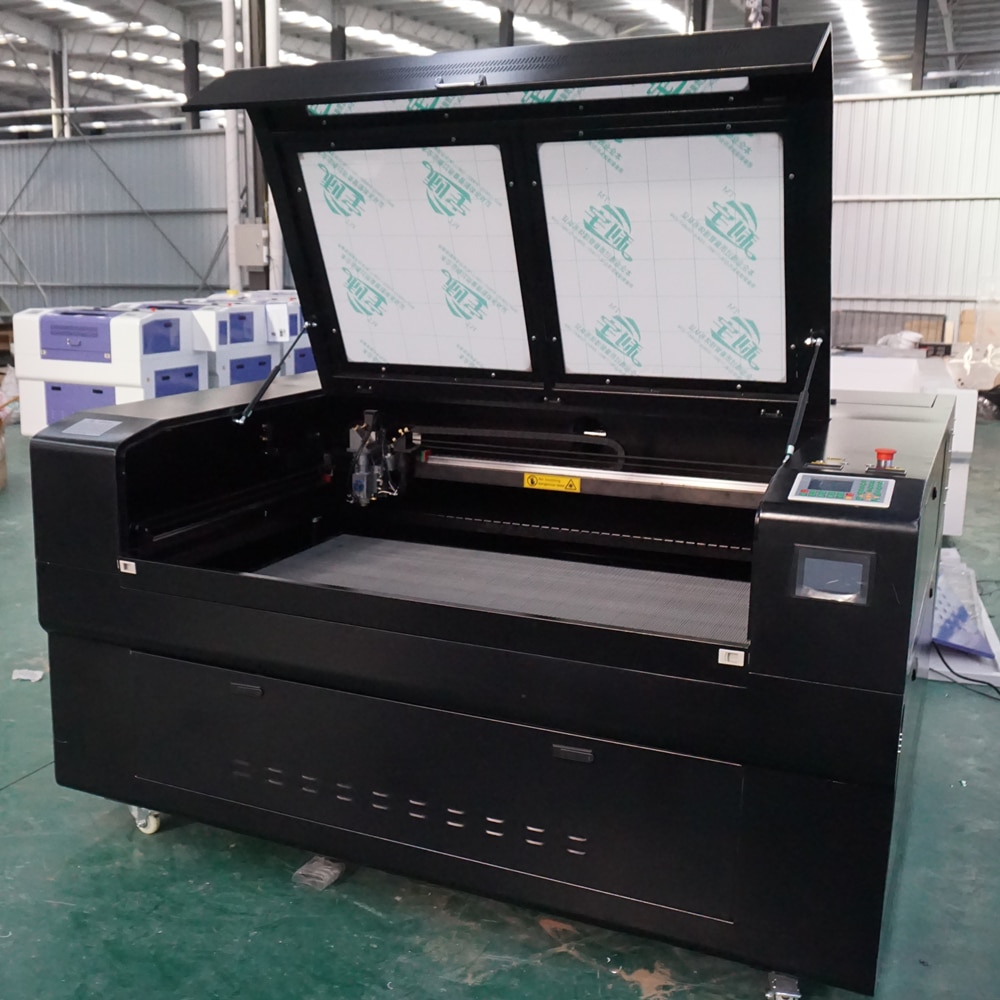

ROBOTEC CO2 150W Laser Cutter For 18mm Plywood Wood Laser Cutting Engraving Machine

$4,050.00$19,500.00

SKU: 1005002587286000 Category:

Description

ROBOTEC CO2 150W Laser Cutter For 18mm Plywood/Wood Laser Cutting Engraving Machine With 100W EFR Laser Tube Cutting Machine

  • Brand Name: Rabotec
  • Certification: CE
  • Certification: FDA
  • Condition: New
  • Model Number: RTJ1390M
  • CNC or Not: CNC
  • Is Smart Device: YES
  • Item: Metal laser cutting machine
  • Working size: 130*90cm
  • laser power: 150w 180w 280w
  • software: RDworks V8
  • Controller: RUIDA
  • Table: Honeycomb and knife
  • Auto focus: Available
  • Driver: Belt
  • Motor: Stepper or servo
  • Warranty: 24 months



Model RTJ-1390M
Laser type CO2 tube
Working area 1300*900mm
Working table Blade or honeycomb table
Laser power Reci 150w/180w
Power Supply 220V/50Hz, 110V/60Hz
Min line width ≤0.15mm
Positon accuracy 0.01mm
Repetition accuracy 0.02mm
Cutting speed 600mm/s
Guide rail Hiwin from Taiwan
Transmission method Shanghai Fulong Belt Transmission
Drive motor Leadshine stepper/Panasonic servo for optional
Cooling system Water-cooling with industrial water chiller
Control system Ruida DSP off-line
Control software Coreldraw, Photoshop, AutoCAD, RDCAM
Graphic format support PLT, DXF, BMP, JPG ,AI ,ect
Working environment 0-45ºC,
Operating Humidity 5-95%
Optional parts Rotary device for cylinderical materials
Motorized up-down/lift table

>>Applicable industry of the laser machine:
1.Advertising industry:large blister word cutting, organic glass engraving and cutting, engraving of double color board,scutcheon,crystal cup, authorize brand etc.
2.Leather and clothing industry:complex text and graphic engraving on leather, synthetic leather,leatheroid,cloth,fur and leather.Cutting of clothes,underware,home decoration,gloves,bags,shoes,hats,toys and other industries.
3.Art & Craft industry:engraving on marble, bone, bamboo craft, leather, shell, ivory and so on.
4.Model industry:cutting on architectural model, aviation and navigation model, and wooden toys.
5.Packing and printing industry:engraving and cutting of printing rubber plate, and cutting of sandwich plate and die board cutting.
6.Decoration industry:engraving and cutting on electric products and relevant materials.
7.The product labeling industry:Equipment nameplate,Anti-counterfeit marking ect.

>>Applicable Material:

Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather,

embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.
>>Applicable Industry:

Advertising, Embroidery, garments, shoemaking, label processing, arts and crafts, etc

1) Machine has been adjusted before delivery.
2) English software, user manual and detailed installation & training Videos DVD
3) Warranty period: one year on parts from date of shipping date, 3 additional years on free repair. Life-time technical support.
4) Machine spare parts and repair service is offered in lifetime.
5) Free training is offered in the plant and free samples are available.
6) 24 hours technical support by e-mail, calling or door-to-door service.
7) Professional cnc router machine supplier with 10 years experiences.
8) International quality certificate: CE, ISO9001
