Description
- Origin: Mainland China
- Model Number: HCDM125
- Vacuum Part Type: Motors
- Type: Vacuum Cleaner Parts
- Wavelength: 780nm
- Power: 5mw
- 2 Types for choice: For MI 1st, for MI 2st ROBOROCK S50 S51
- Working temperature: -10 degrees- 70 degrees

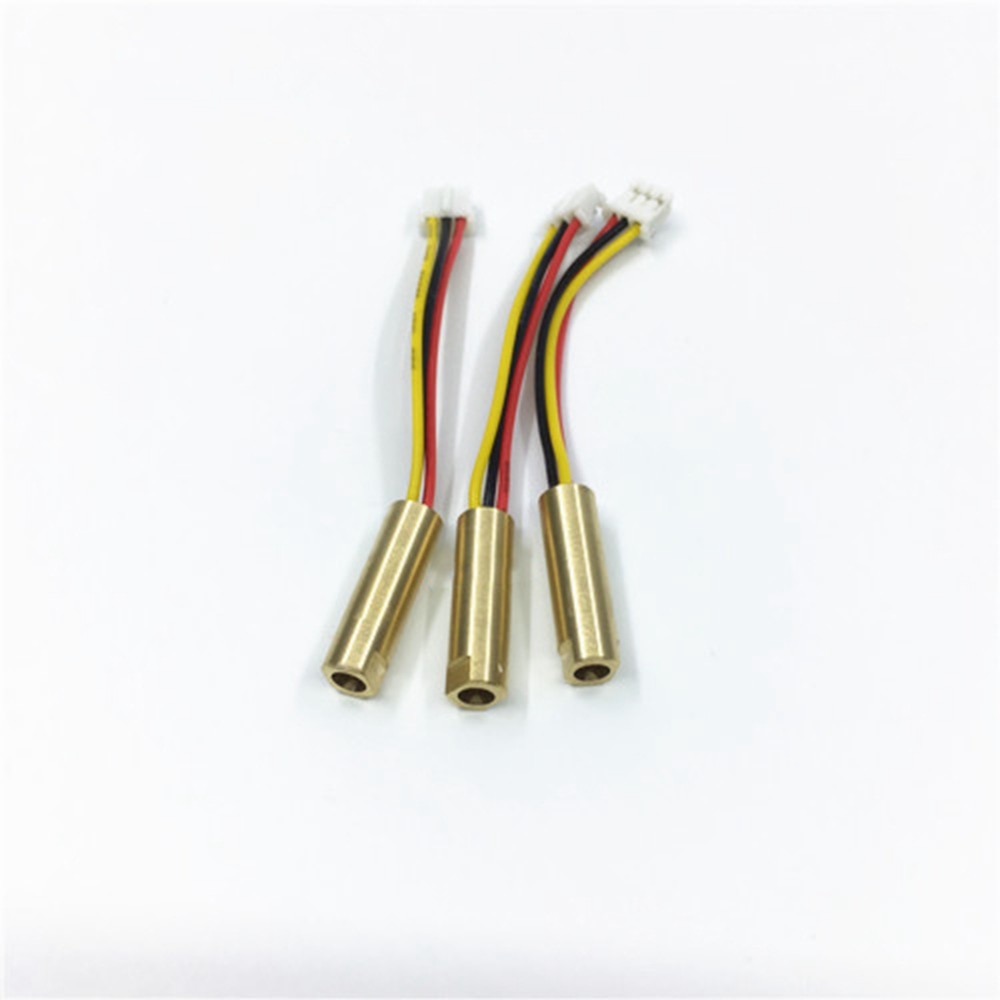

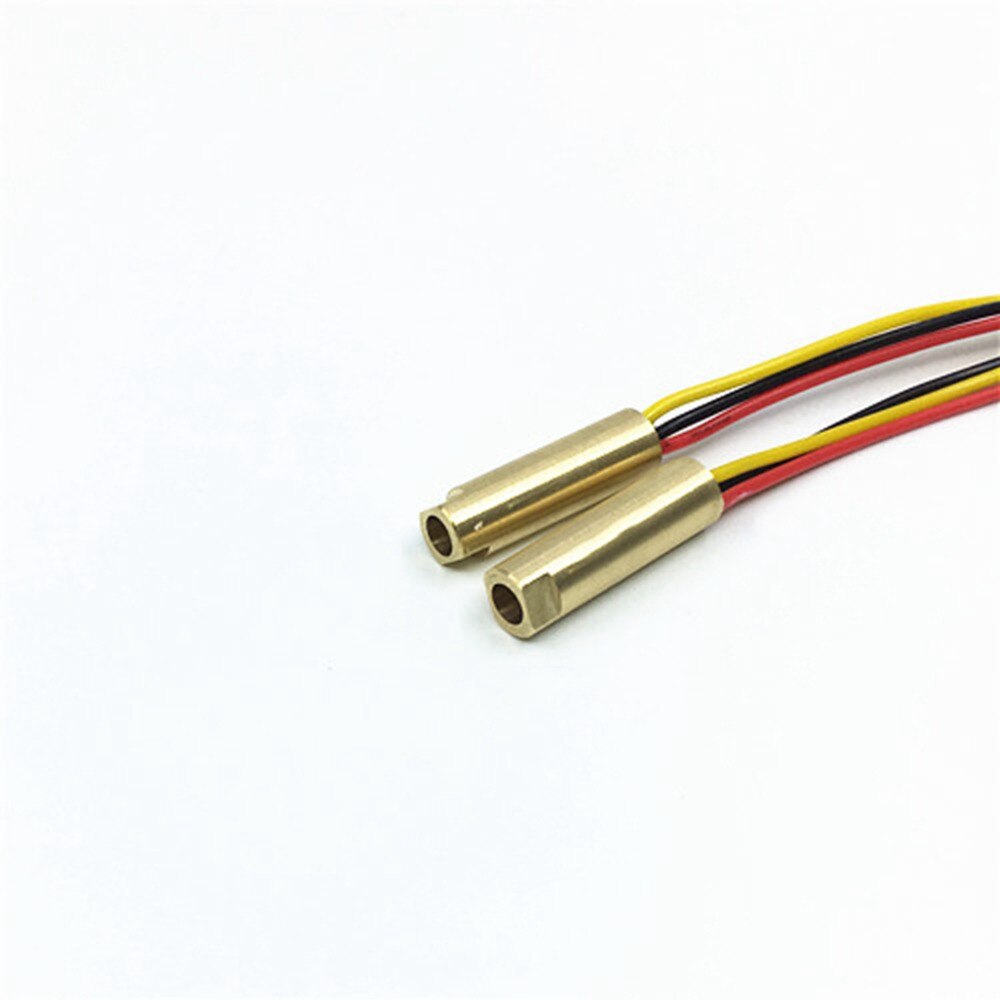

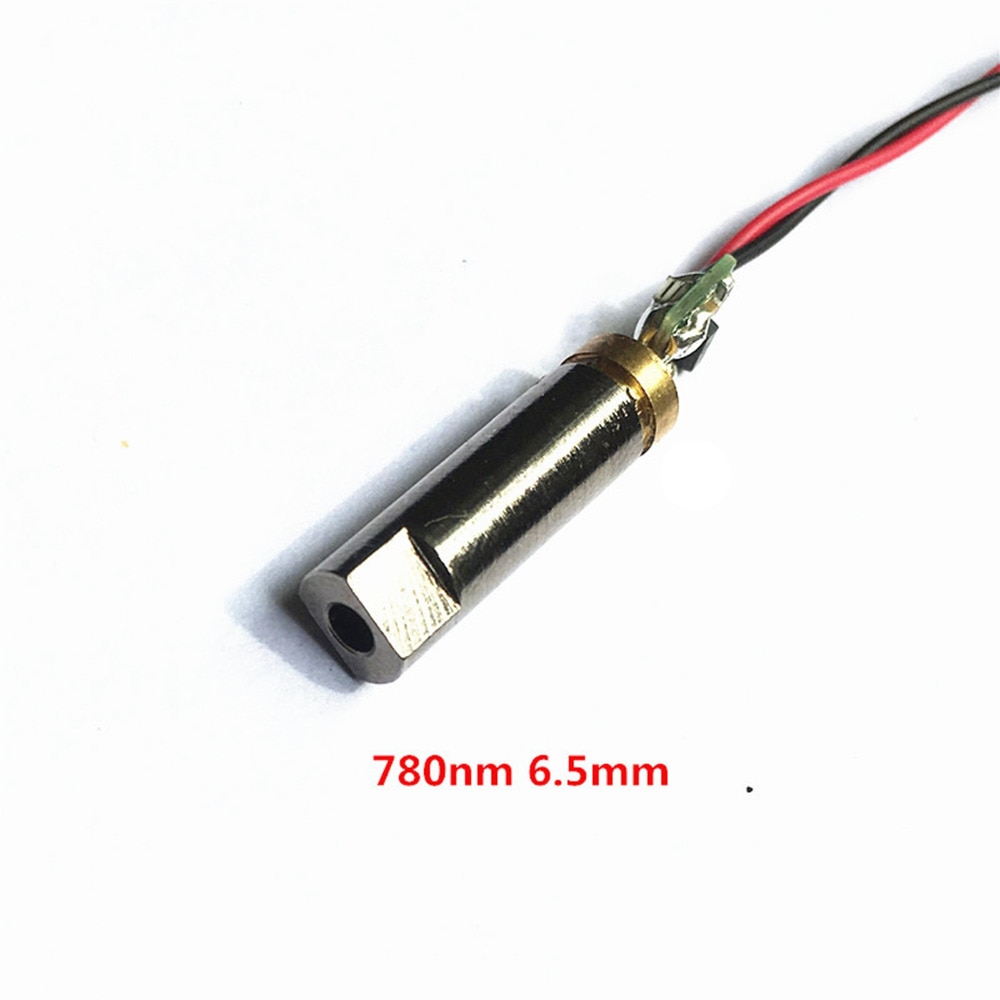

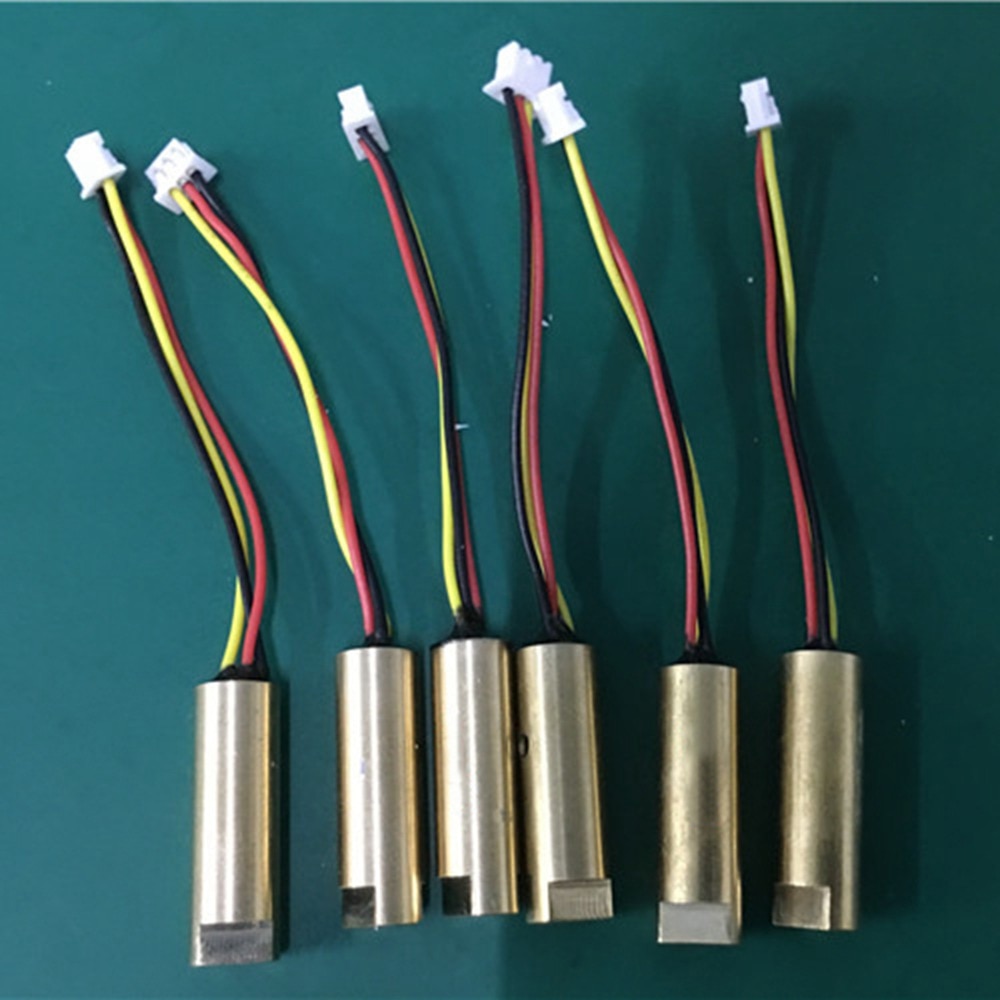

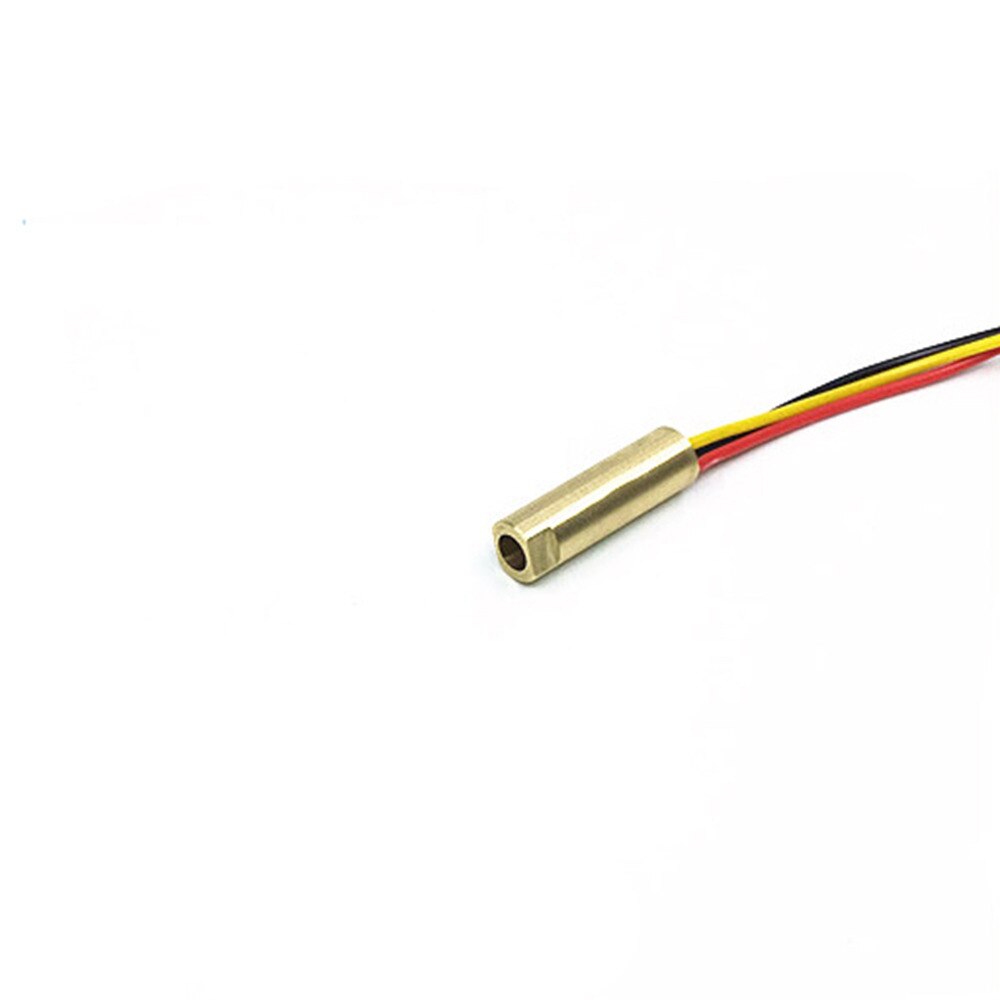

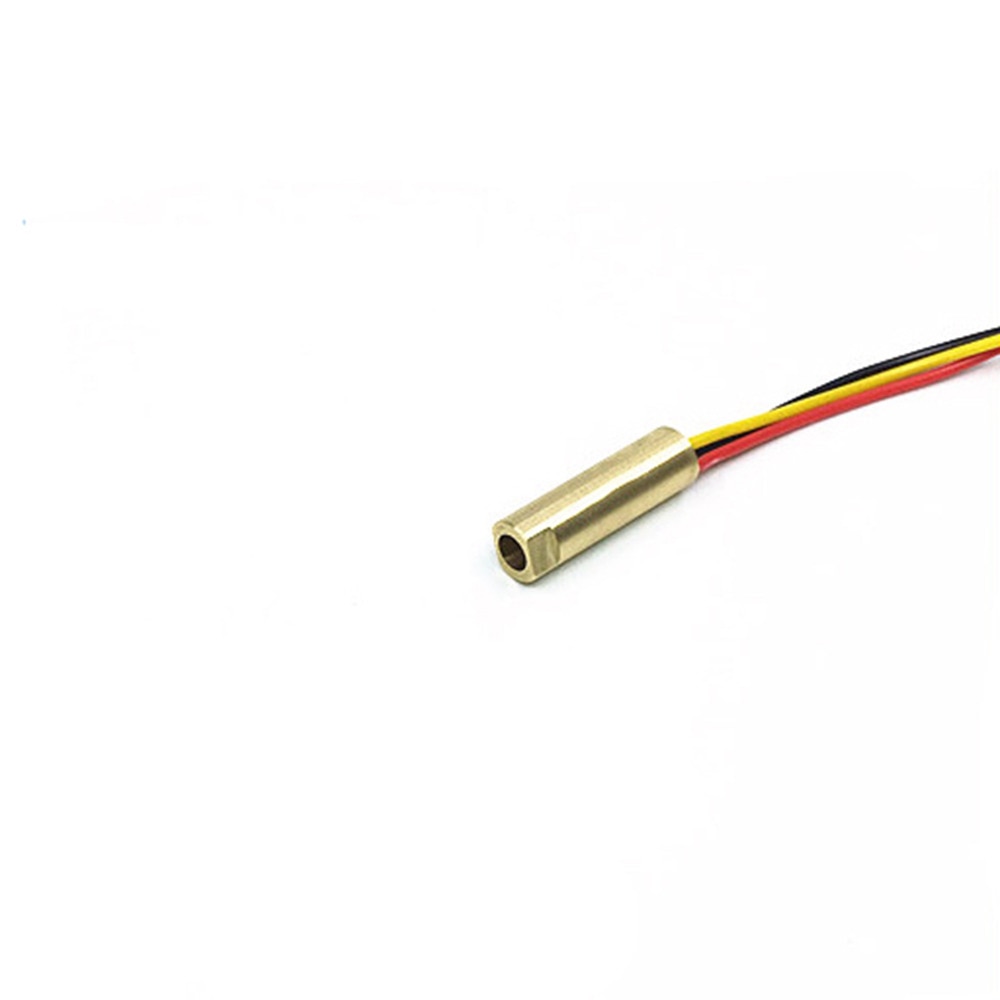

Replacement LDS Laser Diode light 780nm 5mw for MI 1st / 2st ROBOROCK S50 S51 Robot Vacuum Cleaner Spare Parts Accessories
Please kindly note:
Mi 1st 2nd Generation Robot Vacuum(year 2016/ 2017) Lidar 785nm 7mw Near-infrared Laser Module Laser Head
-
Please ask skilled man to repair it.
-
Do not support Hot-plugging.
-
Please Don’t use it For a longer time without heat sink. The item is tested with heat sink. Duty cycle without heat sink: 5 seconds on, 1 second off.
-
Light spot is positioned at 8 meters, Position moving is less than 2mm Within 8 hours normally.
-
If not position the light spot , it may not work properly
-
It is IR laser. The laser light cannot be seen by human bare eyes. Only using DDC/infrared camera to get it.In a dark environment, it can also be used to judge whether the original laser tube is broken. If it is broken, there is usually a little light, which can also be seen, and the position can be 6-Meter distance, you need to test up, down, left, and right positions.
-
This module is dedicated for 360-degree laser ranging without a driver. When replacing it, you need to fix the original position of the laser spot, and then replace it and adjust it to the original spot position and glue it.
- Warranty: no warranty because laser diode is consuming material.
- Datasheet: you can get for Google a datasheet.
Specifications:
- Current: <40mA
- Working temperature: -10 degrees-+70 degrees
- Modulation frequency: <30MHz
- Wavelength: 780nm
- Power: 5mw
- 2 Types for choice: For MI 1st, for MI 2st ROBOROCK S50 S51
Packing Include:
1PCS Laser Diode
