Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Place of Origin: Guangdong, China
- Brand Name: REK
- Model Number: RK2678XM(32A)
- Display Type: Digital Only
- Measuring Range: 0~200/600mΩ
- Testing Voltage: –
- Accuracy Class: ±5%
- Operating Temperature: 0℃~40℃≤85%RH
- Dimensions: 320*280*180mm
- Product name: Digital Earth Resistance Tester
- Display: LCD Display
- Weight: 10KG
- Function: Ground Resistance Test
- Warranty: 1 Year
- Keyword: Earth Resistance Meter Tester
- Certificate: CE Certificate
- Power Requirments: 200V±10% 50Hz±5%
- Test Time: 0.0s~999s 0.0=Continuous Test
- SIZE: 320*280*180mm

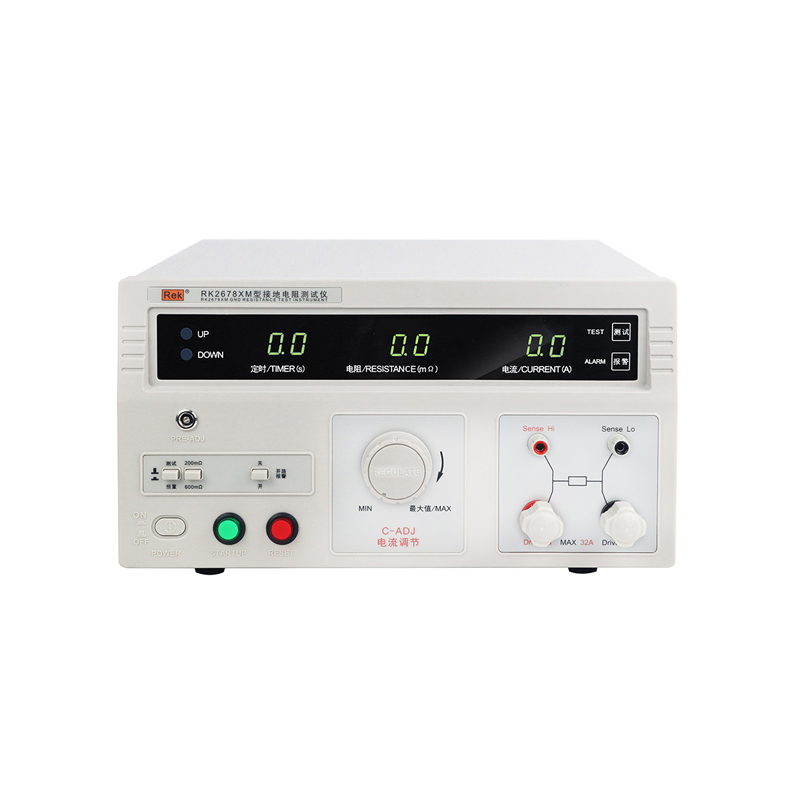

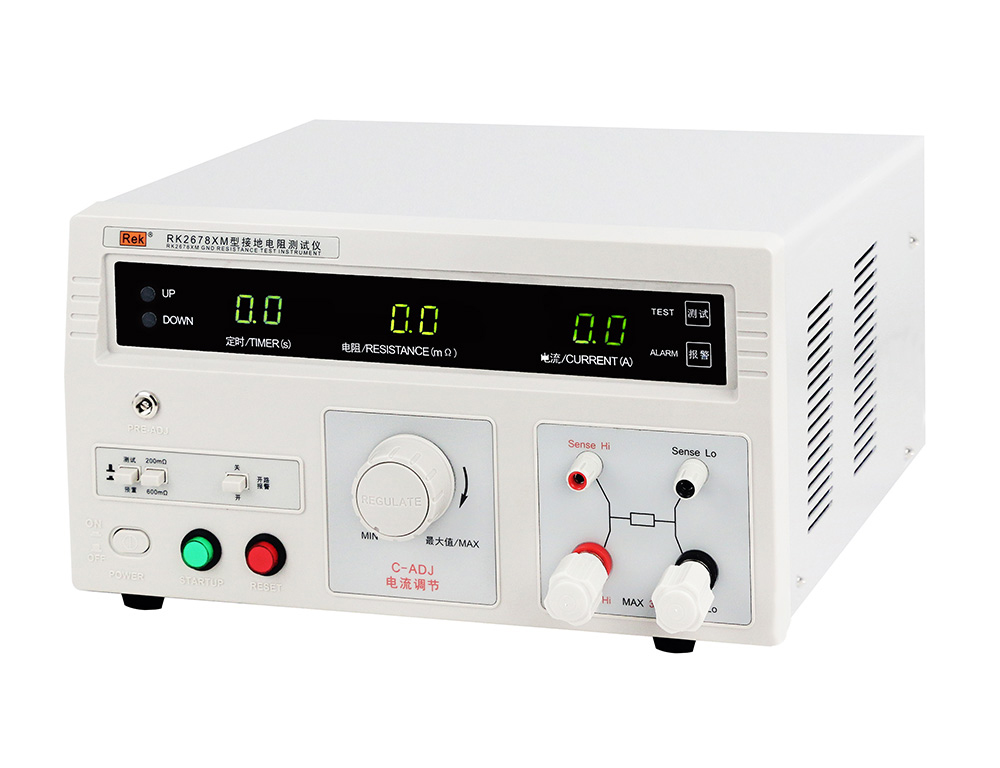

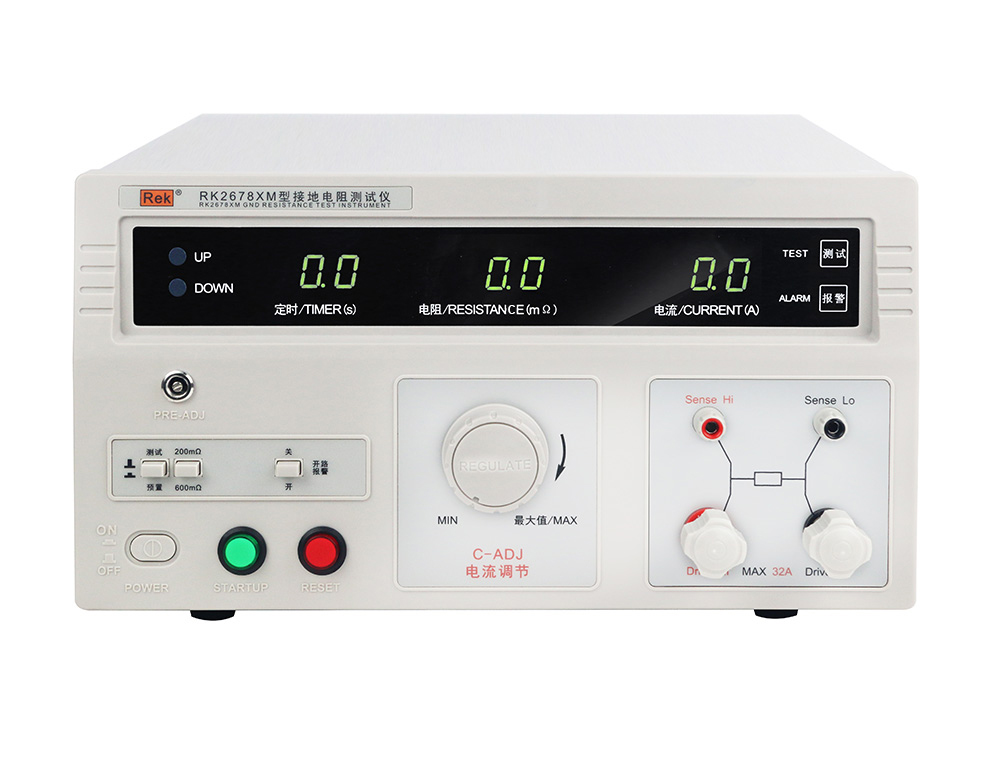

REK RK2678XM(32A) High Reliability 32A 600m ohm Laboratory Digital Meter Ground Tester Earth Resistance
Product Introduction The RK2678XM Grounding Resistance Tester Is Used To Measure The Internal Grounding Resistance Of Electrical Equipment,Which It Reflect The (Contact) Resistance Between The Total Ground Terminals Of The Electrical Equipment.It Is Suitable For Measuring The Resistance Value Between The Outer Casing And The Ground Wire Of Various Kinds Of Motors,Electric Appliances,Instruments And Meters,Domestic Appliance And So On. This Series Of Tester According To The Following Standards:Standard For Household Electrical Appliances(IEC6035,GB4706.1-2001, GB4706.1-1998),Standard For Lamp(IEC60598-1-1999, GB7000.1-2000),Standard For Information (GB8898-2001,GB12113.GB4943-2001, IEC60065,IEC60950) And So On. Application Area Household Electric Appliances:TV,Refrigerator,Air Conditioner,Washing Machine,Dryer, Electric Blanket,Charger Etc. Instruments And Meters:oscilloscope,Signal Generator,DC Power Supply,Switching Power Supply And Other Types Of Machine. Lighting Appliances:ballast,Road Lights,Stage Lights,Portable Lamps And Other Types Of Lamps. Electric Heating Appliances:electric Drill,Pistol Drill,Cutting Machine,Grinding Machine,Electric Welding Machine Etc. Motor: Rotating Electrical Machines, Etc. Office Equipment:Computer,Currency Detector,Printer,Copier, Etc. Performance Characteristics Test The Maximum Current 32A,It Conform To The. Test Resistance,Current,Time Are All Display Digital. Test Alarm Value Can Be Set Arbitrarily,Audible And Visual Alarm When It Is Unqualified. Four-Terminal Measurement Method Can Eliminate The Influence Of Contact Resistance On The Measurement Results. Test Time Can Be Set Arbitrarily. The Minimum Resolution Of Time Is 0.1s Over Current Protection,Easy To Operate,High Reliability. The Interface Of PLC Is Optional.
|
Model
|
RK2678XM
|
|
Output Current
|
5~32A
|
|
Test Resistance
|
0~200/600mΩ
|
|
Test Accuracy
|
±5%
|
|
Test Time
|
0.0s～999s 0.0=Continuous Test
|
|
Interface Of PLC
|
Optional
|
|
Power Requirments
|
200V±10% 50Hz±5%
|
|
Working Environment
|
0℃~40℃≤85%RH
|
|
Exterior Dimension
|
320x280x180mm(320*295*170)
|
|
Weight
|
9kg/10.8kg
|
|

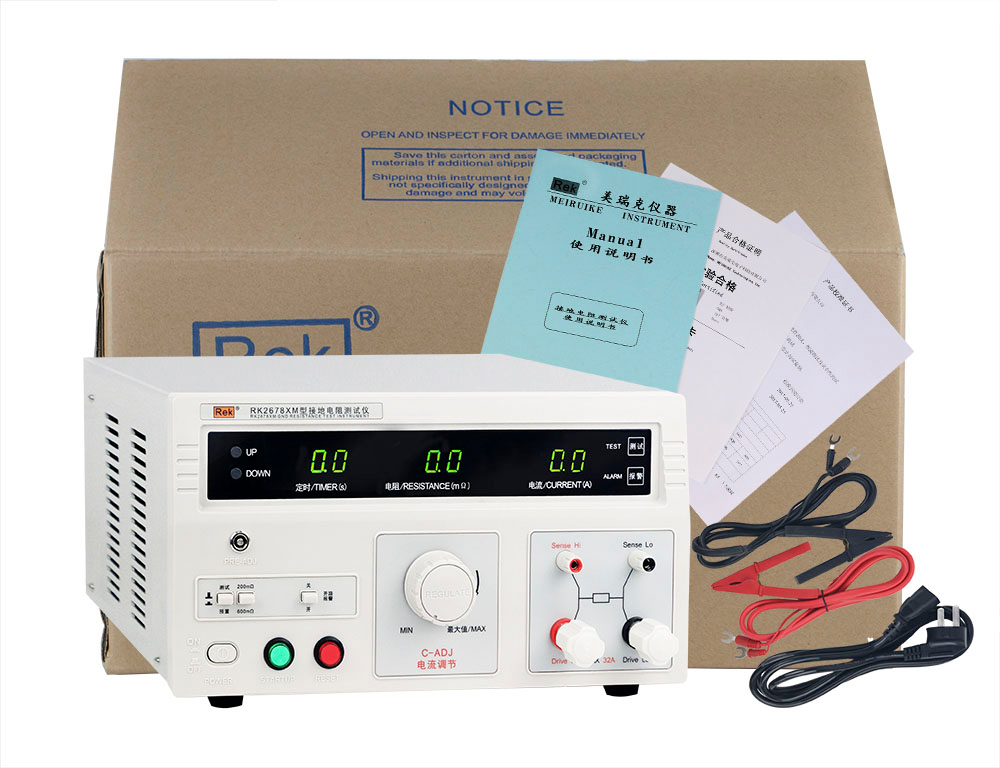

Accessory
|

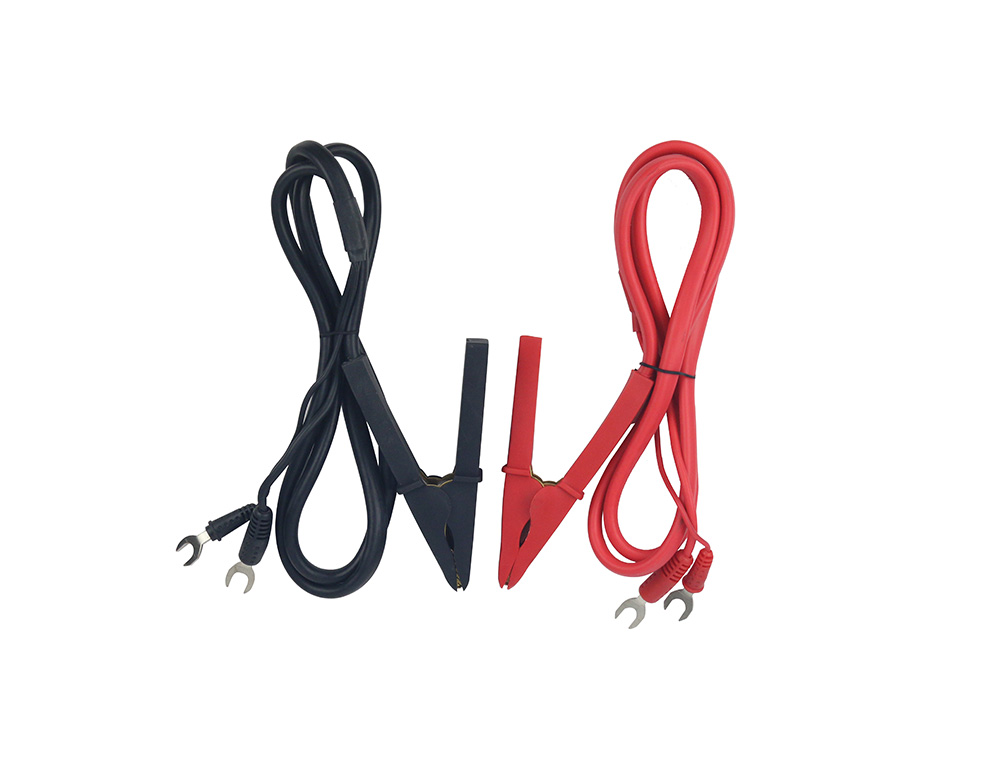

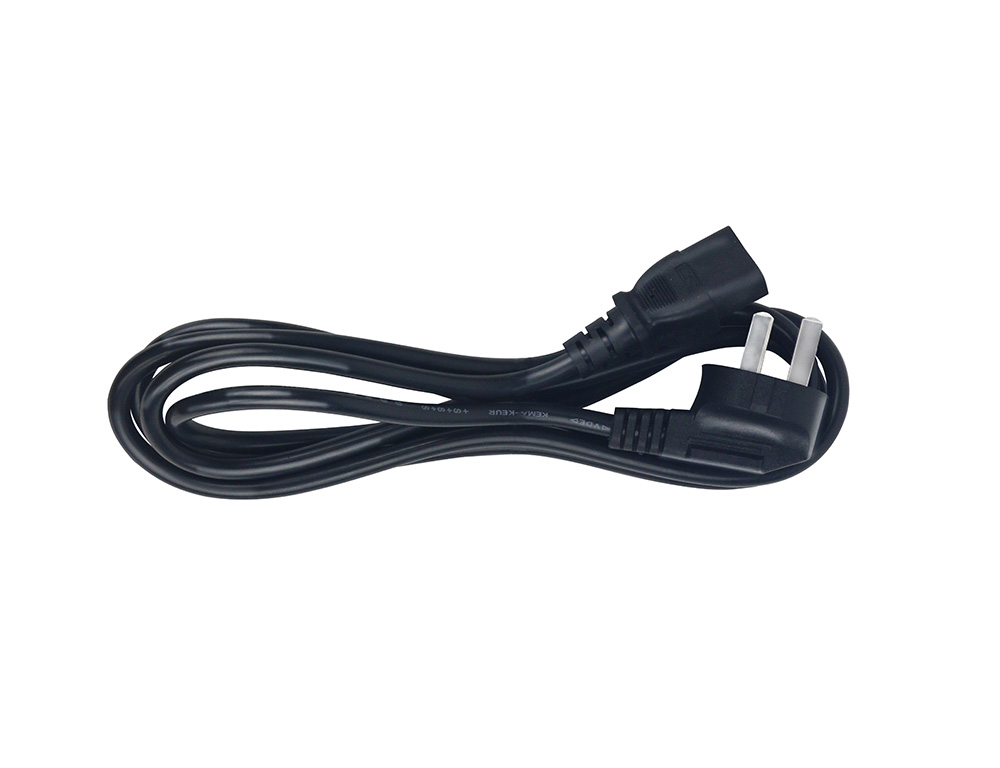

Test Line,Power Line
|
