Description

Registered 1.10c 3.5″ 50KHz-2GHz Malachite DSP SDR Radio Receiver(Extended Version)w/2 Antennas



Features:
1) Based on SDR architecture, msi001 RF front-end is used for 12bit quantitative sampling, stm32h743 processor is used, and the main frequency is up to 480mhz
2) The receiving frequency is 50 kHz to 49.999 MHz, 50.001 MHz to 249.999 MHz, 400 MHz to 2GHz
3) Demodulation type: am, SSB, NFM, WFM, CW
4) The sensitivity is better than 0.2-0.3 μ V
5) Anti blocking is better than 85 dB
6) The real-time sampling bandwidth is 160 kHz
7) Functions: variable filter, adaptive noise reduction, threshold noise reduction, noise suppressor, AGC, equalizer, etc.
8) The display screen is IPS 3.5 inch, capacitive touch screen with backlight adjustment
9) The battery capacity is 3000mAh with USB-type interface
10) The working current shall not exceed 300mA
11) Dual antenna input option version, front-end attenuation filter module, attenuation up to 30dB, high resistance input, improve short wave sensitivity, add four additional front-end filters
12) Through USB connection to the computer, cat, IQ and audio communication can be realized
13) The overall size is 147 x 77 x 25mm/5.8 x 3 x 1″

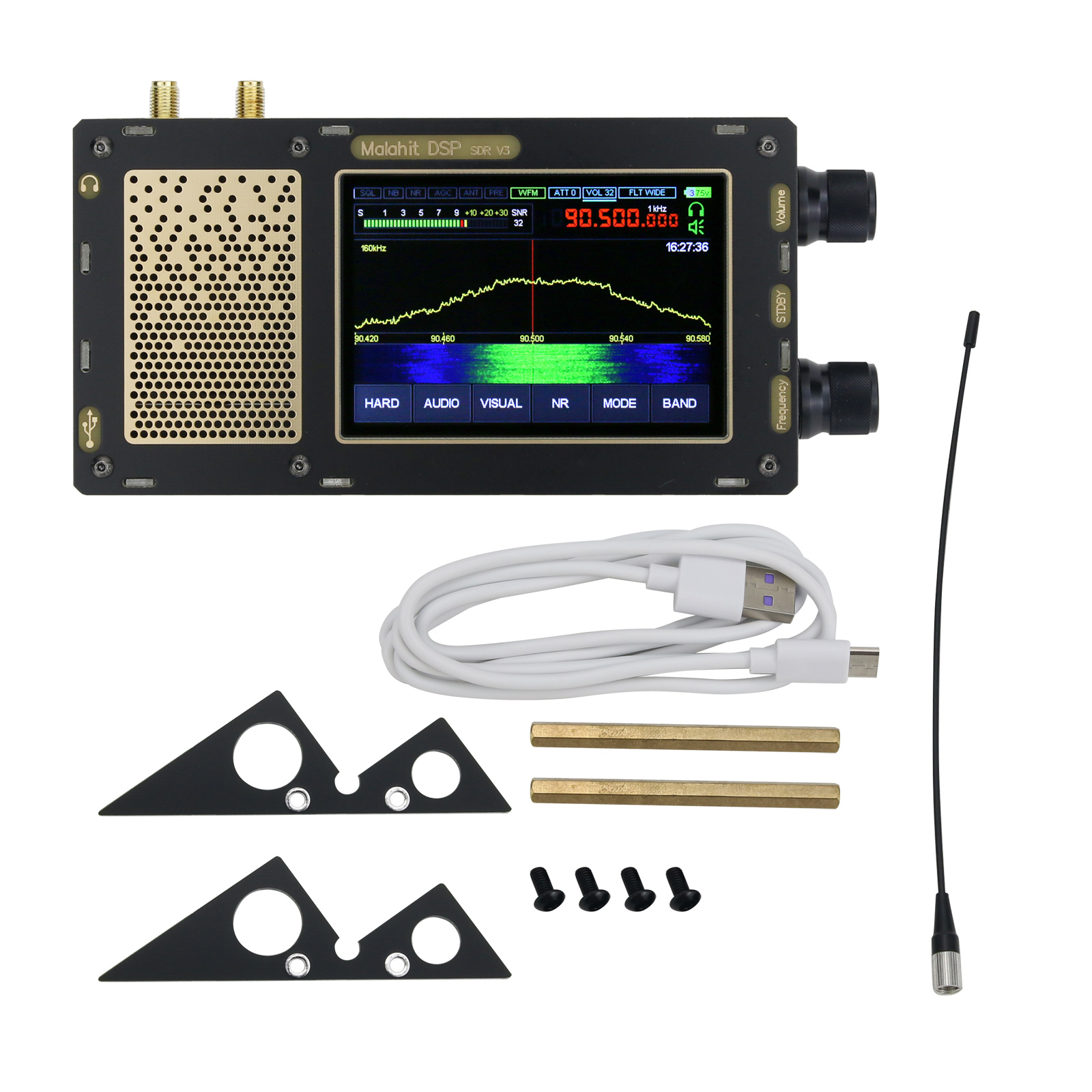

Packing List:
1. Malachite host + extended version
2. Bracket
3. One antenna
4. Bag
5. Charging cable
6. English Test Form

Note:

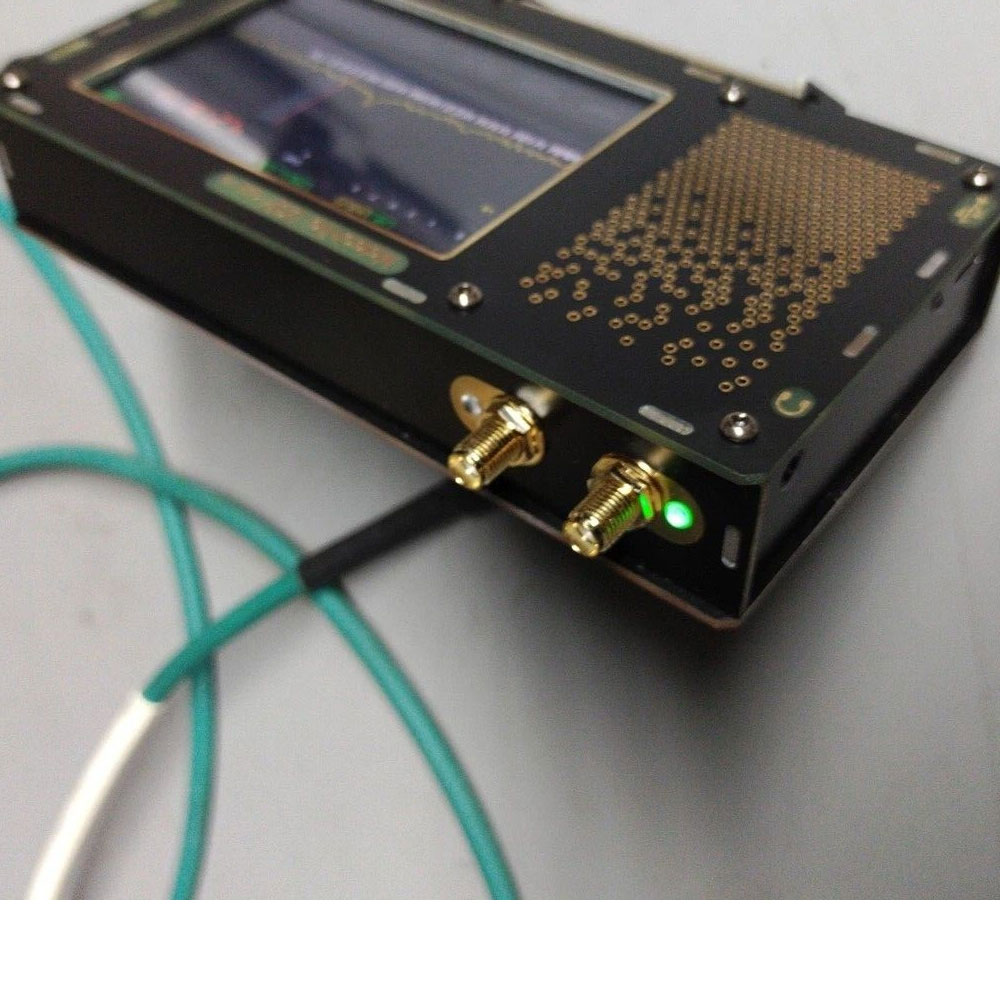

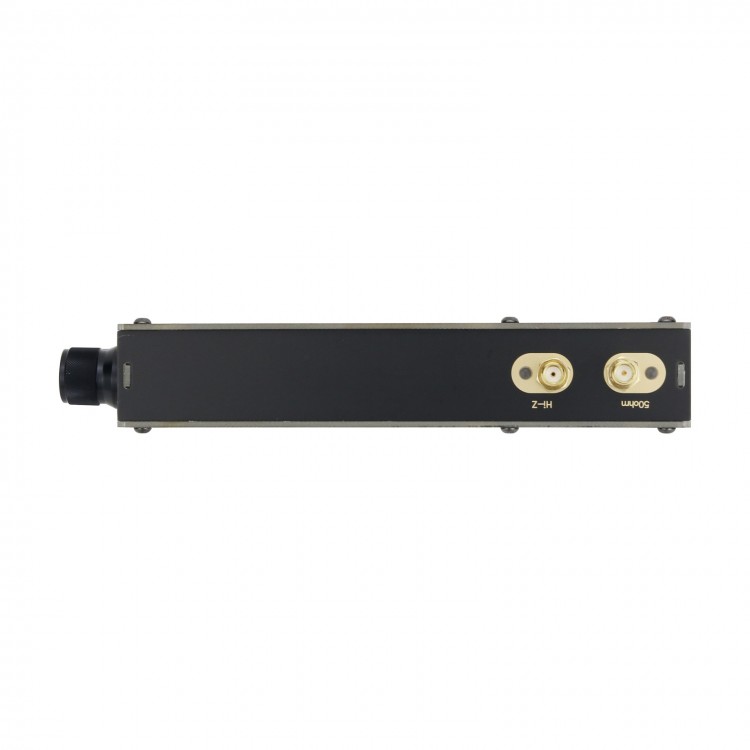

– It is designed with two antenna ports. It comes with only one antenna.

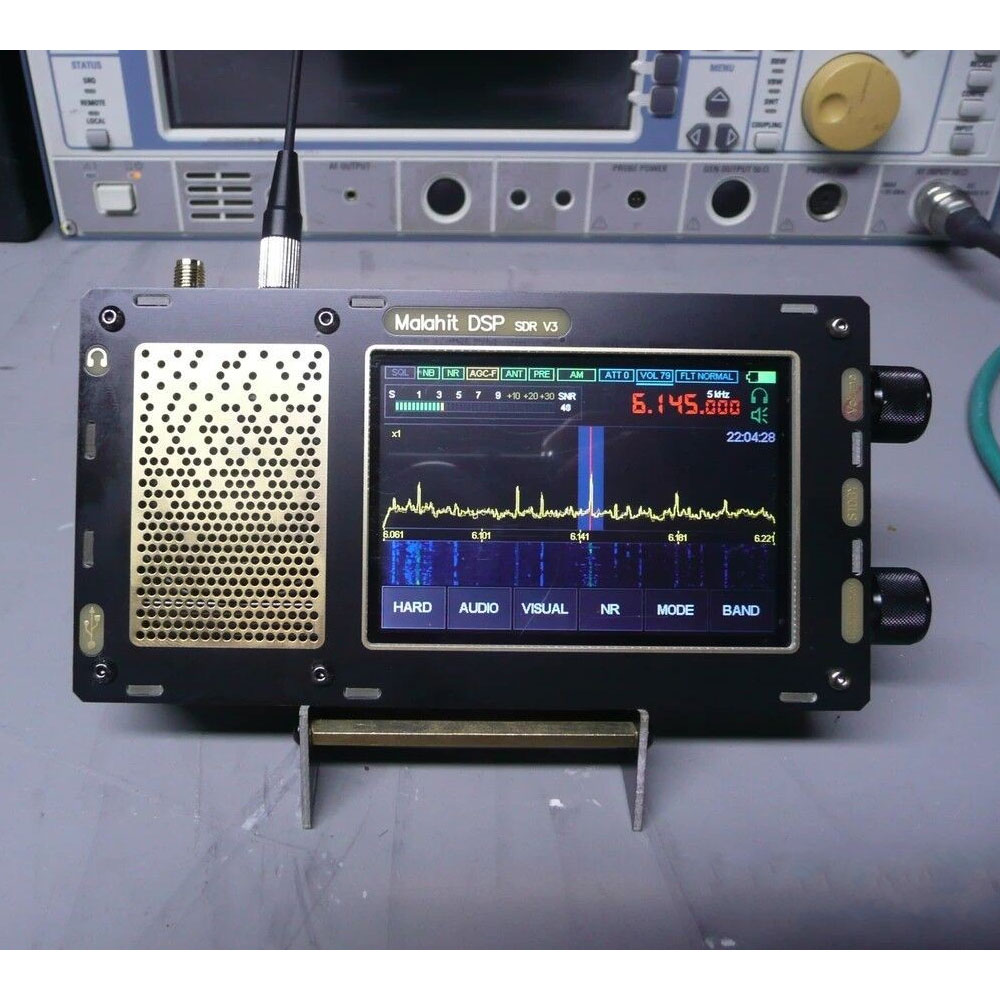

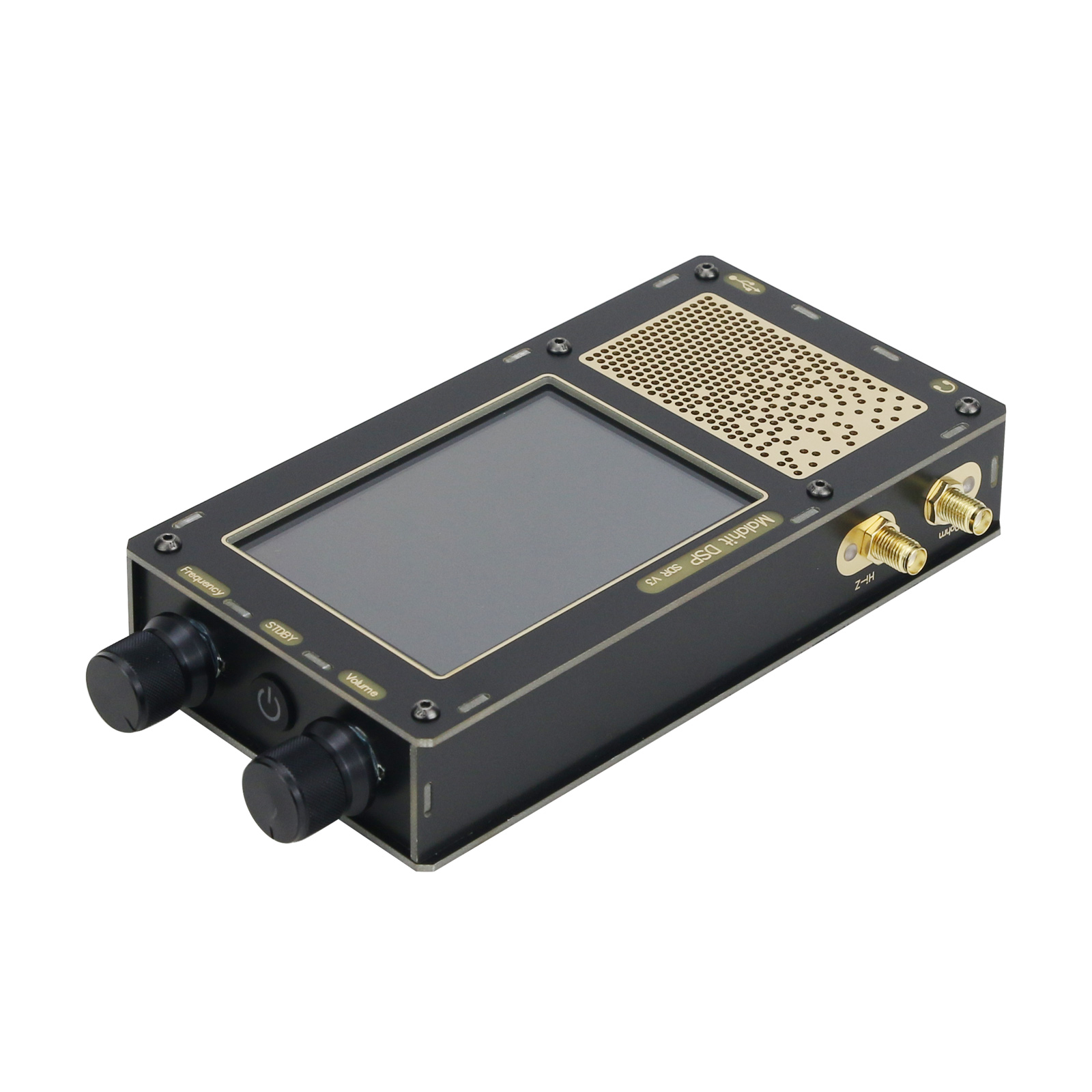

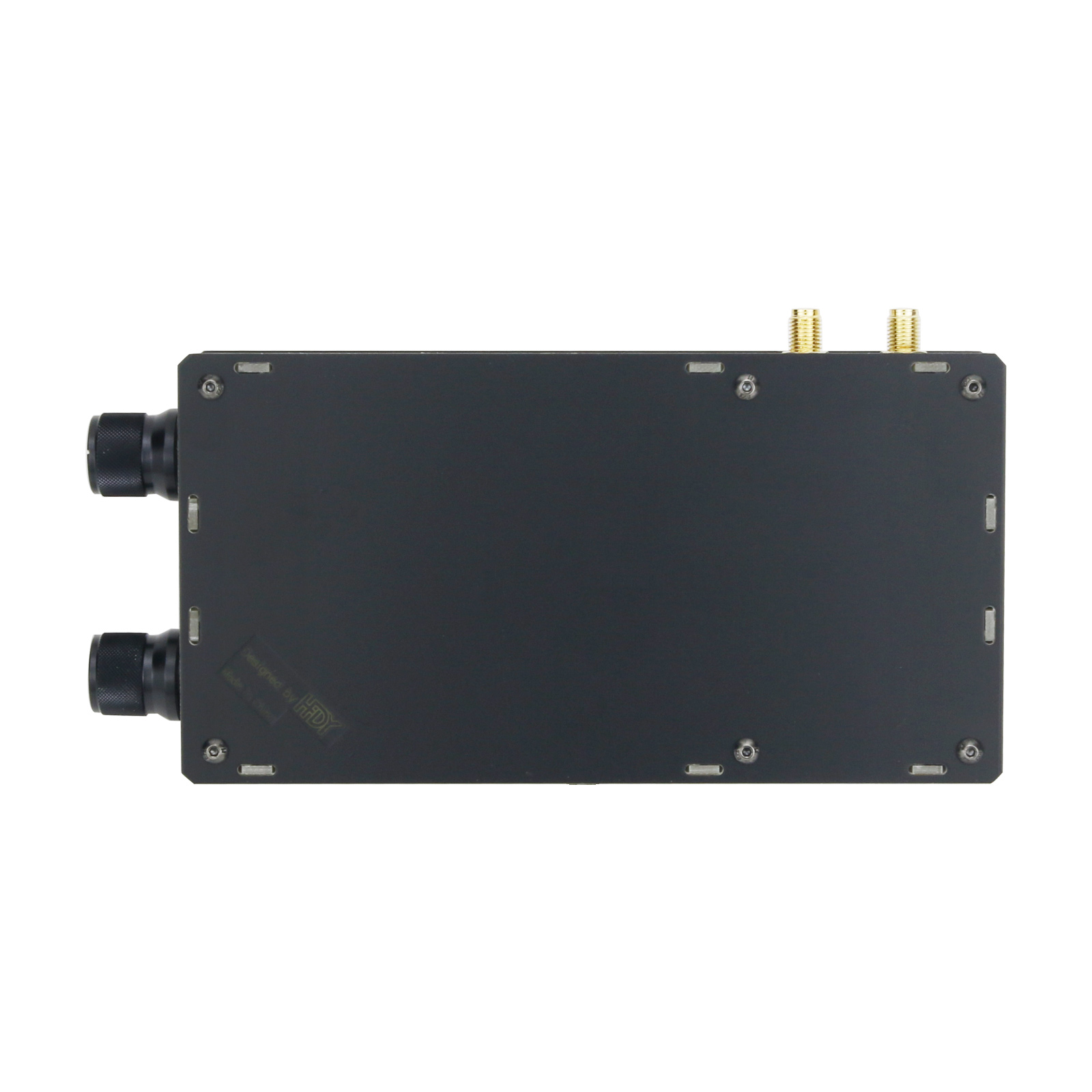

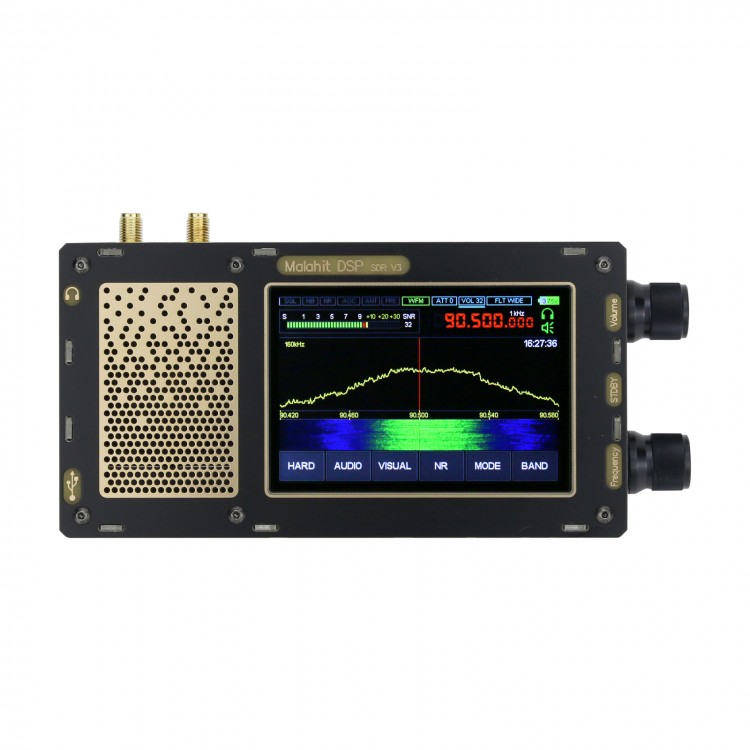

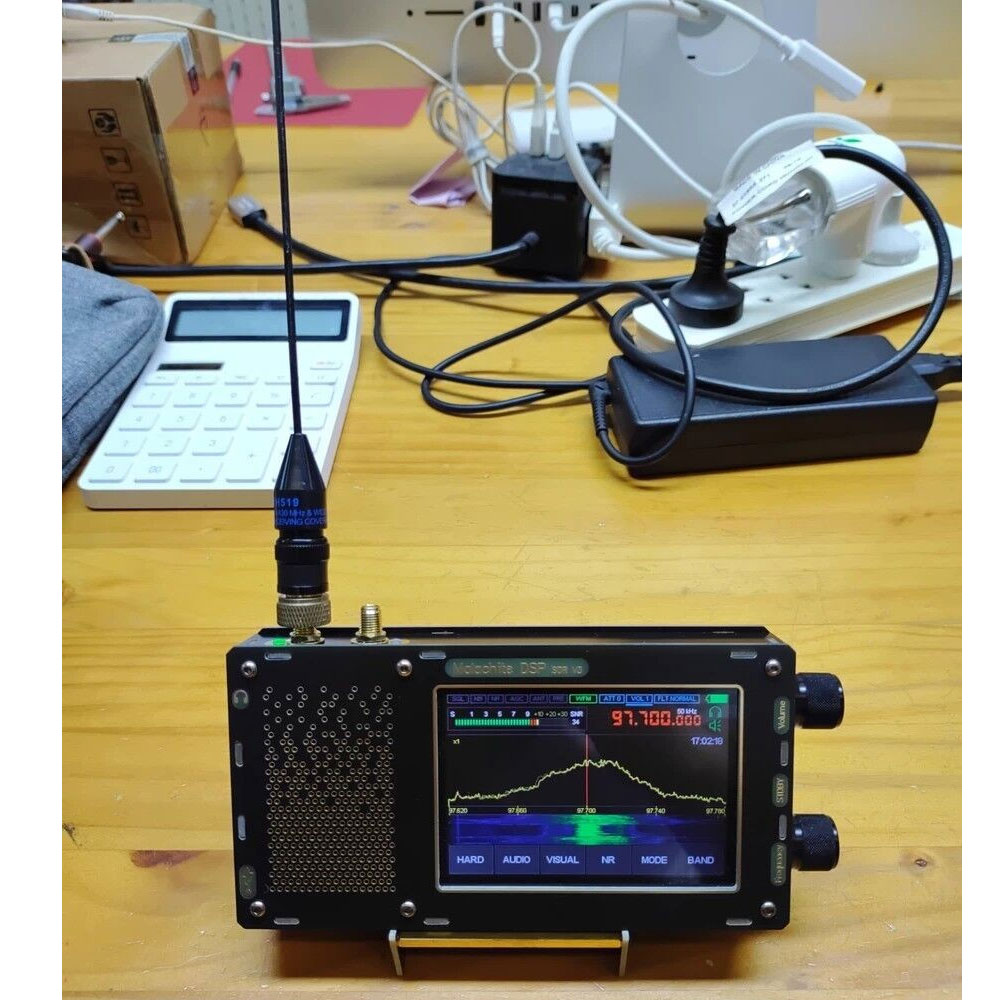

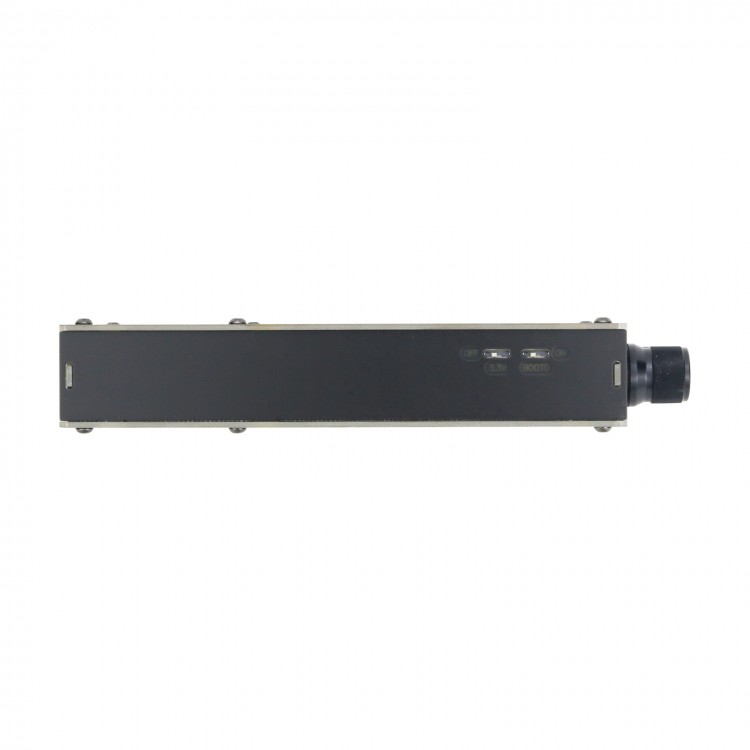

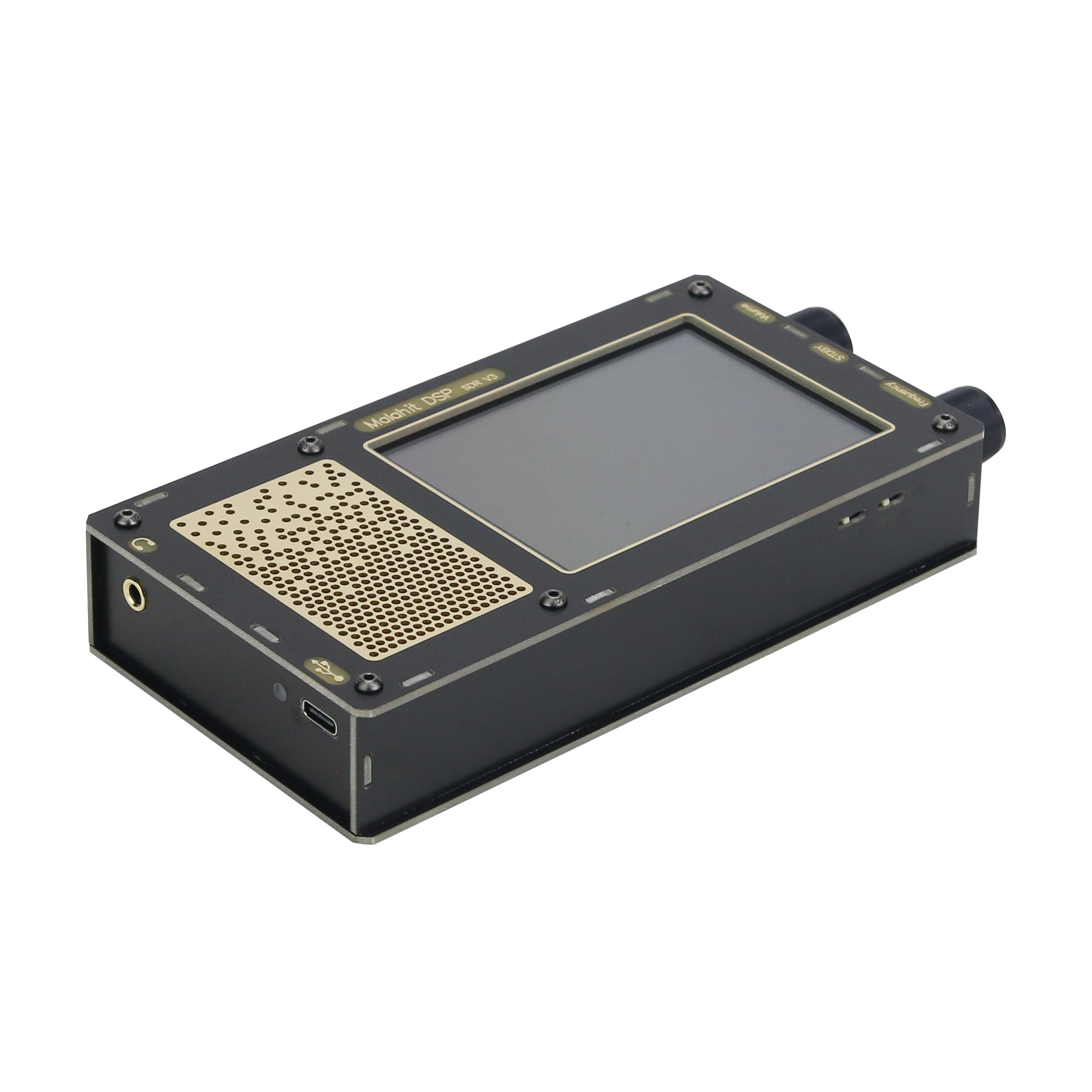

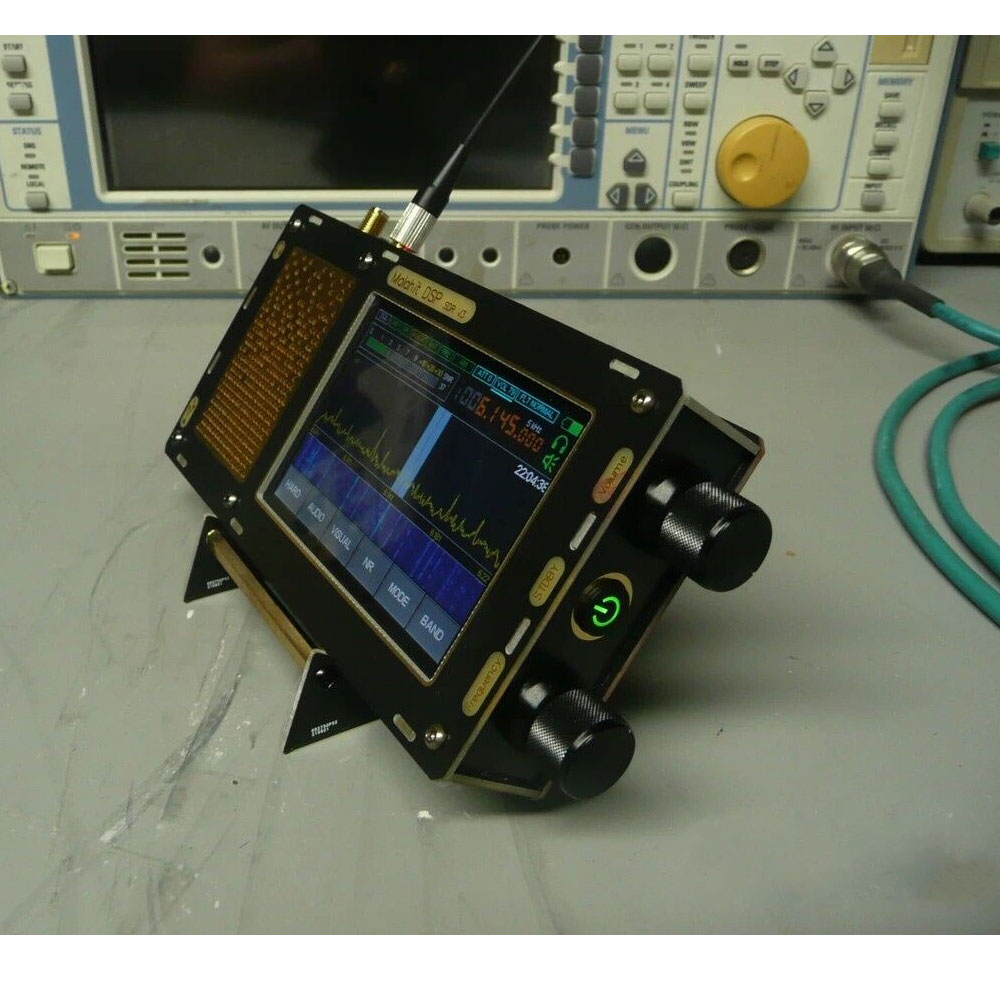

Detail photo



FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A: Sample ususally take within 3 working days.



Q3. Do you have any MOQ (minimum order quality)limit?

A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item.





Q4. How to proceed an order?

A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link.



Q5. After paid, what info of the supplier provided?



A: Tracking number



Q6: Do you offer guarantee and after-service for the products?

A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate.





Packing and Shipping

Package: Normally we use the standard paper package to export worldwide.



Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier  we are co-operating at present.



2. By chinese small parcel, usually for the customer to save the cost. But Chinese small parcel have the risk for lost parcel. Note: If we got the parcel back, we only can refund the item cost. If we didn’t get the parcel,then sorry we can’t refund any.

3. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.

4. By Sea: Delivery from the Shenzhen sea port .
