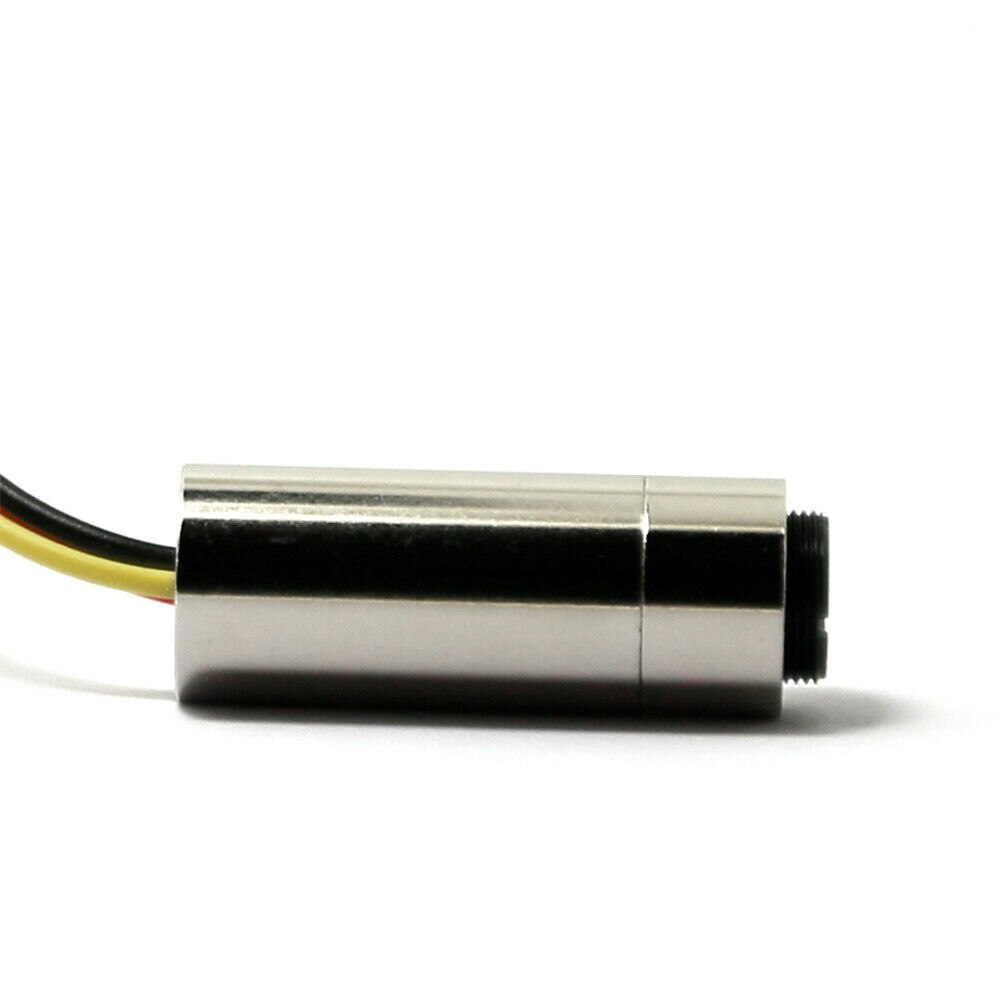

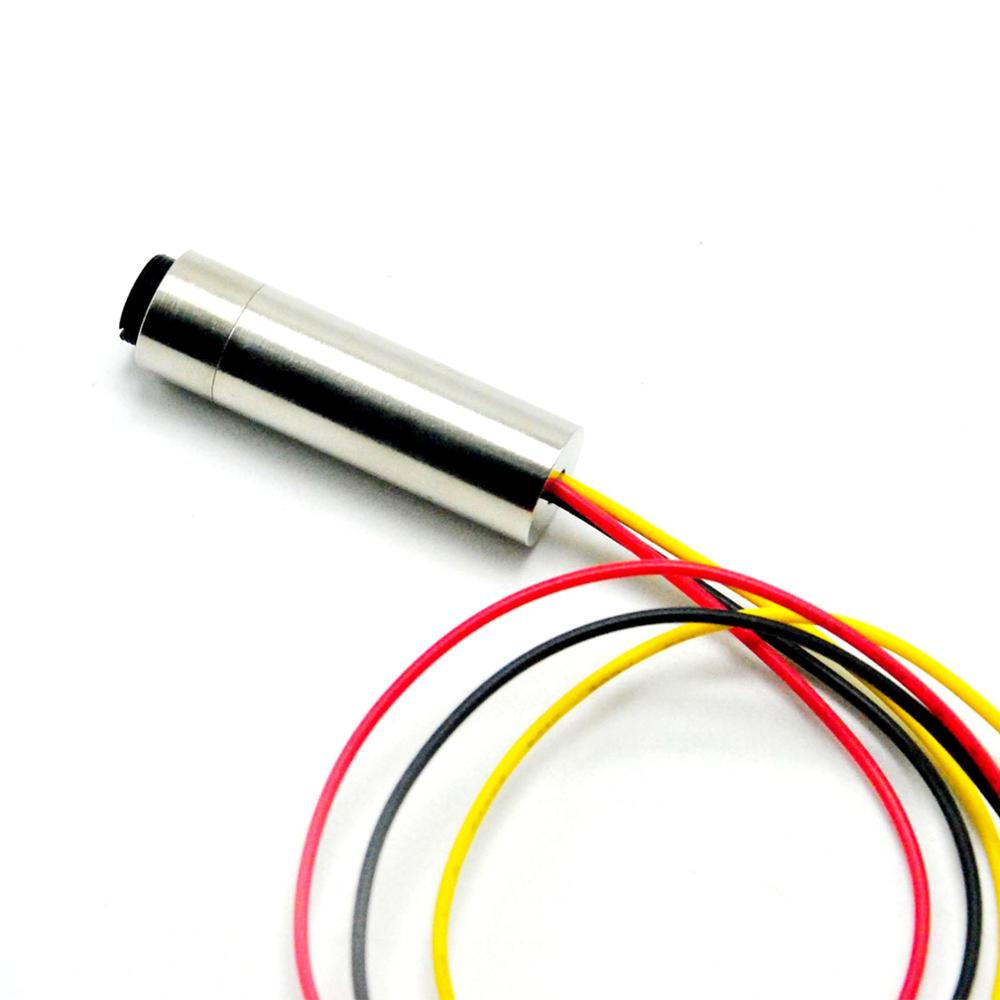

Red Laser Diode Module Dot Shape 650nm 3.5mW w/TTL 0-15KHz 12mmx30mm

$19.14$31.98

SKU: 10000062898740 Category:

Description

  • Brand Name: Jolooyo
  • Certification: NONE
  • Origin: CN(Origin)
  • Item Type: Stage Lighting Effect
  • Model Number: 650MD-3.5-1230-TTL15-BL

Specifications:

Wavelength: 650 nm
Output Power: 3.5mW
Working Current: <18mA Working Voltage: 5.0VDC Duty Cycle: 5 minutes on, 1 minute off TTL frequency: 0-15KHz TTL modulation Voltage: 0-5V Off low, high open, normal status open Dimensions: 12mmx30mm

Details:

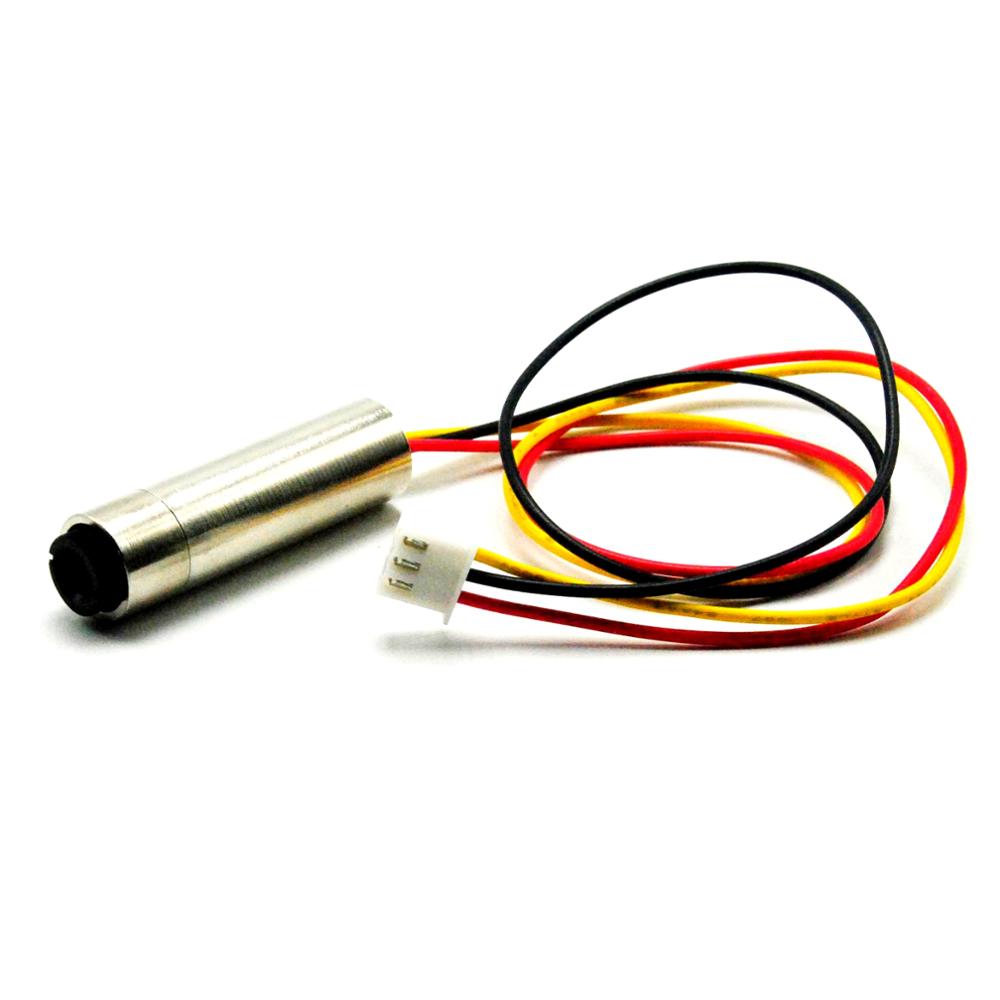

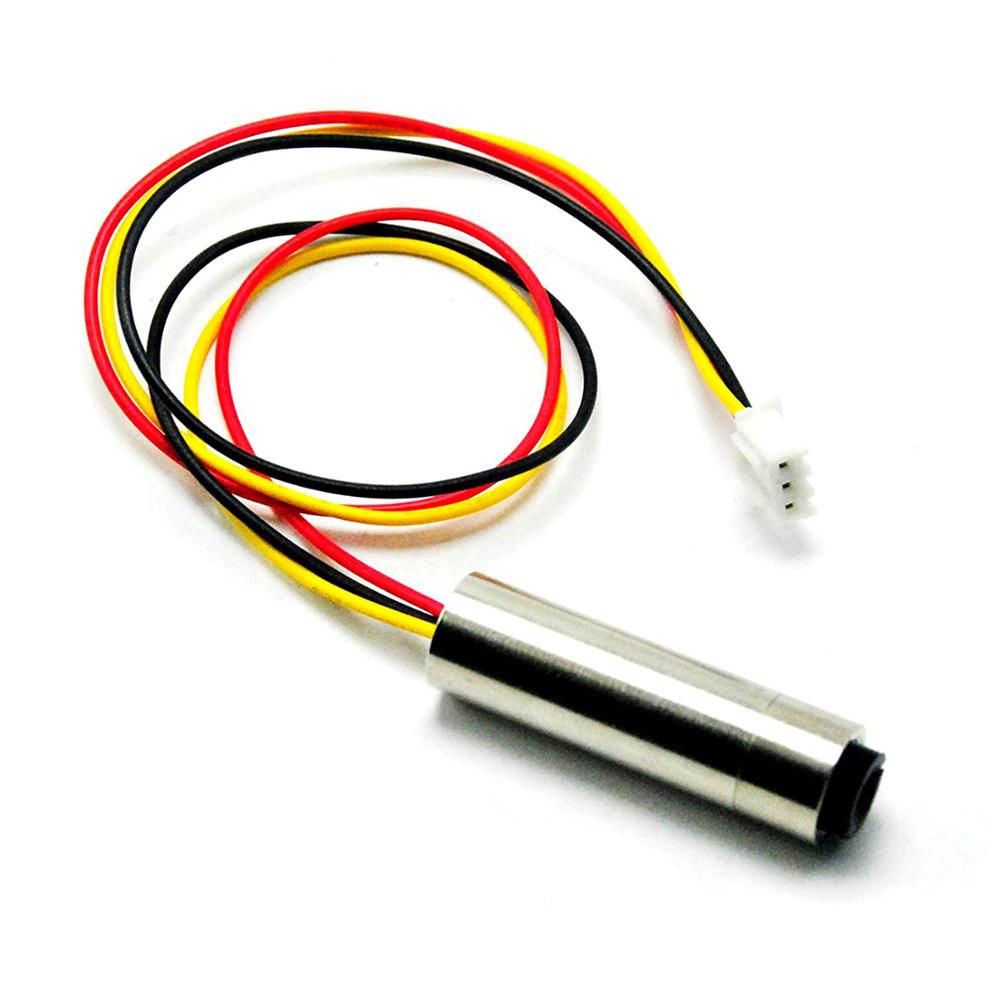

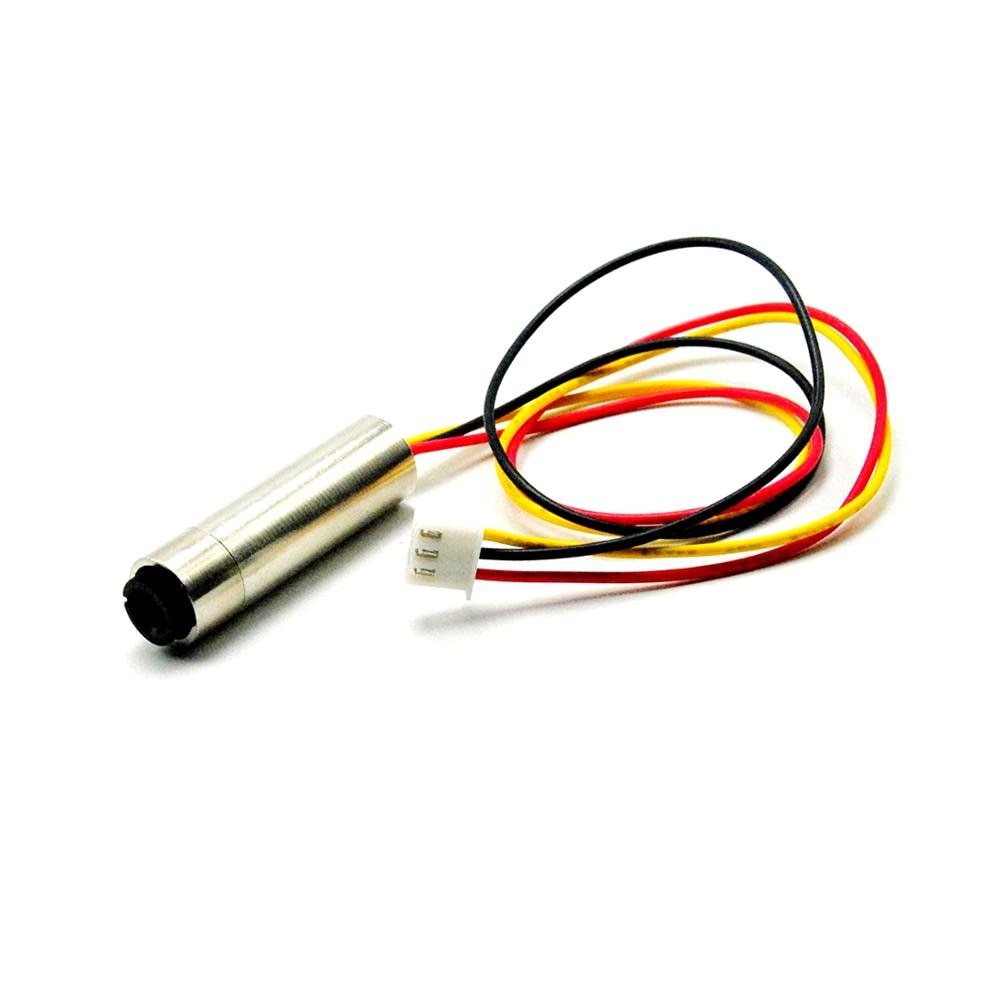

Red wire for 5V +, black wire commonly for 5V- and Yellow wire for TTL +. If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL +) to 5v +. When the TTL the signal is connected, the higher the frequency is, the less brighteness the laser will have. when it is> 15KHZ, the laser can not be seen.

Package:

1pc 650nm 3.5mW Red Laser diode Dot Module w/TTL 0-15KHz 12mmx30mm
