 Laser Modules

Changchun Sunday Optoelectronics Co.,ltd has laser modules wavelength rangle from 405nm to 1064nm,the red laser modules have High-quality laser diode,optical glass lens, driver circuit and housing.

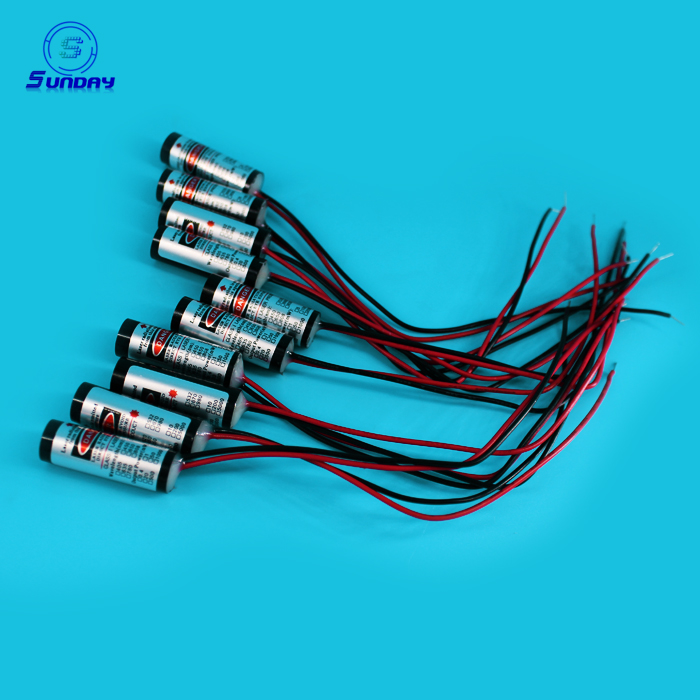

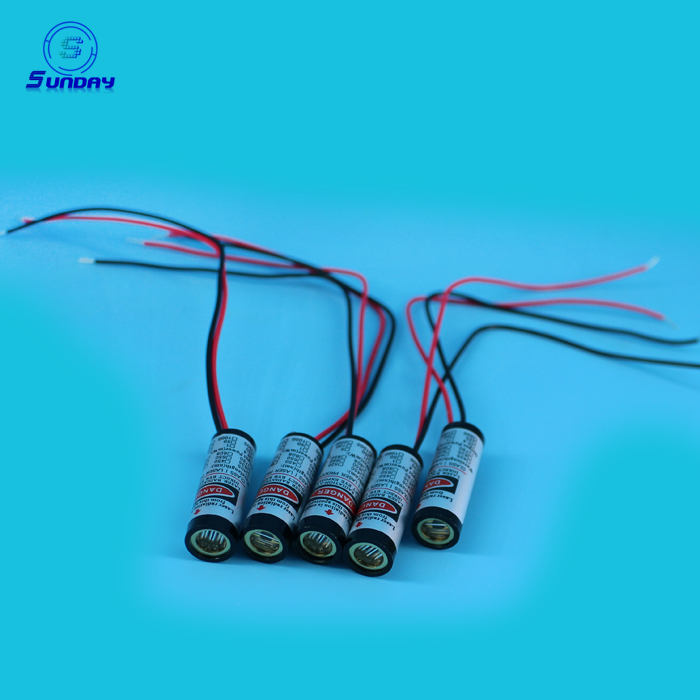

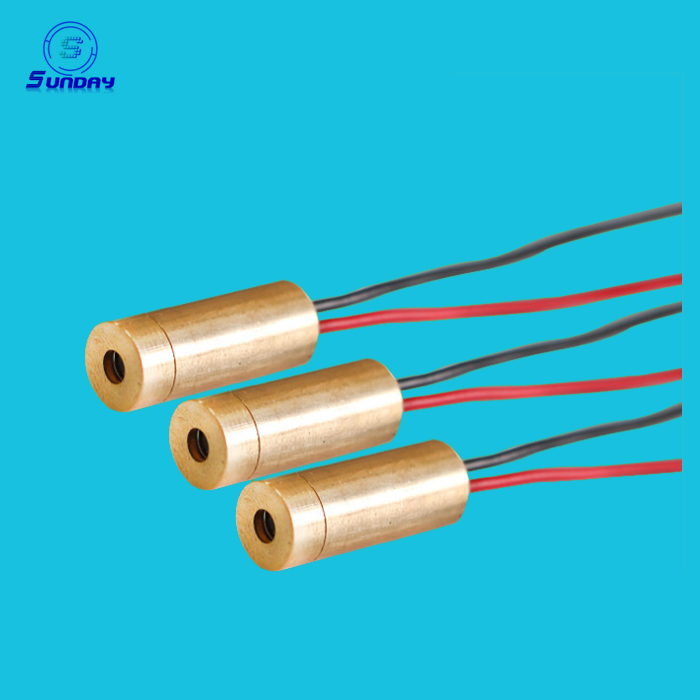

Specifications of red cross/line/dot laser module

Wavelength:650nm

Output power:5mw

Beam Divergence:0.1mrad ~ 0.6mrad

Line thickness: Less then 2mm at 5m

Fan angle:10°~135°

Laser line accuracy:<30”(at 5m) Operating Voltage:DC3V-5V

Operating Temperature:-10°C~50°C

Storage Temperature:–30°C~80°C

Dimensions:Φ12mm ×45mm,Φ16mm ×60mm

MTTF:10000 hours

Warranty:1 year







Characteriscics

High-quality laser diode,optical glass lens, driver circuit and housing

High reliability, high stability, long life,low price





Applications

Machine vision Industrial inspection

Industrial marking devices

3D contour mapping Positioning & visualization Biomedical High-end alignment

Laser targeting devices and so on..
