Description
- Brand Name: JNHXSK
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: TS4060H
- CNC or Not: CNC
- Is Smart Device: YES

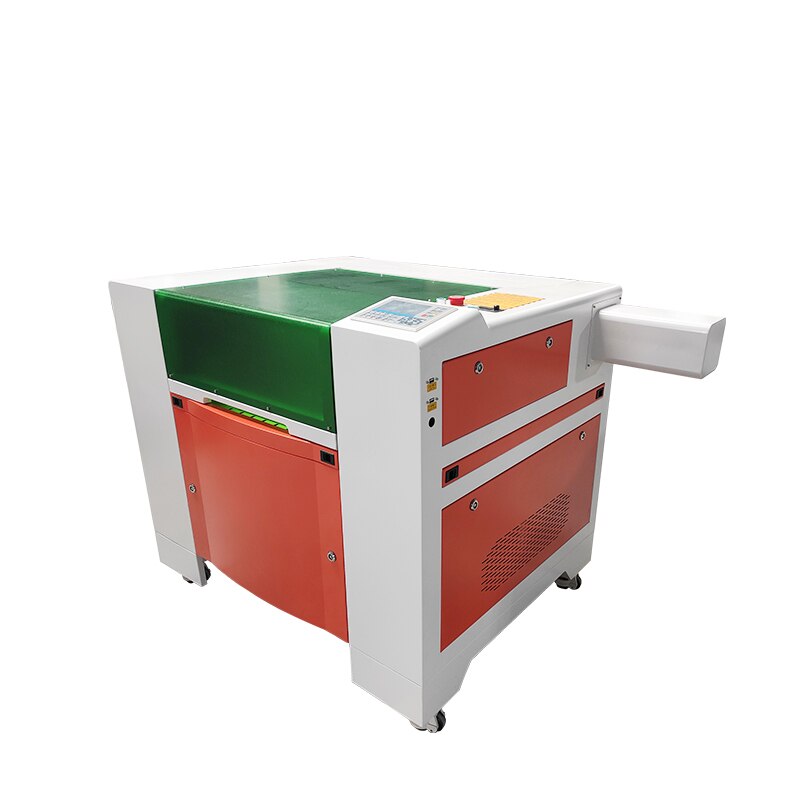

- Produce name: Co2 laser engraving cutting machine
- Laser power: 50w/60w/80w/100w
- Laser tube: EFR/RECI/YONGLI
Reci W2 100w laser tube co2 laser cutting engraving machine mini wood laser cutter with high quality
Technical parameters:
|
Model |
Laser Cutting Machine TS6040H |
|
Working Table Size |
600mmm*400mm |
|
Laser Tubebrand |
EFR,Reci or the other brand |
|
Control System |

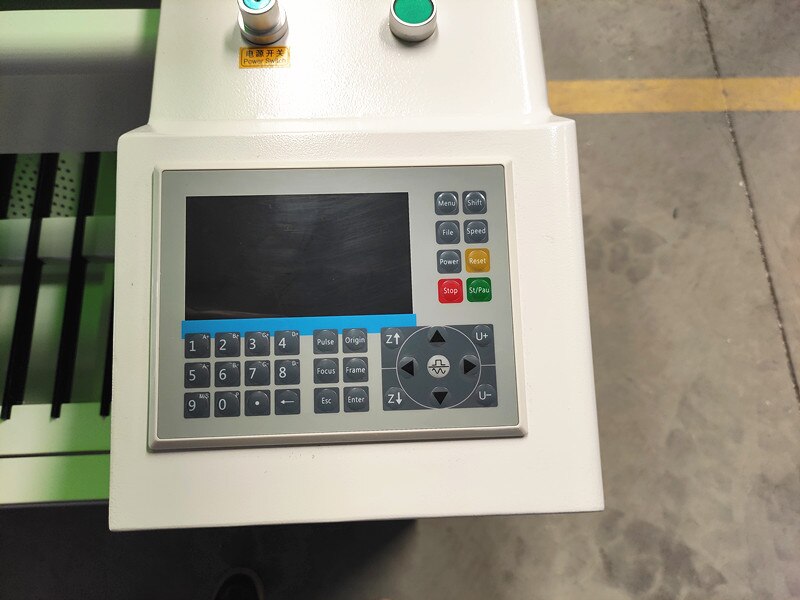

Ruida 6445G(English/Russian/Spanish/France/ Portuguese) |
|
Working Table |
Honeycomb+Cutting blade table |
|
Motor |
57 LeadshineStepMotor |
|
Driver |
Leadshine |
|
Up and down |
Double leadshine motors |
|
passfront and back |
Support |
|
X axisandY axis |
Hiwin square linear guides |
|
Laser Power |
50/60/80/100w |
|
Z axis adjust height |
180 mm |
|
Cutting Speed |
0-100mm/s |
|
Engraving Speed |
0-600mm/s |
|
Resolution |
±0.05mm/1000DPI |
|
Minimum Letter |
English 1.5×1.5mm (Chinese Characters 2*2mm) |
|
Support Files |
BMP,HPGL,PLT,DST and AI |
|
Interface |
USB2.0 |
|
Software |
RD works |
|
Computer system |
Windows XP/win7/ win8/win10 |
|
Power Voltage |
AC 110 or 220V±10%,50-60Hz |
|
Power cable |
European Type/ChinaType/America Type/UK Type |
|
Working Environment |
0-45℃(temperature) 5-95%(humidity) |
|
Power consumption |
<1200W (Total) |
|
Position system |
Red-light pointer |
|
Cooling way |
Water cooling and protection system |
|
Gross Weight |
200KG |
|
Package |
|
|
Warranty |
All life free tech support, one year warranty, except consumables |
|
Free accessories |
Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable |

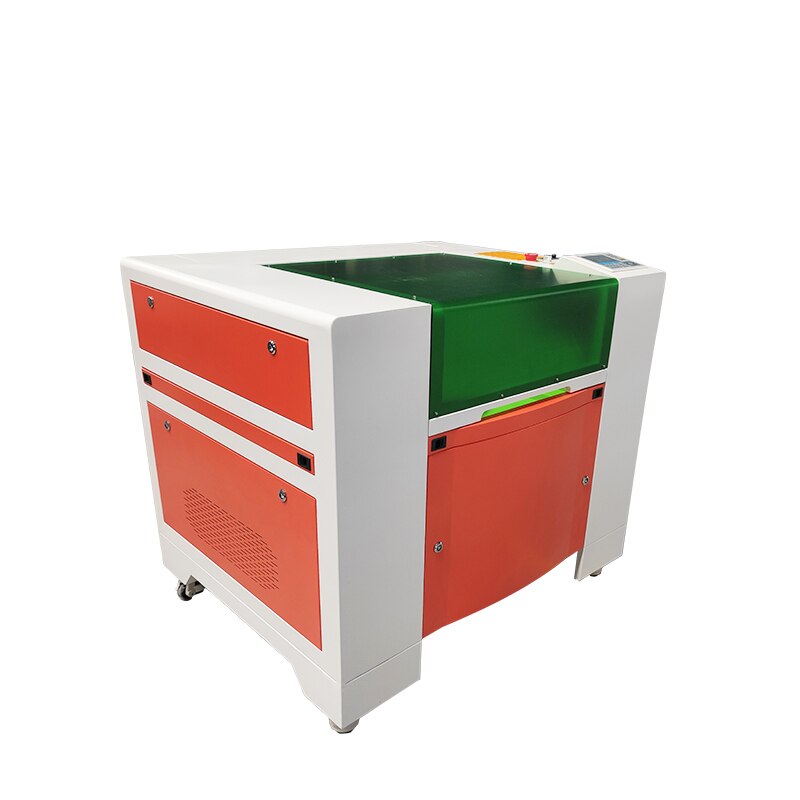

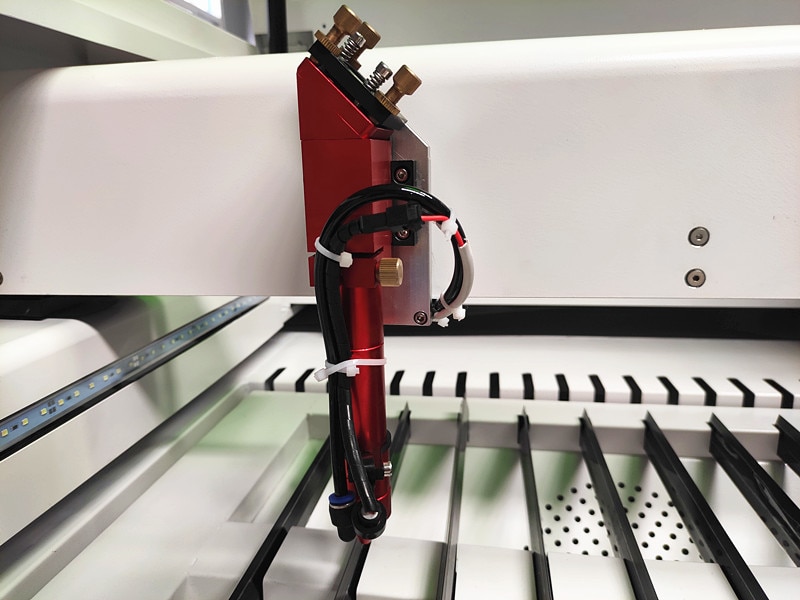

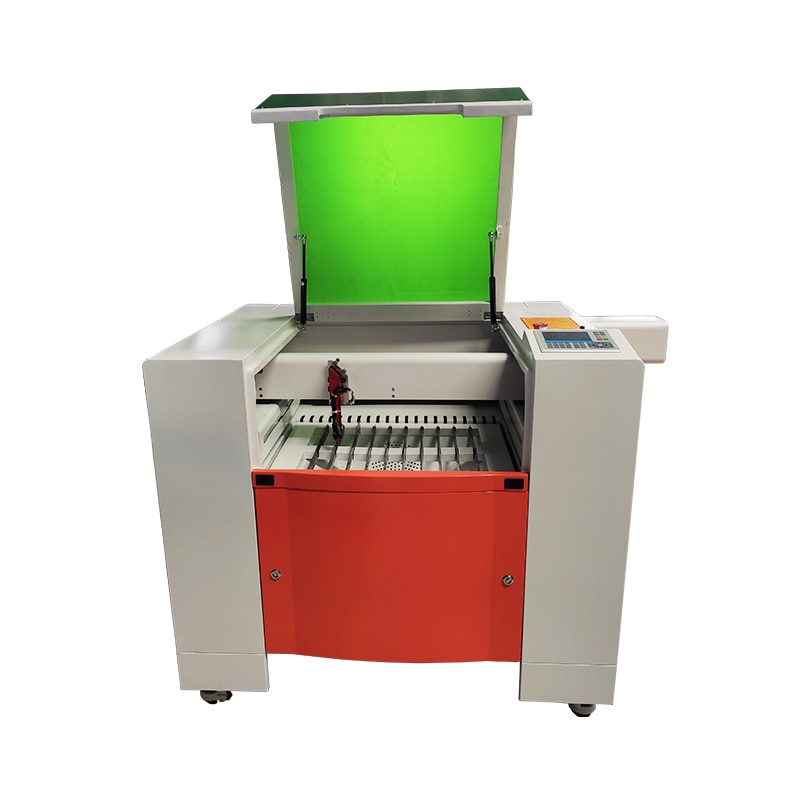

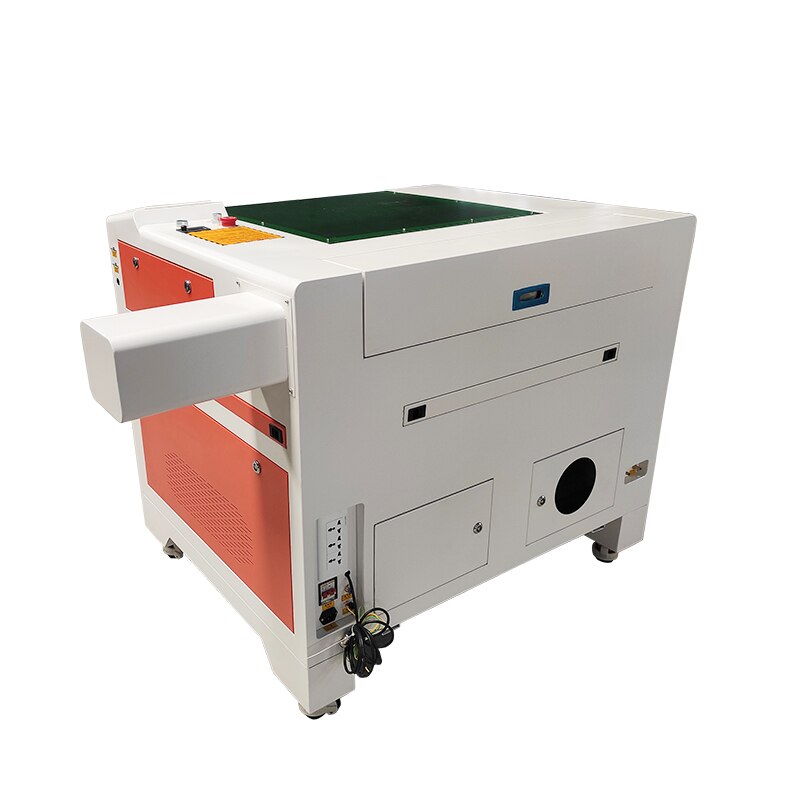

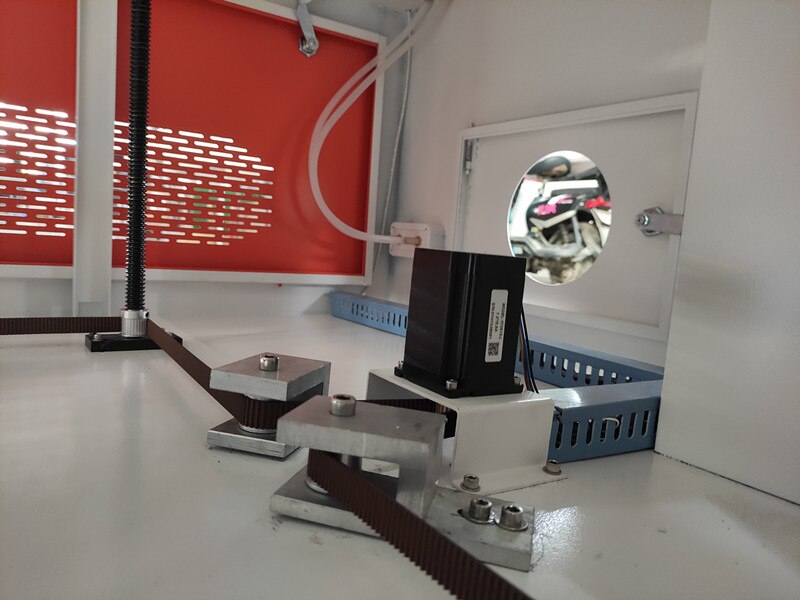

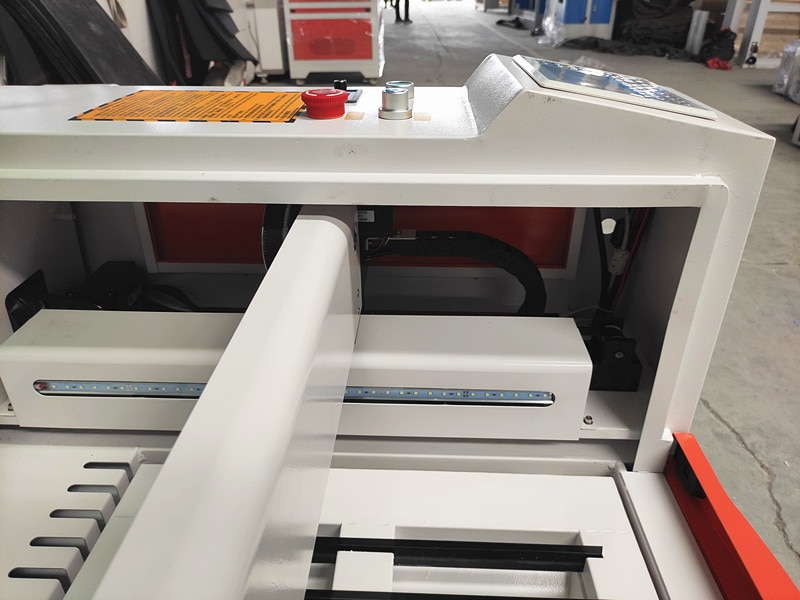

Machine details Images:
Samples show:
Warranty:
We promise to keep products that are manufactured and shipped according to a formal contract, and we guarantee that every repaired machine will perform well if used correctly. You have the right to repair or replace an item in the warranty period if you have a material or technical problem. We will charge maintenance in normal cases. It will be free if the machine has special problems.
After sale services:
1.12 months quality guarantee, the machine with main parts (not including consumables) will be changed for free if there is any problem during the warranty period.
2. Free training in our plant.
3. We will provide the Consumable Parts at an agency price when replacement is required.
4. Can help you solve problems online or by email in 24 hours, free technical support.
