Description
- Brand Name: wavetopsign
- Certification: CE
- Origin: CN(Origin)

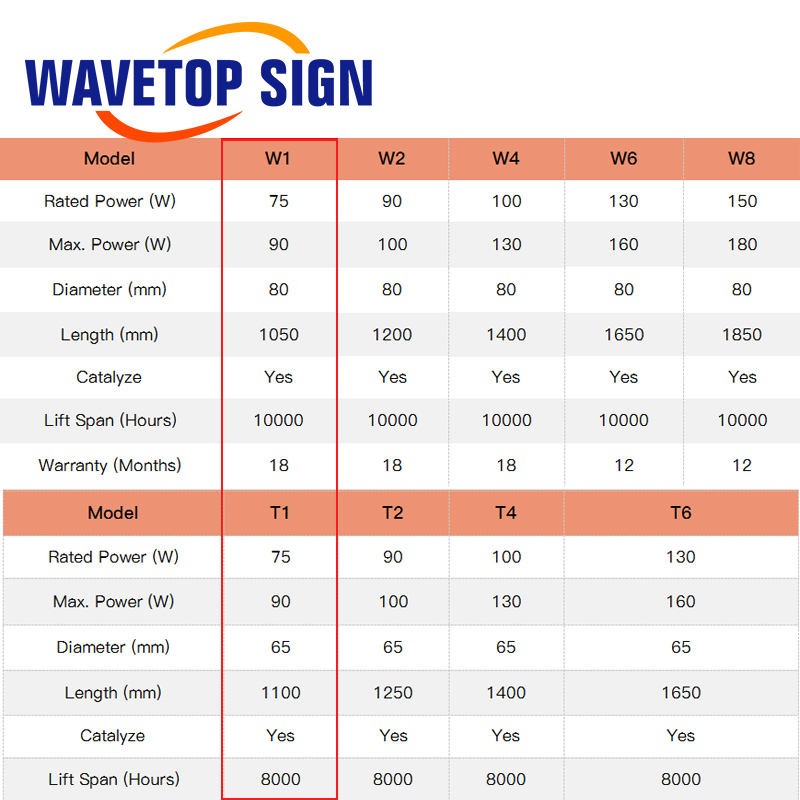

- Model Number: T1 / W1
- Wavelength: 10.6um
- Rated Power: 75W
- Max Power: 90w

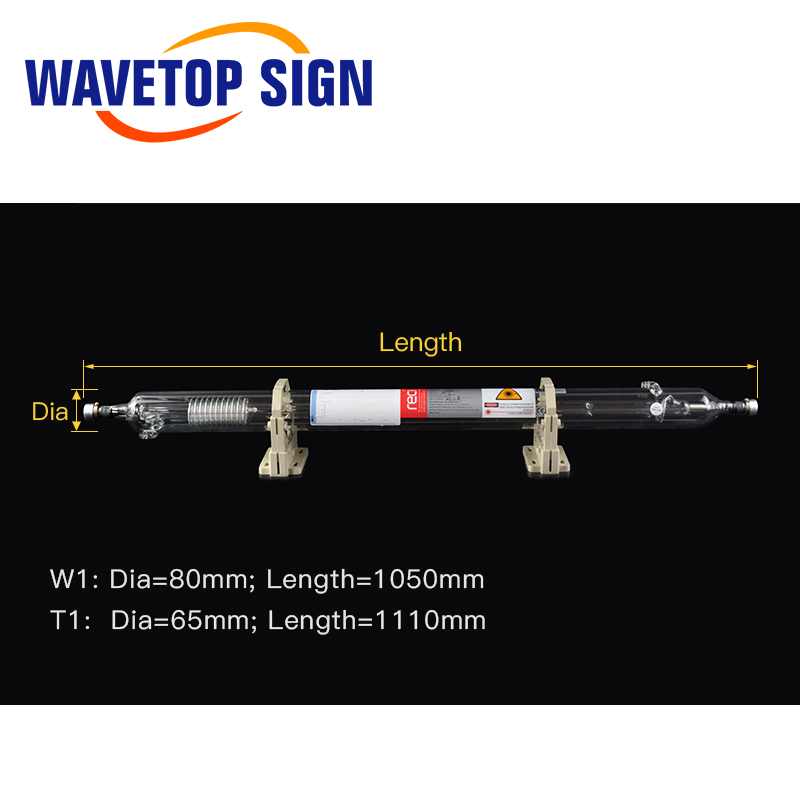

- Length: 1110/1050mm
- Pipe Diameter: 65/80mm
- Cooling Method: Water Cooling
- SKU: WT011904121 / WT01007014
Features:
1. Original RECI CO2 laser tube
2. The product volume is smaller than W1
3. Long service life,10000 hours lifespan, 10 months warranty
4. Suitable for laser marking, laser cutting and laser engraving
5. New style, higher cost performance
6. Expedited Shipping with Wooden Box Packing
Notes:
The outer surface of the output mirror window cannot be scrubbed with any tools such as cotton balls, otherwise the power will be seriously affected. The specified method for removing the contamination of the outer surface of the window mirror: 1) when the lens is contaminated, do not open the laser, 2) blow the lens surface with a balloon, 3) compress the surface of the pure alcohol spray lens with a syringe, 4) wait for the alcohol to evaporate After the laser is turned on again, 5) If the above cleaning methods have no obvious effect, the mirror surface must be rotated from the inside to the outside by a professional using a cotton ball. The best way is to protect the window from contamination. Special note: Do not scrub the lens with acetone.
The fasteners at both ends of the laser tube cannot be moved, otherwise the laser power will be directly reduced and scrapped.
When testing the spot on plexiglass, it is 300 mm from the output mirror.
