Description

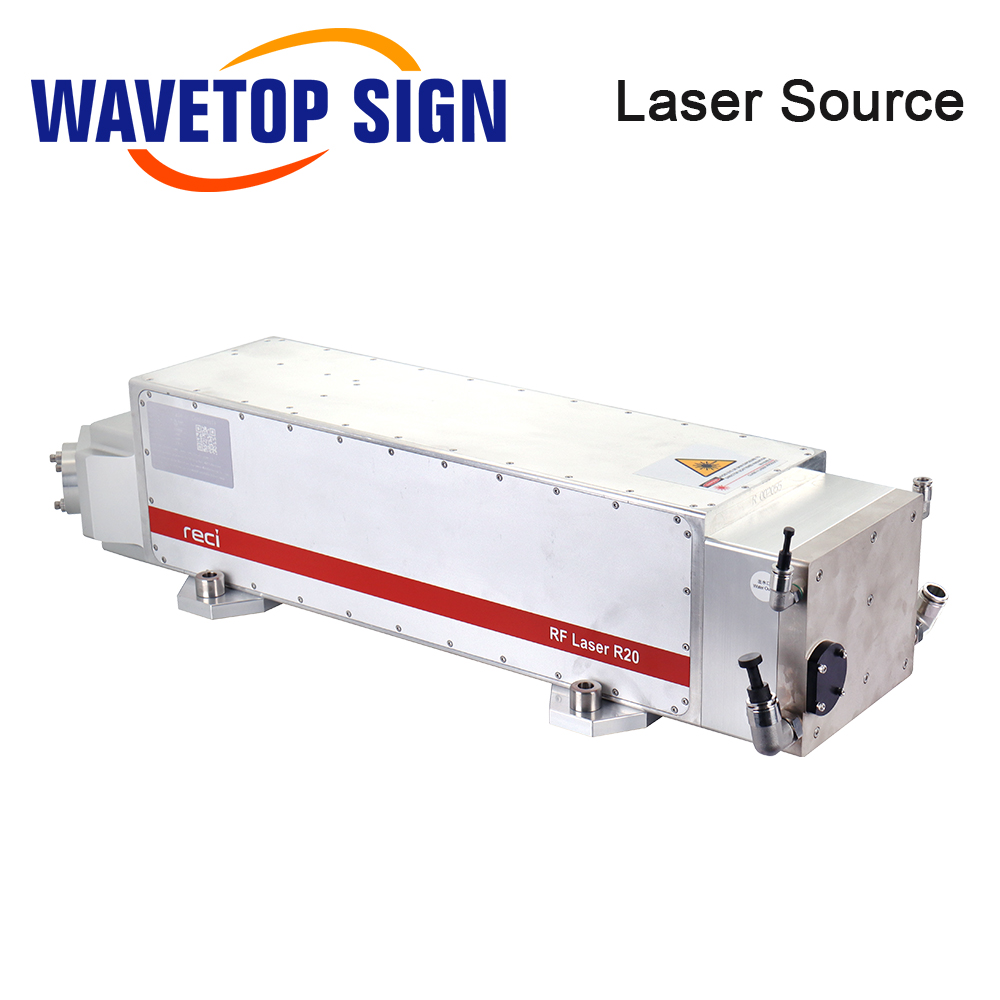

Reci RF series laser is sealed-off, modulated-pulse CO2 laser. They are mainly used for cutting non-metallic materials as well as cutting thin metal sheets. Under the condition of high pulse cutting, the thermal influence for non-metallic materials like leather is quite low, which stops the cutting edge from carbonization and keep its original natural color.
RF Power Supply Specifications:
Peak output power: 3kW (when the frequency is 81.36MHz),
DC input: 50V+/-1V (when peak i=85A)
Pulse width range: 0-520μs
Frequency: 1-100kHz (maximum)
Duty cycle (range): 4-60%

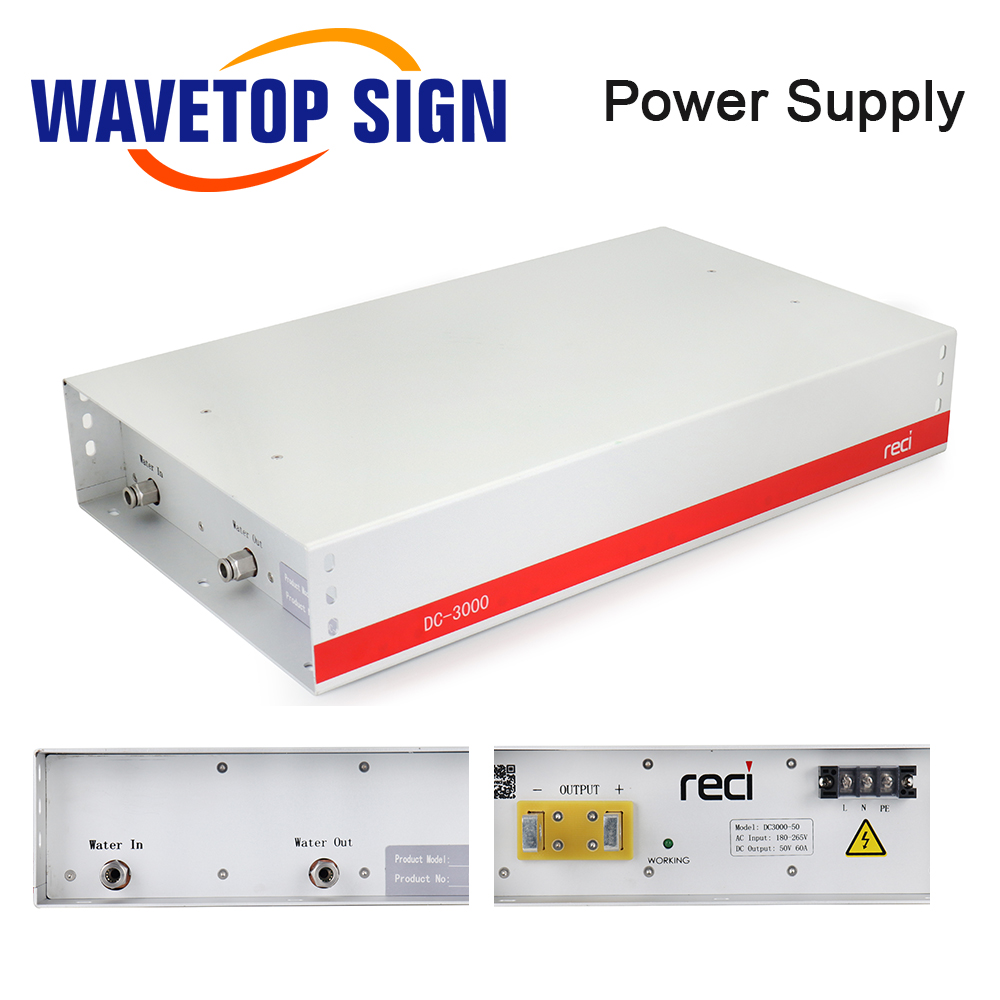

DC Power Requirements Description:
Output voltage 50V DC +/- 1V
DC output current (average) 60A
DC output current (peak value) 60A
Power output (maximum) 3kW
Cooling Water Specifications:
Cooling Water Flow Rate: (L/min)
Minimum 6
Recommendation 7
Cooling water pressure (maximum) 6.0 bar (88 psi)
Loss: <5 kW
Necessary cooling capacity: >3.2 kW
Connect 14mm outer diameter pipe
Cooling water temperature: 28-31°C
Features：
01 Good beam quality
02 High electro-optic conversion rate
03 Compact structure and long lifespan
04 The maximum output power can reach 800W
Application:
01 Non-metallic cutting, marking and carving
02 Used in apparel and footwear industries
03 Applied to signage and advertising industries
04 Used in crafts and lamps industries
|
Model
|
R20 / R30 / R40
|
|
Power
|
120w / 200w / 300w
|
