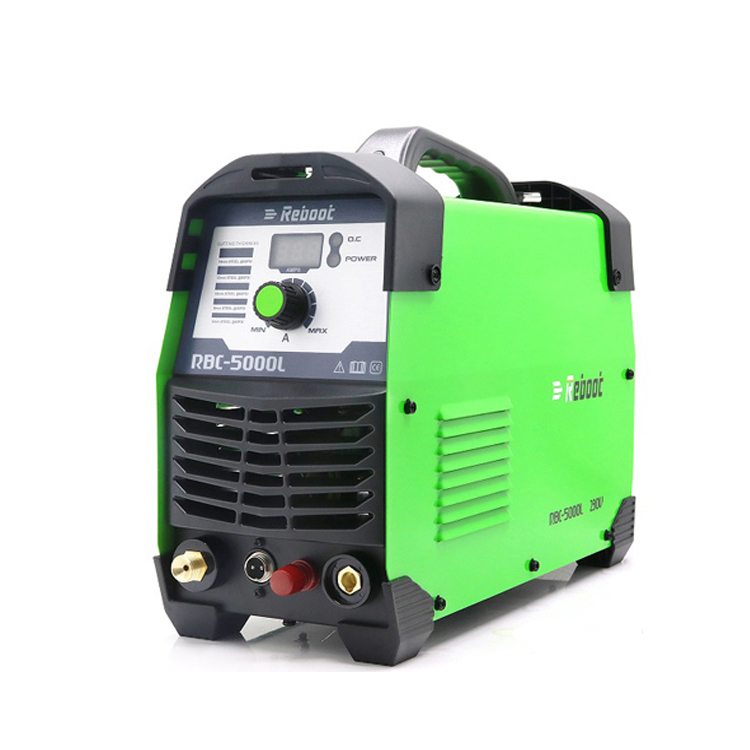

Reboot Pilot 50A 220V Dual Voltage Mini Metal Cutter AC 1/2″ Clean Cut Inverter DIY Home Use Portable Plasma Cutter Welders

$691.90

SKU: 1005004292097967 Category:

Description

  • Brand Name: MLHJ
  • Origin: CN(Origin)
  • Certification: GS
  • Warranty: 3 years
  • Customized support: OEM, ODM, OBM
  • Place of Origin: Guangdong, China
  • Brand Name: Reboot, Reboot
  • Model Number: Cut 50L(AA)
  • Rated Output Current: 20A-45A
  • Weight: 6.8KG

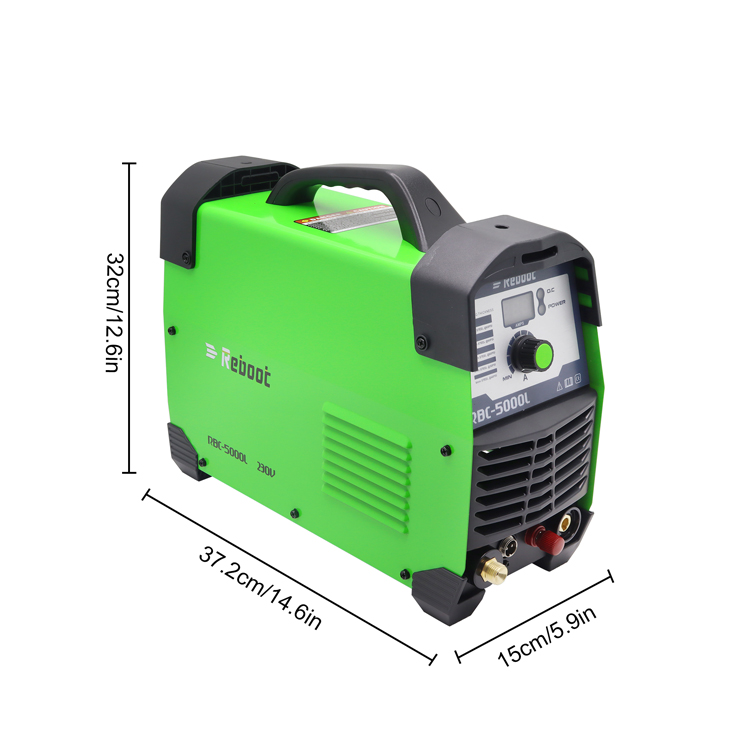

  • Dimension (L x W x H): 372MM*150MM*320MM
  • Dimensions: 49mm*35mm*28mm
  • Current Range: 20A-50A
  • Generator Input: 4.8 KVA
  • Insulation Class: F
  • Certification: CE
  • No Load: 285V
  • Max Cutting Thickness: 15mm
  • Air Pressure: 60-70PSI







Input voltage

Current range

Insulation Class

No Load

230V

20A-50A

F

285V

Generator Input

Rated Duty Cycle

Max Cutting Thickness

Air Pressure

4.8KVA

60% At50A 100 At40A

15MM

60-70PSI

 [Cutting thickness] 15-55 A DC output, 12mm ideal clean cut and 15mm maximum cut (Depends on the metal material ) under 230V. Fully Output Circuit Breaker Requiement: 220V @ 30A. For the plug is 32A and the circuit breaker requires above 30A

2 [Performance] Duty cycle: 60% at 50A, 100% at 40A. Air Compressor Requirement: 60-70 PSI. suitable cutting for Stainless Steel, Alloy Steel, Mild Steel, Copper, Aluminum, etc. Pilot arc technology allows you to cut without touching the tip to the metal. Better cutting quality and longer consumable life.

[Energy Saving]The cutting machine adopts IGBT inverter technology, which features with current control, high quality and stable performance, so the energy consumption is also greatly reduced. With the protection of the electric circuit against over currents, over voltages and low voltages, the cutting welder works in a moresafer and professional way.

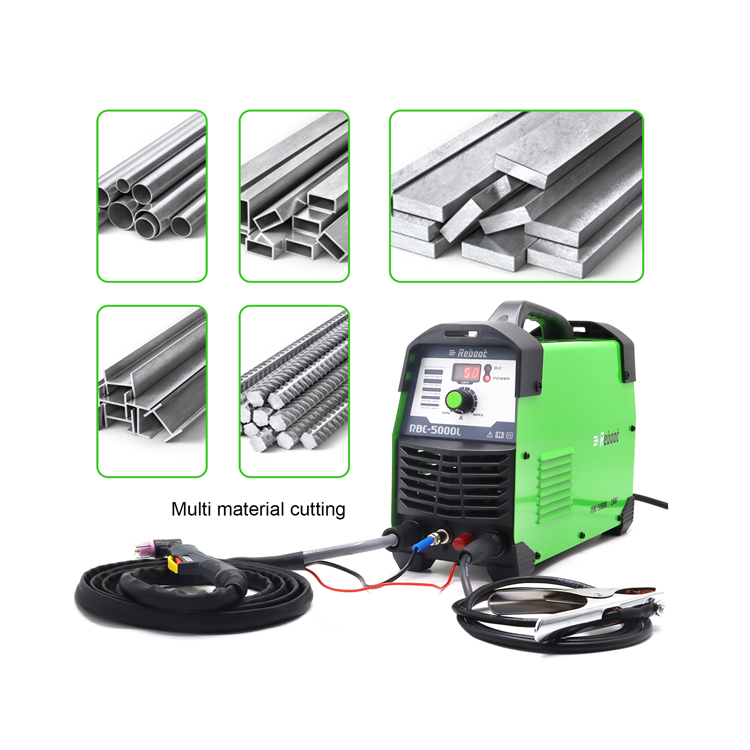

4 With your Reboot Plasma Cutter, you can cut stainless steel, alloy steel, mild steel, copper aluminum, and other metal materials without breaking a sweat,and produces minimal slag. Designed for both demanding industrial and construction work, or home and hobby use.

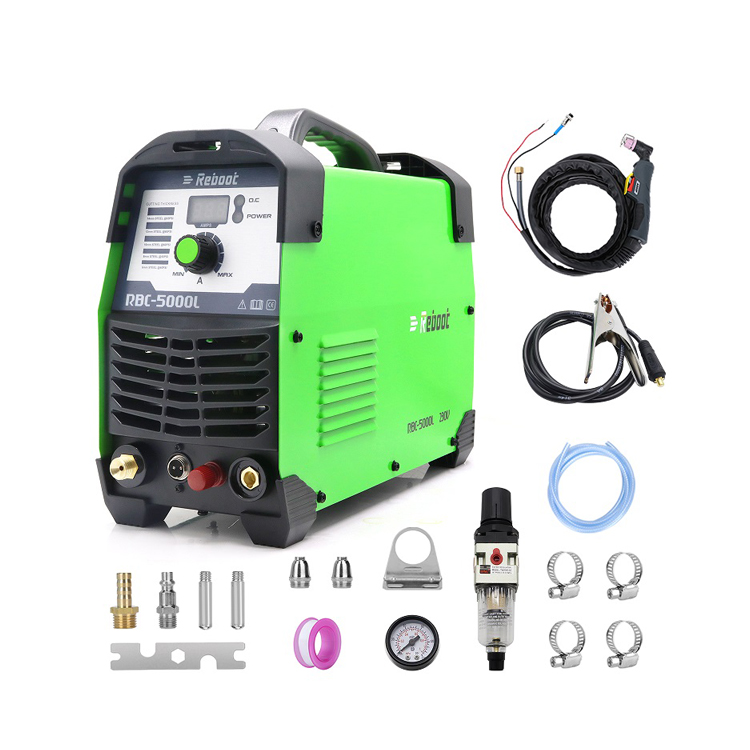

 How to connect the air compressor:

A Seal the connection of the copper gas fitting and the ‘IN’ and ‘OUT’ terminals.

Connect the regulator gasket to the installation location of the regulator.

Attach the controller bracket to the two screws at the top of the back of the machine.

Remove the mounting ring from the top of the controller and install the controller on the mounting bracket and reattach the ring.

E Release the gas valve, modulate the gas pressure to the prescribed pressure and press the button.



A Test the existing packaging is reasonable and reliable,can meet the transportation requirements.

B After repeated 30 tests and improvements, the existing packaging is finally determined.
