Description
- Model Number: fbo4
Model: 500mw(with cooling fan)
Laser wavelength: 405nm (blue-violet)
Max power: 480mw
Shell material: aluminum (anodized black)
Operating voltage: DC 12V (7 ~ 15VDC)
Power Interface: hx2.54 pmw ttl
Cooling: fan
Size: 33*33*70mm Laser focus adjustable
low light :support
PWM/TTL:support . TTL 0v off ,5v on
Model: 1000mw(with cooling fan)
Laser wavelength: 405/445nm (blue-violet)
Max power:950mw
Shell material: aluminum (anodized black)
Operating voltage: DC 12V (7 ~ 15VDC)
Power Interface: hx2.54 pmw ttl
Cooling: fan
Size: 33*33*70mm Laser focus adjustable
low light :support
PWM/TTL:support . TTL 0v off ,5v on
Model: 1600mw(with cooling fan)
Laser wavelength:445nm (blue-violet)
Max power:1500mw
Shell material: aluminum (anodized black)
Operating voltage: DC 12V (7 ~ 15VDC)
Power Interface: hx2.54 pmw ttl
Cooling: fan
Size: 33*33*70mm Laser focus adjustable
low light :support
PWM/TTL:support . TTL 0v off ,5v on
Model: 2500mw(with cooling fan)
Laser wavelength: 445nm (blue-violet)
Max power: 2400mw
Shell material: aluminum (anodized black)
Operating voltage: DC 12V (7 ~ 15VDC)
Power Interface: hx2.54 pmw ttl
Cooling: fan
Size: 33*33*70mm Laser focus adjustable
low light :support
PWM/TTL:support . TTL 0v off ,5v on

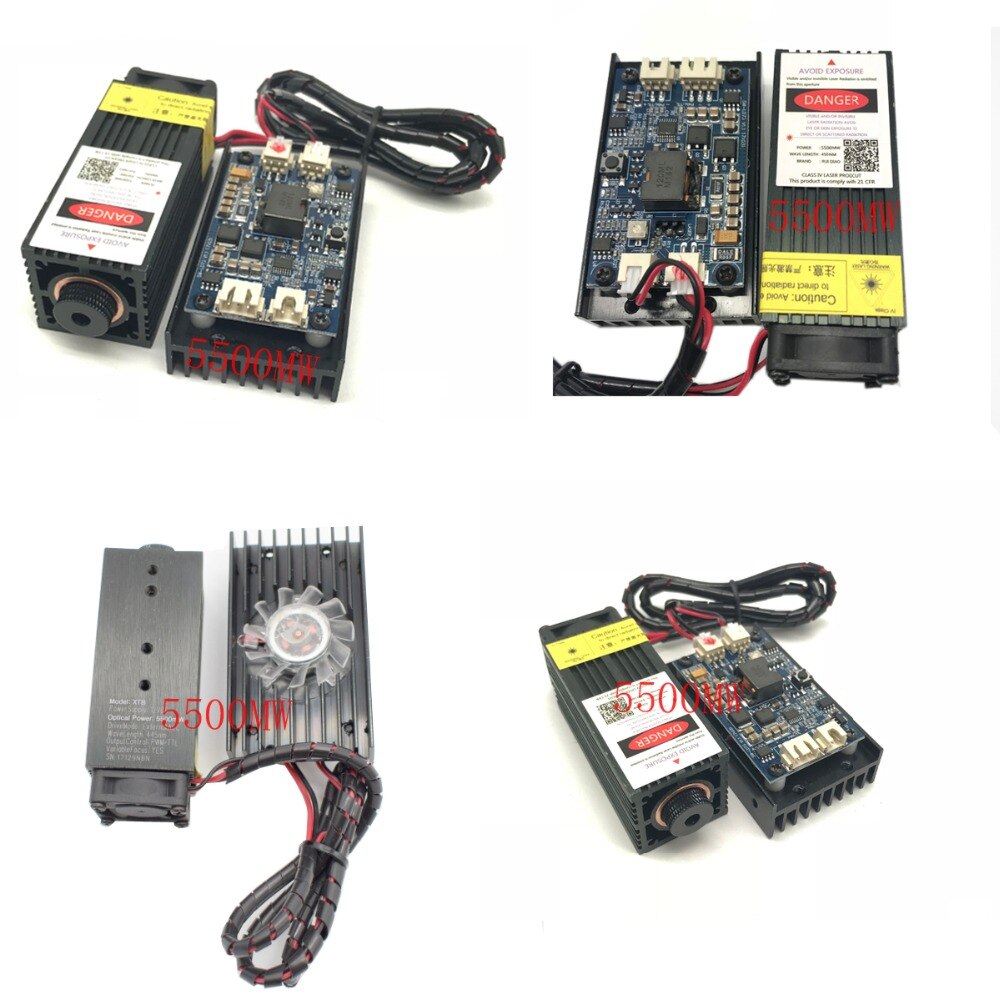

Model: 5500mw(with 2 cooling fan)
Laser wavelength: 445nm (blue-violet)
Max power: 5000mw
Shell material: aluminum (anodized black)
Operating voltage: DC 12V (7 ~ 15VDC)
Power Interface: hx2.54 pmw ttl
Cooling: fan
Size: 33*33*80mm Laser focus adjustable
low light :support
PWM/TTL:support . TTL 0v off ,5v on

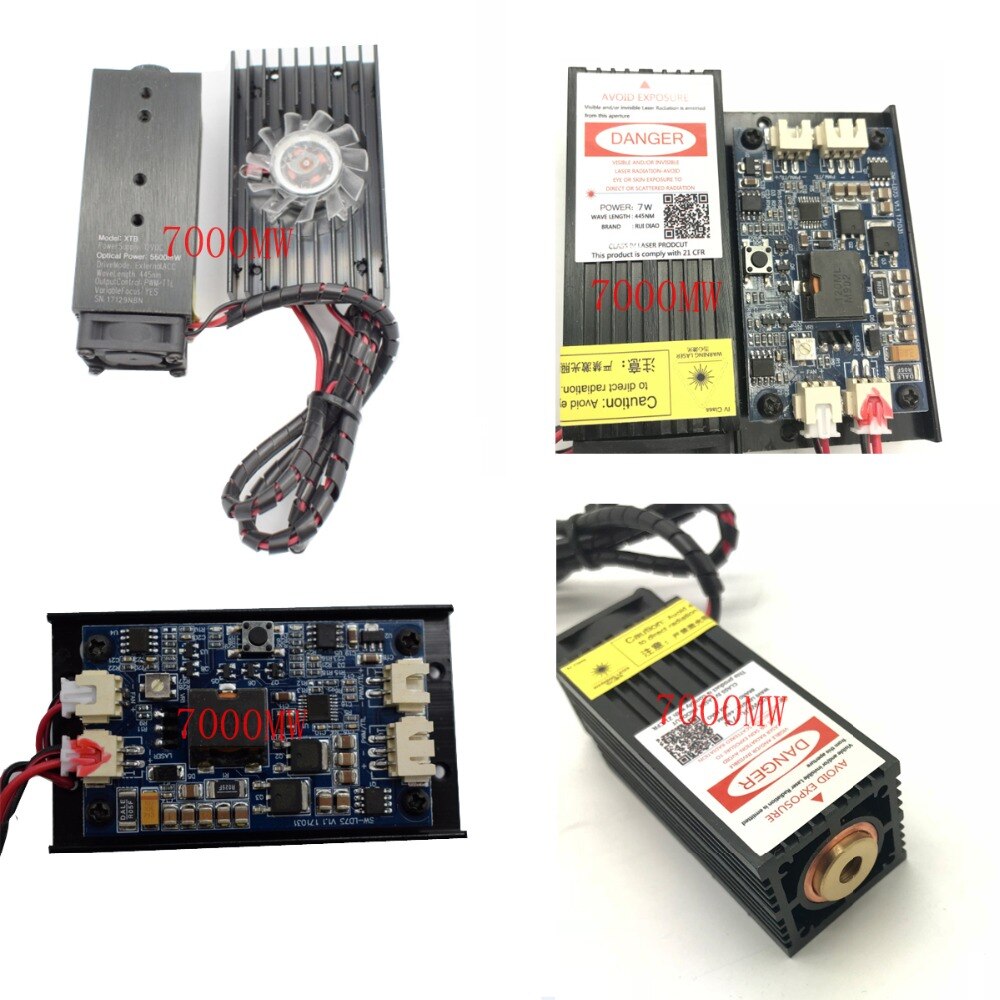

Model: 7000mw(with 2 cooling fan)
Laser wavelength: 445nm (blue-violet)
Max power: 7000mw
Shell material: aluminum (anodized black)
Operating voltage: DC 12V (7 ~ 15VDC)
Power Interface: hx2.54 pwm ttl
Cooling: fan
Size: 33*33*80mm Laser focus not adjustable
low light :support
PWM/TTL:support . TTL 0v off ,5v on
500mw can cut paper , engrave on wood surface ,
2500mw can cut 1mm wood . 5500mw can engrave on Alumina surface. 7000mw can engrave on stainless steel.laser focus not adjustable.
If you pleace order now ,there will be a goggles in the package:
