Description
- Origin: CN(Origin)
- Certification: CE
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 30*5mm
- Cutting Speed: ≤7000mm/s
- Graphic Format Supported: AI, PLT, DXF
- Place of Origin: Switzerland, Switzerland
- Brand Name: Raytools
- Laser Source Brand: RAYCUS
- Weight (KG): 3 KG
- Key Selling Points: Competitive Price
- Warranty: 1 Year
- Machinery Test Report: Not Available
- Video outgoing-inspection: Not Available
- Warranty of core components: Not Available
- Core Components: cutting head
- wavelength: 1064nm/10.6um
- Max power: 1.5KW
- Focus length: 125/155/200mm
- Collimator Focal Length: 100mm
- Clear Aperture: 26mm
- Max Cutting Gas Pressure: 25 Bar
- Certification: ce
- Local Service Location: None
- Showroom Location: None
- Marketing Type: Hot Product 2019
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-6{font-size:18px}#detail_decorate_root .magic-7{font-size:14px}#detail_decorate_root .magic-8{width:750px;border-collapse:collapse}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:242px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{text-align:center}#detail_decorate_root .magic-11{min-height:18px;padding:5px 10px;width:220px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-12{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-13{margin-bottom:0}#detail_decorate_root .magic-14{position:relative;width:100%}#detail_decorate_root .magic-15{width:750px}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:979.5673076923077px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;height:979.5673076923077px}#detail_decorate_root .magic-20{width:446px}#detail_decorate_root .magic-21{overflow:hidden;width:446px;height:197.3874425727412px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:446px;height:197px}#detail_decorate_root .magic-23{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-24{font-size:16px}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:562.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:750px;height:562.5px}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:449.4219653179191px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750px;height:449.4219653179191px}#detail_decorate_root .magic-29{overflow:hidden;width:247.33333333333334px;height:185.42716921868865px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:247px;height:185px}#detail_decorate_root .magic-31{overflow:hidden;width:247.33333333333334px;height:185.2496626180837px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-32{margin-top:1.0013495276653173px;margin-left:27.036437246963565px;width:179px;height:179px}#detail_decorate_root .magic-33{margin-top:4.005398110661269px;margin-left:54.07287449392713px;width:136px;height:184px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:858px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:858px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:316.0182119205298px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:316px}
Product Description
Product Features:

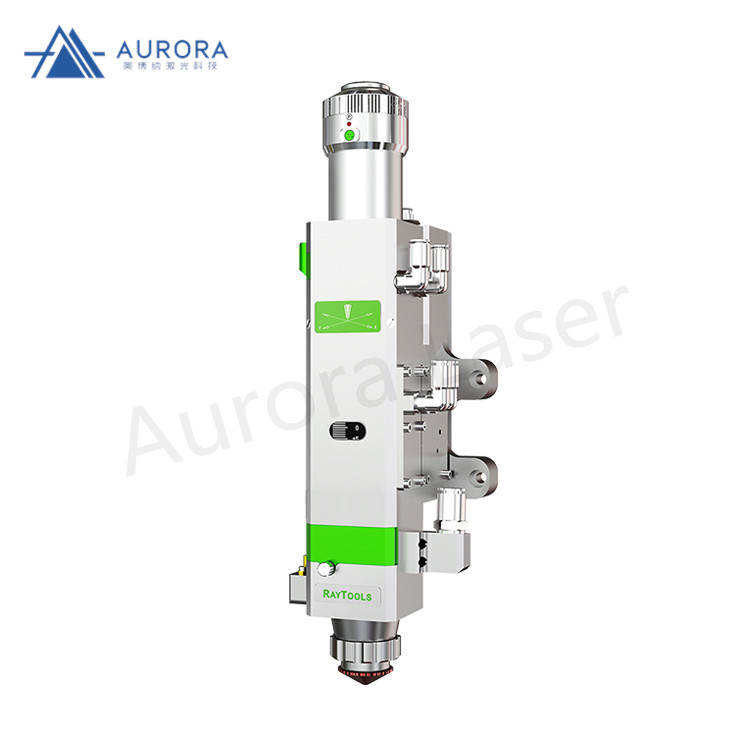

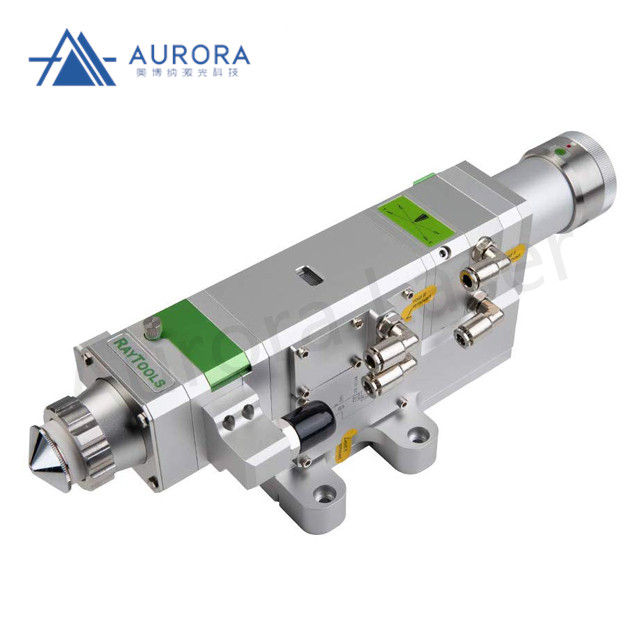

The BM109 series are auto-focusing laser cutting heads released by RAYTOOLS AG in 2017 for fiber laser processing with 1.5KW or less. This products have a built-in motor drive unit, which drives the focusing lens through a linear mechanism to change position automatically within 17mm. Customers can set the program to achieve continuous focus that completing the rapid piercing and cutting material with different thickness. BM109 use the D28 diameters lense set to collimate and focus the laser beam, which can achieve the diffraction-limited optical effect. The design of water-cooled structure allows laser heads to work stably and chronically.
The BM109 series are auto-focusing laser cutting heads released by RAYTOOLS AG in 2017 for fiber laser processing with 1.5KW or less. This products have a built-in motor drive unit, which drives the focusing lens through a linear mechanism to change position automatically within 17mm. Customers can set the program to achieve continuous focus that completing the rapid piercing and cutting material with different thickness. BM109 use the D28 diameters lense set to collimate and focus the laser beam, which can achieve the diffraction-limited optical effect. The design of water-cooled structure allows laser heads to work stably and chronically.
Specifications:
• Optimized optical configuration, smooth and efficient airflow design;
• Auto-focus range is +8～-9mm, Accuracy is 0.05mm;
• D28 diameters lens set, the maximum optical input power is 1.5KW;
• The maximum acceleration of the focusing lense is 10m/s2, the maximum speed is 6m/min;
• The collimator lens and focusing lens are all protected by cover glass modules, which can effectively protect the collimator lens and focusing lens from contamination;
• Drawer-type of lens mount, quick and easy access to the cover glass;
For more details please contact with me anytime.
• Auto-focus range is +8～-9mm, Accuracy is 0.05mm;
• D28 diameters lens set, the maximum optical input power is 1.5KW;
• The maximum acceleration of the focusing lense is 10m/s2, the maximum speed is 6m/min;
• The collimator lens and focusing lens are all protected by cover glass modules, which can effectively protect the collimator lens and focusing lens from contamination;
• Drawer-type of lens mount, quick and easy access to the cover glass;
For more details please contact with me anytime.
|
Power Rating
|
≤1.5KW
|
|
Clear Aperture
|
26mm
|
|
Collimating protective glass
|
φ24.9mm*1.5mm
|
|
Focus protective glass
|
φ27.9mm*4.1mm
|
|
Assist gas Pressure
|
≤25bar
|
|
Weight
|
～3kg
|

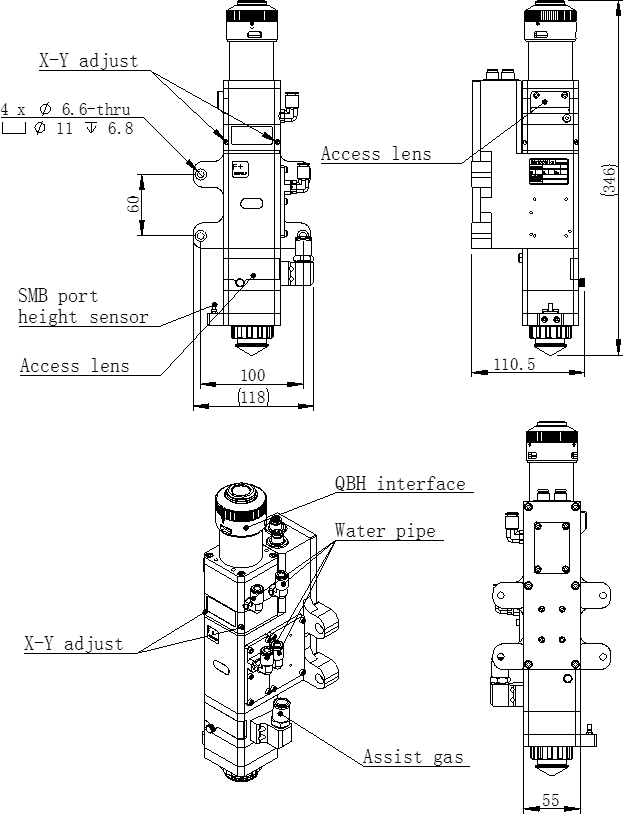

Details Images
After-sales Service
Aurora Laser will offer best after sales service for you.
Professional engineers team for over 12 years in this field. Fix any problem you faced.
Contact Us
Any inquiry please kindly contact with us:
Wechat pls scan QR code.
Foreign sales Director: Lalita
Email: lalita@nj-aurora.com
Whatsapp: +86 18014837624
Skype: lalita5201
Wechat pls scan QR code.

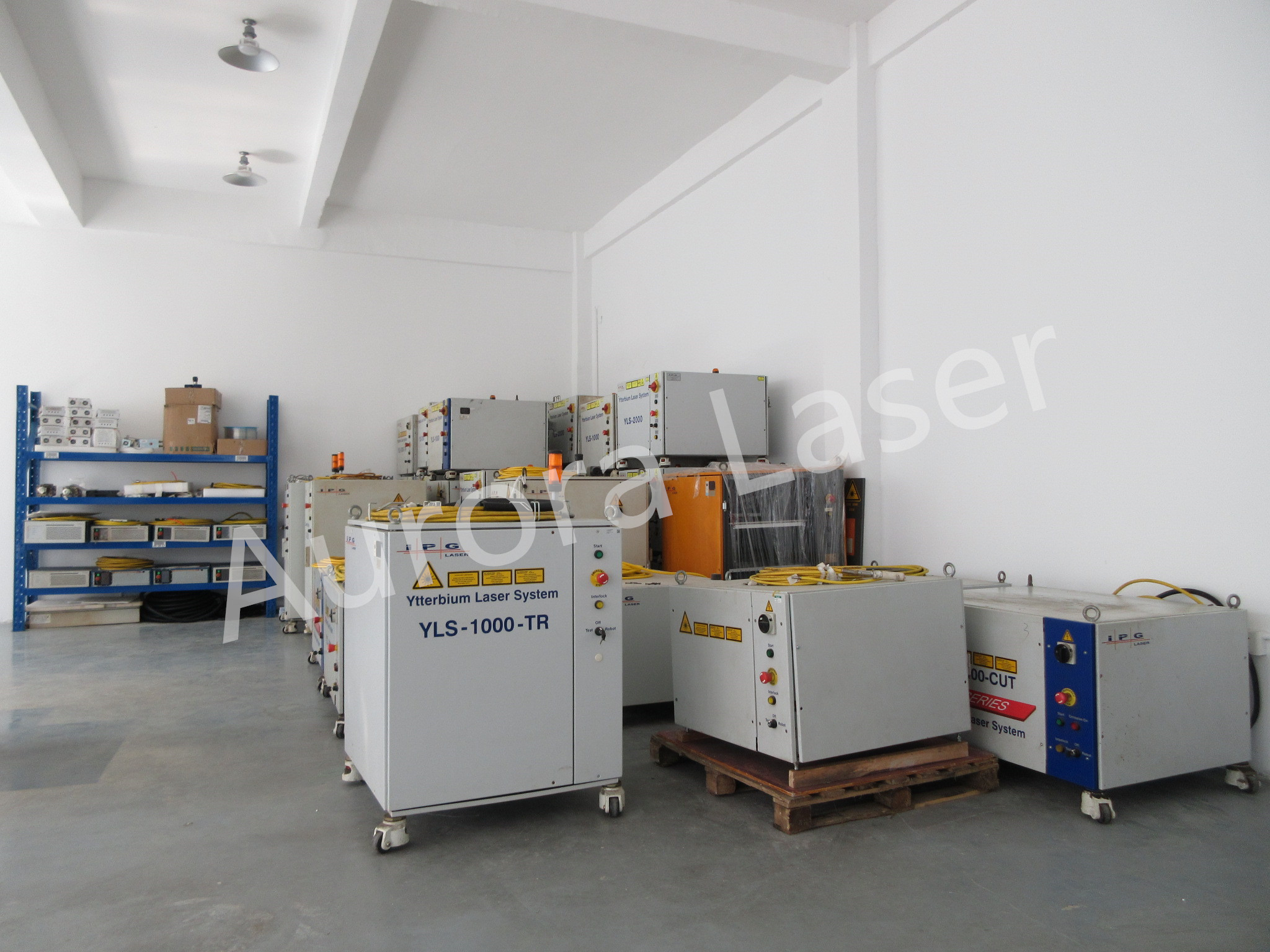

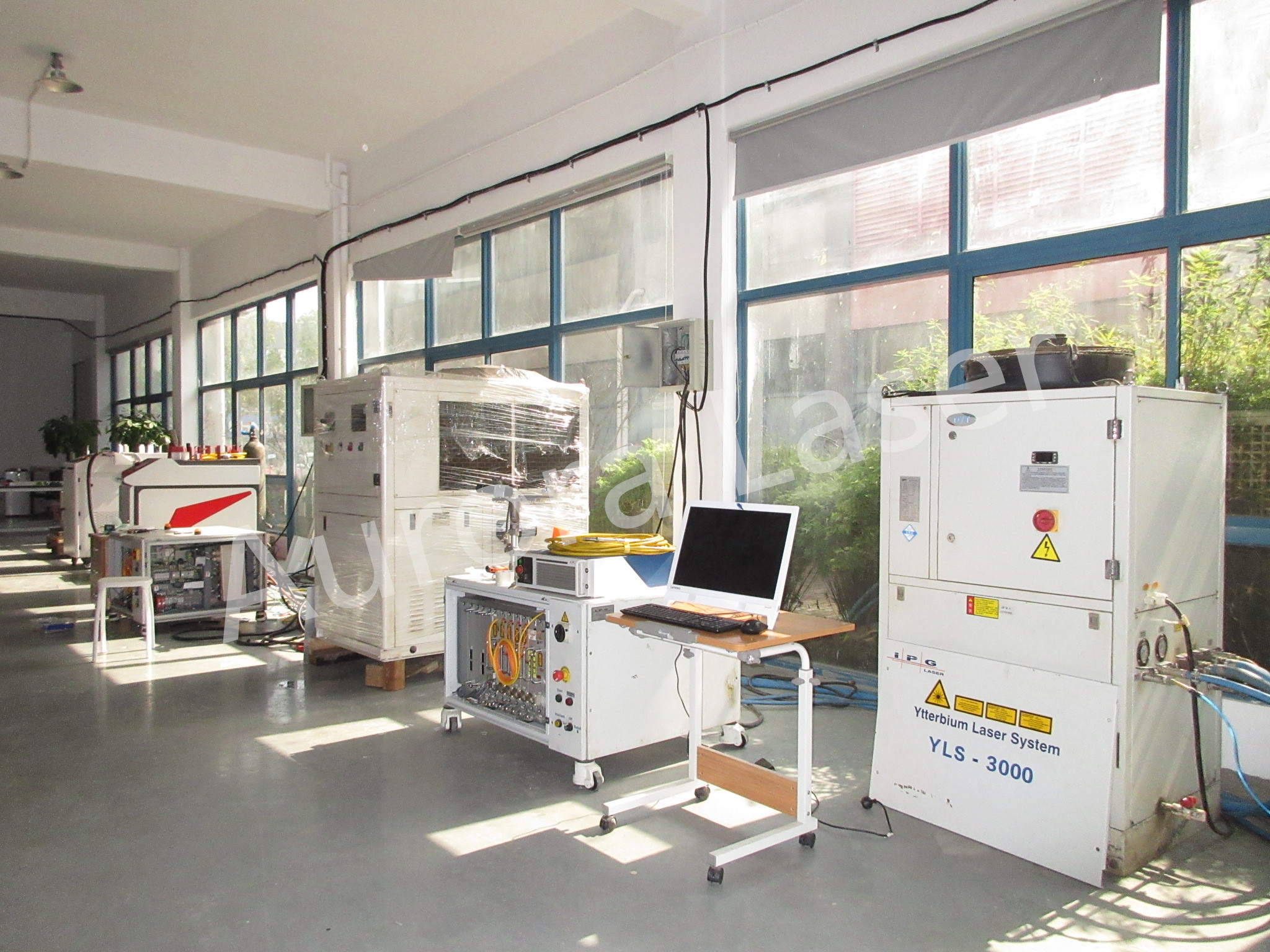

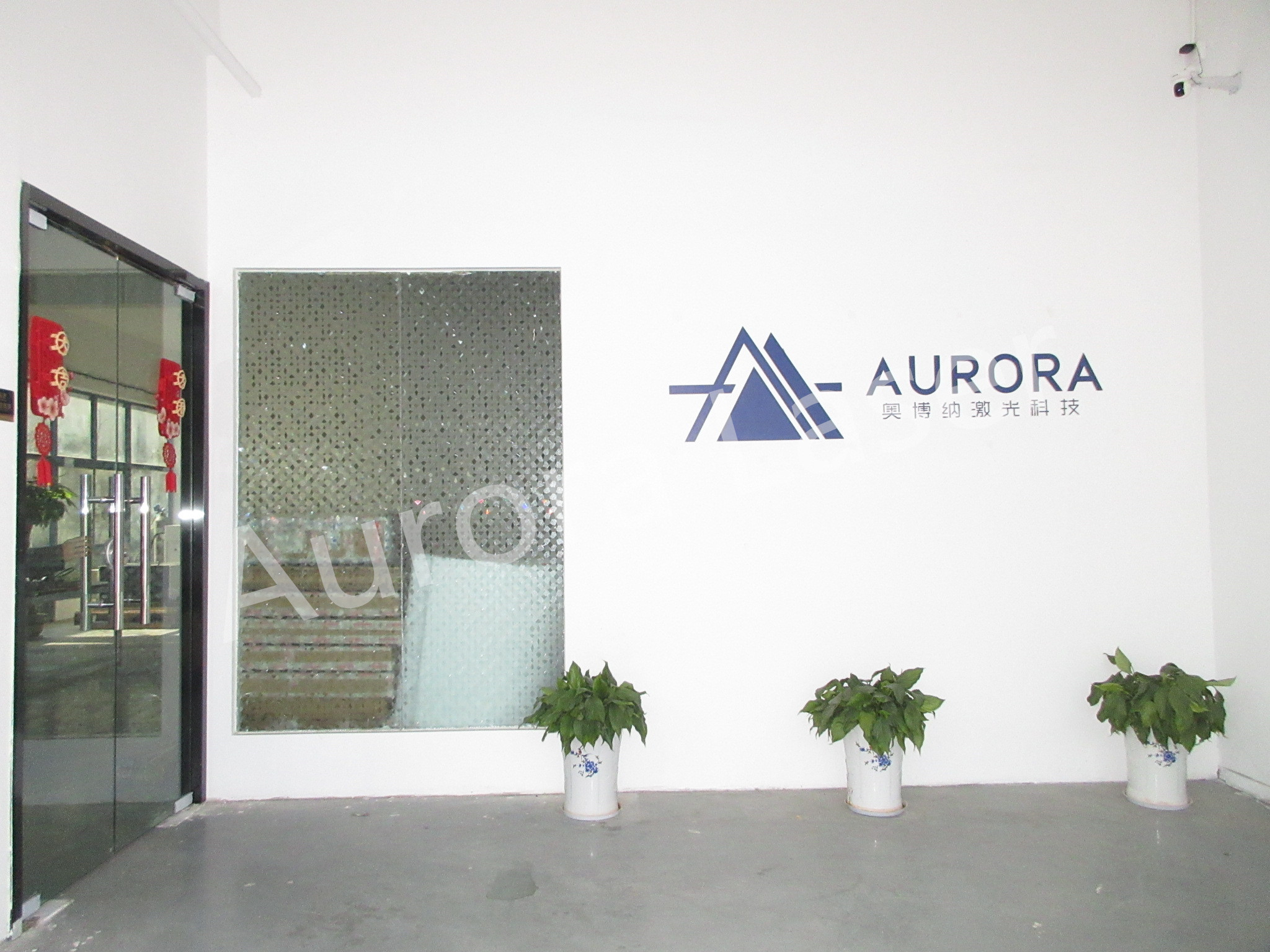

Our Company
Nanjing Aurora laser technology co., LTD. (hereinafter referred to as Aurora laser) is a high-tech enterprise which has a
innovative and professional technical team in the fiber laser field, our members who formerly worked for famous laser enterprises both at home and abroad have decades of work experience and a wealth of experience of on-site troubleshooting with reasonable price and short maintenance cycle. In addition, Aurora laser has set up a research center, which makes us a supplier who integrates the development R&D, production and service of materials, device integration and laser source related products such as optical fiber. We can offer you excellent after-sales service for both online support and field maintenance and repair.
Aurora laser always adhere to the establishment of a learning team, and has been working hard on it, through the use of today’s advanced network technology, we receive problems customers encountered faster and more accurate and solve them, rich industry experience makes Aurora laser won universal praise among the vast customers community!
innovative and professional technical team in the fiber laser field, our members who formerly worked for famous laser enterprises both at home and abroad have decades of work experience and a wealth of experience of on-site troubleshooting with reasonable price and short maintenance cycle. In addition, Aurora laser has set up a research center, which makes us a supplier who integrates the development R&D, production and service of materials, device integration and laser source related products such as optical fiber. We can offer you excellent after-sales service for both online support and field maintenance and repair.
Aurora laser always adhere to the establishment of a learning team, and has been working hard on it, through the use of today’s advanced network technology, we receive problems customers encountered faster and more accurate and solve them, rich industry experience makes Aurora laser won universal praise among the vast customers community!
FAQ
1. Q: What is your warranty policy?
2. Q: What is your after-sales service?
A: We got very professional engineers team with more than 12 years in this field, they can provide online support or
machine repair to your country.
3. Q: What is your advantage?

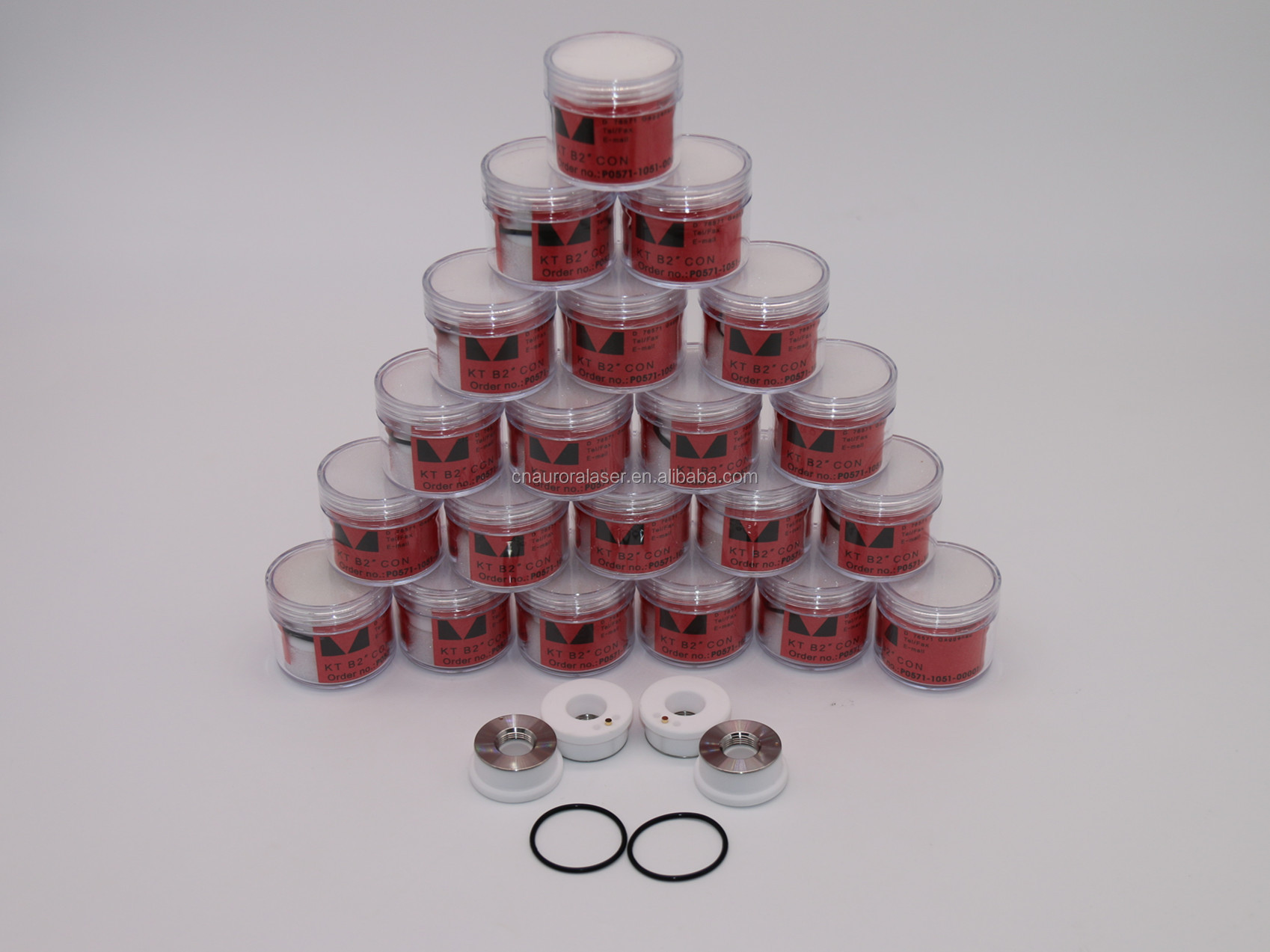

A: We are a professional and reliable company, selling and repairing all models of laser machines with any brand. Purchasing and OEM for consumable parts is welcomed. We can also retrofit machines for your demands.
