Description

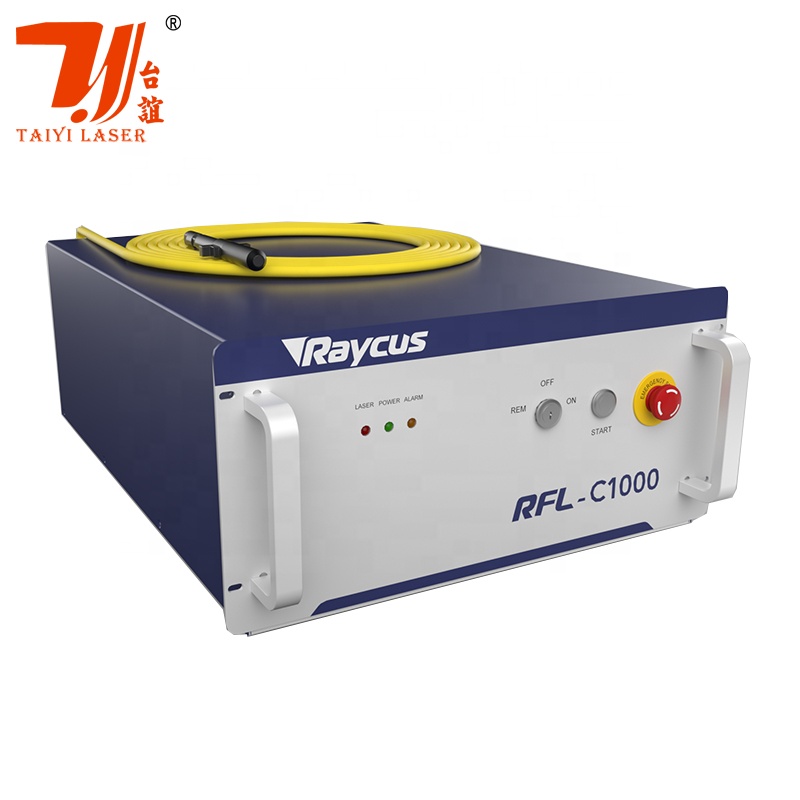

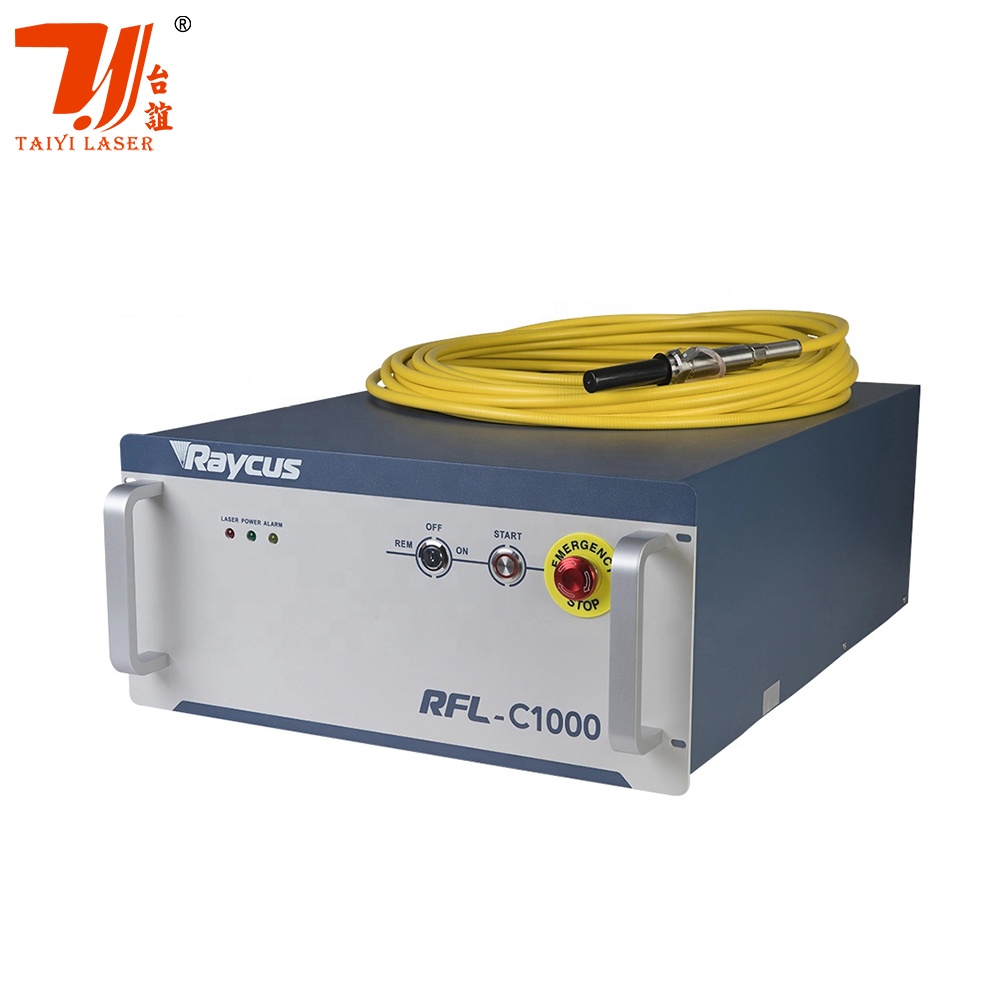

Raycus RFL-C1000 1000W 1KW Laser Source For Fiber Laser Cutting Machine
Model | RFL-C500 | RFL-C750 | RFL-C1000 | RFL-C1500 | RFL-C2000 | RFL-C3000 |
Optical Properties | ||||||
Output Power (W) |
500 | 750 | 1000 | 1500 | 2000 | 3000 |
Wavelength (nm) |
1080±5 | |||||
Operation Mode | CW/Modulate | |||||
Max.Modulation Frequency (KHz) |
20 | 5 | ||||
Output Power Stability | ±1.5% | |||||
Red Laser | Yes(0.1mW-1mW) | |||||
Output Characteristics | ||||||
Beam Delivery Optics | QBH(Customizable) | |||||
Beam Quality | 1.1(25μm) | 1.3(25μm) | 5-7(50μm) | |||
Polarization State | Random | |||||
Delivery Cable Length (m) |
15(Customizable) | 20(Customizable) | ||||
Electrical Characteristics | ||||||
Power Supply | 200-240 Single Phase | 380 Three Phase | ||||
Power Range (%) |
10%-100% | |||||
Other Characteristics | ||||||
Dimensions (mm) |
485×237×748 | 900×447×251 | ||||
Weight (KG) |
<50 | <70 | <80 | |||
Cooling | Water Cooling | |||||
Operating Temperature (℃) |
10-40 |
