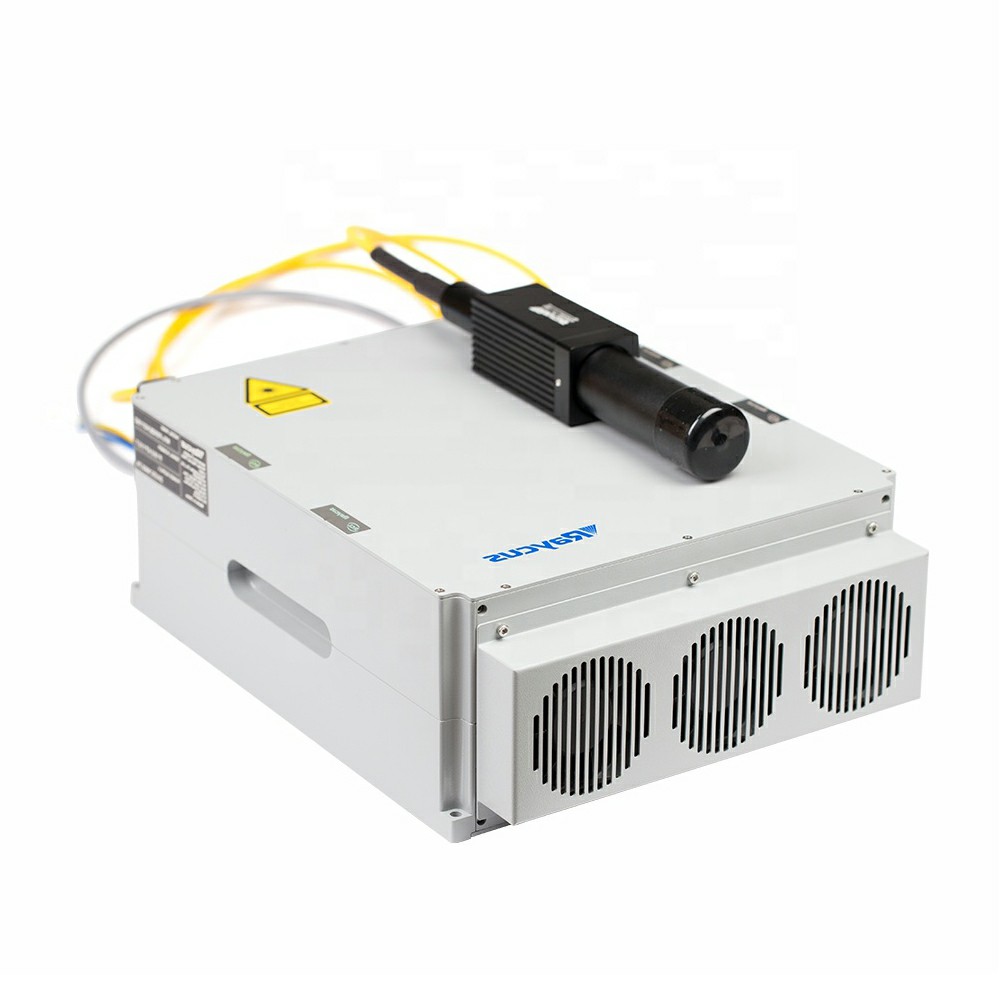

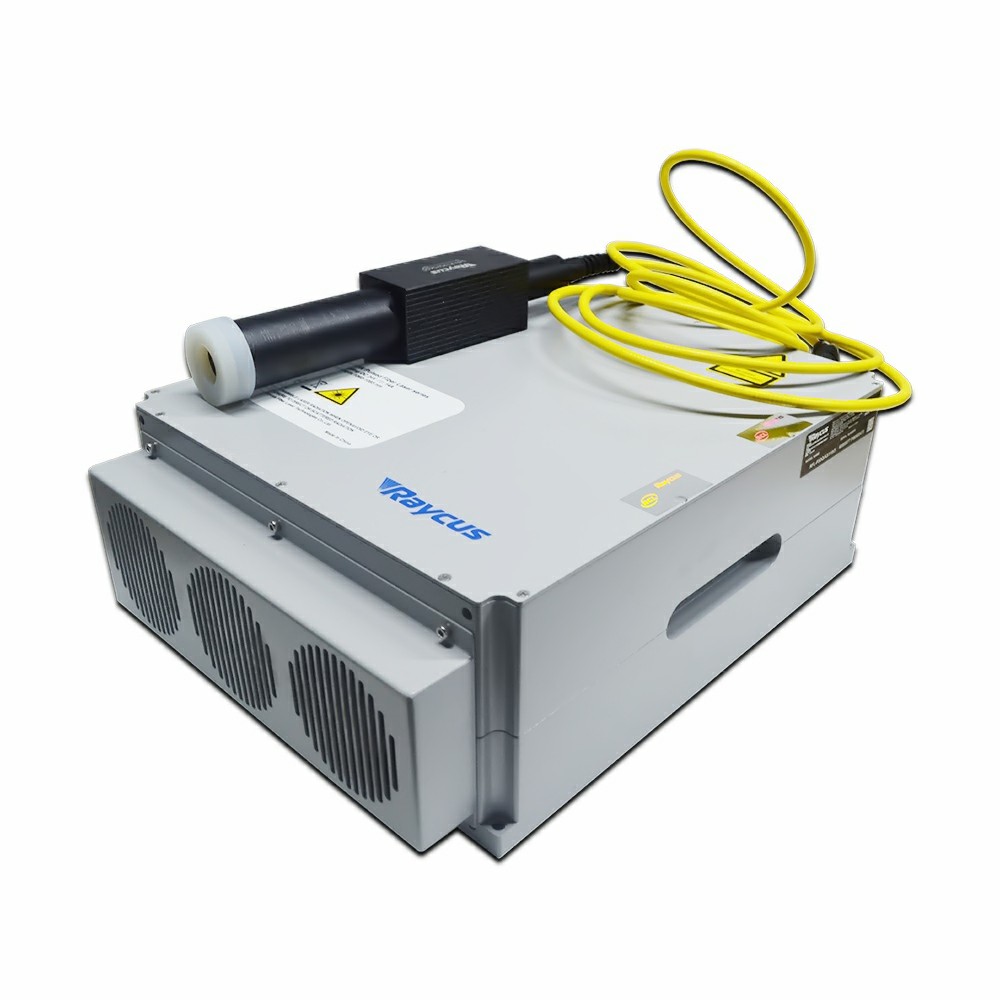

Raycus Q – Switched puls fiber laser source 20W 30W 50W 60W 70W 100W for lazer marking machine laser module
Products Descriptions
The 20-100W Q-Switched Pulse Fiber Laser Series developed by Raycus is the industrial marking and micromachining laser. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude stress resistance, stainless materials without altitude stress resistance. Its marking process features lower cost and more stable performance compared with traditional laser.
Technical Parameters
|
Pulsed fiber laser
|
20W
|
30W
|
50W
|
||
|
Wavelength(nm)
|
1064
|
1064
|
1064
|
||
|
Polarization
|
Random
|
Random
|
Random
|
||
|
Optical isolator
|
Yes
|
Yes
|
Yes
|
||
|
Nominal average output power (W)
|
220
|
230
|
250
|
||
|
Single pulse energy (mJ) @20kHz
|
1@30kHz
|
1@30kHz
|
1@30kHz
|
||
|
Beam quality”)
|
<1.8
|
<1.8
|
<1.8
|
||
|
Beam Diameter(mm)
|
6~8
|
6~8
|
6~8
|
||
|
Pulse duration(ns)@20kHz
|
<120@30kHz
|
<120@30kHz
|
<120@30kHz
|
||
|
Pulse repetition rate(kHz)
|
20-60
|
30-60
|
50-100
|
||
|
Output Power Tunability(%)
|
10-100
|
10-100
|
10-100
|
||
|
Output Fiber Cable length(m)
|
2
|
2
|
2
|
||
|
Working voltage(VDC)
|
24±1
|
24±1
|
24±1
|
||
|
Power consumption(20°)(W)
|
200
|
300
|
400
|
||
|
Cooling
|
Forced Air Cooled
|
Forced Air Cooled
|
Forced Air Cooled
|
||
|
Dimension WxDxH(mm)
|
260x391x120
|
396x360x125
|
|||
|
Operating temperature
|
0℃~40℃
|
||||
|
Store temperature
|
-10℃ ~ 60℃
|
||||
|
Humidity
|
30% 〜85%
|
||||
Applications & Samples
Applicable Industries
✦Tools
✦Medical instruments
✦Charger
✦Power bank
✦Bearing
✦Hardware
etc.
Applicable Materials
✦Metal:
Stainless steel,
Carbon steel,
Aluminium,
Titanium,
Platinum,
Gold,
Silver,
Copper,
Brass,
Zinc…
✦Non-metal: ABS, PVC…
Samples
Product Advantages
✦Highly stable laser output
✦ High single-pulse energy
✦ High marking efficiency
✦Short pulse setup time
✦ High reliability
✦ Maintenance-free operation
✦ High single-pulse energy
✦ High marking efficiency
✦Short pulse setup time
✦ High reliability
✦ Maintenance-free operation
