LaserSE

All Lasers in Life Science Industry info@laserse.com

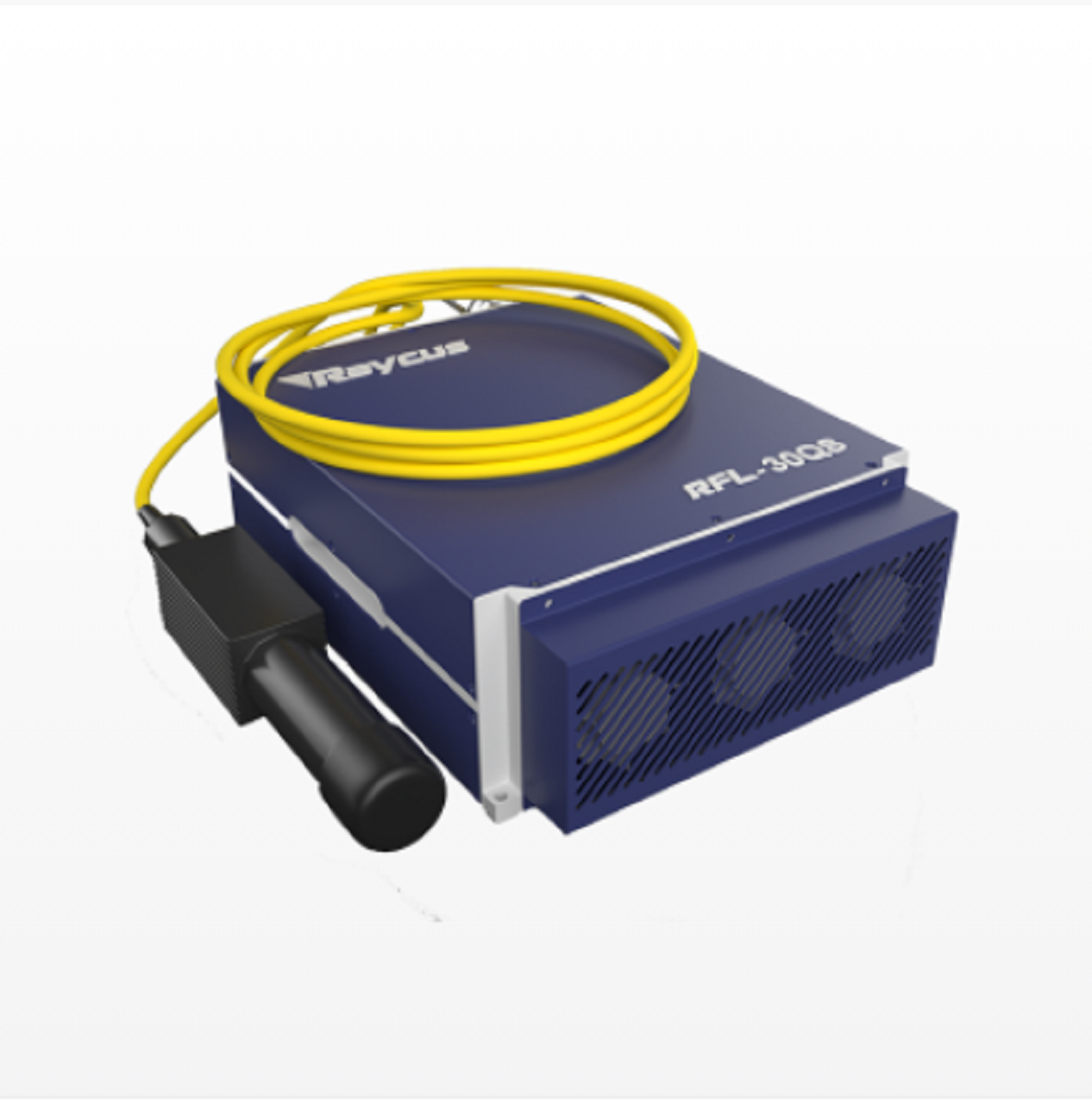

Raycus Laser Source For Marking on Metal Stainless Steel with 20W 30W 50W

  • Home
  • Raycus Laser Source For Marking on Metal Stainless Steel with 20W 30W 50W
Sale!

Raycus Laser Source For Marking on Metal Stainless Steel with 20W 30W 50W

$946.00$1,705.00

SKU: 3256802975262472 Category:

Description

  • Brand Name: XZRO
  • Certification: ce
  • Certification: GS
  • Origin: CN(Origin)
  • Certification: CE
  • Model Number: XLP
  • brand name: XZRO
  • certification: CE
  • condition: new
  • working size: 160*160
  • item type: fiber laser marking
  • optional: rotary device
  • origin: CN origin
  • model number: XLP-20
  • smart device: support
  • laser power: 20W/30W/50W/60W
  • position: red light indicator

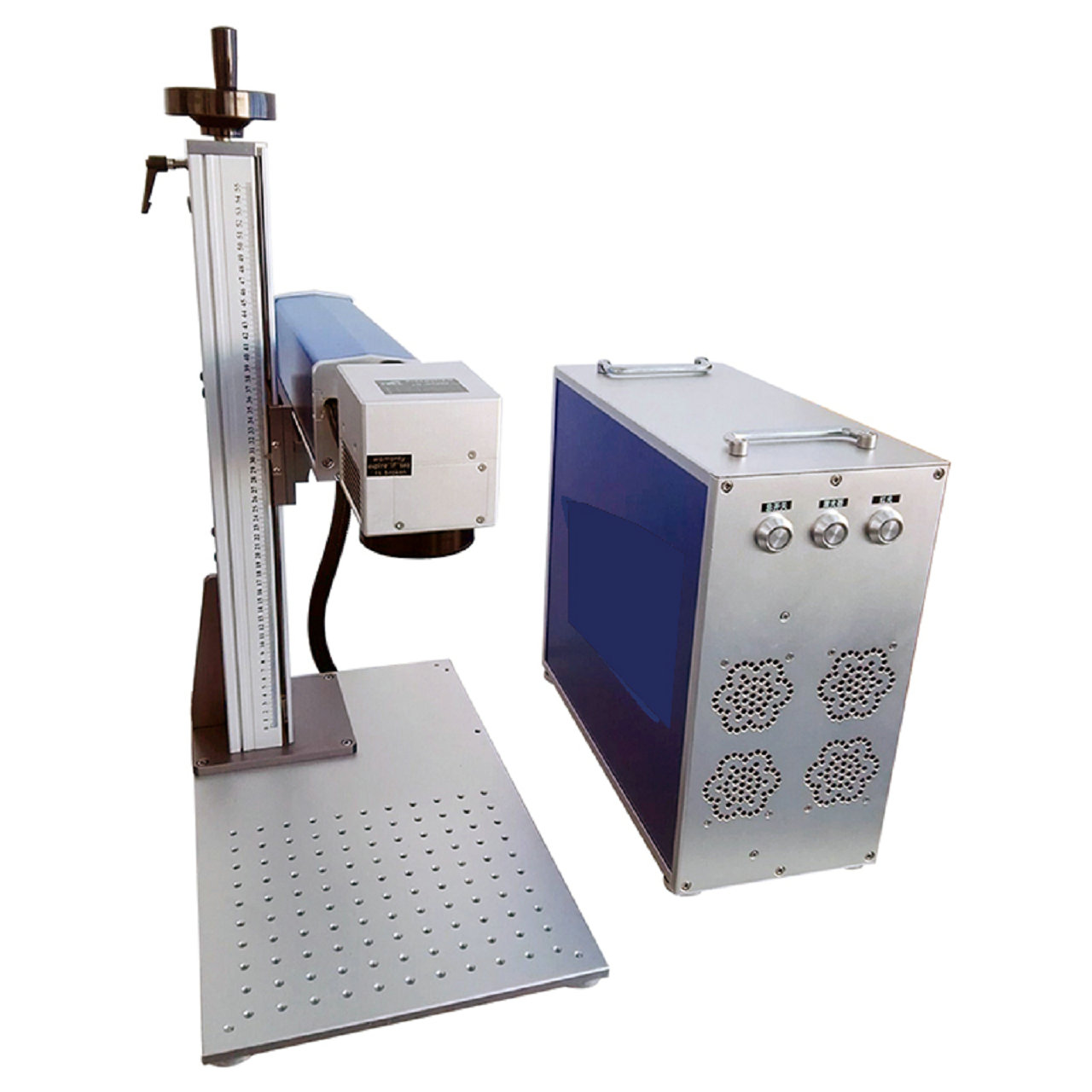

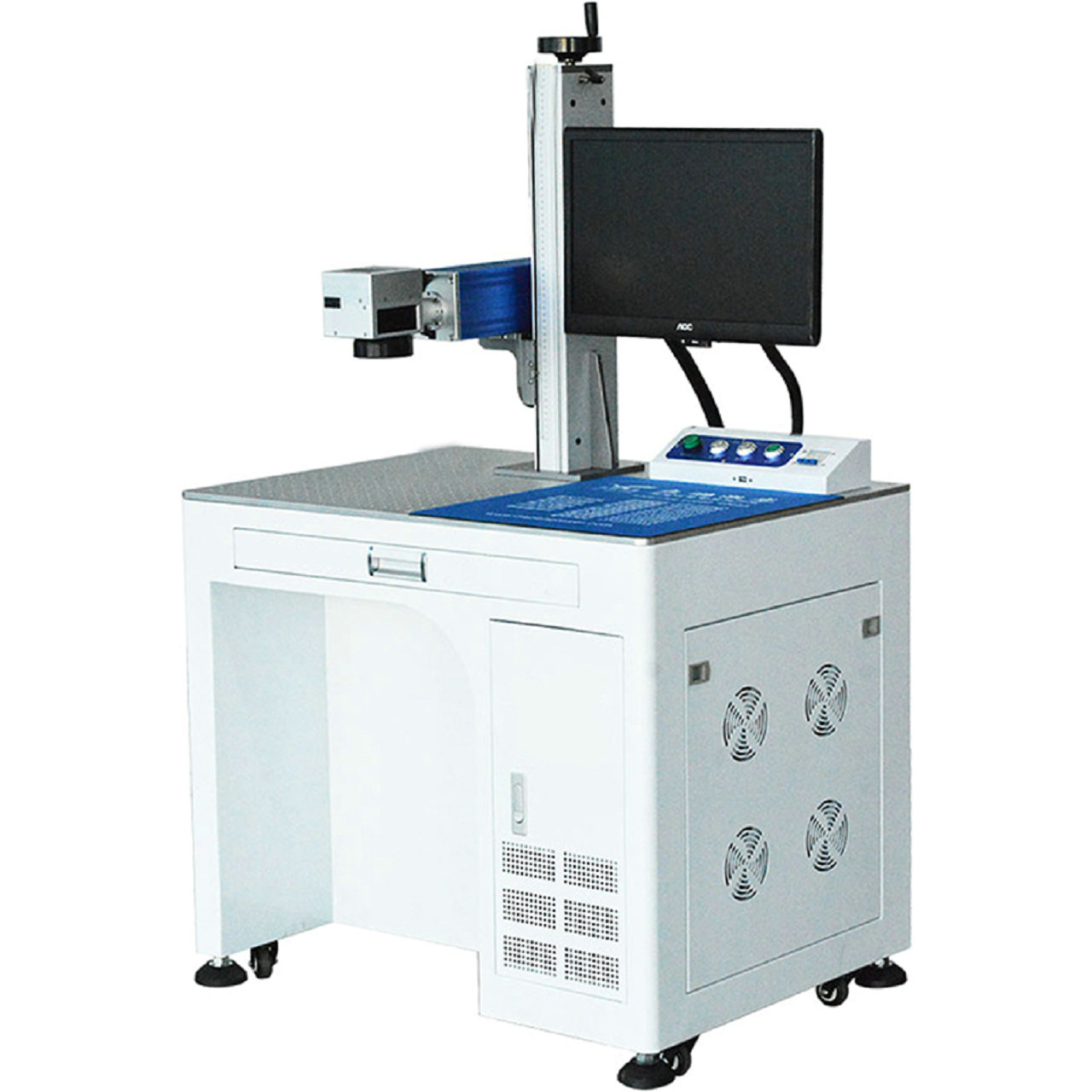

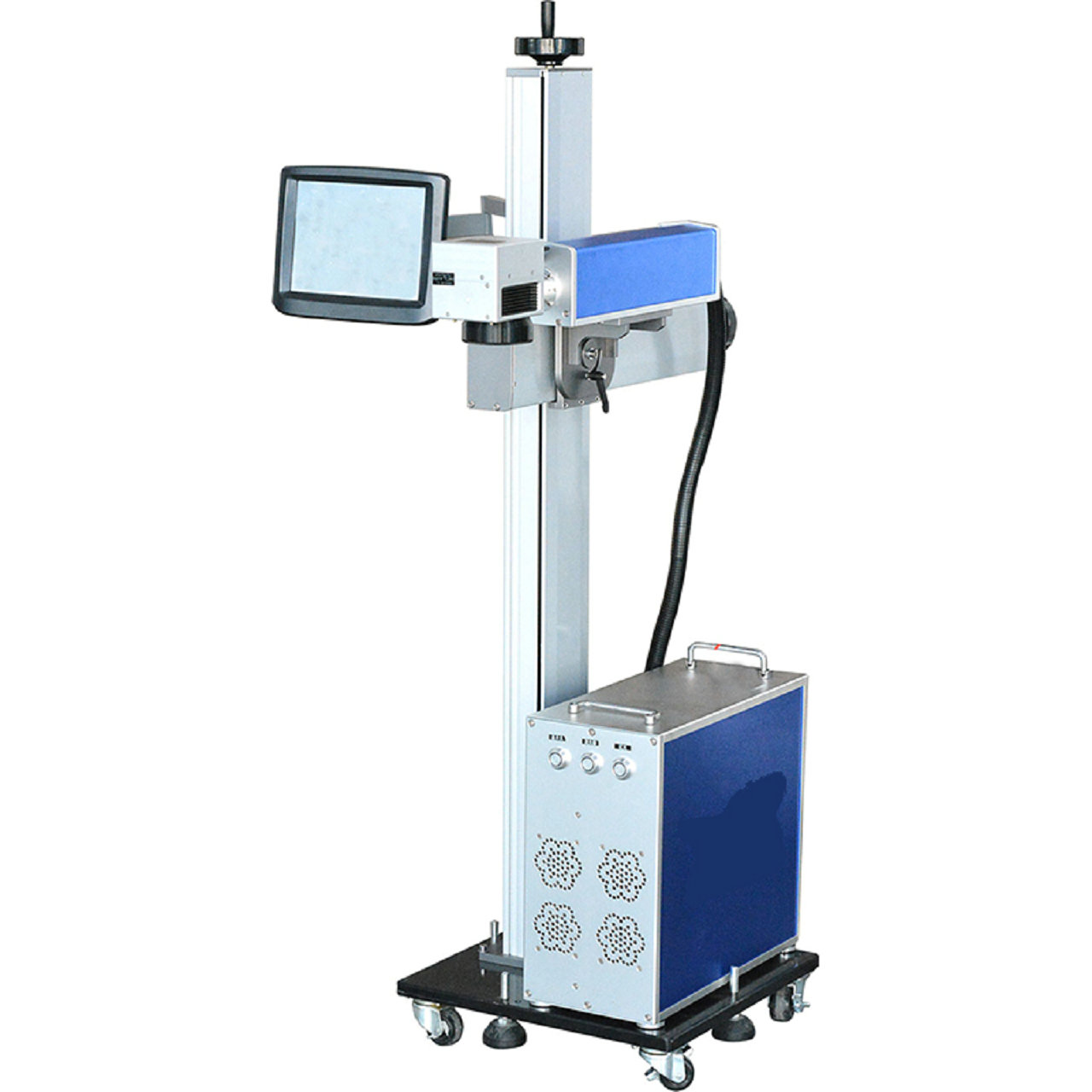

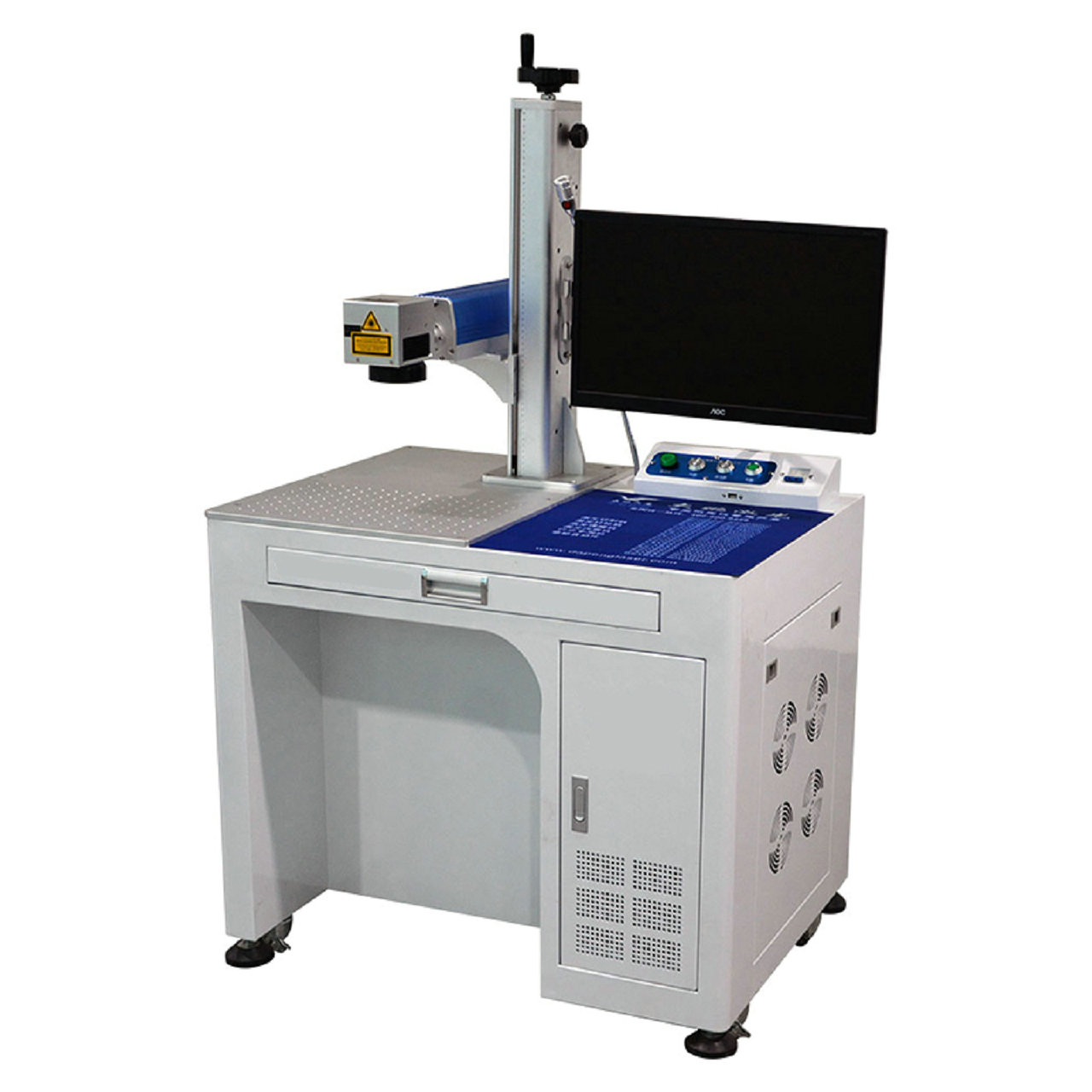

Fiber laser marking machine system with 20W/30W/50W

How to choose a fiber laser marking machine? Choose Raycus, JPT or MAX as the laser source?

We focus on lasers and provide professional solutions for fiber laser marking machines. We have different configurations for you to choose.

The following are some differences between different laser brands Raycus, JPT and Max.

Raycus is one of the first well-known brands to produce laser light sources in China.

JPT is well-known for MOPA structural design, if we need fine carving, we can choose JPT.

Max is another brand that has grown very rapidly and is also very popular in China and overseas markets.

Optical properties

Rated output power: (W ): 30

Center wavelength: (nm ): 1064

Repetition frequency range (kHz): 20-80

Output power stability: <3%

Output characteristics

Output spot diameter (mm): 7±1

M⊃2;: <1.6

Pulse width (ns): 130-160 (customizable)

Maximum single pulse energy (mJ): 0.75

Polarization state: random

Output fiber length (m): 3 (customizable)

Electronic control characteristics

Input power (VDC ): 24

Power adjustment range (%): 10-100

Other features

Dimensions (W*H*D) (mm ): 215*290*95

Cooling method: air cooling

Working temperature (℃): 0-40

Industry Application

Material processing

Marking

Deep carving
