Description
- Brand Name: JIN ZHI YIN
- Origin: Mainland China
- Certification: CE
- Condition: New
- Model Number: TS
- CNC or Not: CNC
- Power: 20W 30W 50W
- Work size: 70 110 150 200 300mm
- Control software: EZCAD
- Cooling Mode: Air Cooling
- Graphic Format: AI, BMP, DXF, PLT, AI, PLT, DXF
- Working Accuracy: 0.01mm
- Laser Type: Fiber Laser

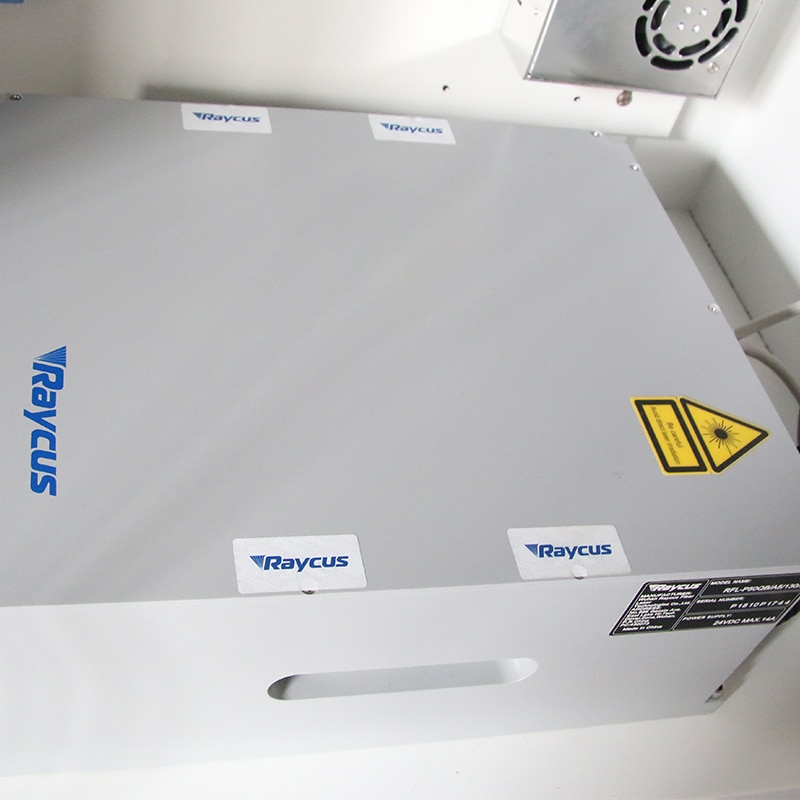

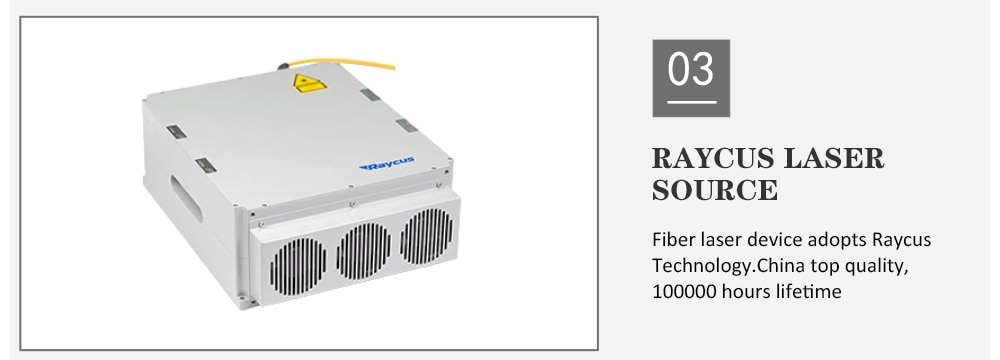

- Laser source: Raycus
- Certification: CE, FDA
- Power Supply: AC220V/110V, 50/60Hz

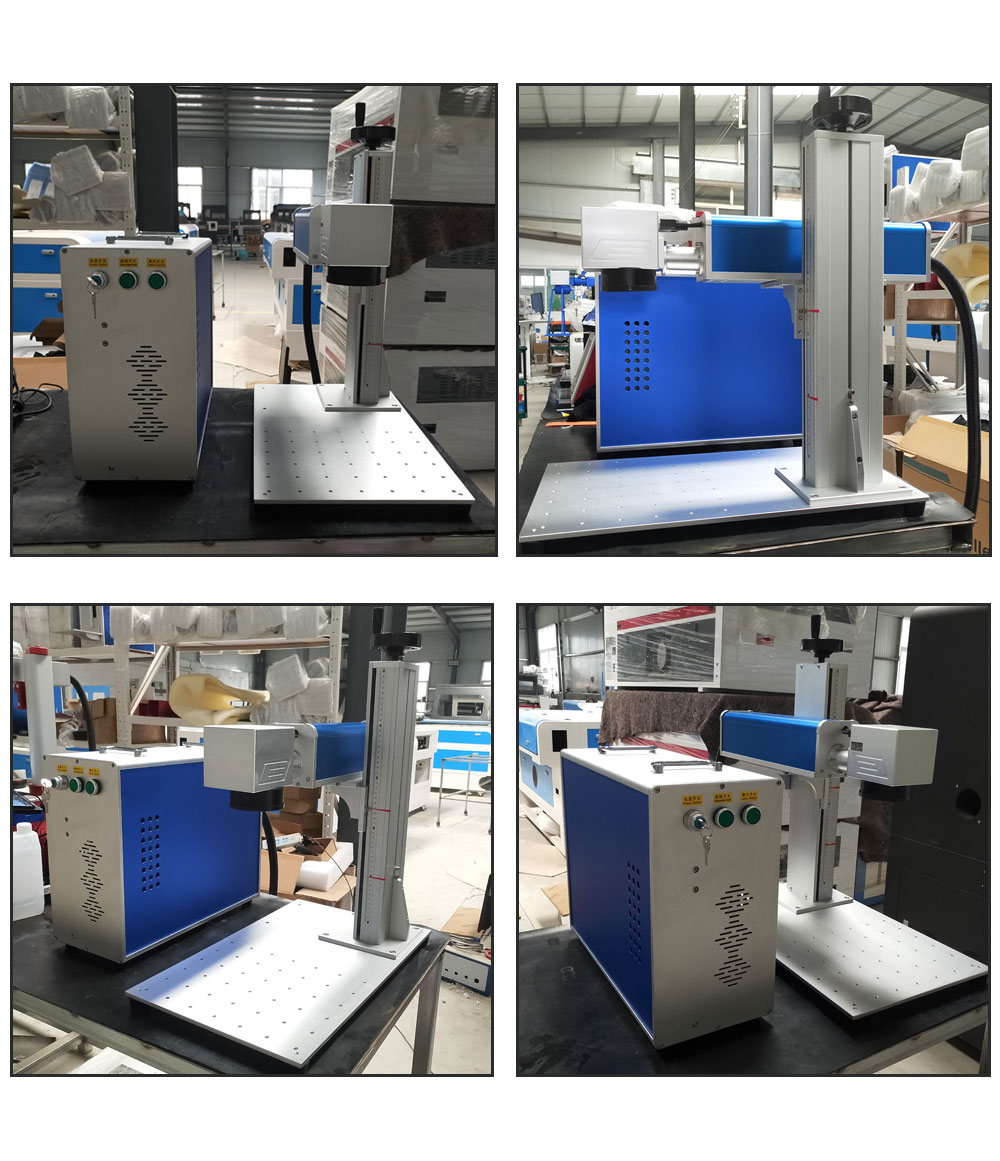

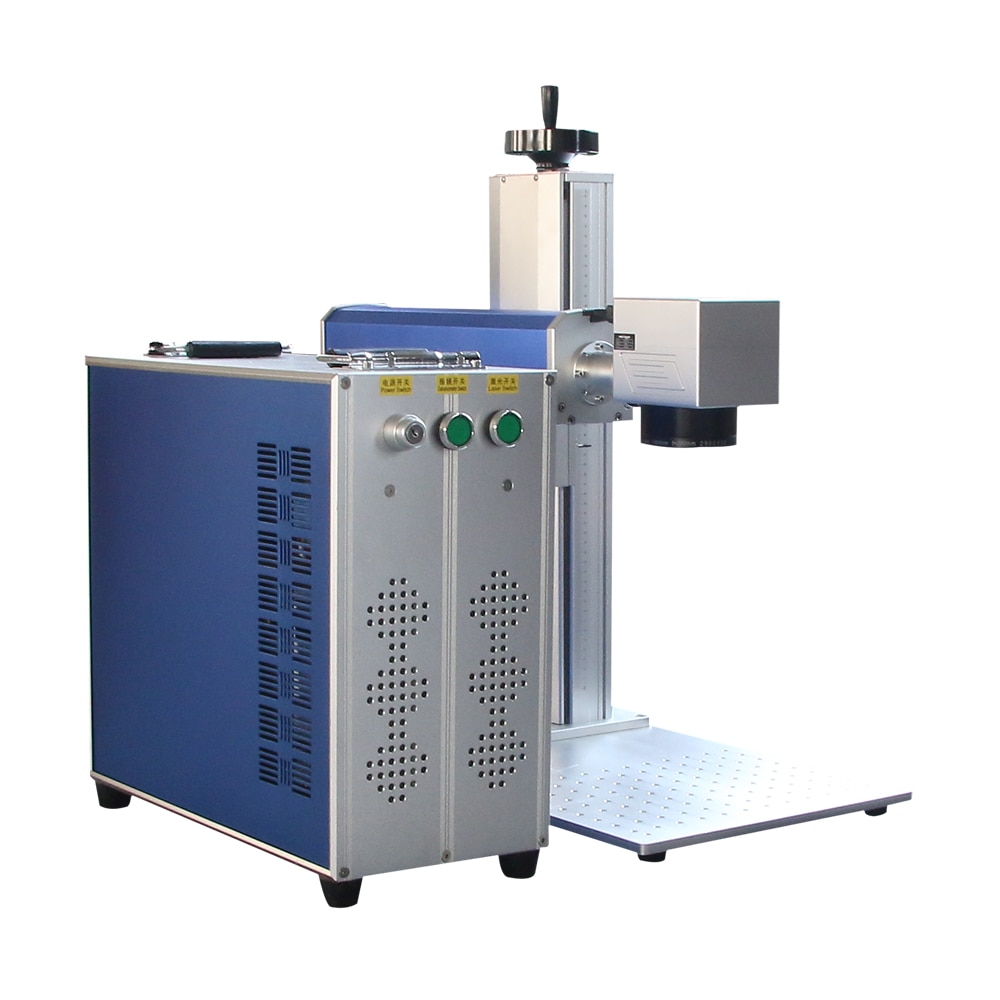

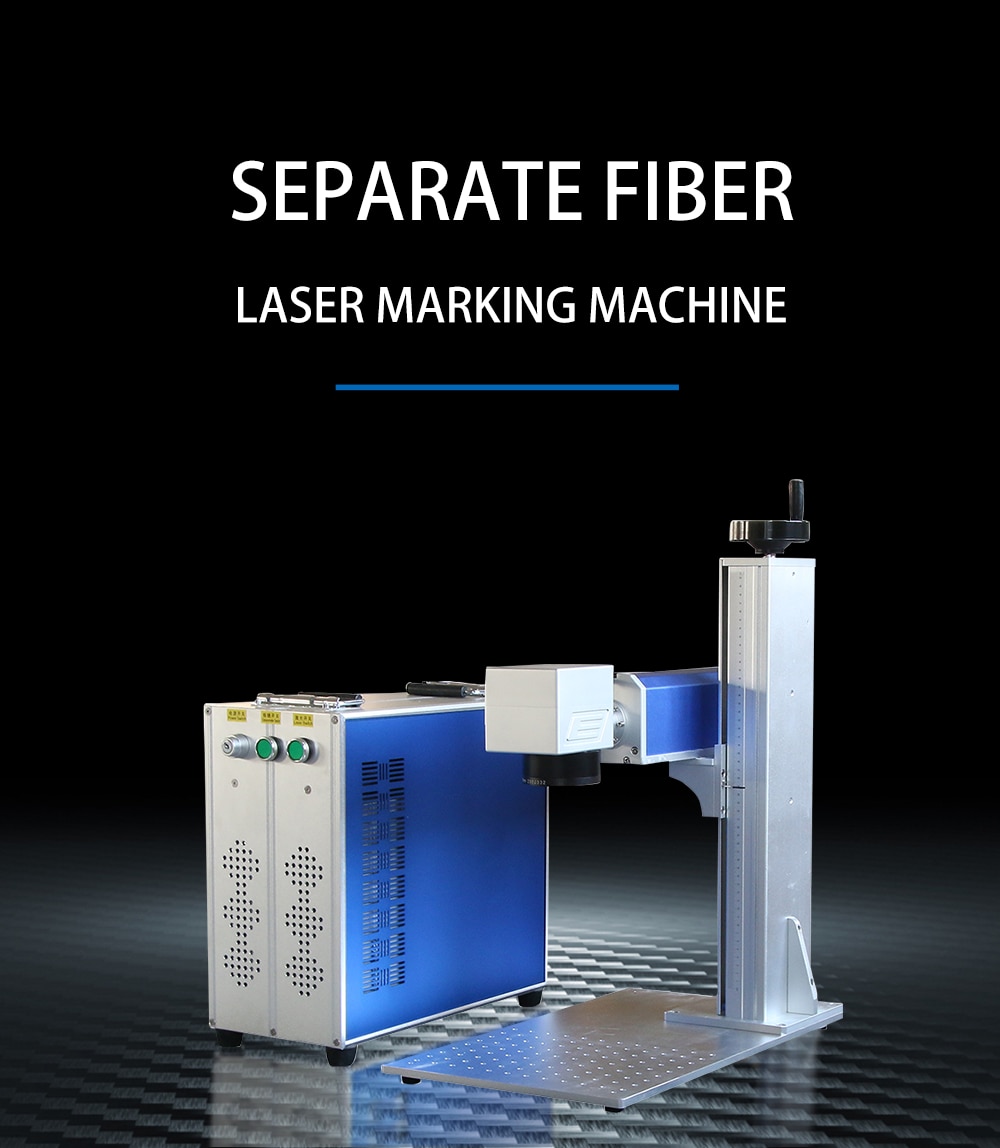

Raycus JPT 20W 30W 50W Fiber Laser Marking Machine Metal Steel Gold Engraving Cutting 110 200 300mm Lens Rotary laser marker
If you want 50W machine, please check this link:
https://www.aliexpress.com/item/4000533940707.html
Technical Parameters |
|
Type |
TS |
Power |
20W 30W 50W |
Laser Brand |
Raycus or JPT |
Marking Area |
110mm 150mm 200mm 300mm |
Marking Depth |
≤1.2mm |
Marking Speed |
800 standard characters/second |
Minimum Line Width |
0.012mm |
Minimum Character |
0.15mm |
Repeated Precision |
±0.003mm |
Life-span of Fiber Laser Module |
100 000hours |
Beam Quality |
M2 <1.5 |
Focus Spot Diameter |
<0.01mm |
Output Power of Laser |
10%~100% continuously to be adjusted |
System Operation Environment |
Windows XP / W7–32/64bits / W8–32/64bits |
Cooling Mode |
Air cooling–Built-in |
Temperature of Operation Environment |
15℃~35℃ |
Power Input |
220V / 50HZ / single phase or 110V / 60HZ / single phase |
Power Requirement |
<400W |
Communication Interface |
USB |
Package Dimension |
420mm x 760mm x 550mm |
Gross weight |
60KG |
Optional (Not free of charge) |
Rotary Device, Moving Table, other customized Automation |

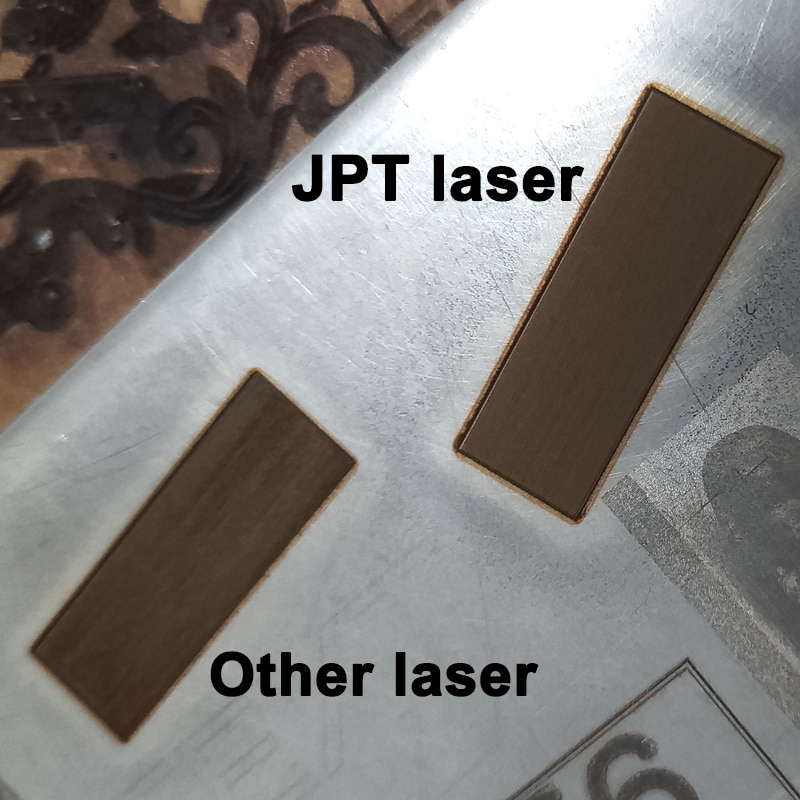

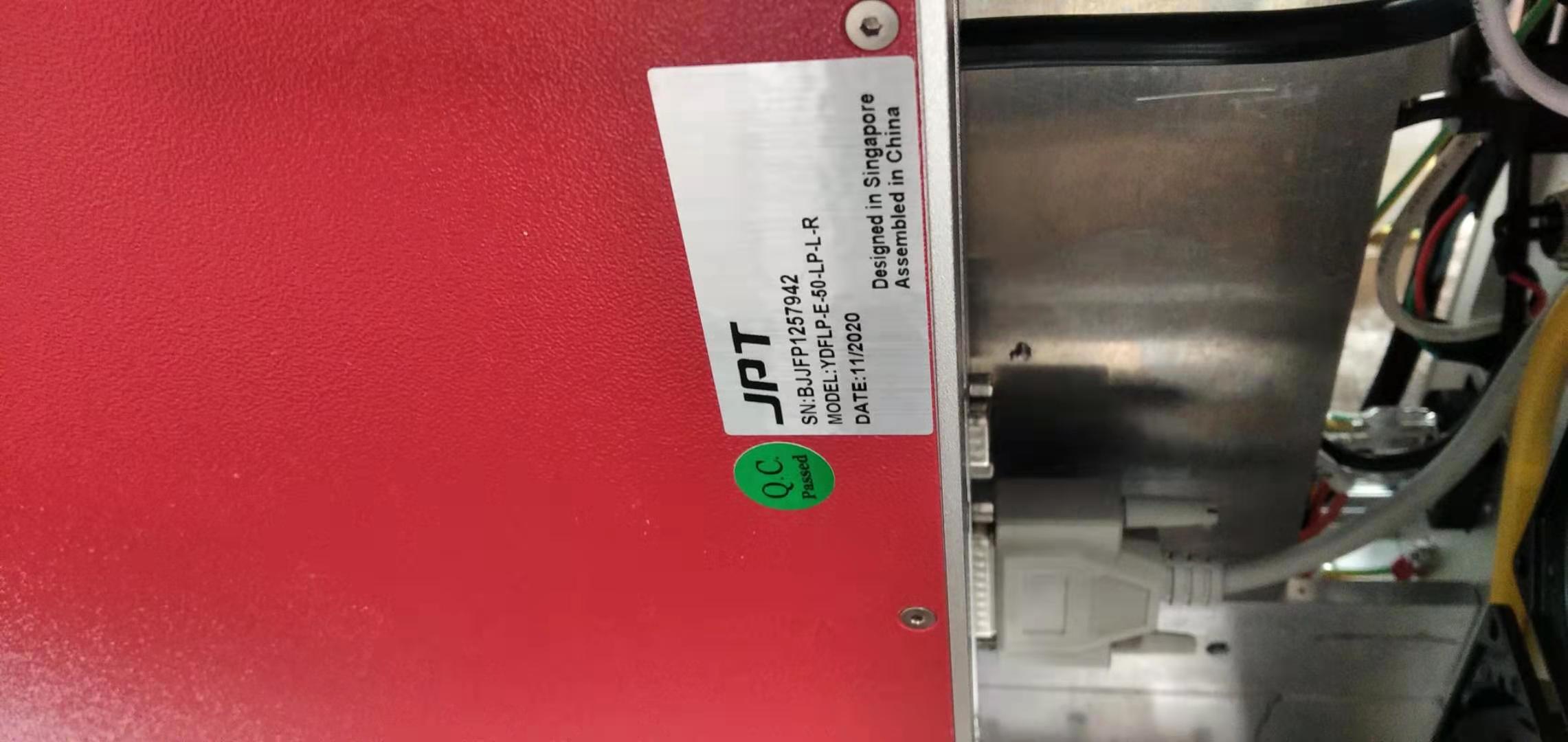

Advantages of JPT laser:
JPT laser can engrave the surface of the material more smoothly. So if you have requirements for laser accuracy, JPT will satisfy you.

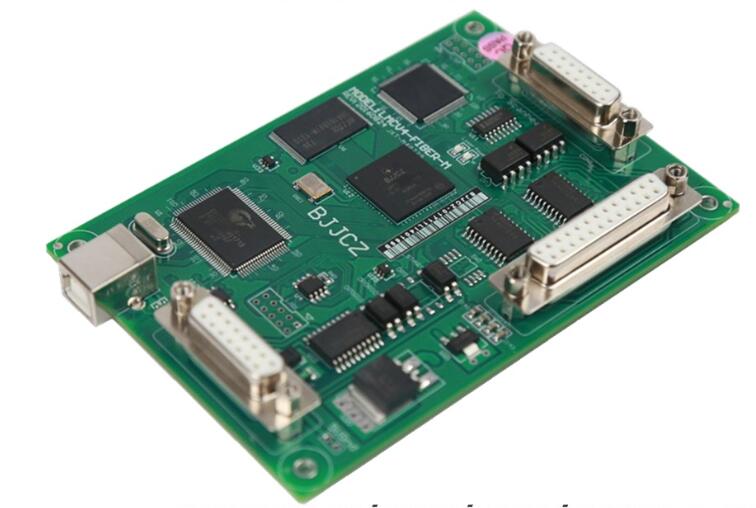

We use the original genuine Beijing JCZ controller. Many sellers use the cracked version of the controller in order to reduce the price, the quality is very bad, prone to problems, and can not be upgraded.
But we insist on using the original controller! (There is a serial number on the controller)

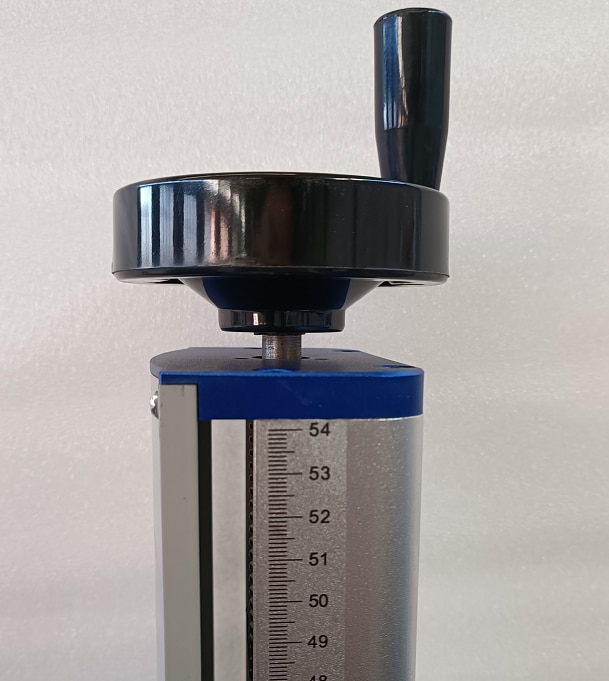

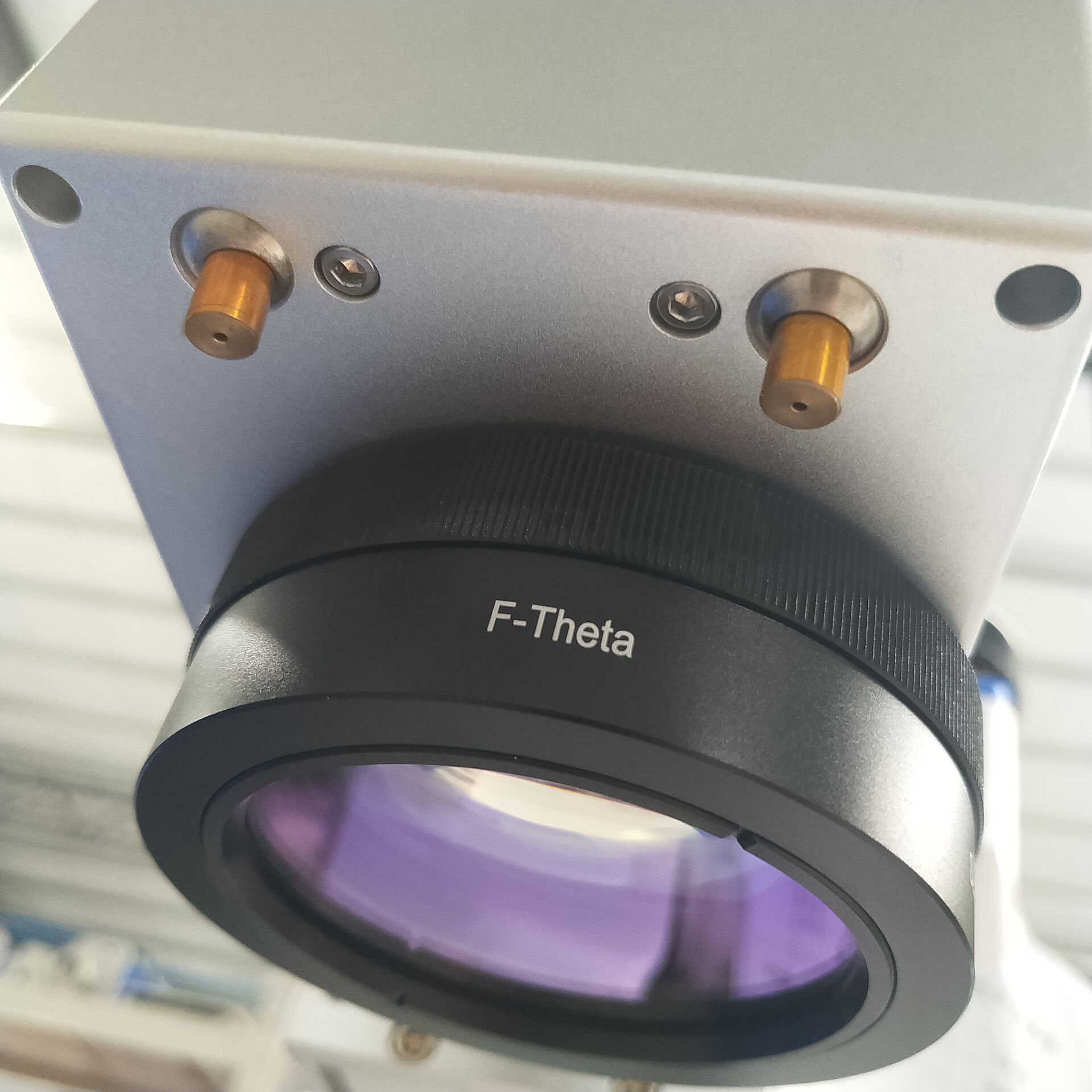

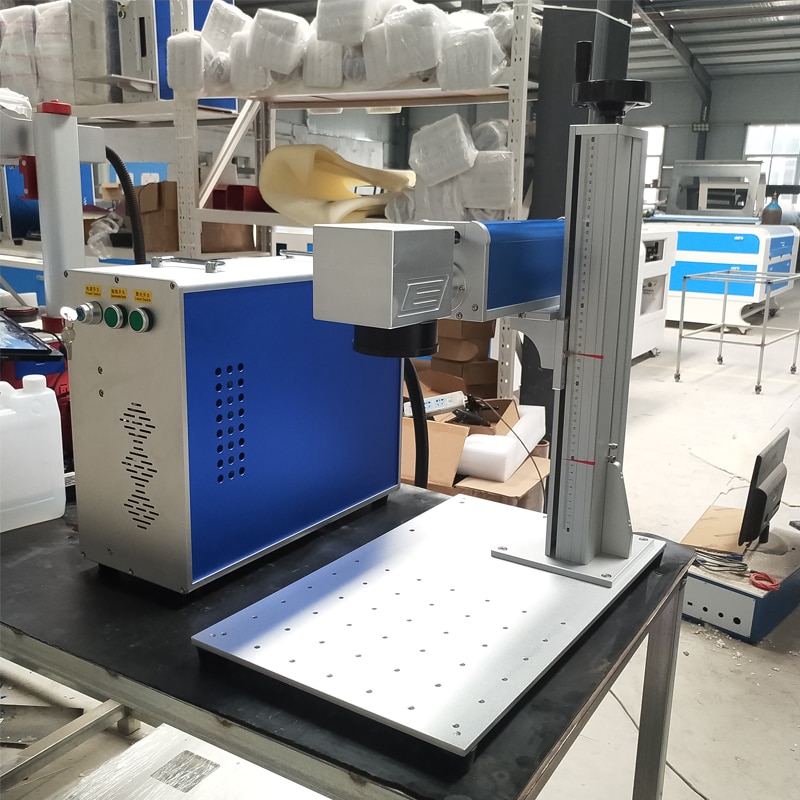

Our machine uses 550mm Z axis, even if you use a 300x300mm wide-range field lens, it can still mark materials up to 80mm in height.

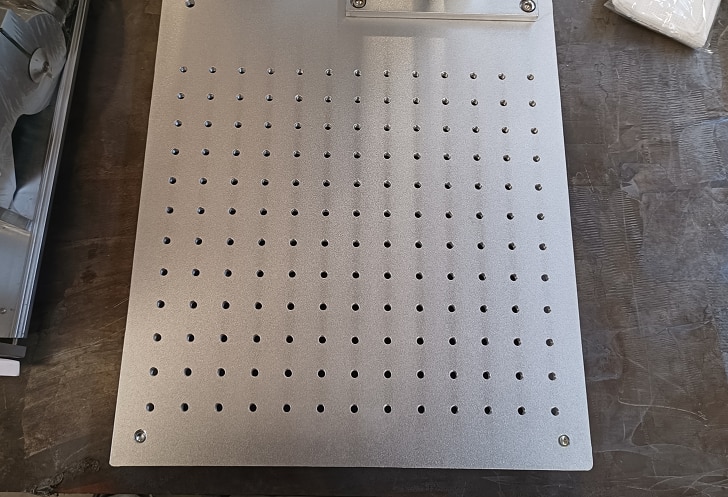

No matter what size lens you choose, we will install a 350*350mm work table for you, so that you can use large-size lenses to mark large-size materials in the future.

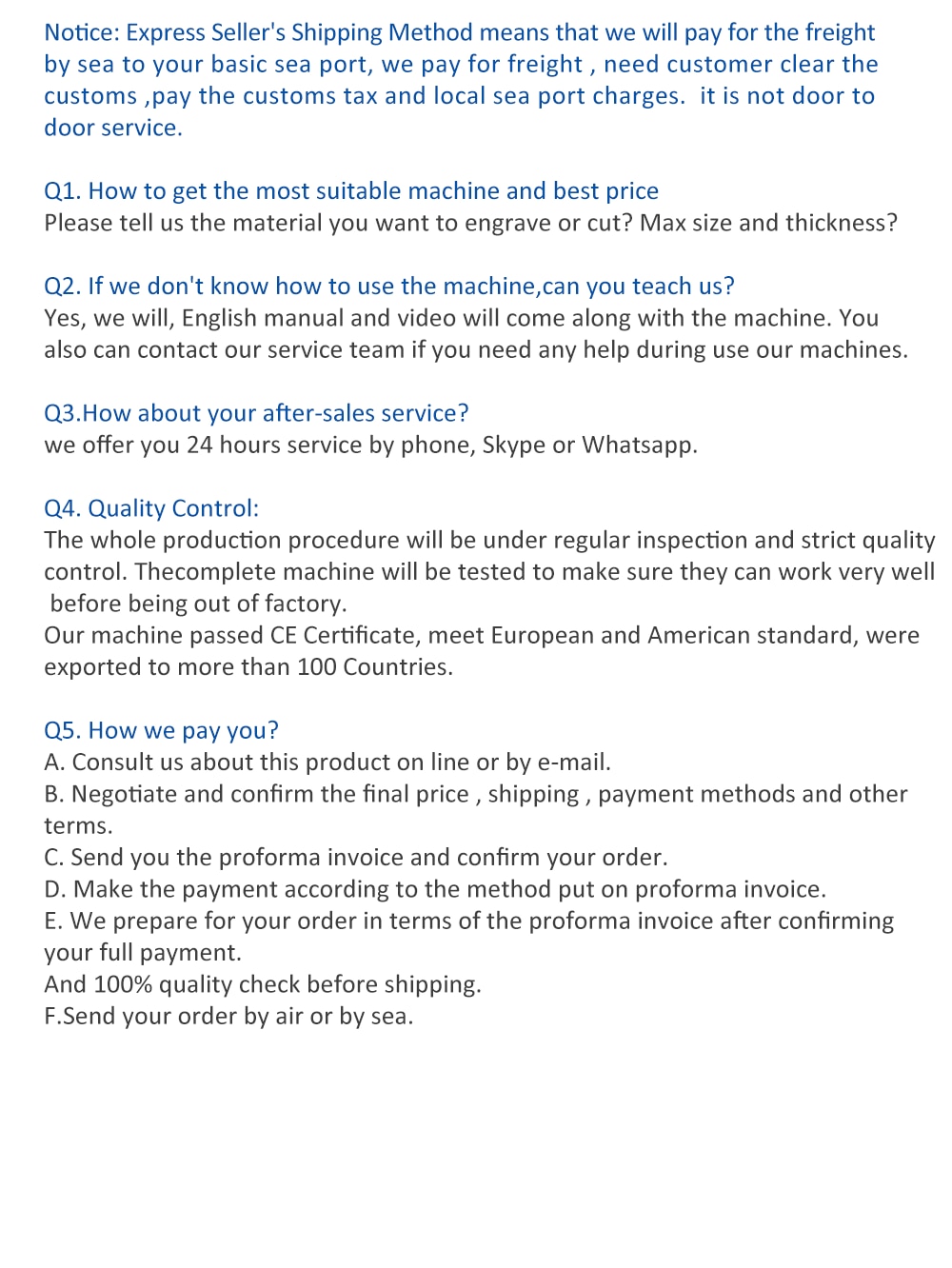

Shipment:
1, Seller’s shipping method means that we will ship this machine by sea to customer’s basic seaport, need customer clear customs, pay the customs tax and your local seaport charges. Due to the impact of the global new crown virus, the shipping price changes quickly, please contact us before placing the order! Tell us your detail address, and we will check the correct shipping cost for you!
2, All transportation costs do not include customs duties and do not include remote fees. If the customer’s address is in a remote area, the customer is required to pay a remote fee.
3, If you choose DHL shipping, it is air shipping, delivery speed is very fast. We recommend this shipping method.
4, For Russia, please pay it directly, the shipping cost and customs tax are included in the price. We can send the machine to the warehouse of the transportation company closest to you, you need to pick up the goods from the warehouse.
