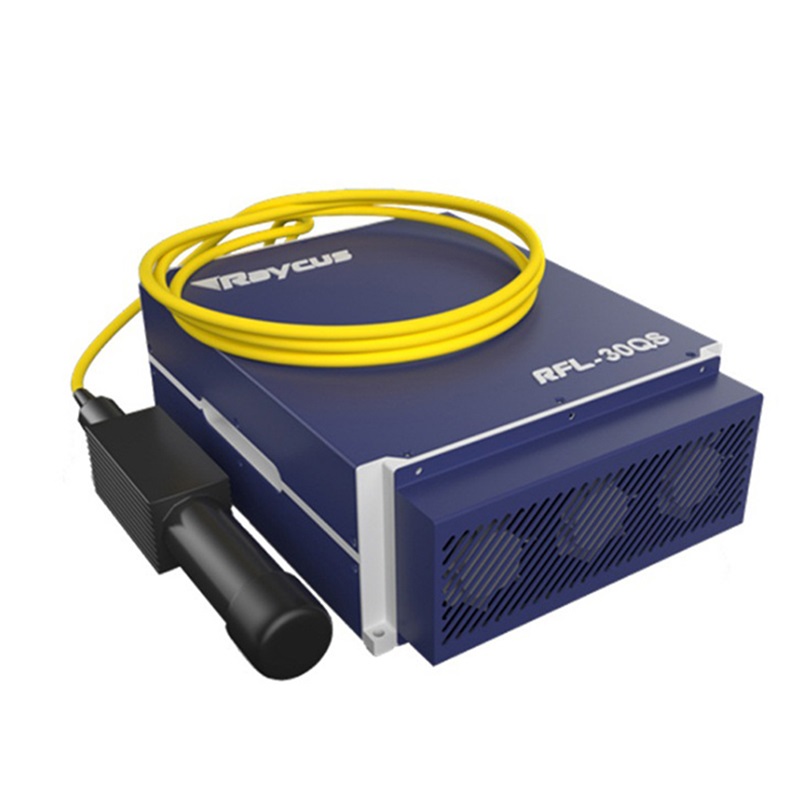

Raycus IPG MAX Fiber Laser Source For Marking Machine RFL-30QB 30W pulse laser source for laser engraving machine

$1,676.98

SKU: 3464046018651 Category:

Description

PRODUCT SPECIFICATIONS

RFL-P30Q Q-switched pulsed fiber laser

Optical characteristics

Average output power(w)
30
Wavelength(nm)
1064
Max modulation frequency(kHz)
30~60
Output power stability
<3%

Output characteristics

Ouput beam diameter(mm)
7±1
M2
<1.5
Polarization state
Random
Pulse width(ns)
90-130
Max.single pulse energy(mJ)
1
Delivery cable length(m)
2, customizable

Electrical characteristics

Power supply(VDC)
24
Power range(%)
10-100
Power consumption(W)
240

Other characteristics

Dimensions(mm)
391x260x120
(Net) Weight(Kg)
<11
Cooling
Forced air
Operating temperature(℃)
0~40

PRODUCT CONFIGURATION

Additional information

Model Number

RFL-QB30
