Description
Products Description
With high average power, high single pulse energy, square or round homogenized spot output, convenient use and maintenance, etc., it is an ideal choice for mold surface treatment, automobile manufacturing, shipbuilding, petrochemical industry, rubber tire manufacturing and other industrial applications .
Product Paramenters
|
Model
|
RFL-P20QE
|

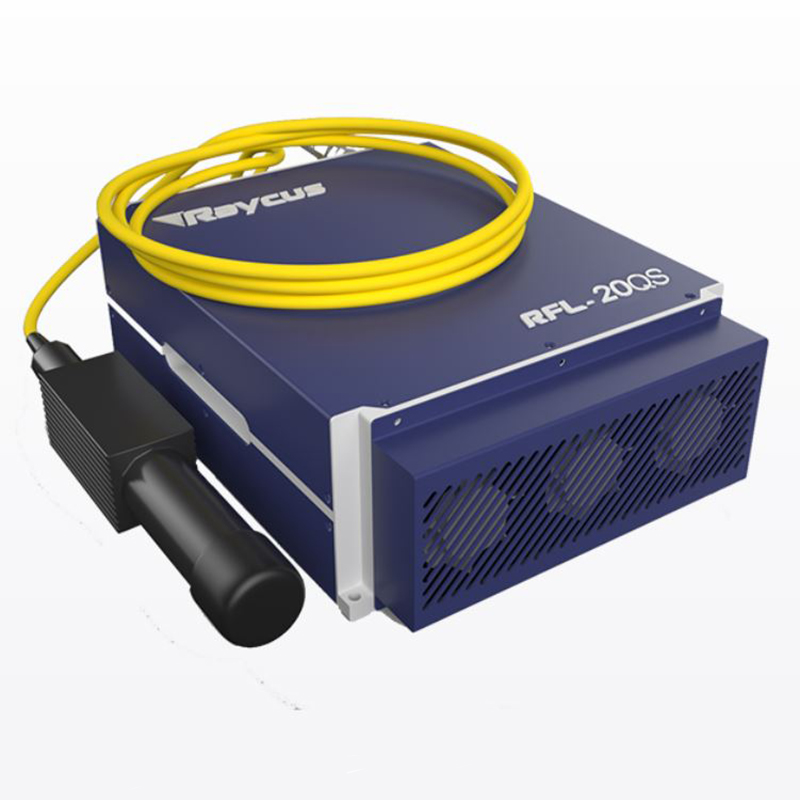

RFL-P20QS
|

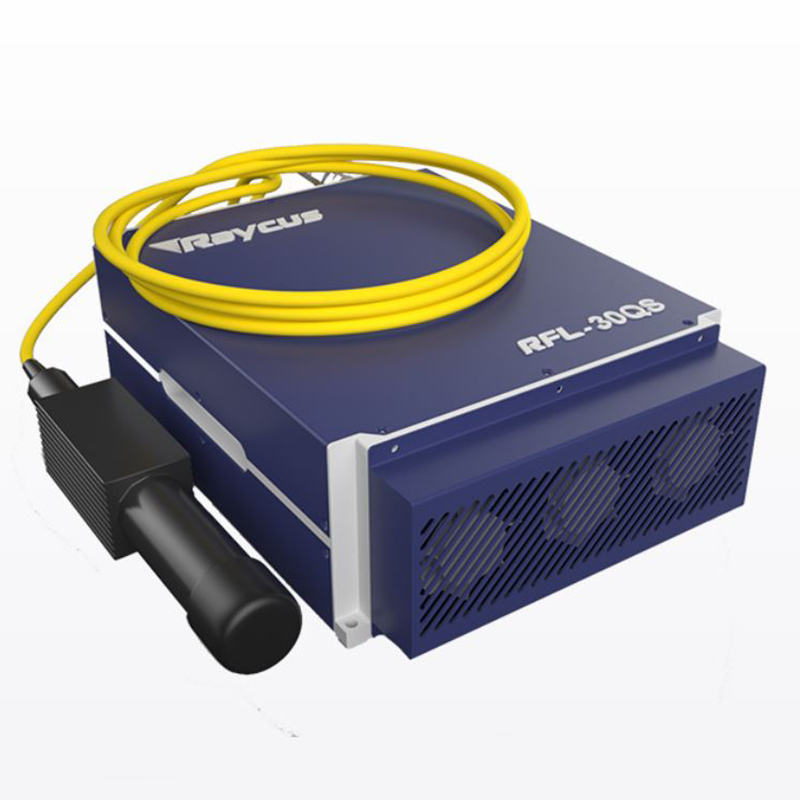

RFL-P30Q
|
RFL-P50QB
|
RFL-P100Q
|
|
Rated output power: (W)
|
20
|
20
|
30
|
50
|
100
|
|
Center wavelength: (nm)
|
1064±5
|
1064±5
|
1064±5
|
1064±5
|
1064±5
|
|
Repetition frequency range (kHz)
|
30-60
|
30-60
|
40-60
|
50-100
|
20-200
|
|
Output power stability
|
＜3%
|
＜3%
|
＜3%
|
＜3%
|
＜5%
|
|
Pulse width range (ns)
|
120-150
|
120-150
|
130-160
|
120-150
|
50-110
|
|
Output spot diameter (mm)
|
7±1
|
7±1
|
7±1
|
7±1
|
6.5±1
|
|
Beam quality M²
|
＜1.5
|
＜1.5
|
＜1.6
|
＜1.6
|
＜1.6
|
|
Maximum single pulse energy (mJ)
|
0.67
|
0.67
|
0.75
|
1
|
1
|
|
Output fiber length (m)
|
3 (can be customized)
|
3 (can be customized)
|
3 (can be customized)
|
3 (can be customized)
|
3 (can be customized)
|
|
Input power (VAC)
|
24
|
24
|
24
|
24
|
24
|
|
Power adjustment range (%)
|
10-100
|
10-100
|
10-100
|
10-100
|
10-100
|
|
Power consumption (W)
|
170
|
180
|
250
|
500
|
1000
|
|
Dimensions (mm)
|
260*340*120
|
215*290*95
|
215*290*95
|
260*340*120
|
360*390*123
|
|
cooling method
|
Air-cooled
|
Air-cooled
|
Air-cooled
|
Air-cooled
|
Air-cooled
|
Applications
laser marking
laser welding
laser cleaning
Our Advantages
Our company is located in Wuhan Optics Valley and has more than 20 years of laser industry experience
Laser Technology R&D Laboratory
Large inventory of lasers
