Description
- CNC or Not: CNC
- Condition: New
- Model Number: TS 20P
- Brand Name: JIN ZHI YIN
- Power: 20w
- laser brand: raycus
- marking area: 110x110mm
- optional marking area: 110×110/150×150/200x200mm
- marking speed: 7000mm/s
- marking depth: ≤0.5mm
- cooling mode: Air cooling–Built-in
- power input: 220V / 50HZ / single phase or 110V / 60HZ / single phase
- power support: <400W
00:00
02:00

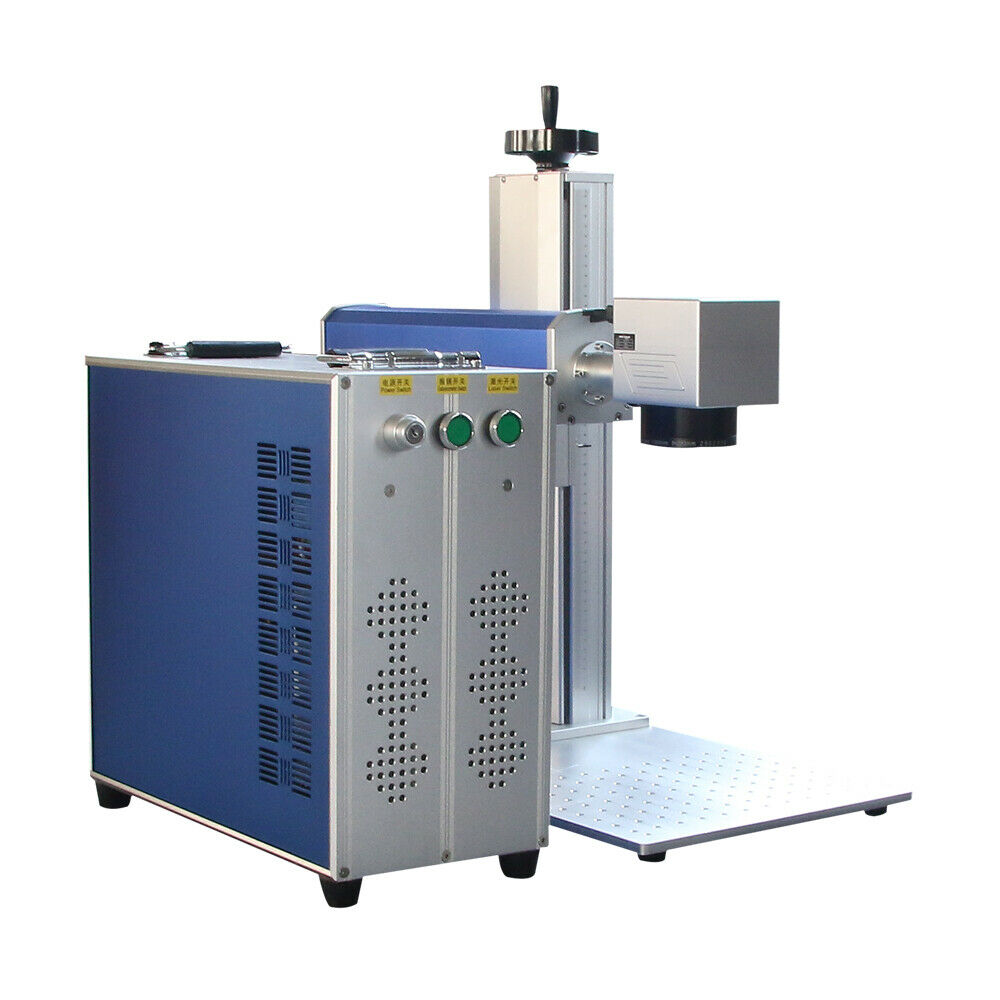

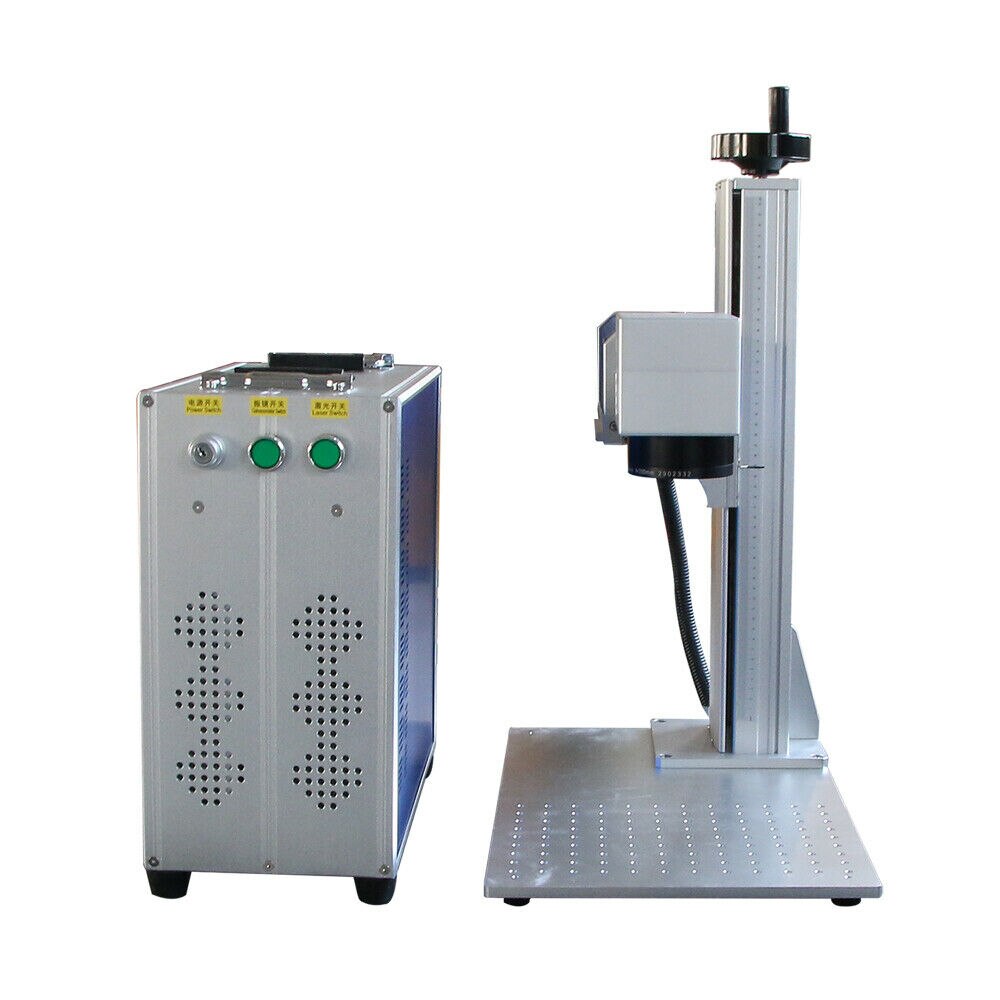

Raycus fiber laser 20w 110x110mm marker area fiber laser module 3d fiber laser making machine
INTRODUCTION:
SPLit laser marking machine is elaborate laser beam with high energy, high in surface, non-contact, fast carving permanent text, design of equipment, modification of laser marking machine, with super energy-saving lifelong free maintenance, no loss, simple operation, fine marking effect etc, the aircraft with domestic high quality laser machine, high beam quality, marking speed, stable, durable, has high cost performance.
Technical Parameters:
|
Type |
TS-2020 |
|
Power |
20W |
|
Laser Brand |
Raycus(Maxphotonics /IPG Optional) |
|
Marking Area |
110mm*110mm |
|
Optional Marking Area |
110mm*110mm/150mm*150mm/200mm*200mm |
|
Marking Depth |
≤0.5mm |
|
Marking Speed |
7000mm/s |
|
Minimum Line Width |
0.012mm |
|
Minimum Character |
0.15mm |
|
Repeated Precision |
±0.003mm |
|
Life-span of Fiber Laser Module |
100 000hours |
|
Beam Quality |
M2 <1.5 |
|
Focus Spot Diameter |
<0.01mm |
|
Output Power of Laser |
10%~100% continuously to be adjusted |
|
System Operation Environment |
Windows XP / W7–32/64bits / W8–32/64bits |
|
Cooling Mode |
Air cooling–Built-in |
|
Temperature of Operation Environment |
15℃~35℃ |
|
Power Input |
220V / 50HZ / single phase or 110V / 60HZ / single phase |
|
Power Requirement |
<400W |
|
Communication Interface |
USB |
|
Package Dimension |
720mm x 460mm x 660mm |
|
Gross weight |
58KG |
|
Optional (Not free of charge) |
Rotary Device, Moving Table, other customized Automation |
PACKING &SHIPPING
PACKING LIST:
(1) User Manual (CD)
(2) The Wrench
(3) The Power Cord
(4) The Goggles (To avoid damage to your eyes when the machine is sculpted)
(5) Foot Pedal Switch (People usually use their hands to replace objects that need marking. If the goods are replaced and the mouse is triggered, the work efficiency will be affected. Therefore, we need to use foot pedals, hands and feet to improve work efficiency.)
(6) Tool Bag
OUR SERVIVES
WARRANTY
1.24 months quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge if there is any problem during the warranty period.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement.
4. Can help you solve problems online or by email in 24hrs, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary
COMPANY INFORMATION
Jinan Gold Mark CNC Machinery Co., Ltd. is a high-tech industry enterprise specialized in researching, manufacturing and selling the machines as follows: Laser Engraver, Fiber Laser Marking Machine, CNC Router. The products have been widely used in advertisement board, crafts and molding, architecture, seal, label, woodcutting and engraving, stonework decoration, leather cutting, garment industries, and so on.
On the base of absorbing the international advanced technology, we provide the clients the most advanced production and perfect after-sale service. In recently years, our products have been sold not only in China, but also as far as Southeast Asia, Middle east, Europe, South America and other overseas Markets.
PRODUCT SAMPLES
FAQ:
Q1. How to get the most suitable machine and best price
Please tell us the material you want to working on ? How to working on it ? Engraving ? Cutting ? Marking Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2. How to use the machine? And How about your after-sales service?
Sure, the machine installation,operation and training instruction CD video are delivered along with the machine.. you can learn how to use it well. And on line 24 hours technical people teach you directly via call, computer remote control, skype video etc. So, don’t worry even you are a beginner on the machine.
Q3 Guarantee and Quality Control :
2 years guarantee
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q4. How we pay you?
Before you place order, you’d better confirm machine details with us, then you can pay by TT,Western union, PayPal, Alipay etc.
Q5:How about the documents after shipment?
After shipment, we’ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q6:How long is the delivery time?
For standard machines, it would be 3-7 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days
