Products Description

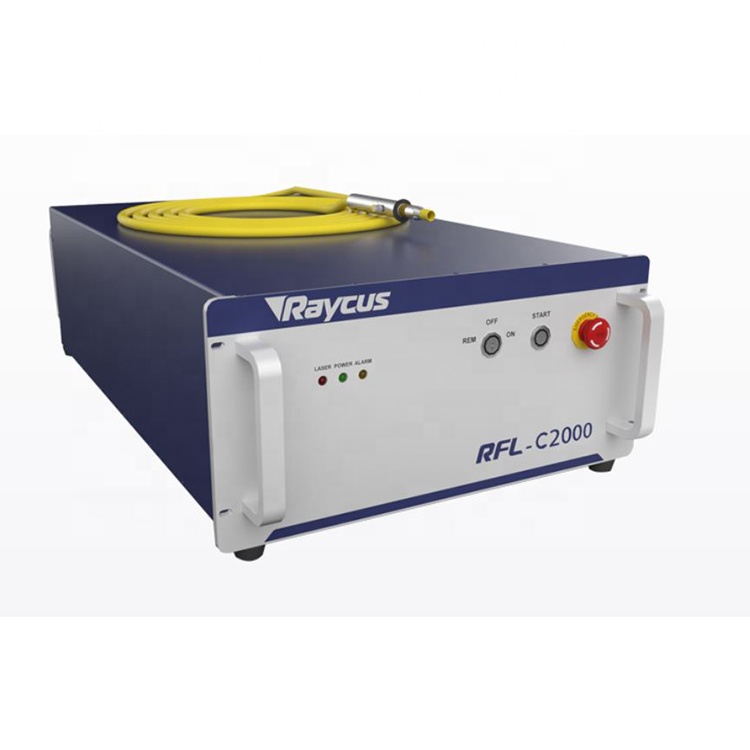

Single Module CW Fiber Lasers
The third-generation single module CW fiber laser series developed by Raycus ranges from 300W to 3,000W, the new lasers havehigher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity and they apply optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This series of lasers apply to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section.
Product Paramenters
|
Model
|
RFL-C1000
|
RFL-C1500H
|
RFL-C2000X
|
RFL-C3000S
|
|||
|
Optica Properties
|
|||||||
|
Average Output Power (W)
|
2000
|
1500
|
2000
|
3000
|
|||
|
Cetral Wavelength (nm)
|
1080±5
|
1080±5
|
1080±5
|
||||
|
Max Modulation Frequency (kHz)
|
5
|
5
|
|||||
|
Output Power Stability
|
±1.5%
|
±1.5%
|
|||||
|
Red Laser
|
Yes
|
Yes
|
|||||
|
Output Characteristics
|
Output Characteristics
|
||||||
|
Output Connector
|
QBH (customizable)
|
QBH (customizable)
|
|||||
|
Beam Quality
|
1.3 (25μm)
|
5-7 (50μm)
|
5-7 (50μm)
|
||||
|
Polarization State
|
random
|
random
|
|||||
|
Output fiber length (m)
|
20 (customizable)
|
20 (customizable)
|
|||||
|
Electronic Control Characteristics
|
Electronic Control Characteristics
|
||||||
|
Input Power (V AC)
|
220-240, single phase
|
380±10%, three phase-four wire connet
|
380±10%, three phase-four wire connet
|
||||
|
Control Mode
|
RS232, AD, super terminal
|
RS232, AD
|
RS232, AD
|
||||
|
Power Adjustment Range (%)
|
10-100
|
10-100
|
|||||
|
Other Characteristics
|
Other Characteristics
|
||||||
|
Cooling method
|
Water Cooling
|
Water Cooling
|
|||||
|
Working Temperature (℃)
|
10-40
|
10-40
|
|||||
Applications
Laser welding machine
Laser cutting machine
Laser cleaning machine
Our Advantages
Our company is located in Wuhan Optics Valley and has more than 20 years of laser industry experience
RAYCUS Laser Wuhan R&D Center

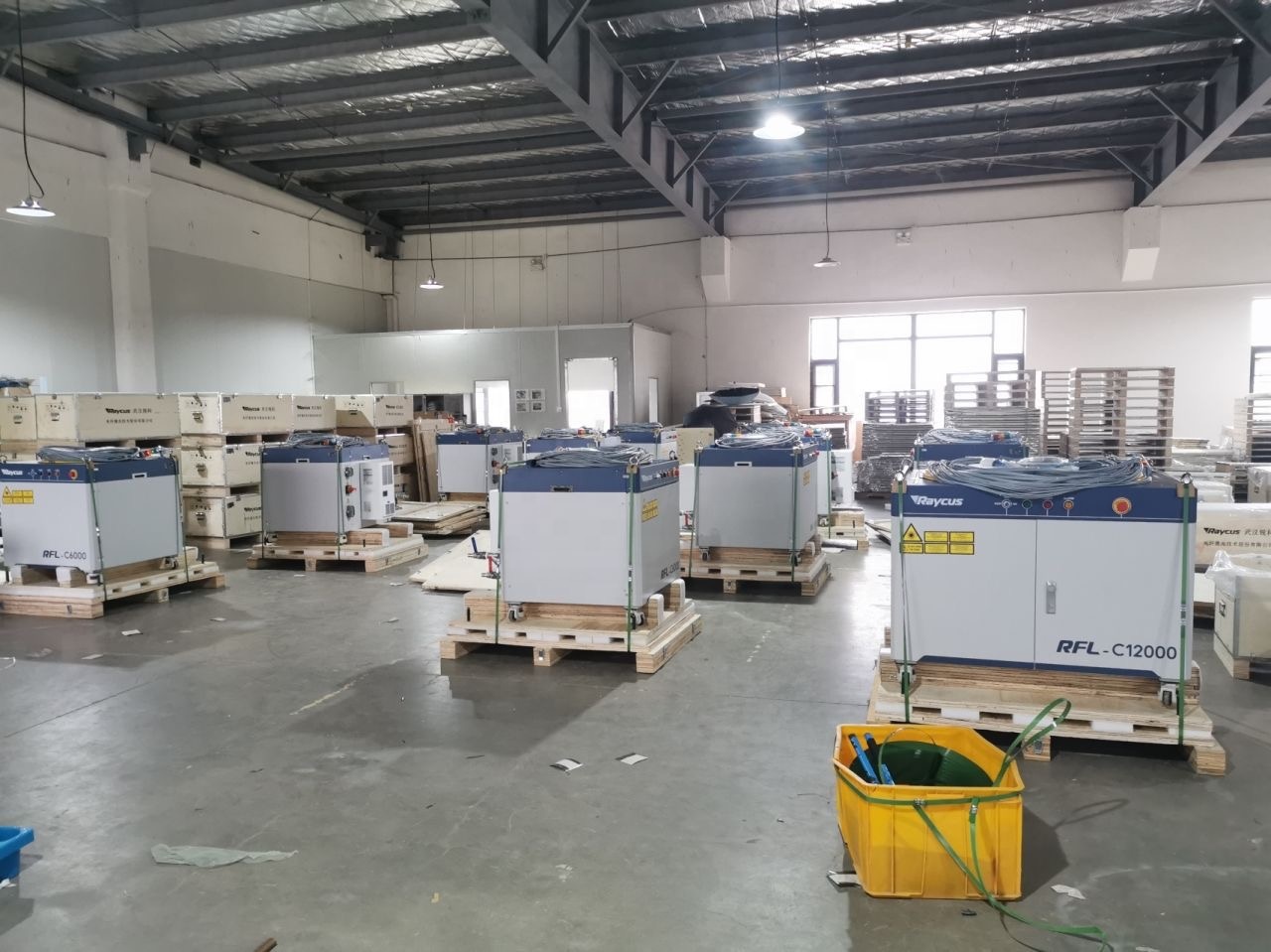

RAYCUS Laser Wuhan Production Base
