Raycus 10W 20W 30W Pulsed Fiber Laser Source Laser Tube Laser Generator

$3,931.80

SKU: 3586157018651 Category:

Description

Raycus 10W 20W 30W Pulsed Fiber Laser Source Laser Tube Laser Generator




Product Description

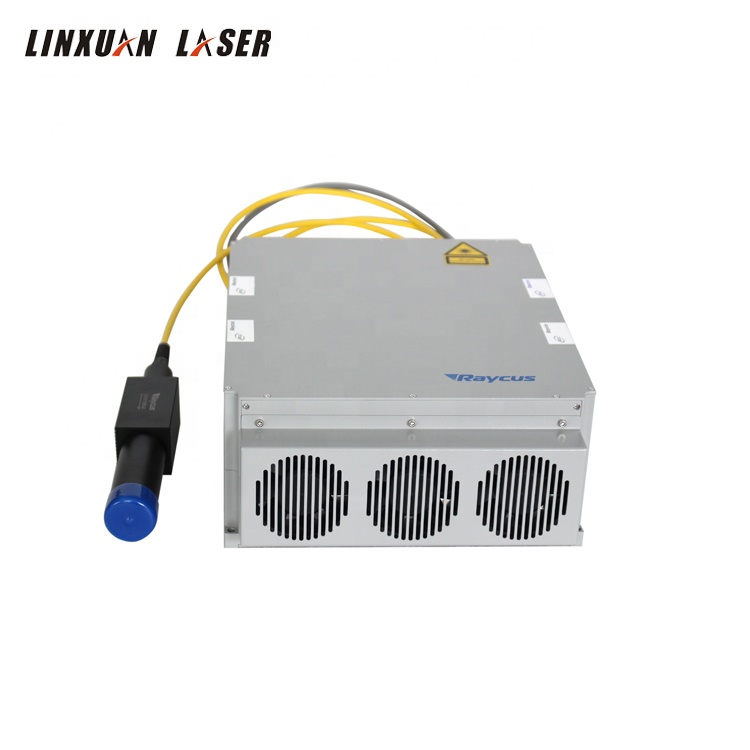

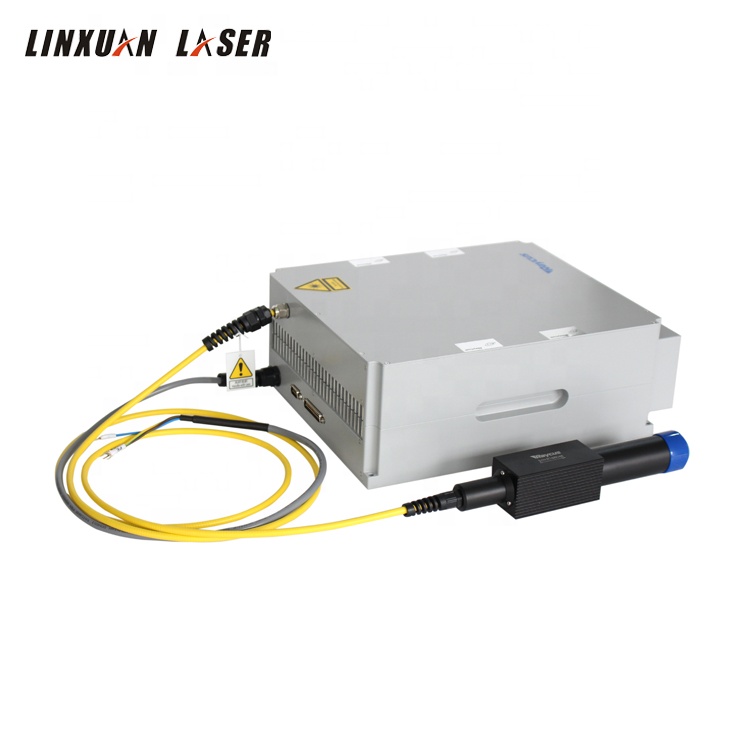

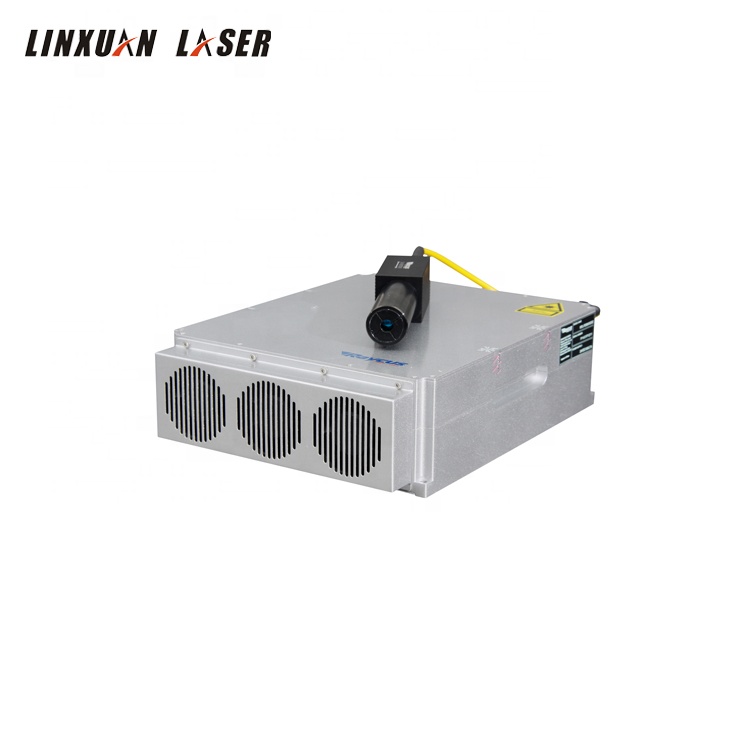

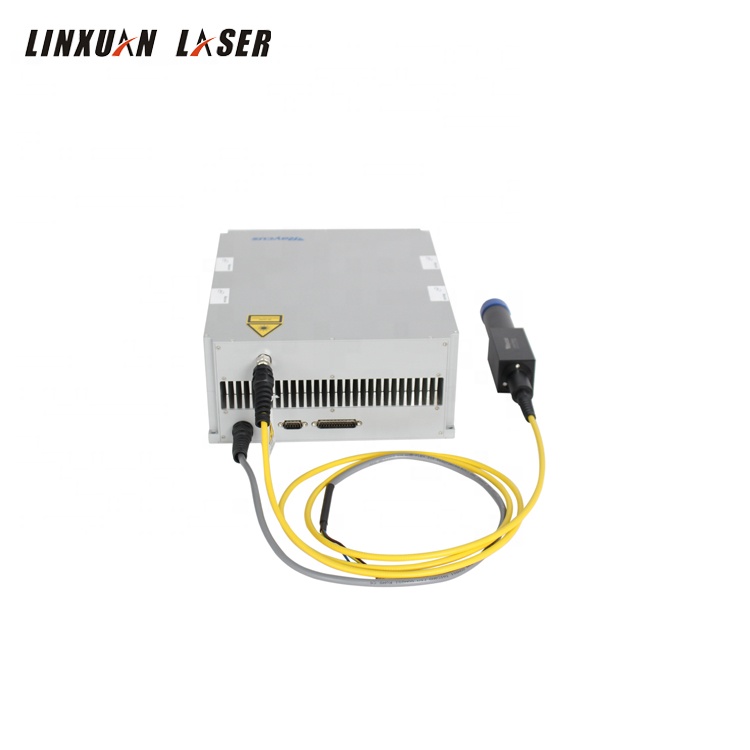

Q-Switched Fiber Laser Source

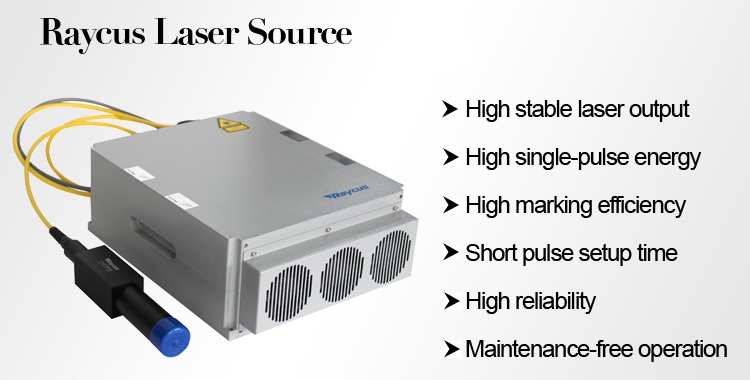

The 10-100W Q-Switched Pulse Fiber Laser Seriesdeveloped by Raycus is the industrial marking and micromachining laser developed by Raycus. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude stress resistance, stainless materials without altitude stress resistance. Its marking process features lower cost and more stable performance compared with traditional laser. All components of the 10-100W Q-switched pulse fiber laser are developed by Raycus independently, with high product reliability. And its good compatibility has well recognized by the market and its quality has reached the international advanced level.



Specifications:

Model RFL-P20QE RFL-P30Q RFL-P50Q RFL-P100Q
Output Power(W): 20 30 50 100
Wavelength(nm): 1064 1064 1064 1064
Repetition Frequency Range(kHz): 20-60 30-60 50-100 20-200
Output Power Stability: <3% <3% <3% <5%
Output Beam Diameter(mm): 7±1 7±1 7±1 6.5±1
Pulse Width(ns) 90-130 90-130 90-150 50-130
Power Supply(VDC) 24 24 24 24
Power Range(%): 10~100 10~100 10~100 10~100
Power Consumption(W): 170 240 340 450
Dimensions(mm): 391×260*120 391×260*120 396x360x123 396x360x123
Cooling Type: Forced air Forced air Forced air Forced air
Operating Temperature(℃) 0-40 0-40 0-40 0-40
Application

Application: Fiber laser marking machine






Marking samples by fiber laser marking machine


Additional information

Model Number

RFL-P30Q
